Schlegel pushbuttons and operators

Looking for Schlegel pushbuttons? Gross Automation distributes Schlegel command devices: illuminated and non-illuminated buttons in 16 mm, 22 mm and 30 mm panel sizes, rated to IP65–IP69K. 78 part numbers below, each with a quote button.

Request a quoteConfigure a product

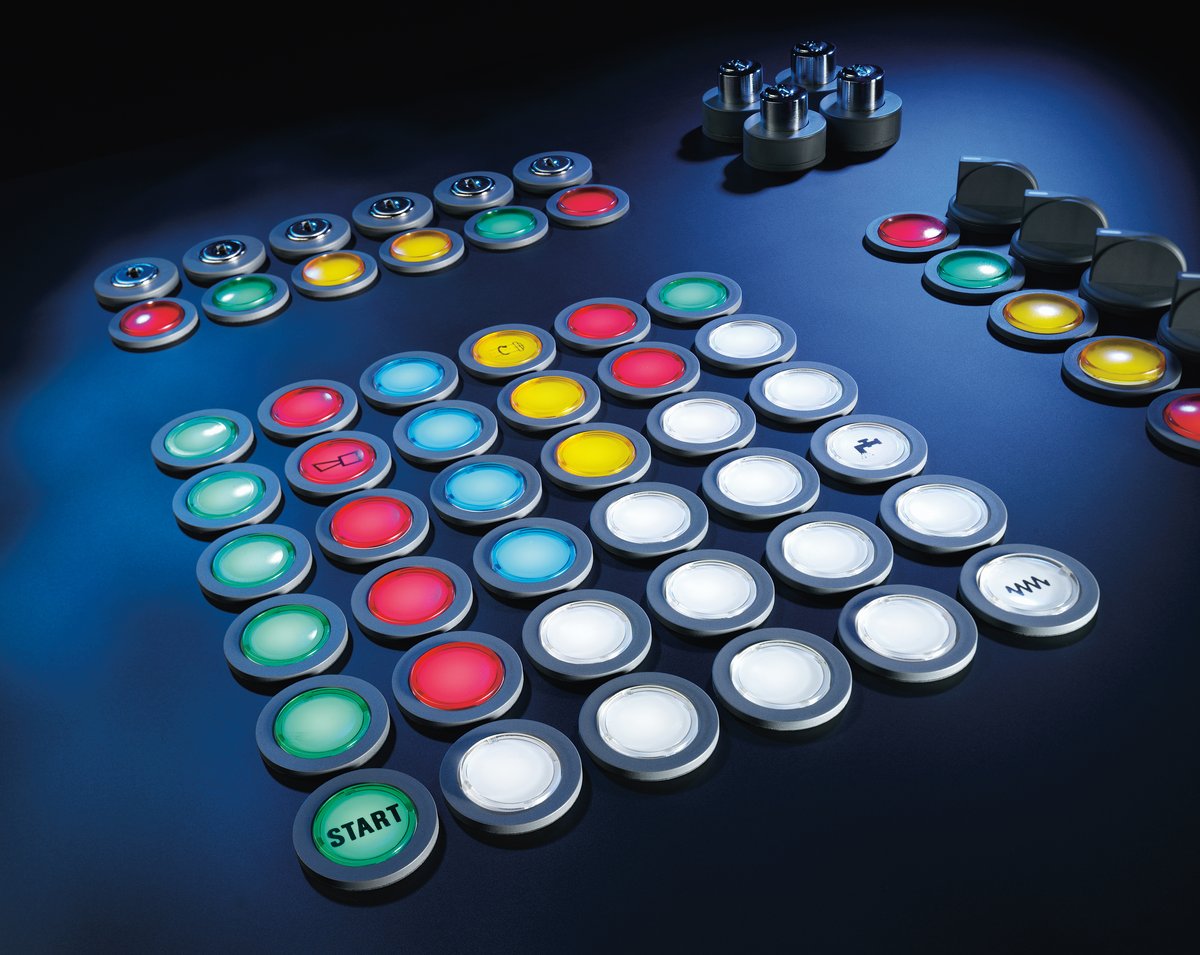

Metal and plastic bezels, momentary and maintained actions, and LED illumination cover everything from simple start/stop to complex operator stations.

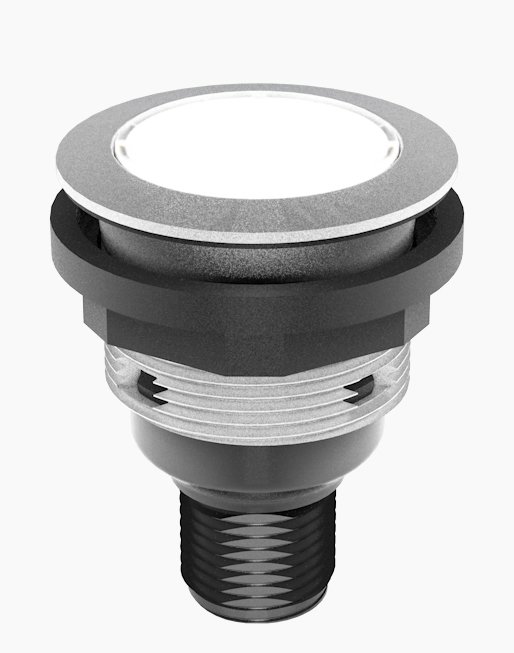

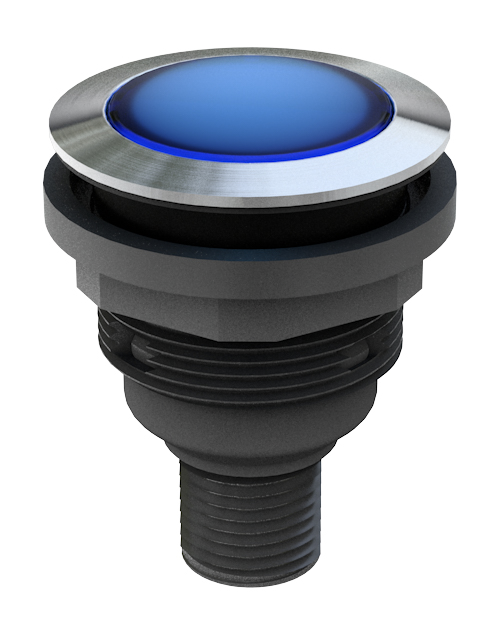

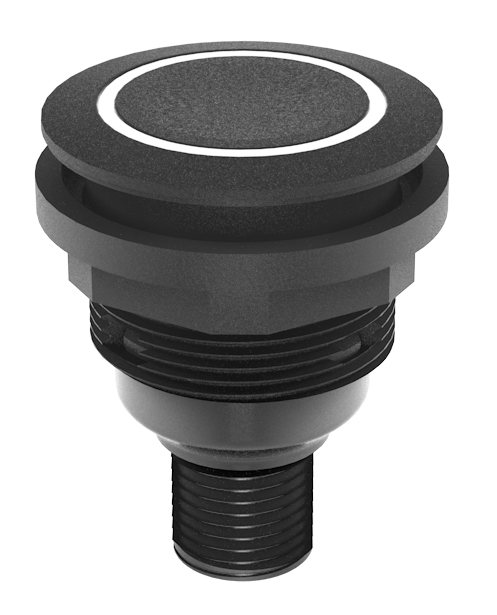

For faster, cleaner panel wiring, the SHORTRON® connect series adds M12 connectors so operators plug in instead of being hand-wired: useful for modular machine builds and reduced assembly time.

How to choose

  • Panel cutout: 16 mm, 22 mm, or 30.5 mm
  • Illuminated vs. non-illuminated (LED color & voltage)
  • Protection rating for your environment (up to IP69K washdown)
  • Contact configuration (NO/NC) and contact count
  • Connection: Faston terminals, screw terminals or M12 (SHORTRON® connect)
  • Custom legend, color, or text, via the Gross Automation OEM channel

Pushbutton 68

  • BVQXJPushbutton
    Request a quoteView on GrossAutomation.com

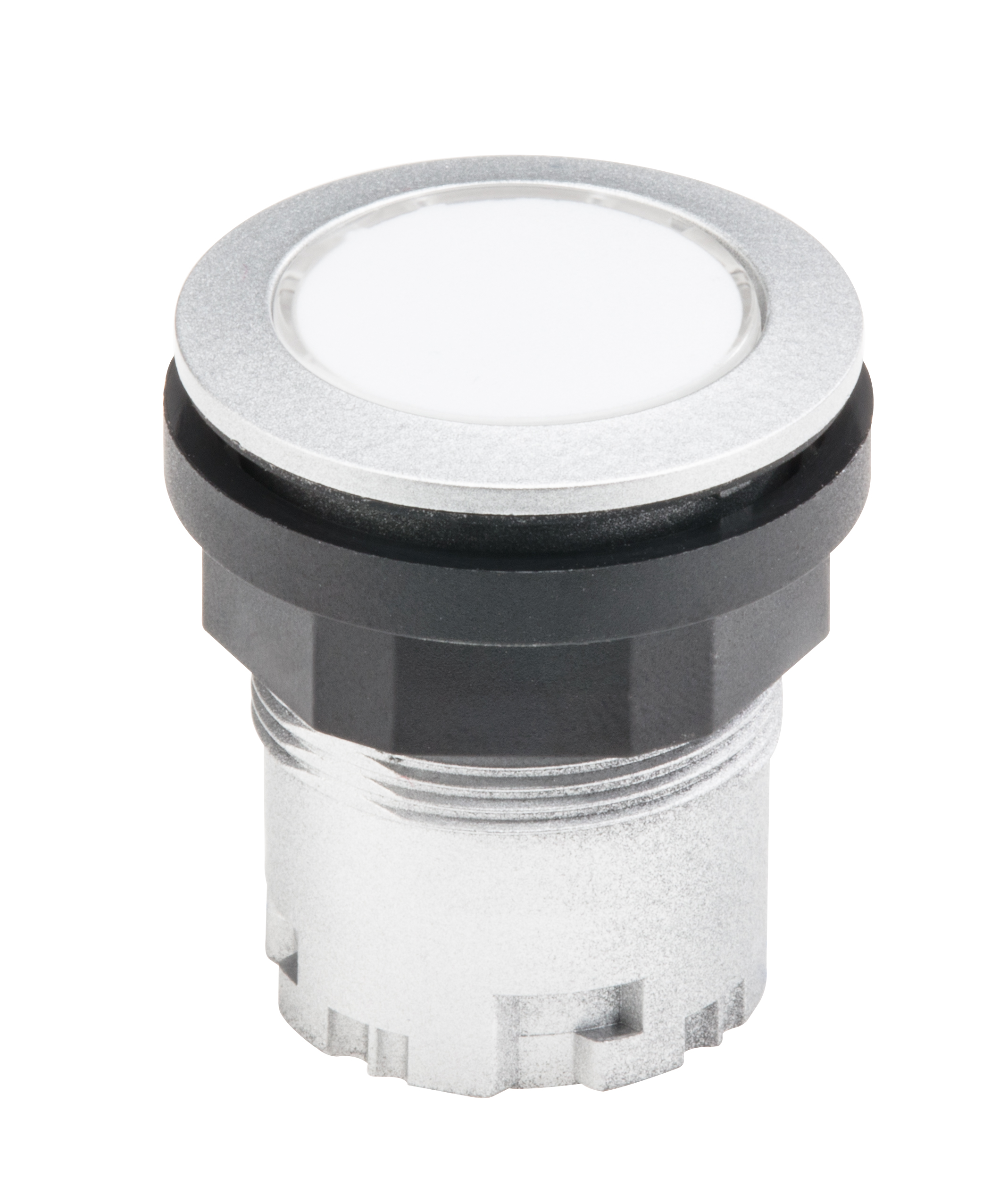

  • JRMTPushbutton
    Series
    RONDEX-JUWEL®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66 / IP67
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (9)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    9.4 g

    Values as stated in Schlegel’s datasheet (19.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

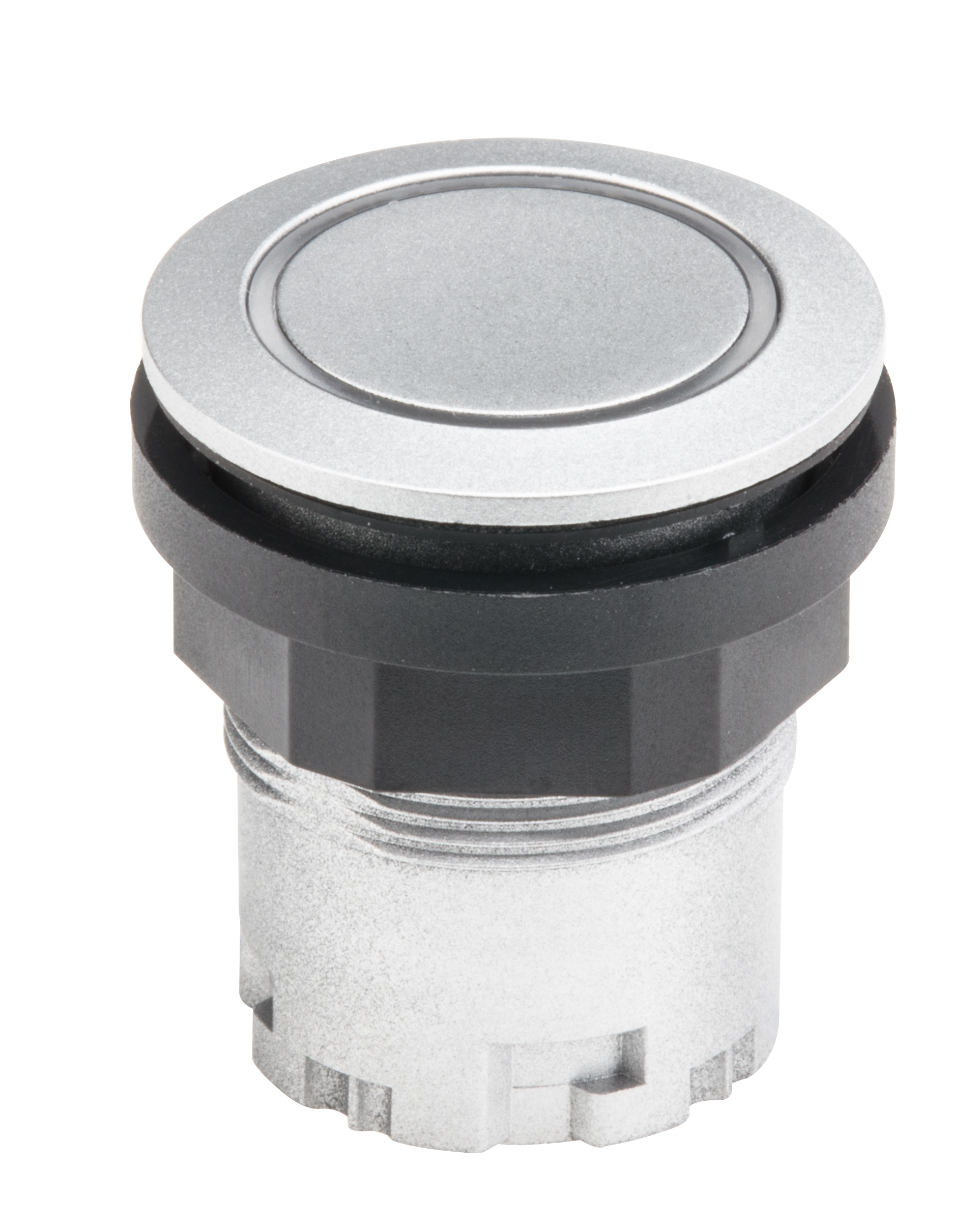

  • JRMTLRPushbutton
    Series
    RONDEX-JUWEL®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66 / IP67
    Shape
    Round
    Bezel color
    Silver
    Actuator color
    silver
    More specifications (9)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    10.2 g

    Values as stated in Schlegel’s datasheet (19.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

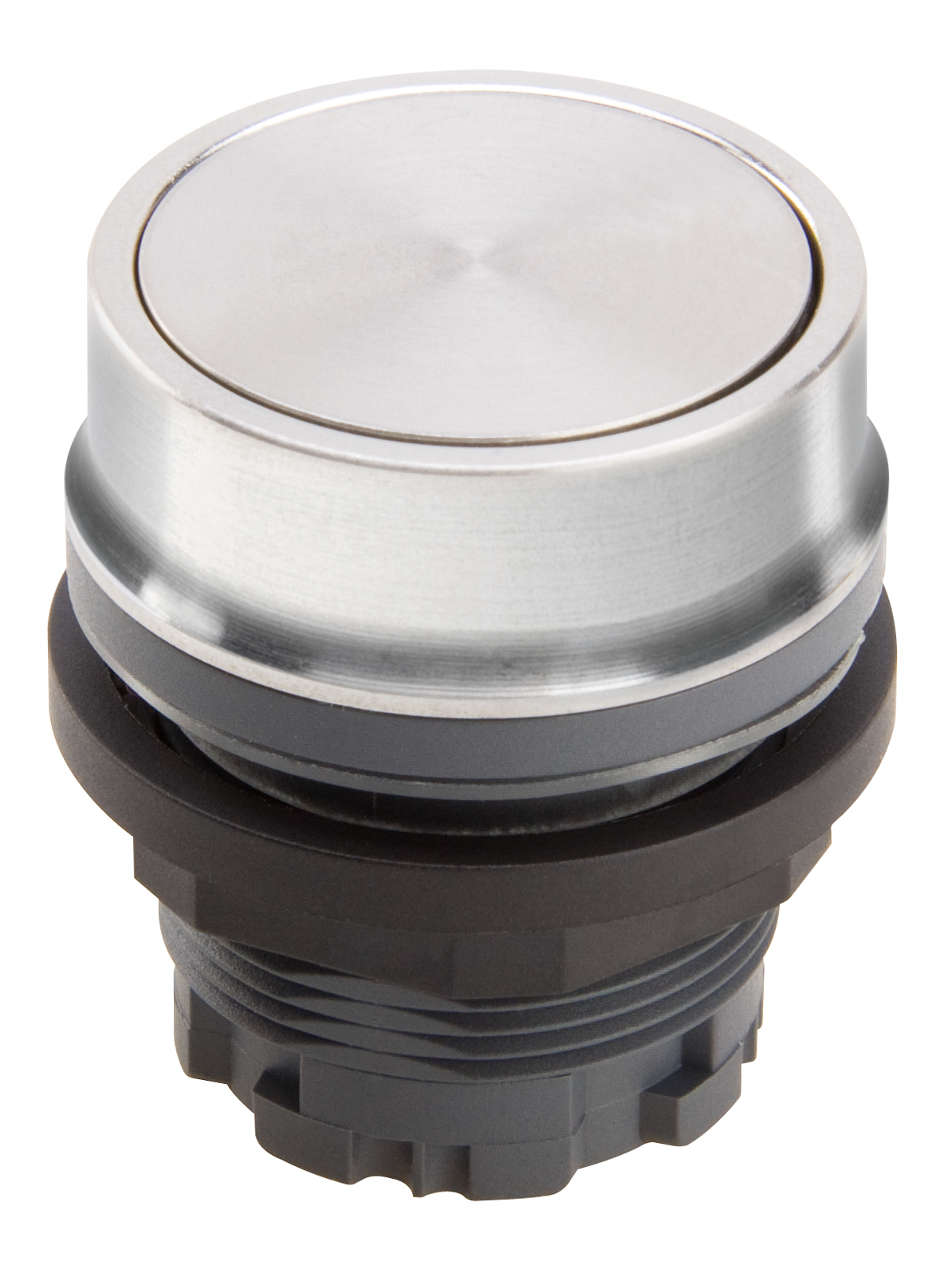

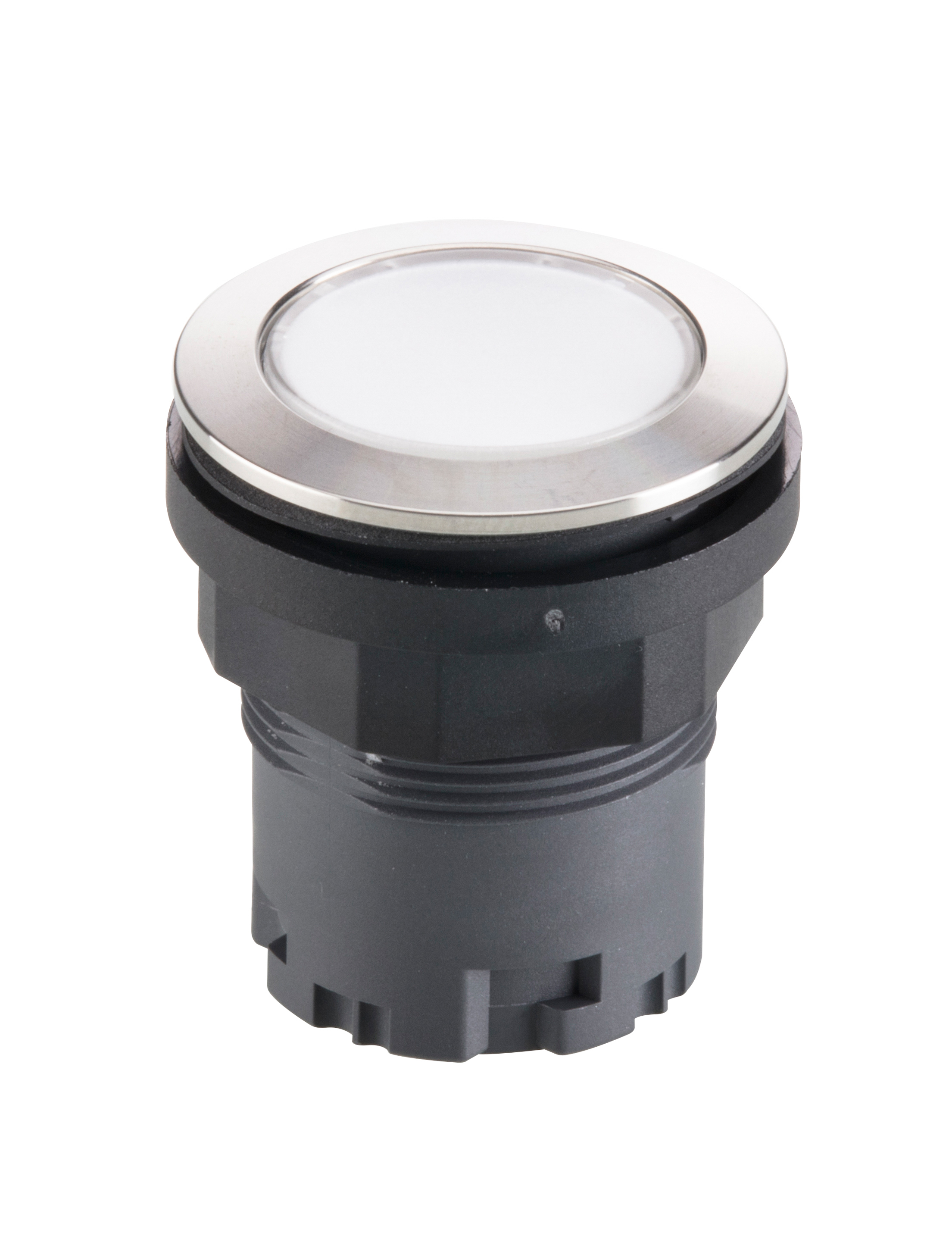

  • JRVATPushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66 / IP67
    Shape
    Round
    Bezel color
    Stainless steel
    Illuminated
    Yes
    Travel
    6 mm
    More specifications (7)
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    11.86 g

    Values as stated in Schlegel’s datasheet (19.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

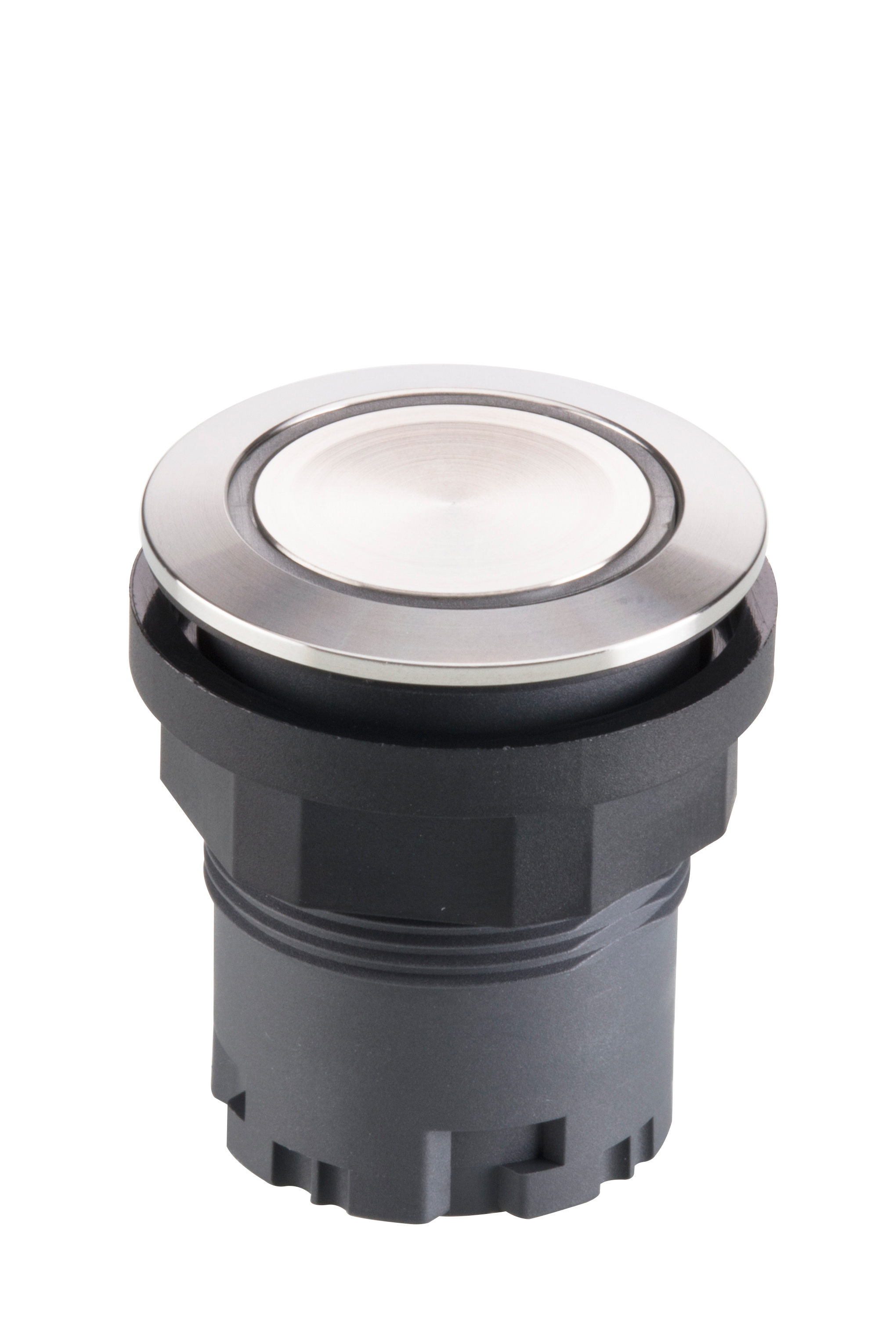

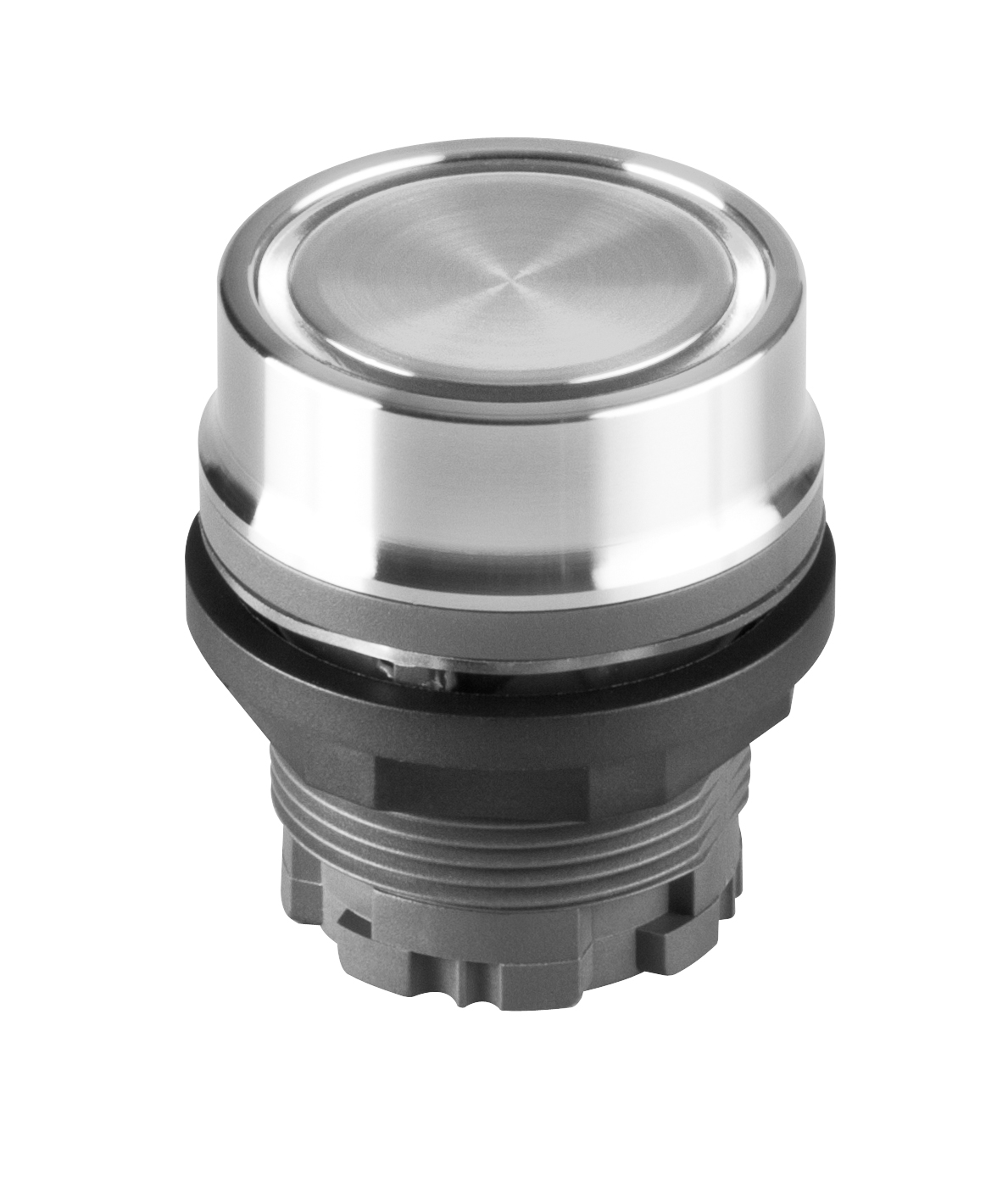

  • JRVATLRPushbutton
    Series
    RONDEX-JUWEL®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66 / IP67
    Shape
    Round
    Bezel color
    Stainless steel
    Actuator color
    stainless steel
    More specifications (9)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    13.9 g

    Values as stated in Schlegel’s datasheet (19.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

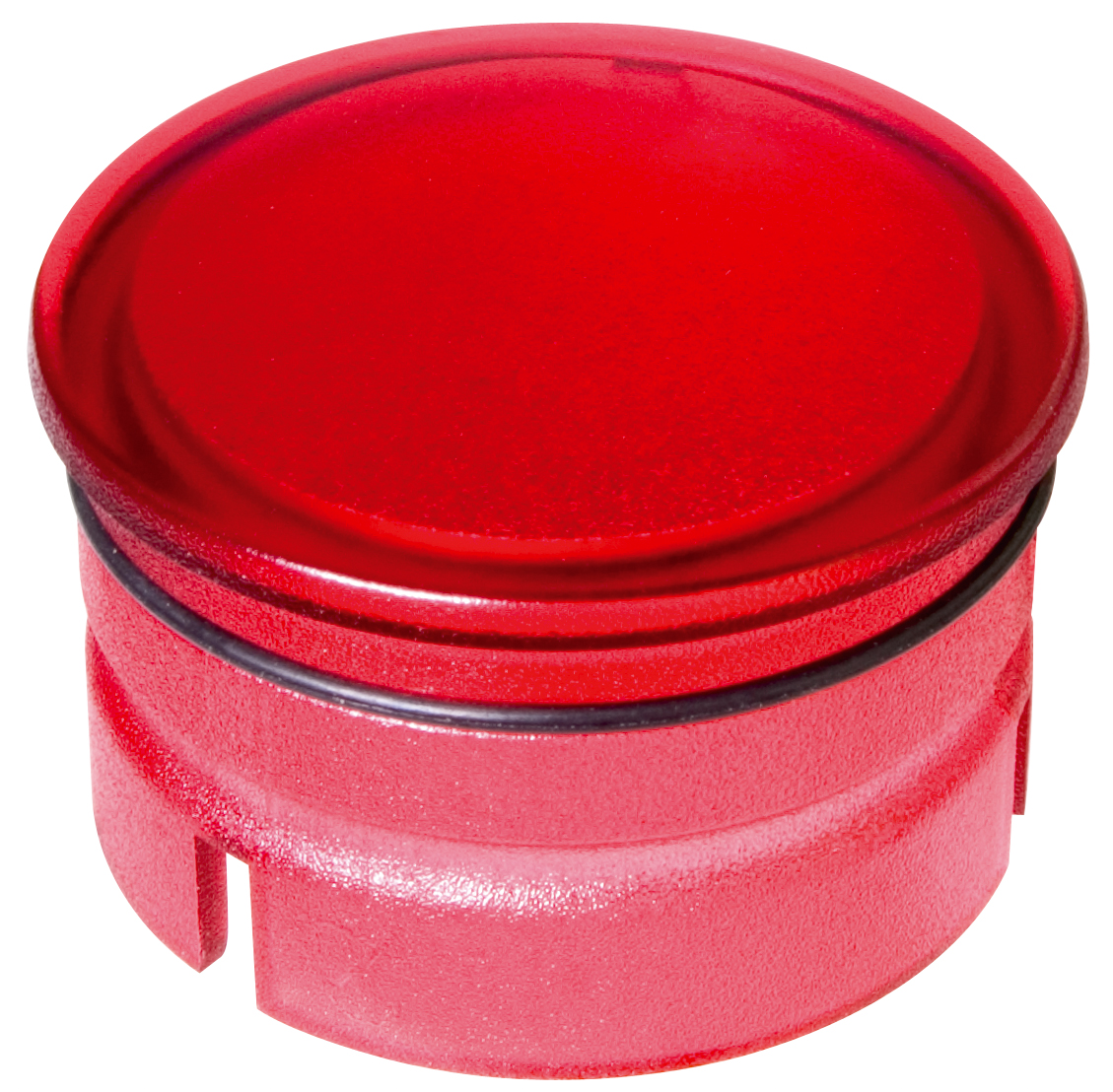

  • KF30RTPushbutton
    Color
    Red

    Values as stated in Schlegel’s product data

    Request a quoteView on GrossAutomation.com

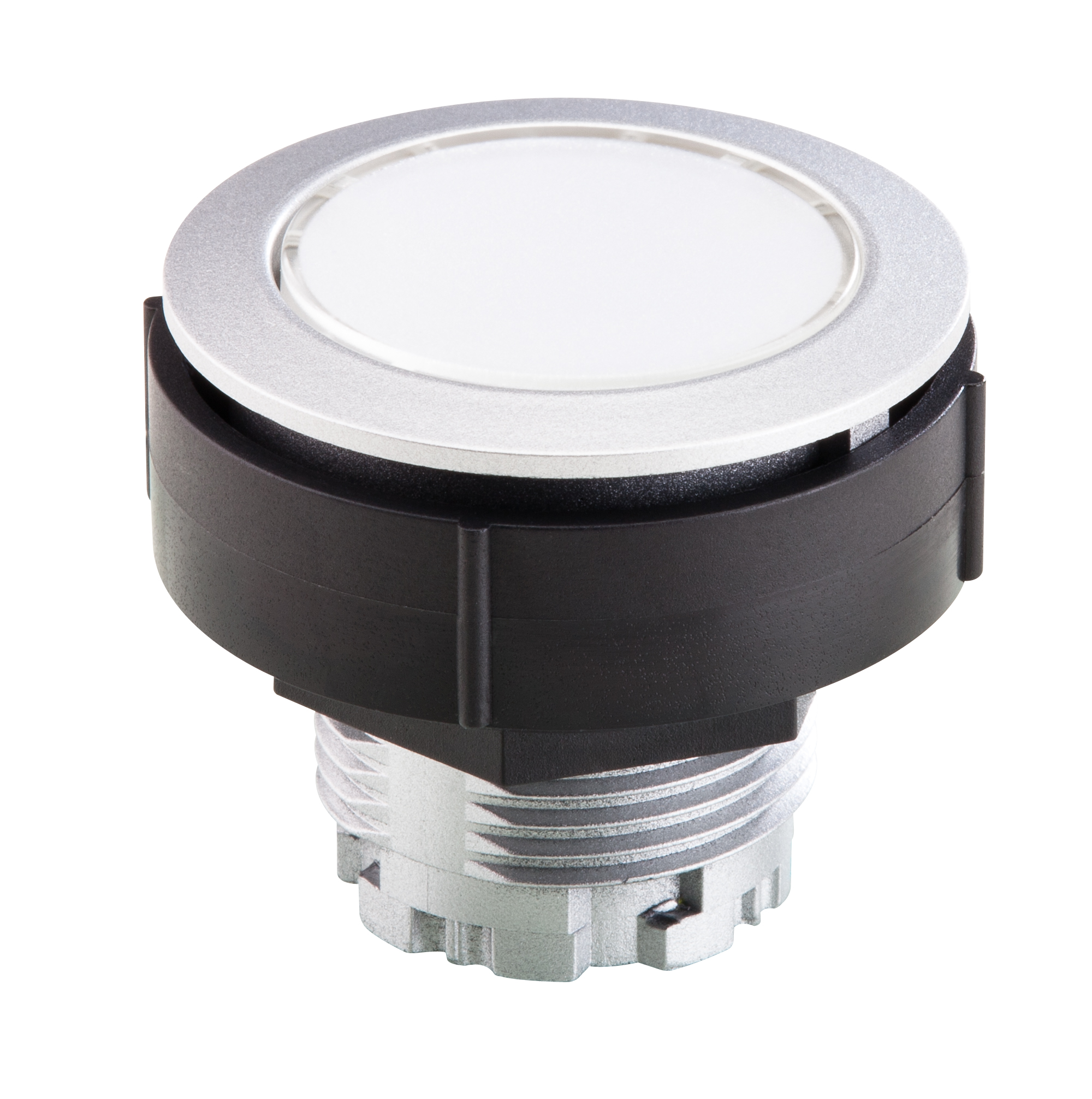

  • KRJMTPushbutton
    Series
    KOMBITAST®-R-JUWEL
    Panel cutout
    Ø 30.5 mm
    Protection (front)
    IP66 / IP67 / IP69K
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (9)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 8 mm
    Mounting position
    any
    Operating temperature
    -40 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    16.6 g

    Values as stated in Schlegel’s datasheet (21.08.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

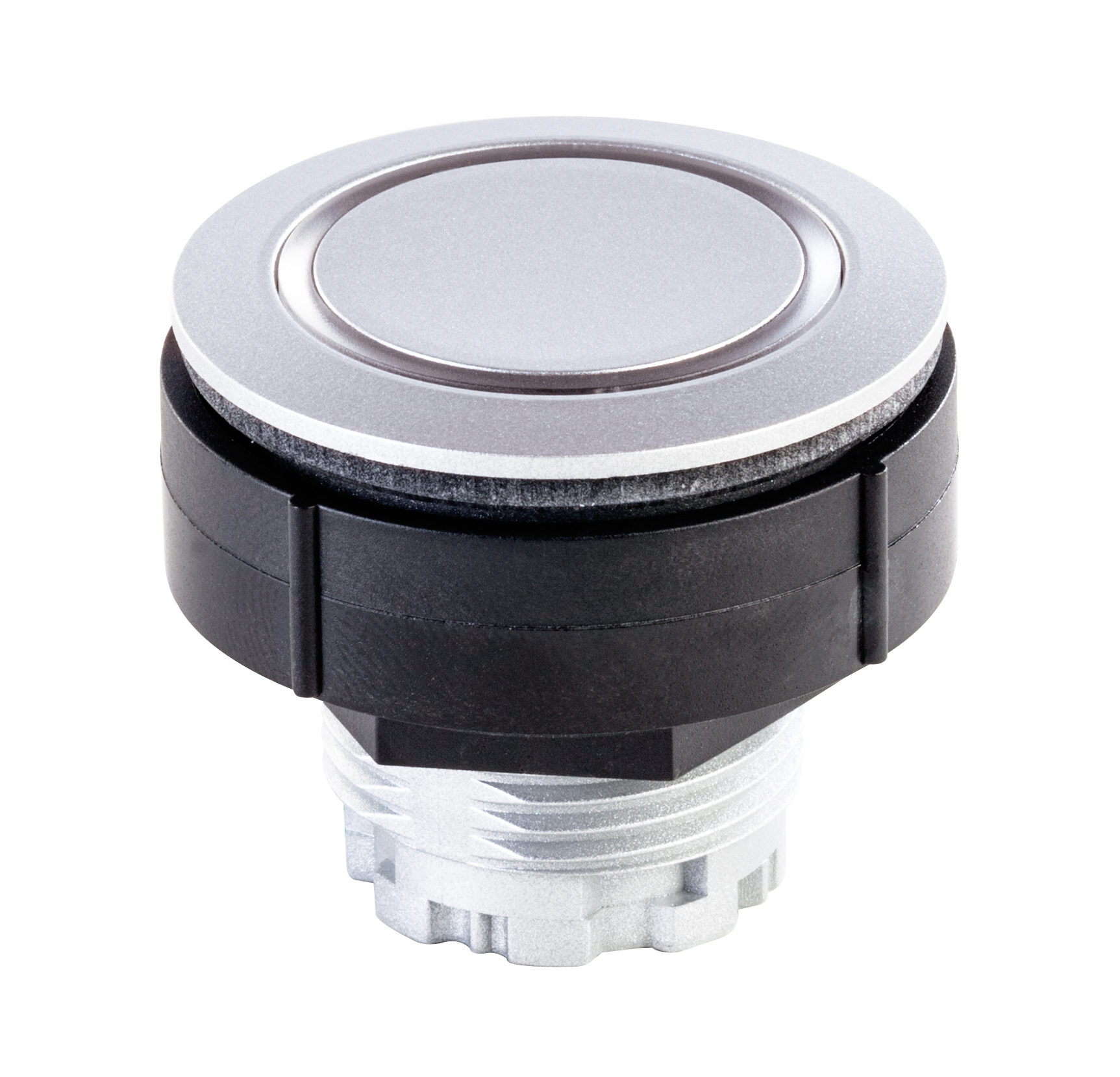

  • KRJMTLRPushbutton
    Series
    KOMBITAST®-R-JUWEL
    Panel cutout
    Ø 30.5 mm
    Protection (front)
    IP69K
    Shape
    Round
    Bezel color
    Silver
    Illuminated
    Yes
    More specifications (7)
    Travel
    6 mm
    Panel thickness
    1 mm to 8 mm
    Operating temperature
    -40 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CE, cULus, DNVGL, UKCA
    Weight
    18.4 g

    Values as stated in Schlegel’s datasheet (16.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

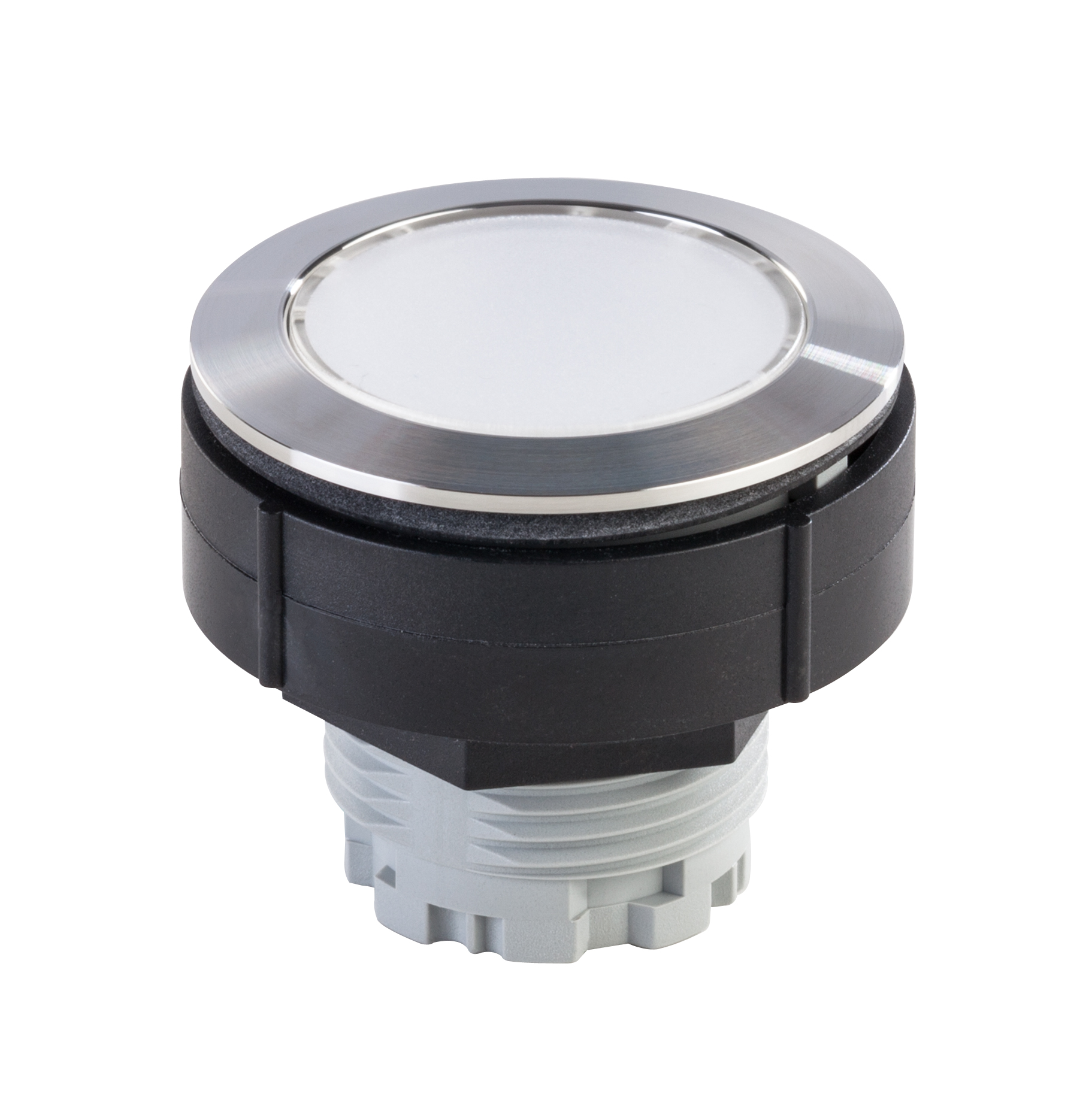

  • KRJVATPushbutton
    Series
    KOMBITAST®-R-JUWEL
    Panel cutout
    Ø 30.5 mm
    Protection (front)
    IP66 / IP67 / IP69K
    Shape
    Round
    Bezel color
    Stainless steel
    Illuminated
    Yes
    More specifications (8)
    Travel
    6 mm
    Panel thickness
    1 mm to 8 mm
    Mounting position
    any
    Operating temperature
    -40 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    20 g

    Values as stated in Schlegel’s datasheet (21.08.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

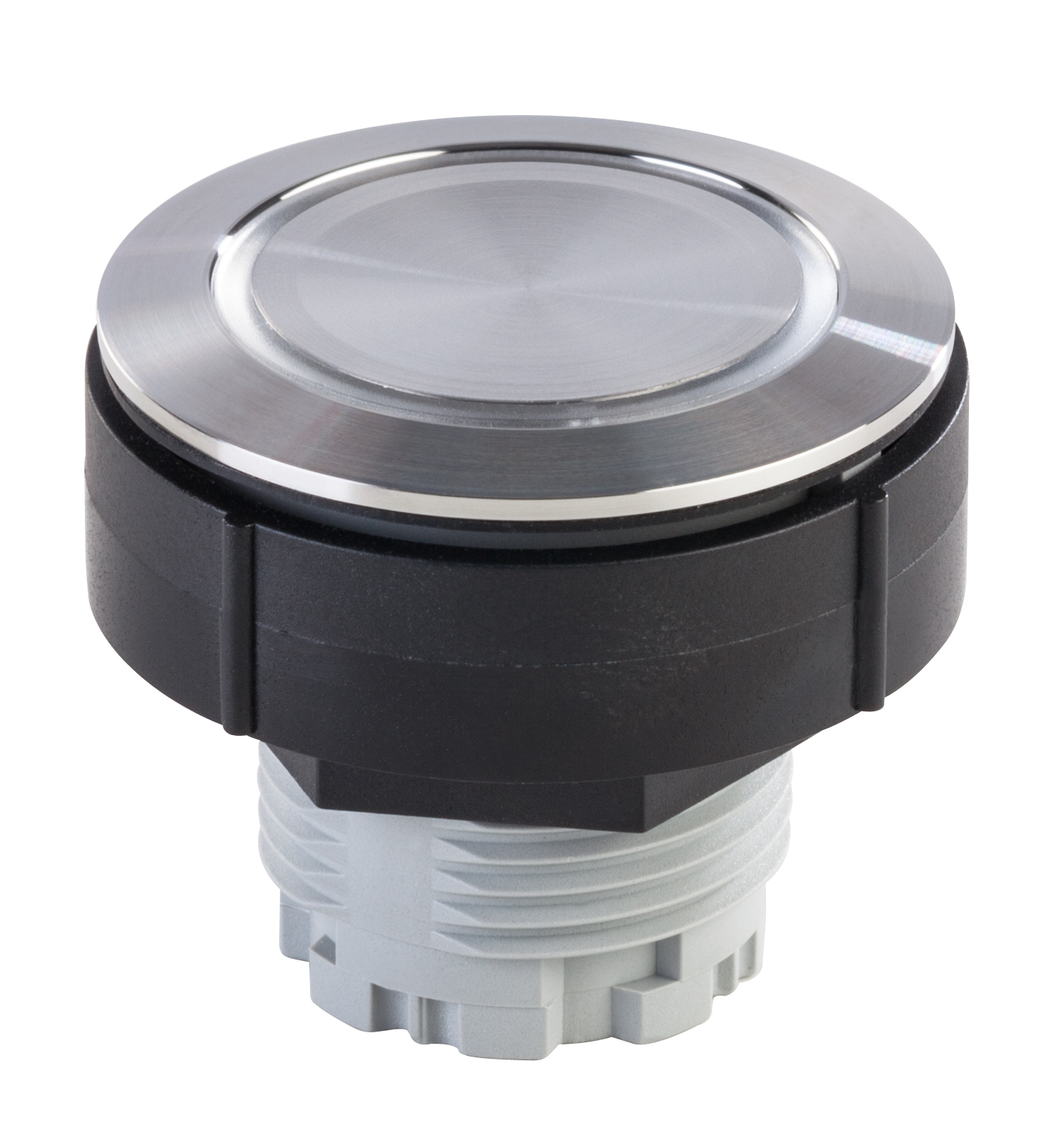

  • KRJVATLRPushbutton
    Series
    KOMBITAST®-R-JUWEL
    Panel cutout
    Ø 30.5 mm
    Protection (front)
    IP69K
    Shape
    Round
    Bezel color
    Stainless steel
    Actuator color
    stainless steel
    More specifications (8)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 8 mm
    Operating temperature
    -40 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, CE, cULus, DNVGL, UKCA
    Weight
    22.86 g

    Values as stated in Schlegel’s datasheet (16.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

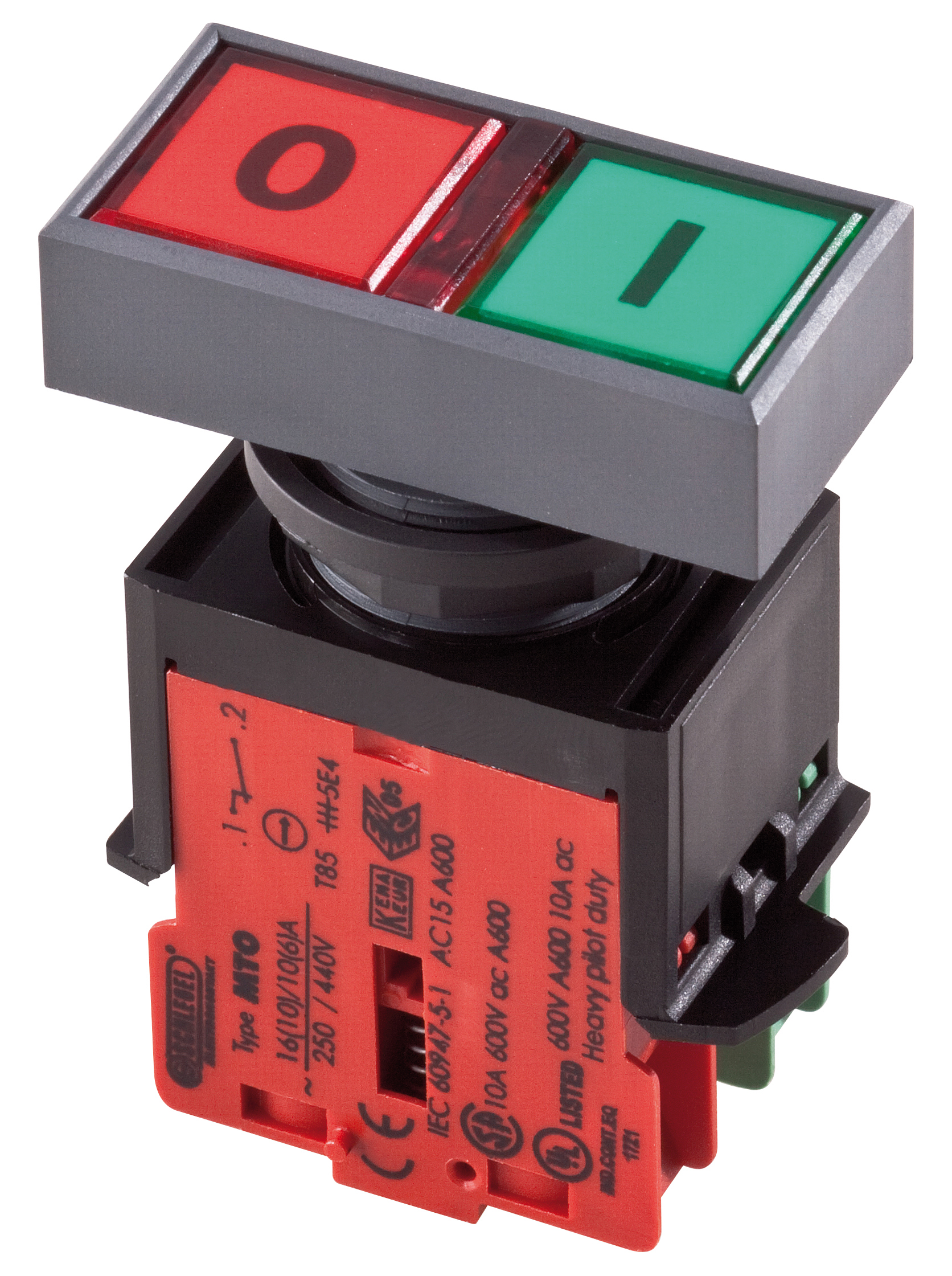

  • LDTPushbutton
    Series
    QUARTEX®-R
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP40
    Shape
    Rectangular
    Bezel color
    anthracite
    Actuator color
    red/green
    More specifications (4)
    Contacts
    1NC + 1NO
    Connection
    Screw Connection
    Travel
    6 mm
    Mounting depth
    54 mm

    Values as stated in Schlegel’s datasheet (06.01.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

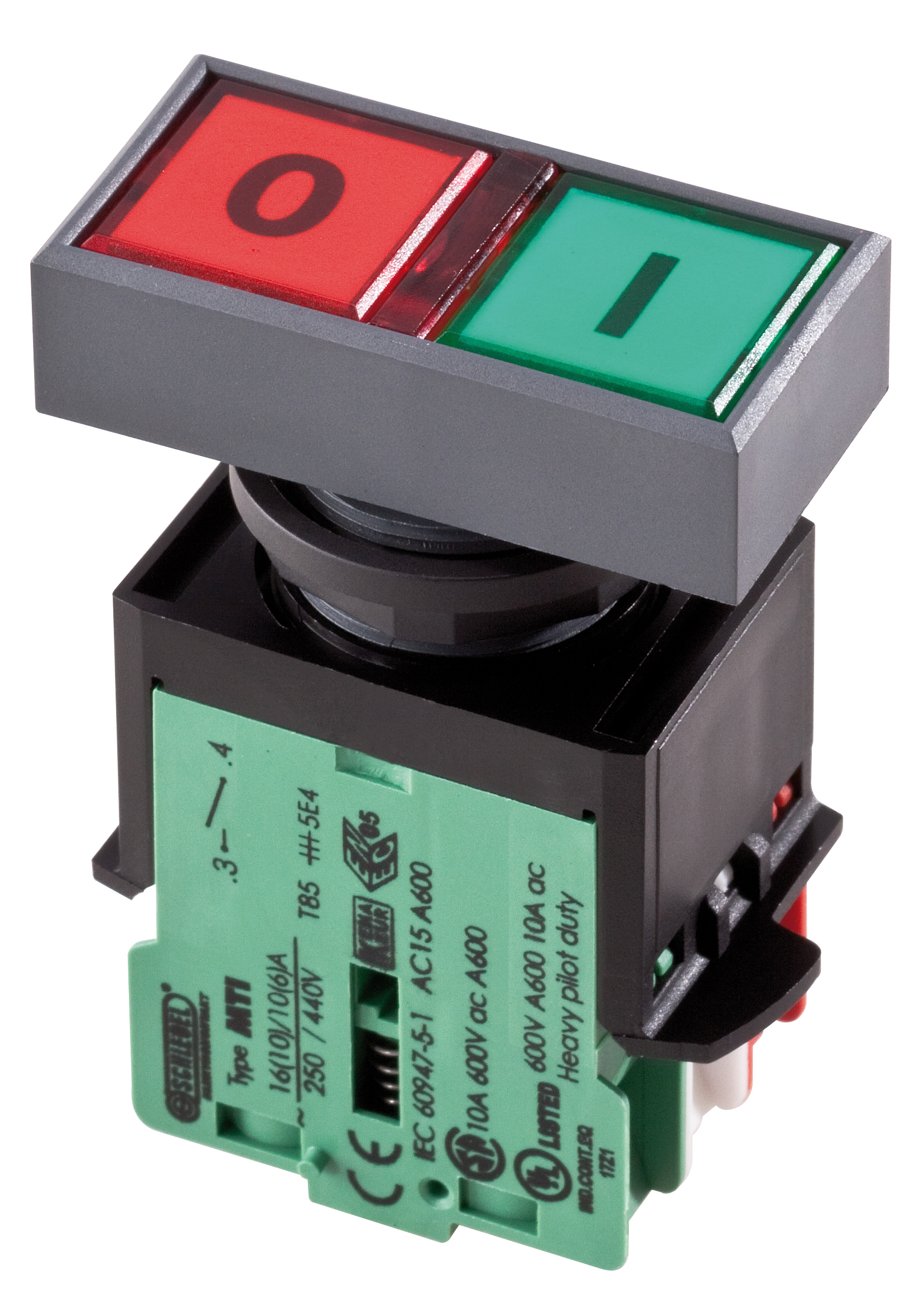

  • LDTLPushbutton
    Series
    QUARTEX®-R
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP40
    Shape
    Rectangular
    Color
    Charcoal
    Bezel color
    anthracite
    More specifications (7)
    Actuator color
    red/green
    Illuminated
    Yes
    Illuminant
    BA9s
    Contacts
    1NC + 1NO
    Connection
    Screw Connection
    Travel
    6 mm
    Mounting depth
    54 mm

    Values as stated in Schlegel’s datasheet (06.01.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

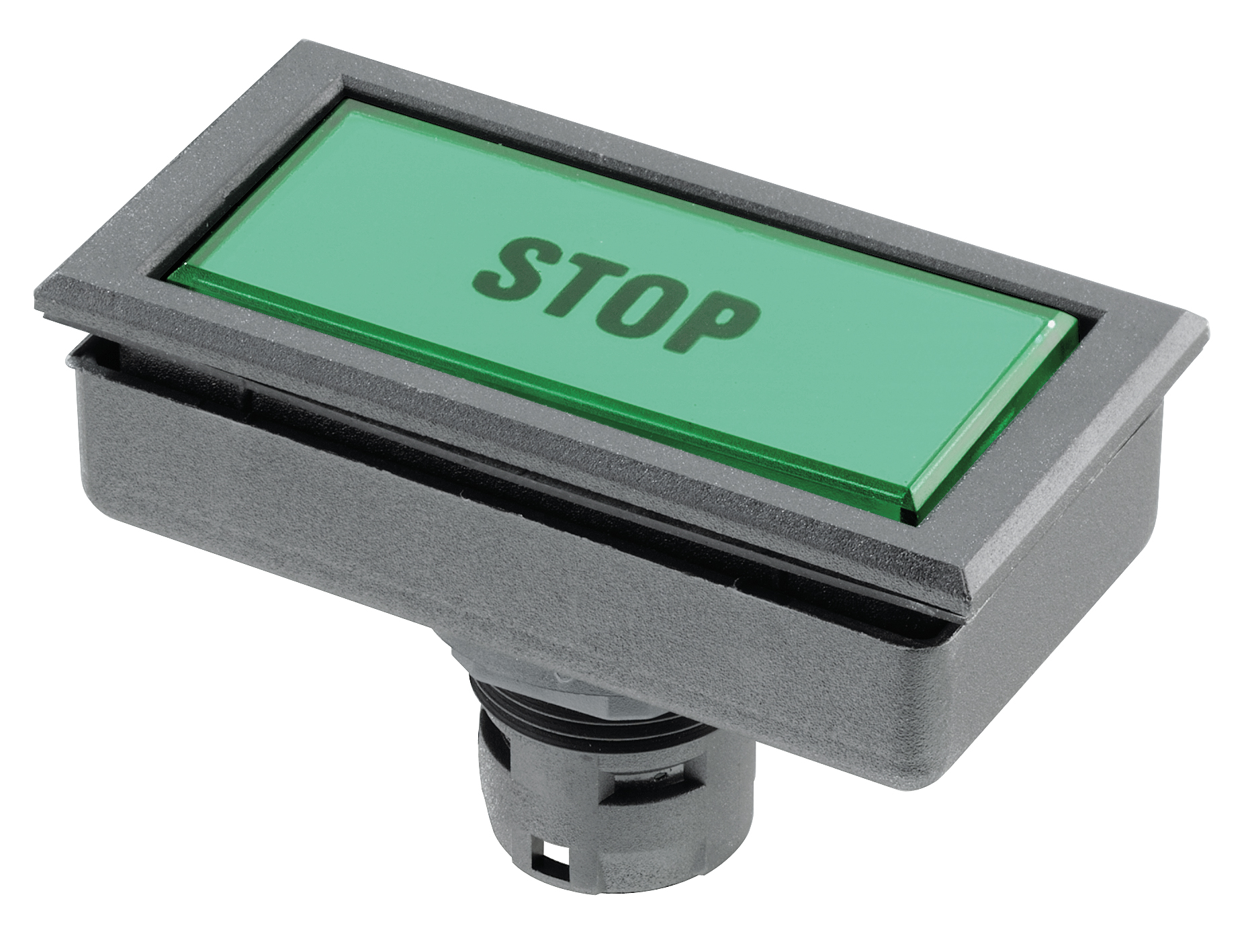

  • LXJTPushbutton
    Request a quoteView on GrossAutomation.com

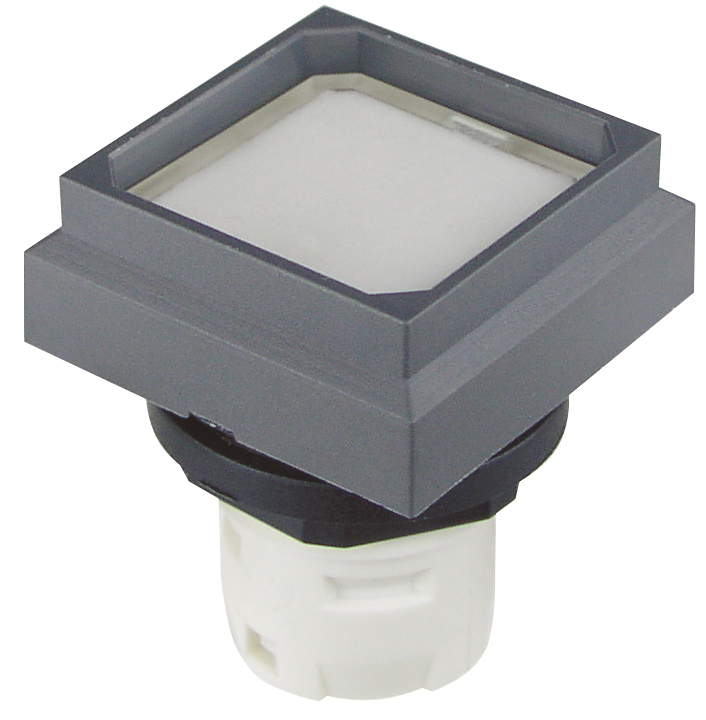

  • OKHPushbutton
    Series
    OKTRON®
    Panel cutout
    Ø16.2mm
    Protection (front)
    IP65
    Shape
    Square
    Color
    Charcoal
    Bezel color
    anthracite
    More specifications (4)
    Illuminated
    Yes
    Travel
    3mm
    Panel thickness
    1 mm to 5 mm
    Weight
    6.74 g

    Values as stated in Schlegel’s datasheet (26.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

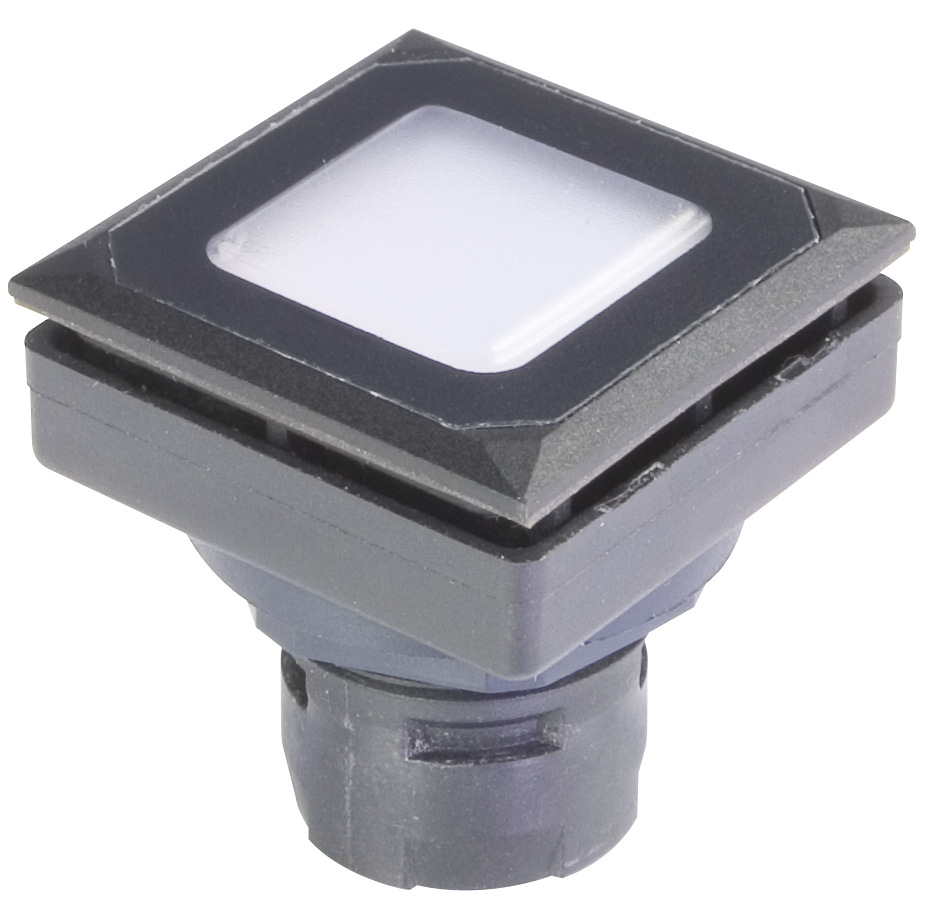

  • OKJTPushbutton
    Panel cutout
    23.1 x 23.1mm
    Protection (front)
    IP65
    Shape
    Square
    Color
    Black
    Bezel color
    black
    Illuminated
    Yes
    More specifications (6)
    Travel
    3mm
    Panel thickness
    1 mm to 4.5 mm
    Mounting position
    any
    Operating temperature
    -25°C to +70°C
    Storage temperature
    -50 °C to 85 °C
    Weight
    7.15 g

    Values as stated in Schlegel’s datasheet (26.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

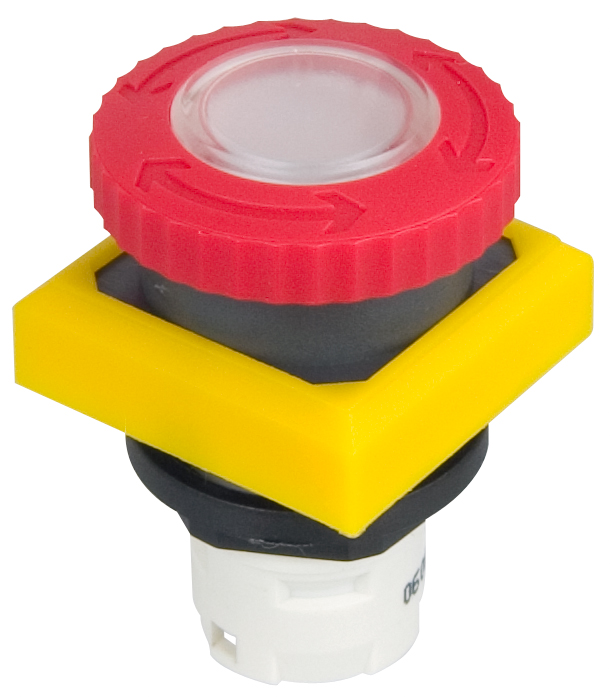

  • OKTPushbutton
    Series
    OKTRON®
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65
    Shape
    Square
    Color
    Charcoal
    Bezel color
    anthracite
    More specifications (4)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1 mm to 5 mm
    Weight
    6.3 g

    Values as stated in Schlegel’s datasheet (26.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • QRTPushbutton
    Series
    QUARTEX®-R
    Panel cutout
    Ø 22.3 mm
    Illuminated
    Yes
    Travel
    6 mm

    Values as stated in Schlegel’s datasheet (31.10.2024)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

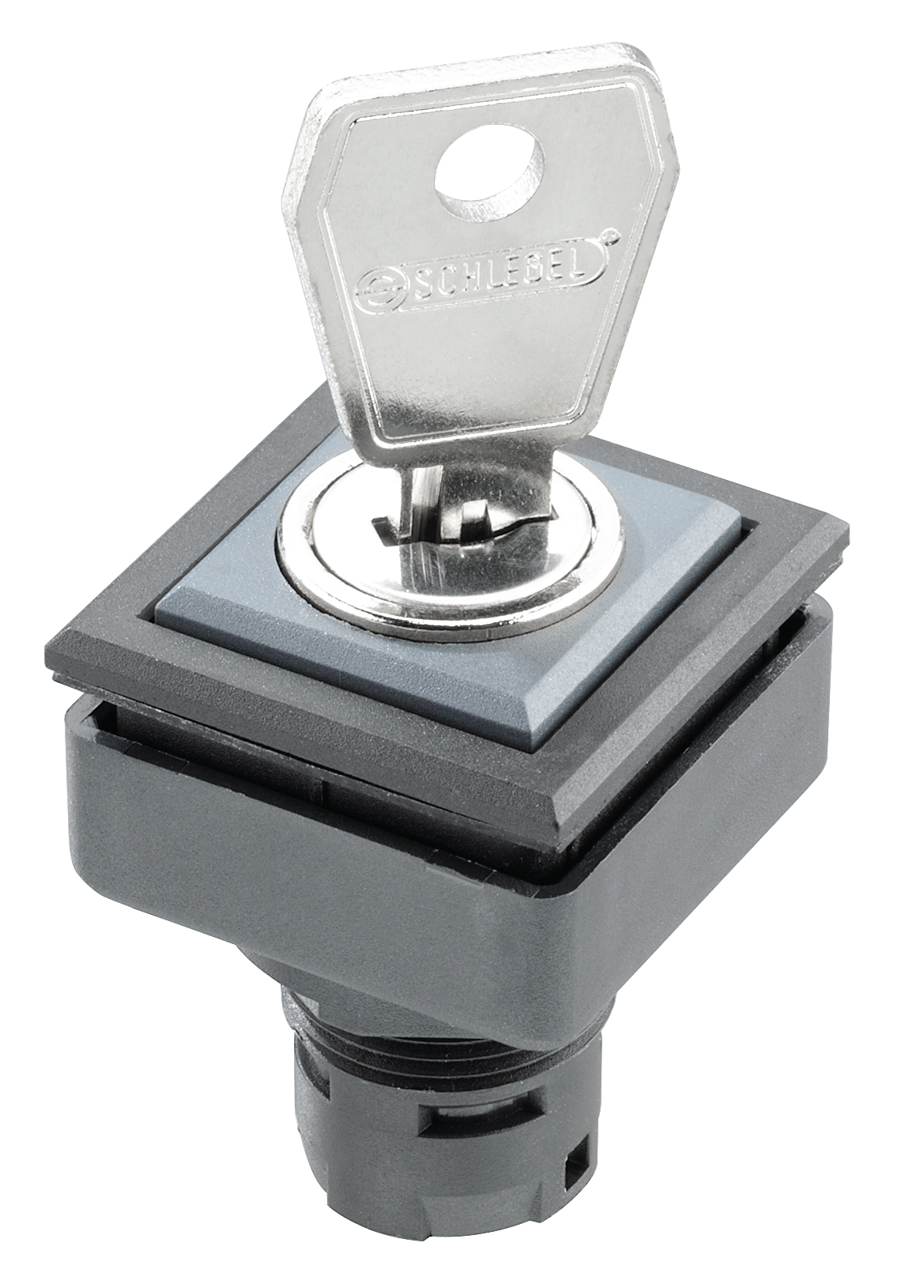

  • QXJDPushbutton
    Series
    QUARTRON-JUWEL®
    Panel cutout
    24 x 24 mm
    Protection (front)
    IP65
    Shape
    Square
    Color
    Black
    Bezel color
    black
    More specifications (9)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1.5 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, CE, UKCA
    Weight
    10.71 g

    Values as stated in Schlegel’s datasheet (20.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

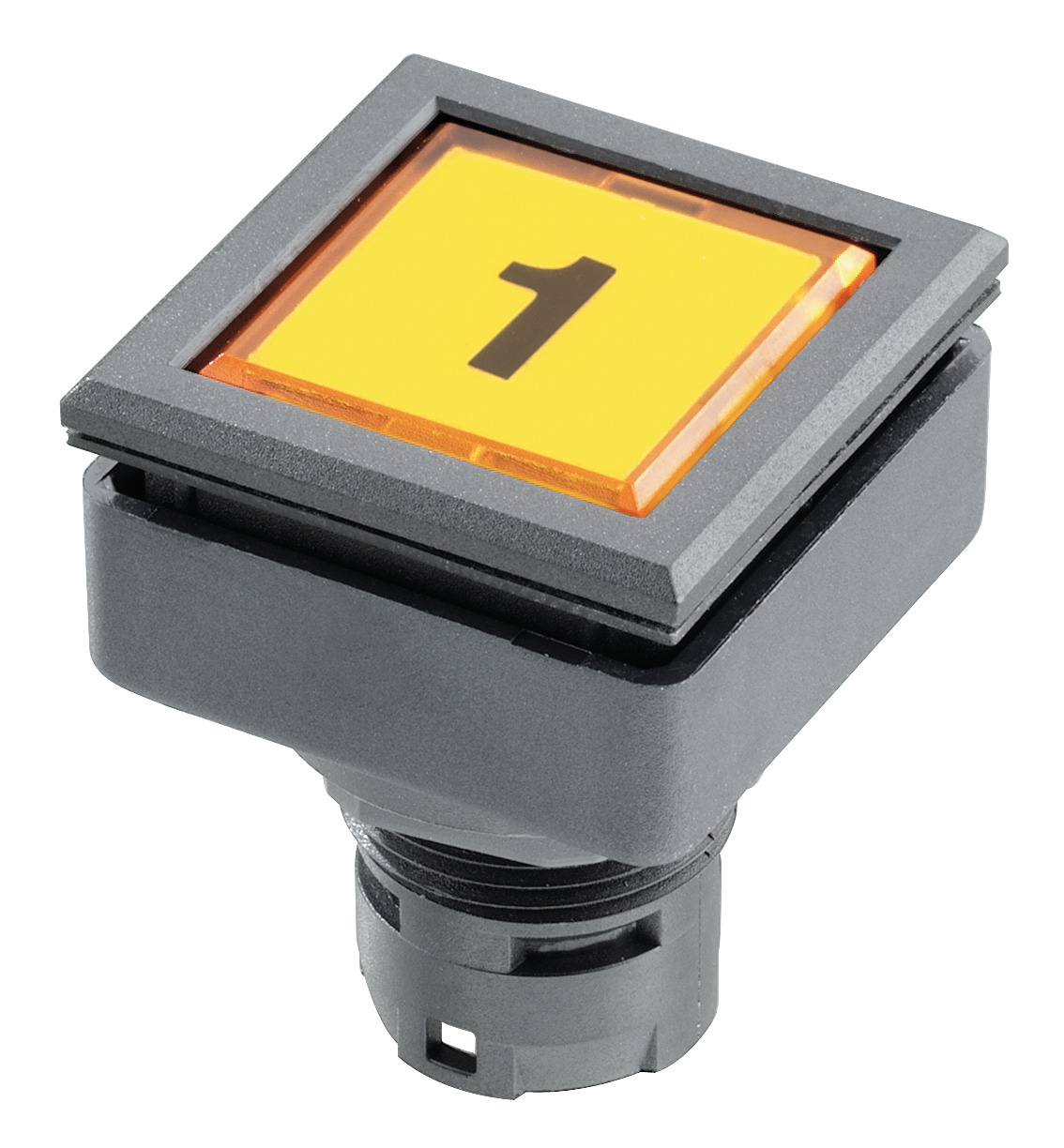

  • QXJTPushbutton
    Series
    QUARTRON-JUWEL®
    Panel cutout
    24 x 24 mm
    Protection (front)
    IP66
    Shape
    Square
    Bezel color
    black
    Illuminated
    Yes
    More specifications (8)
    Travel
    6 mm
    Panel thickness
    1.5 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, CE, UKCA, UR
    Weight
    10.76 g

    Values as stated in Schlegel’s datasheet (20.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • QXJTAOPushbutton
    Series
    QUARTRON-JUWEL®
    Panel cutout
    24 x 24mm
    Protection (front)
    IP65
    Shape
    Square
    Bezel color
    black
    Illuminated
    Yes
    More specifications (5)
    Travel
    6 mm
    Panel thickness
    1.5 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C

    Values as stated in Schlegel’s datasheet (20.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

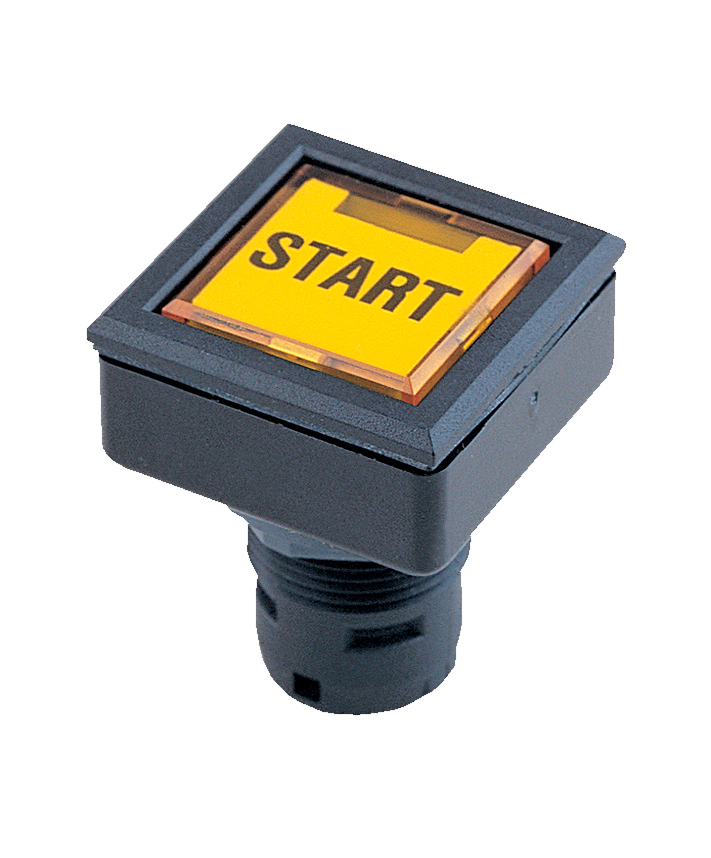

  • QXJTLLPushbutton
    Series
    QUARTRON-JUWEL®
    Panel cutout
    24 x 24mm
    Protection (front)
    IP65
    Shape
    Square
    Bezel color
    black
    Illuminated
    Yes
    More specifications (6)
    Travel
    6 mm
    Panel thickness
    1.5 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Weight
    10.71 g

    Values as stated in Schlegel’s datasheet (20.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

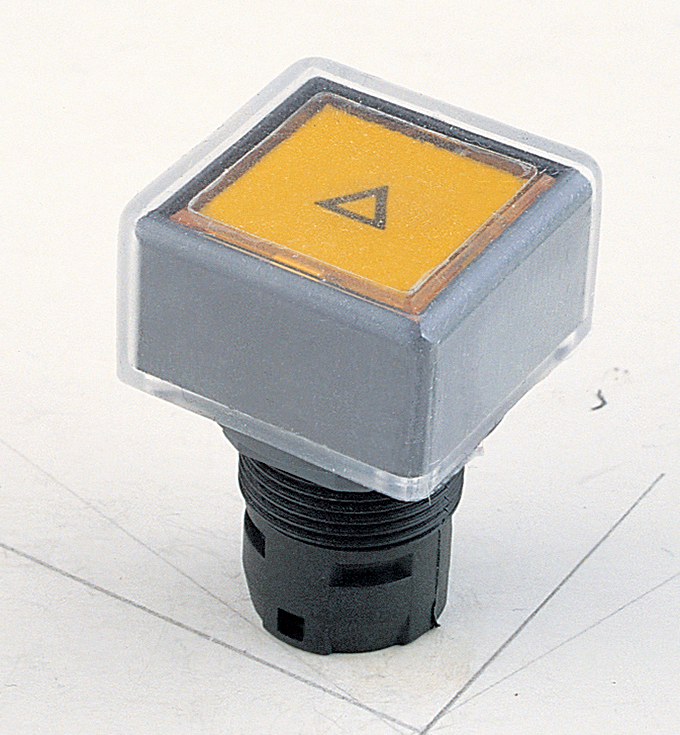

  • QXPPushbutton
    Series
    QUARTRON®
    Panel cutout
    Ø16.2mm
    Protection (front)
    IP67
    Shape
    Square
    Color
    Black
    Bezel color
    black
    More specifications (3)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm

    Values as stated in Schlegel’s datasheet (03.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

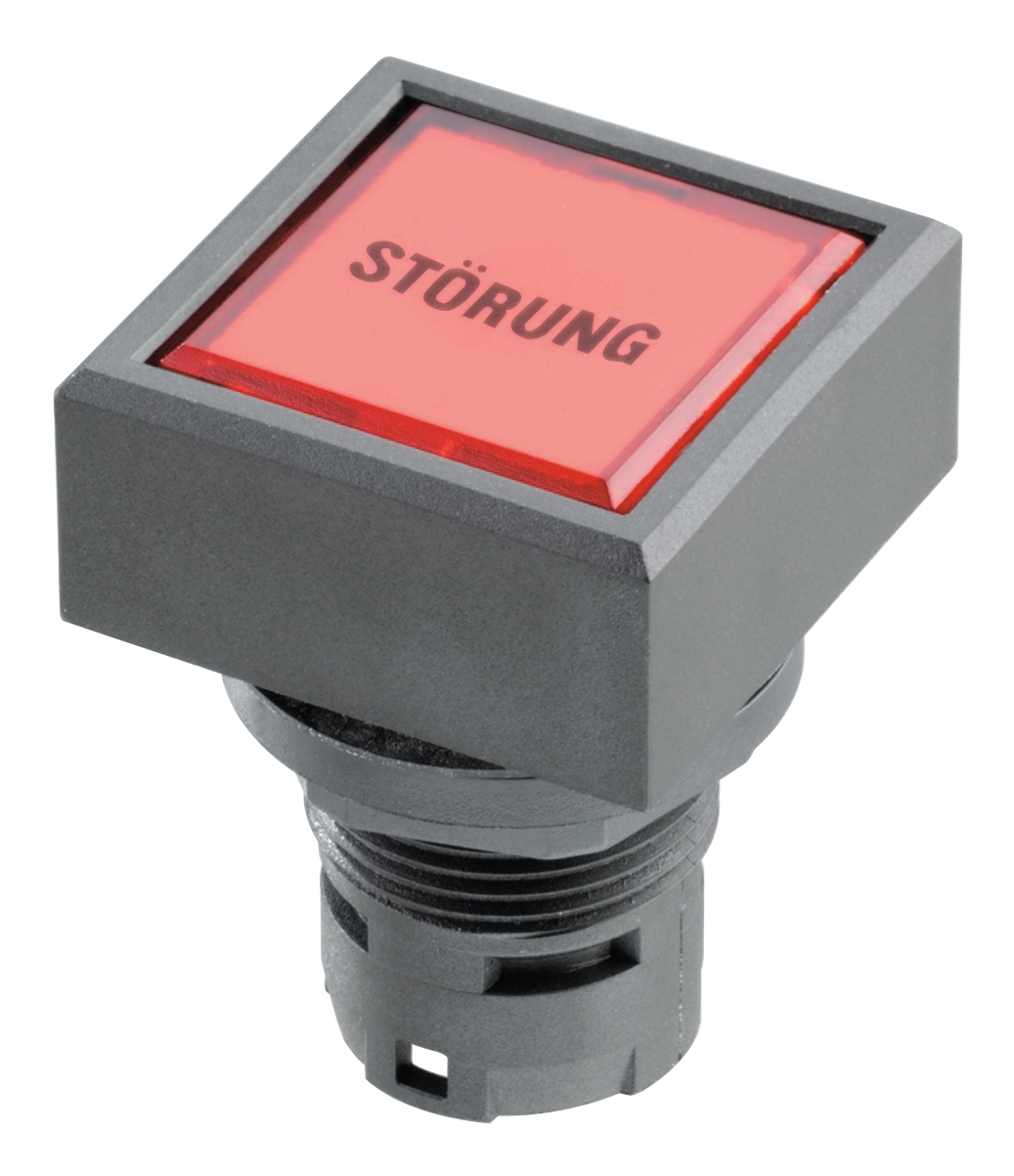

  • QXTPushbutton
    Series
    QUARTRON®
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65
    Shape
    Square
    Bezel color
    black
    Illuminated
    Yes
    More specifications (3)
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Weight
    8.84 g

    Values as stated in Schlegel’s datasheet (06.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

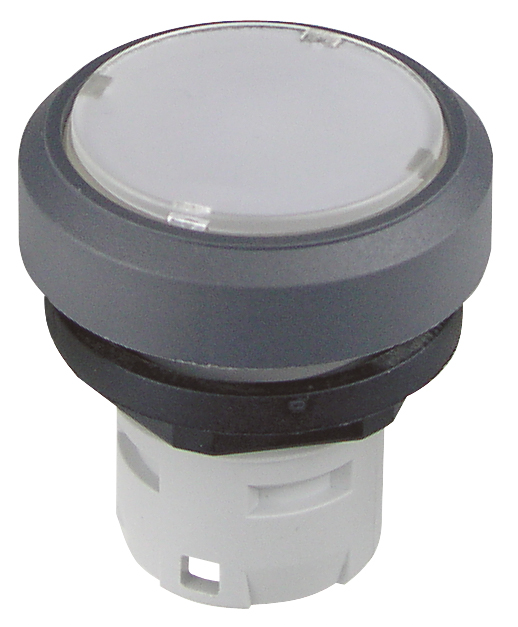

  • RKTPushbutton
    Series
    OKTRON®-R
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Charcoal
    Bezel color
    anthracite
    More specifications (8)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1 mm to 5 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Approvals
    CCC, CE, UKCA, UR
    Weight
    5.44 g

    Values as stated in Schlegel’s datasheet (26.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

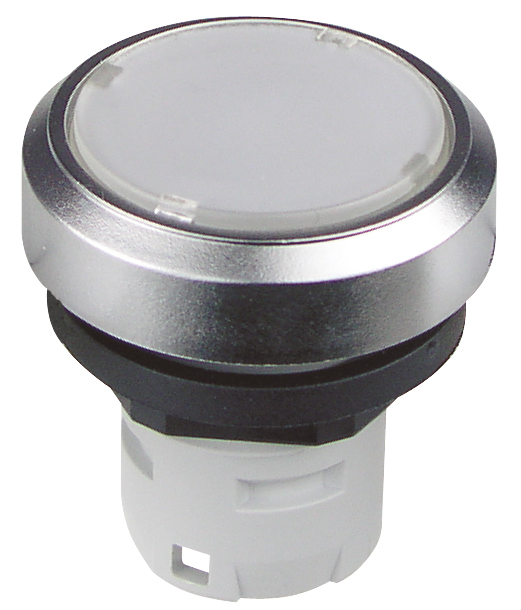

  • RKTMPushbutton
    Series
    OKTRON®-R
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (8)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1 mm to 5 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Approvals
    CCC, CE, UKCA, UR
    Weight
    5.35 g

    Values as stated in Schlegel’s datasheet (26.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

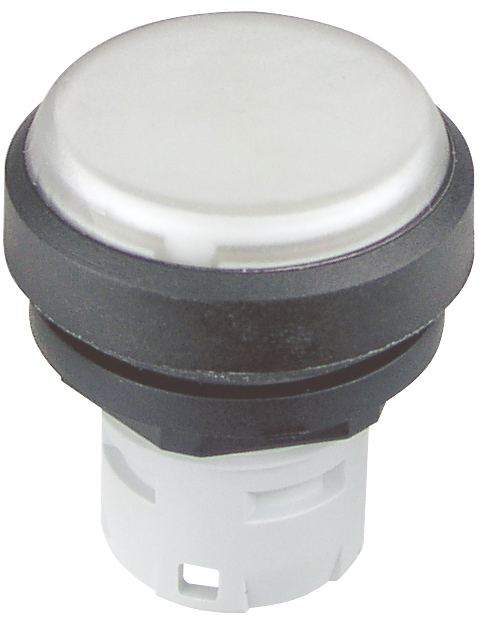

  • RKTMEPushbutton
    Series
    OKTRON®-R
    Panel cutout
    Ø16.2mm
    Protection (front)
    IP67
    Shape
    Round
    Bezel color
    black
    Actuator color
    white
    More specifications (6)
    Illuminated
    Yes
    Travel
    3mm
    Mounting position
    any
    Storage temperature
    -40 °C to 85 °C
    Approvals
    CE, CCC
    Weight
    5.6 g

    Values as stated in Schlegel’s datasheet (14.04.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

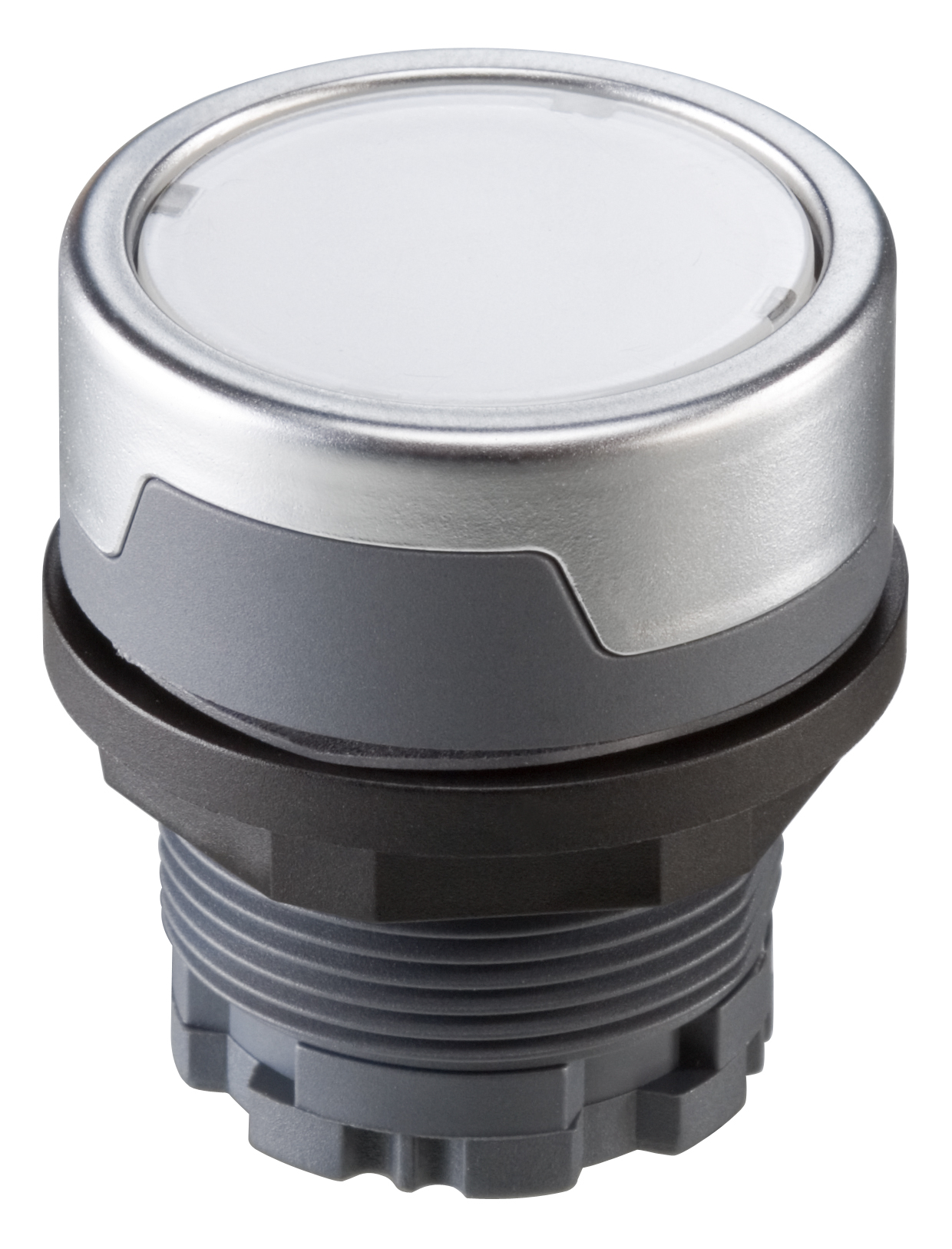

  • RMCTPushbutton
    Series
    RONDEX-M
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Metallic/Charcoal
    Bezel color
    metallic/charcoal
    More specifications (8)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -30 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Approvals
    CCC, CE, CSA, UKCA
    Weight
    11.37 g

    Values as stated in Schlegel’s datasheet (08.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

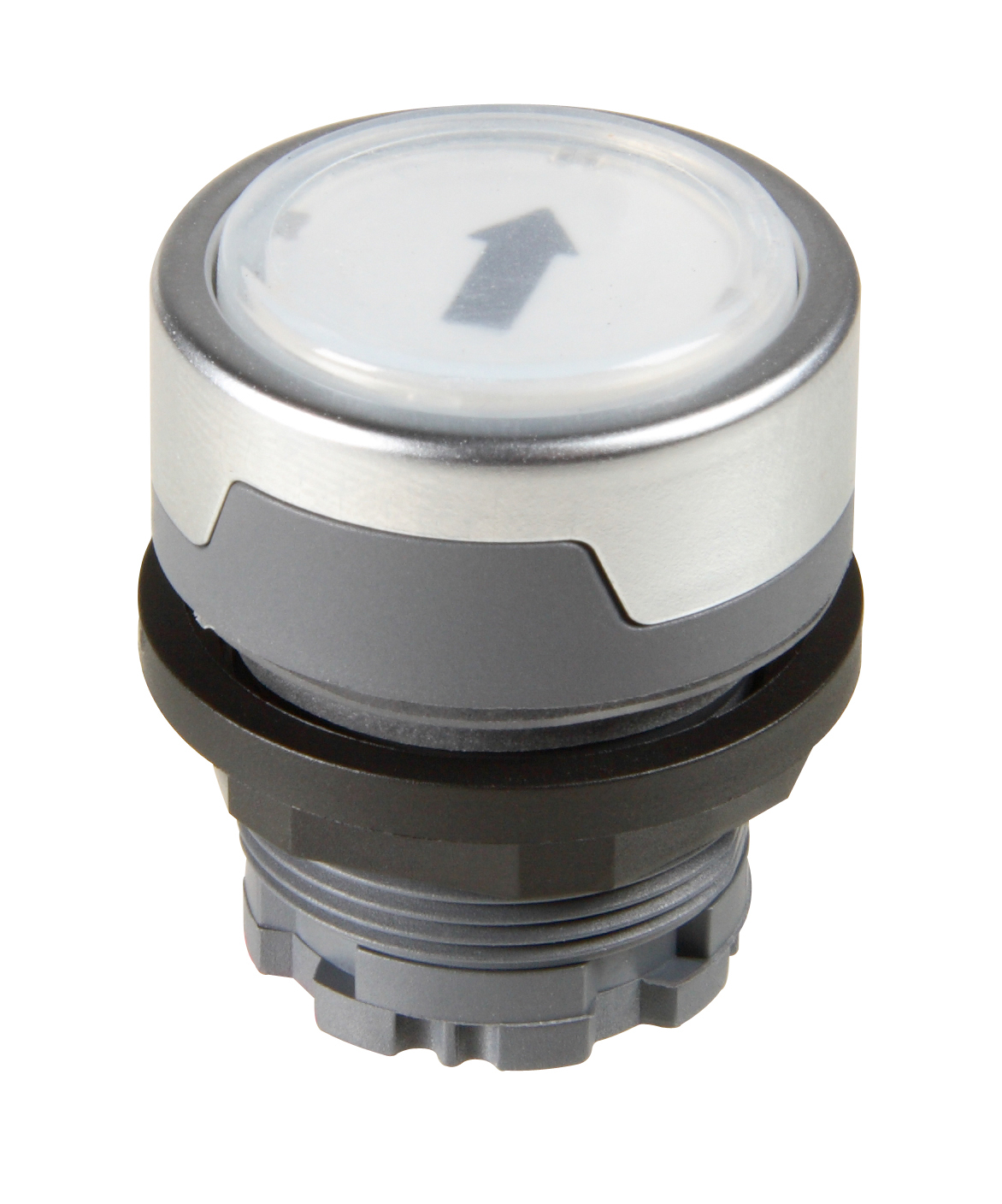

  • RMCTMPushbutton
    Series
    RONDEX-M
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP67
    Shape
    Round
    Color
    Metallic/Charcoal
    Bezel color
    metallic/charcoal
    More specifications (6)
    Illuminated
    Yes
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Operating temperature
    -30 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Approvals
    CCC, CE, CSA, UKCA

    Values as stated in Schlegel’s datasheet (04.08.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

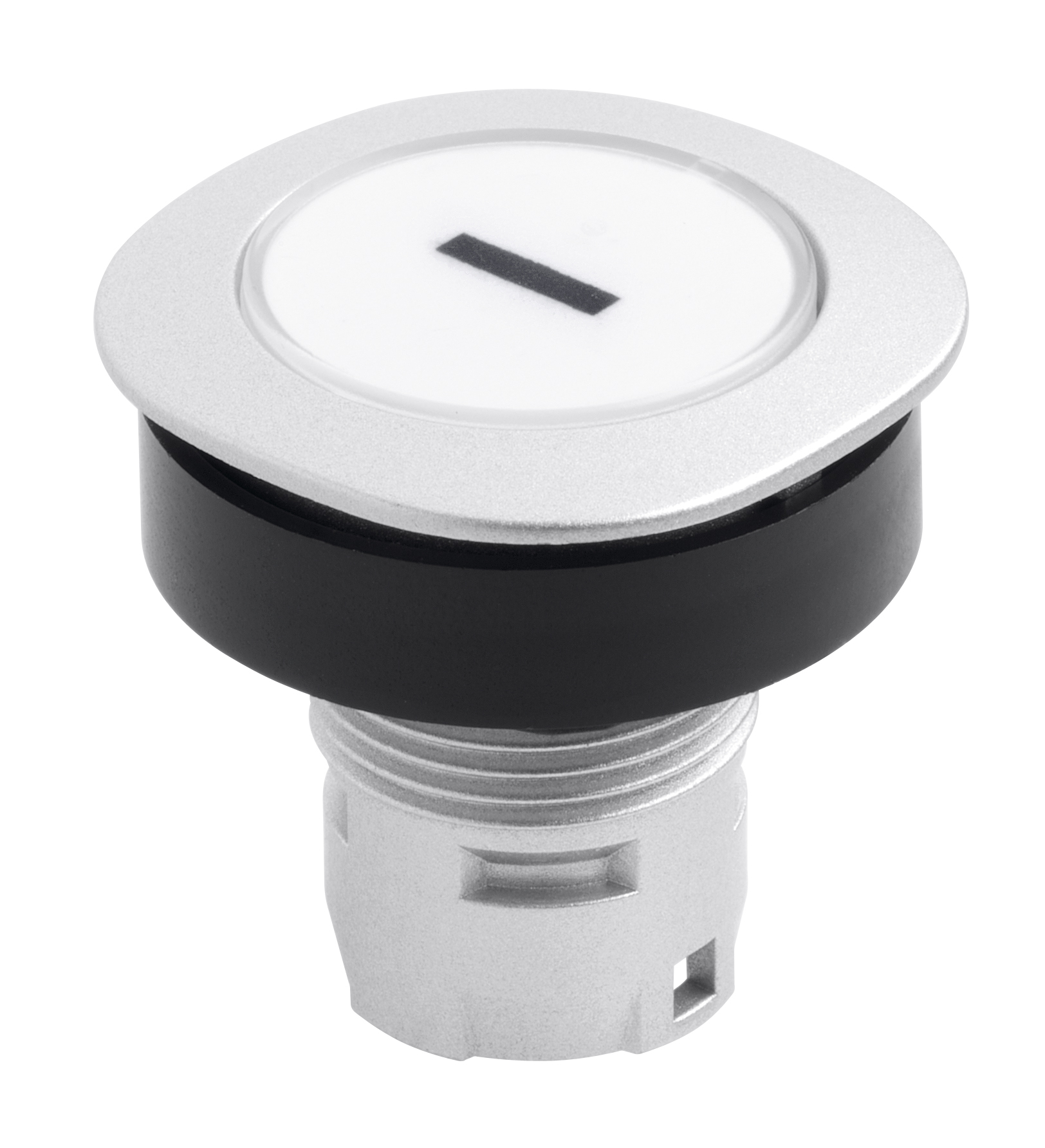

  • RQJTPushbutton
    Series
    RONTRON-Q-JUWEL
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP65
    Shape
    rounded square
    Color
    Silver
    Bezel color
    Silver
    More specifications (6)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1.5 mm to 5 mm
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Weight
    6.82 g

    Values as stated in Schlegel’s datasheet (14.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

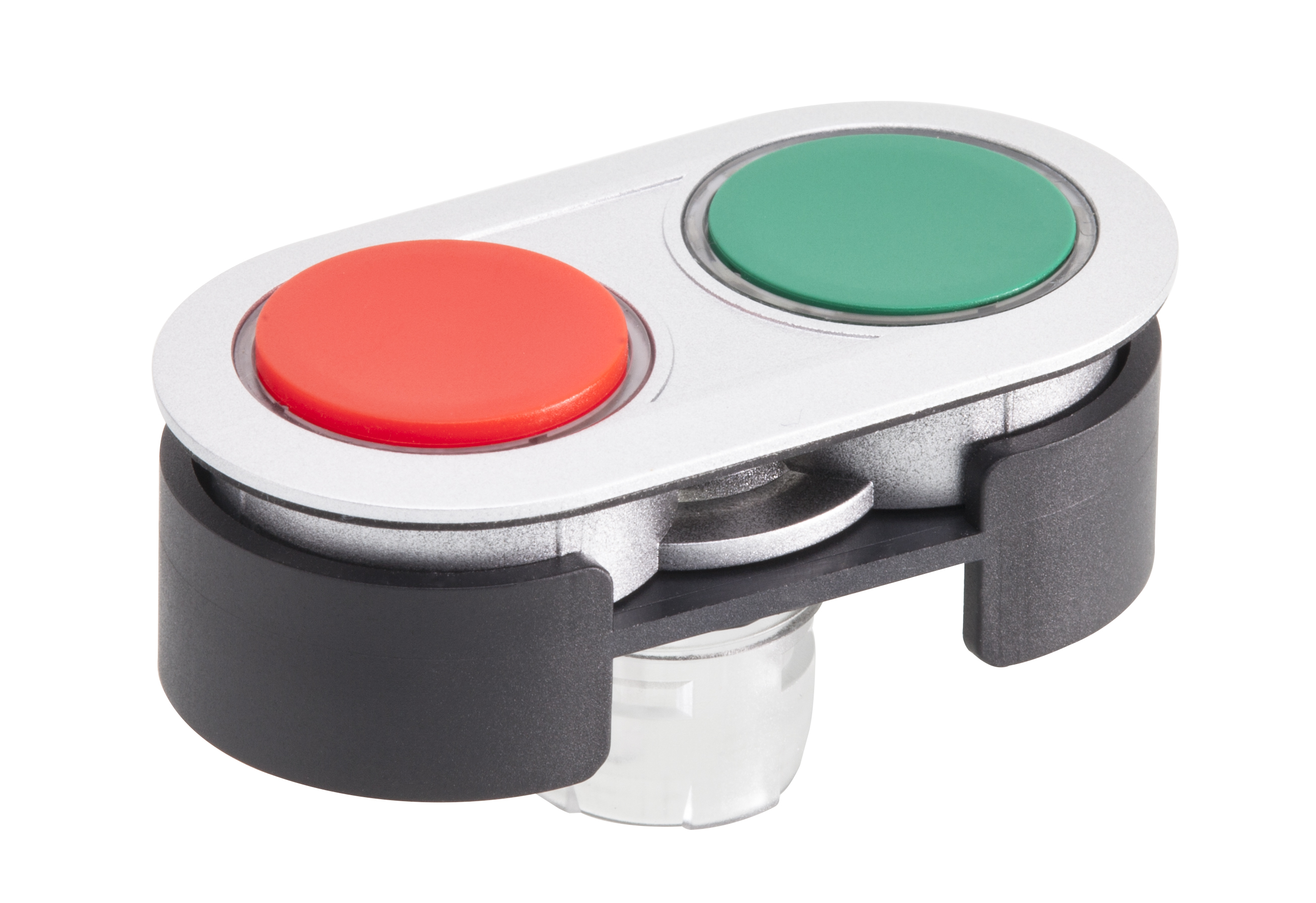

  • RRJDTLRHGRPushbutton
    Series
    RONTRON-R-JUWEL
    Panel cutout
    22.5 x 47.5mm
    Protection (front)
    IP65
    Shape
    rounded rectangular
    Color
    Silver
    Bezel color
    Silver
    More specifications (6)
    Actuator color
    red/green
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1 mm to 6.5 mm
    Storage temperature
    -50 °C to 85 °C
    Approvals
    cCSAus, CE, UKCA

    Values as stated in Schlegel’s datasheet (12.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

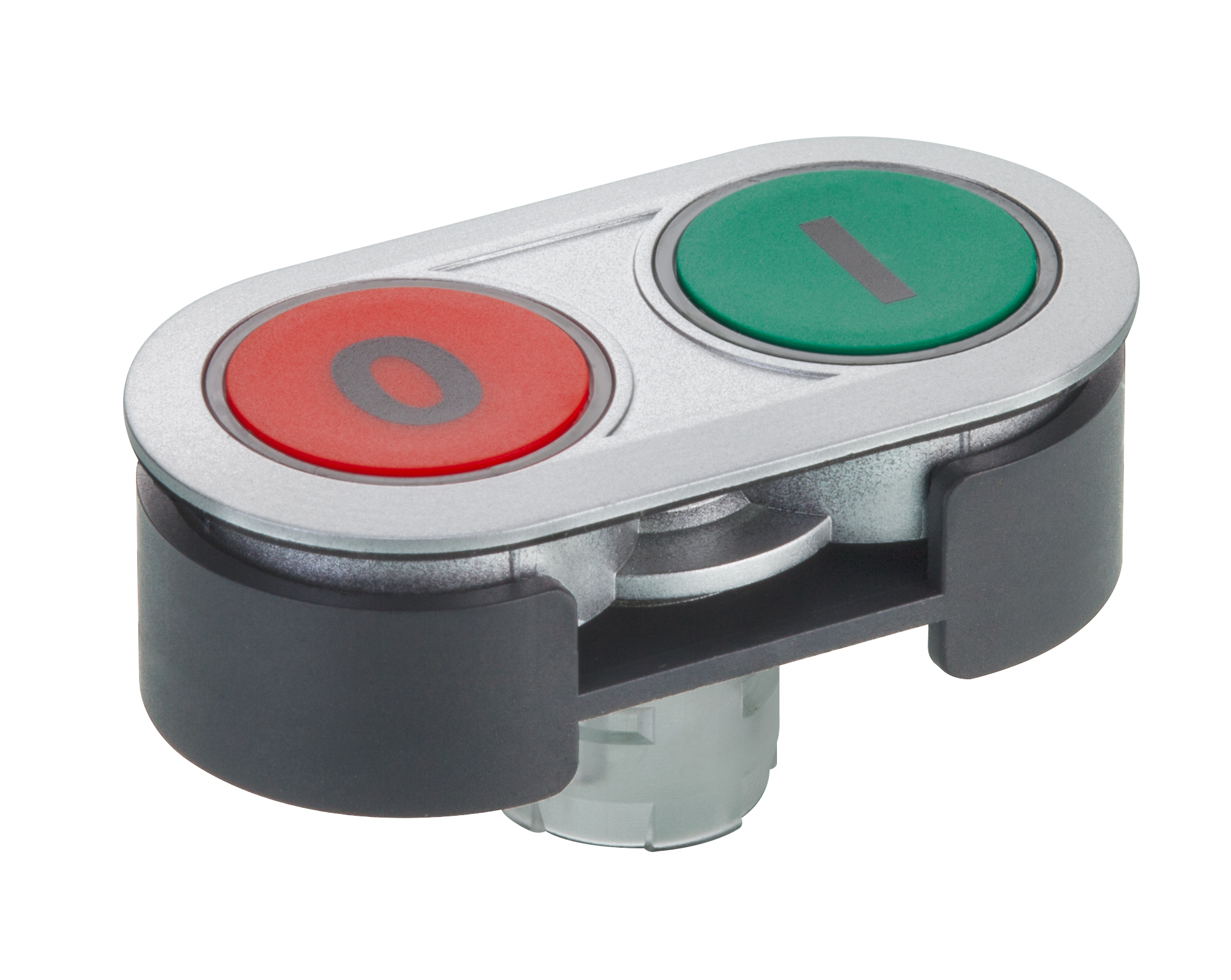

  • RRJDTLRLW_0003Pushbutton
    Request a quoteView on GrossAutomation.com

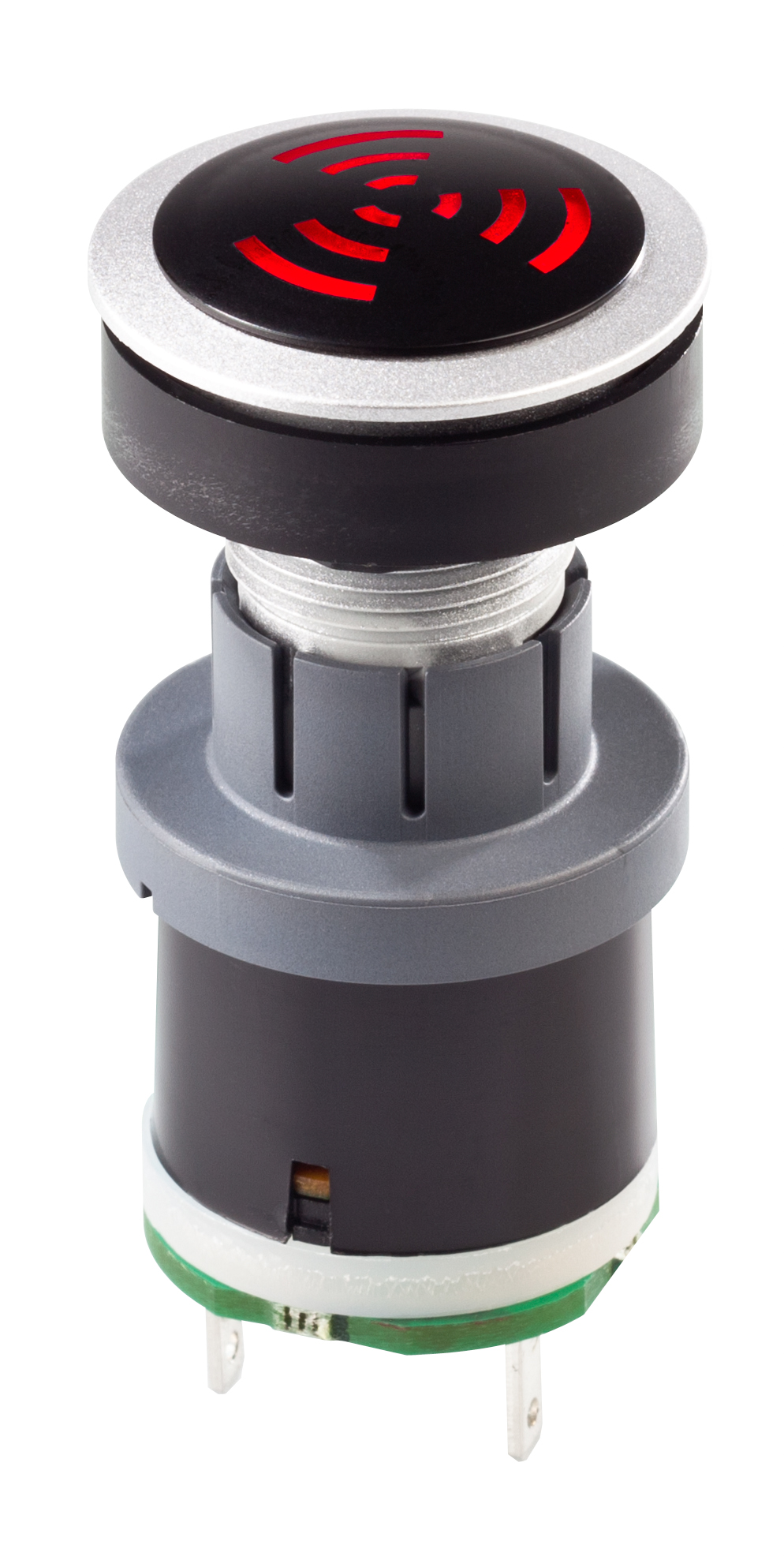

  • RRJNSGL+SGLR-24VPushbutton
    Protection (front)
    IP65
    Bezel color
    Silver

    Values as stated in Schlegel’s product data

    Request a quoteView on GrossAutomation.com

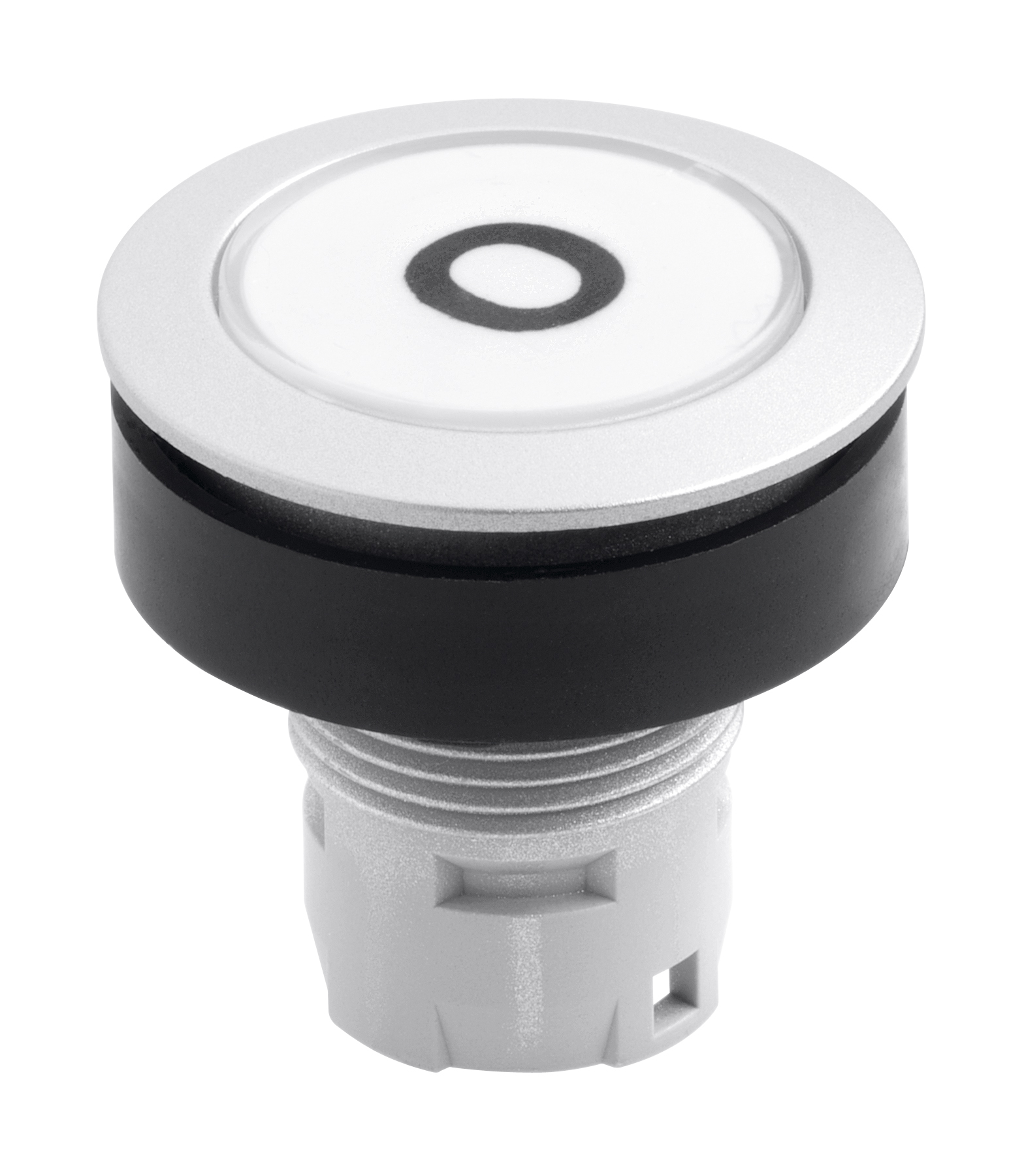

  • RRJTPushbutton
    Series
    RONTRON-R-JUWEL
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (8)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1.5 mm to 5 mm
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, cCSAus, CE, cURus, UKCA
    Weight
    6.8 g

    Values as stated in Schlegel’s datasheet (16.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

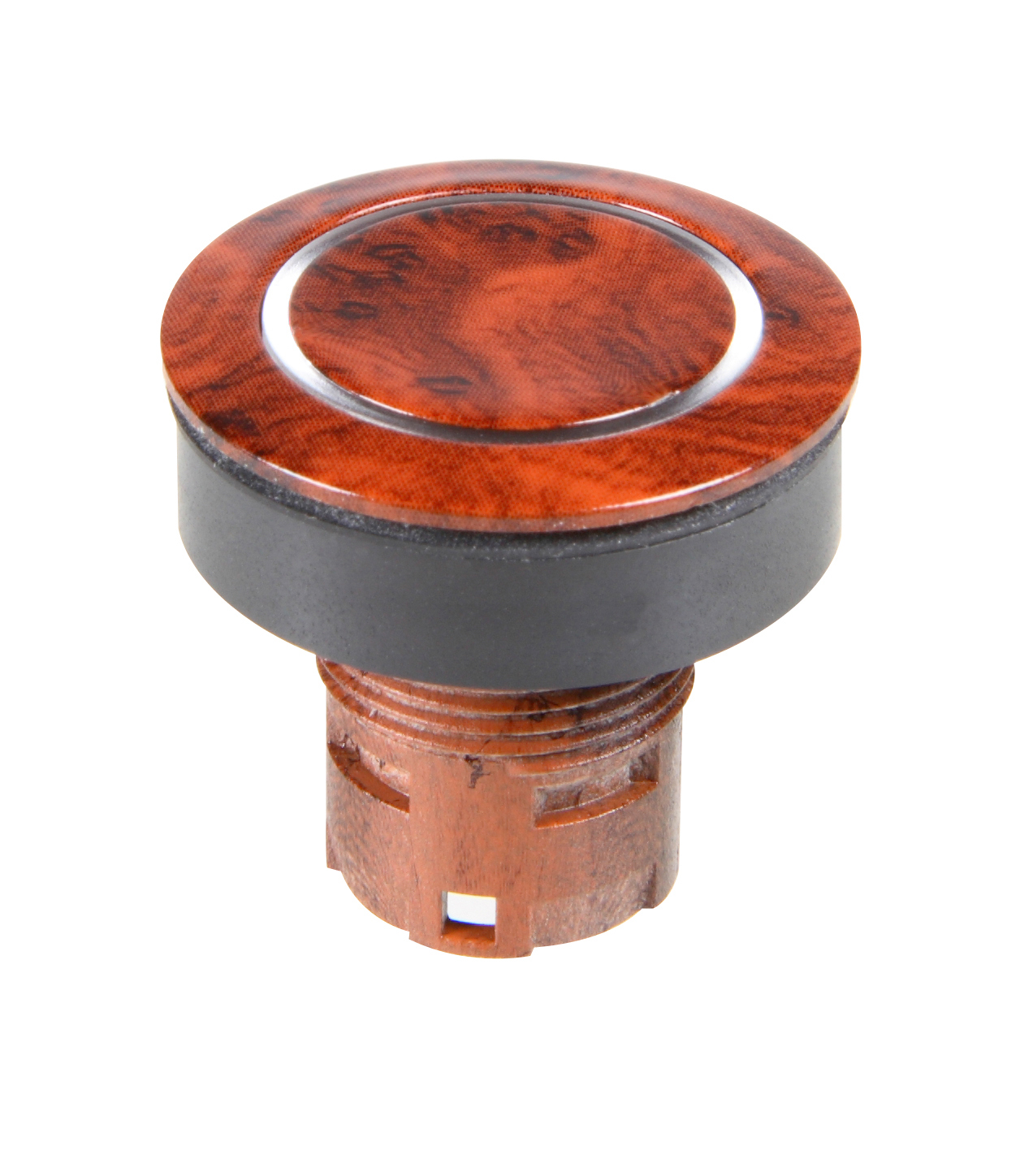

  • RRJTLRPushbutton
    Series
    RONTRON-R-JUWEL
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66
    Shape
    Round
    Bezel color
    Silver
    Illuminated
    Yes
    More specifications (4)
    Travel
    3 mm
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, cCSAus, CE, cURus, UKCA

    Values as stated in Schlegel’s datasheet (06.10.2025)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

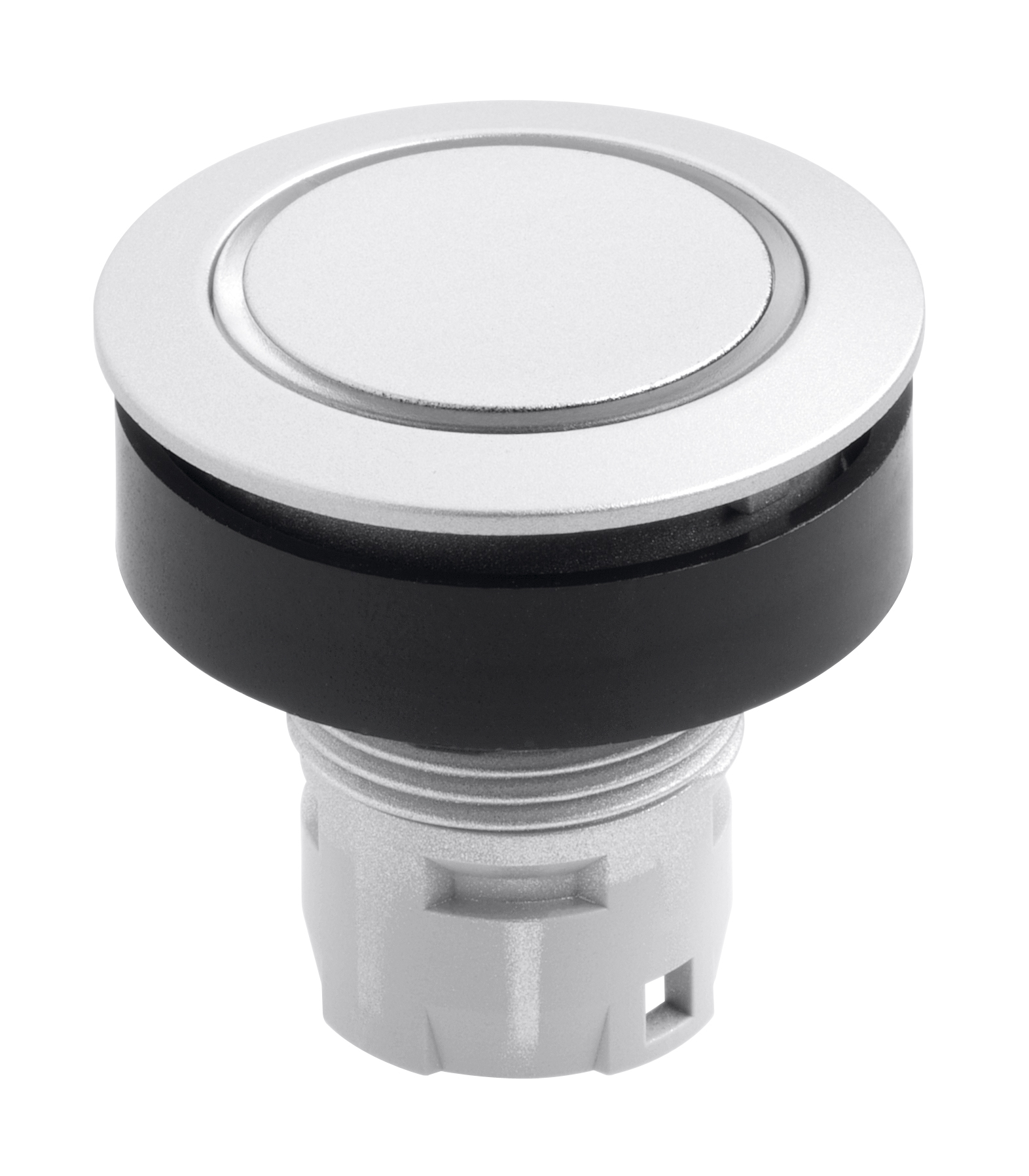

  • RRJTLREWSPushbutton
    Request a quoteView on GrossAutomation.com
  • RRJTSWPushbutton
    Series
    RONTRON-R-JUWEL
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Black
    Bezel color
    black
    More specifications (8)
    Illuminated
    Yes
    Travel
    3 mm
    Panel thickness
    1.5 mm to 5 mm
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, cCSAus, CE, cURus, UKCA
    Weight
    6.8 g

    Values as stated in Schlegel’s datasheet (16.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

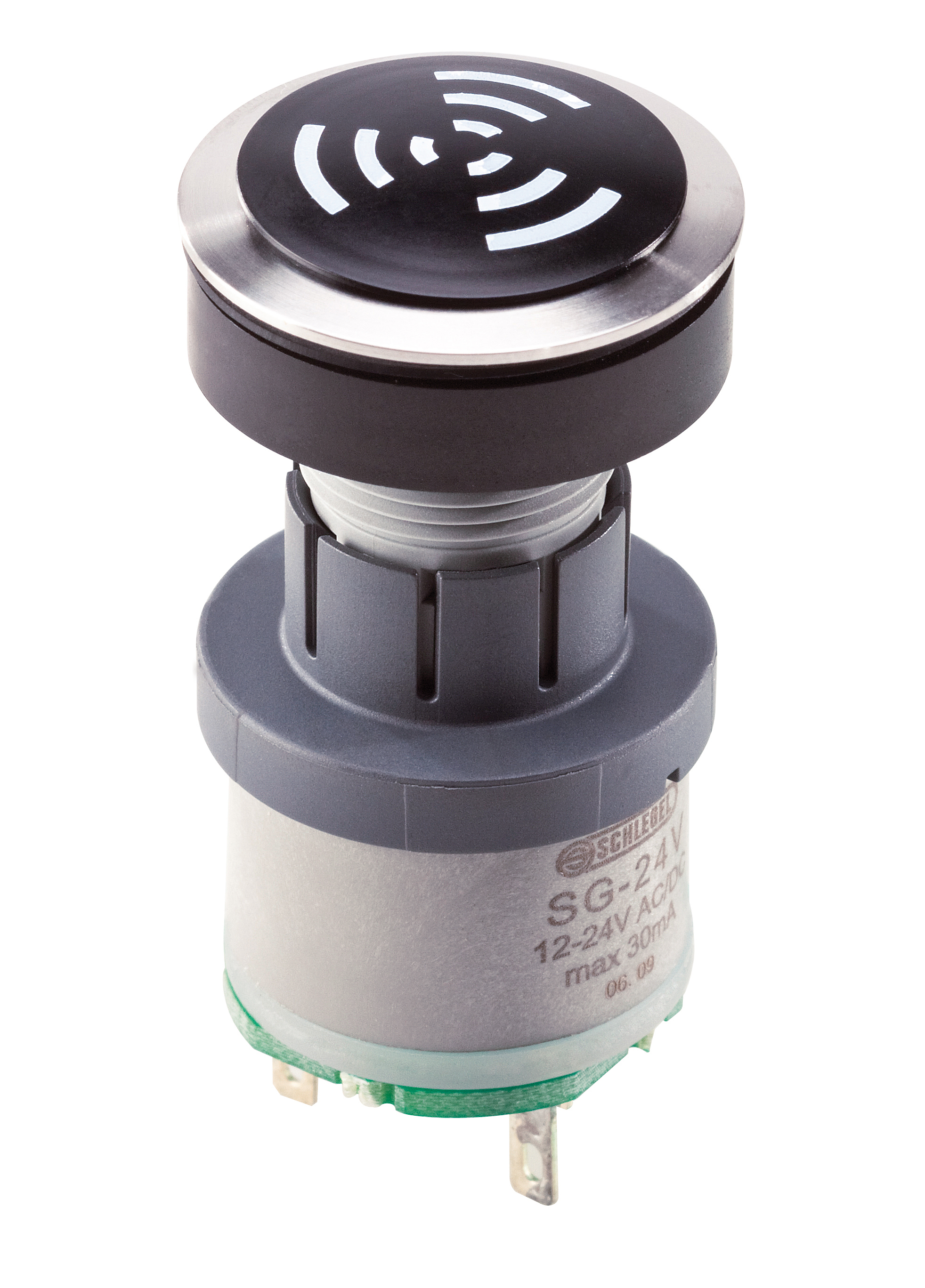

  • RRJVANSG+SG-24VPushbutton
    Bezel color
    Stainless steel
    Connection
    Faston Terminals 2.8 X 0.8 Mm

    Values as stated in Schlegel’s product data

    Request a quoteView on GrossAutomation.com

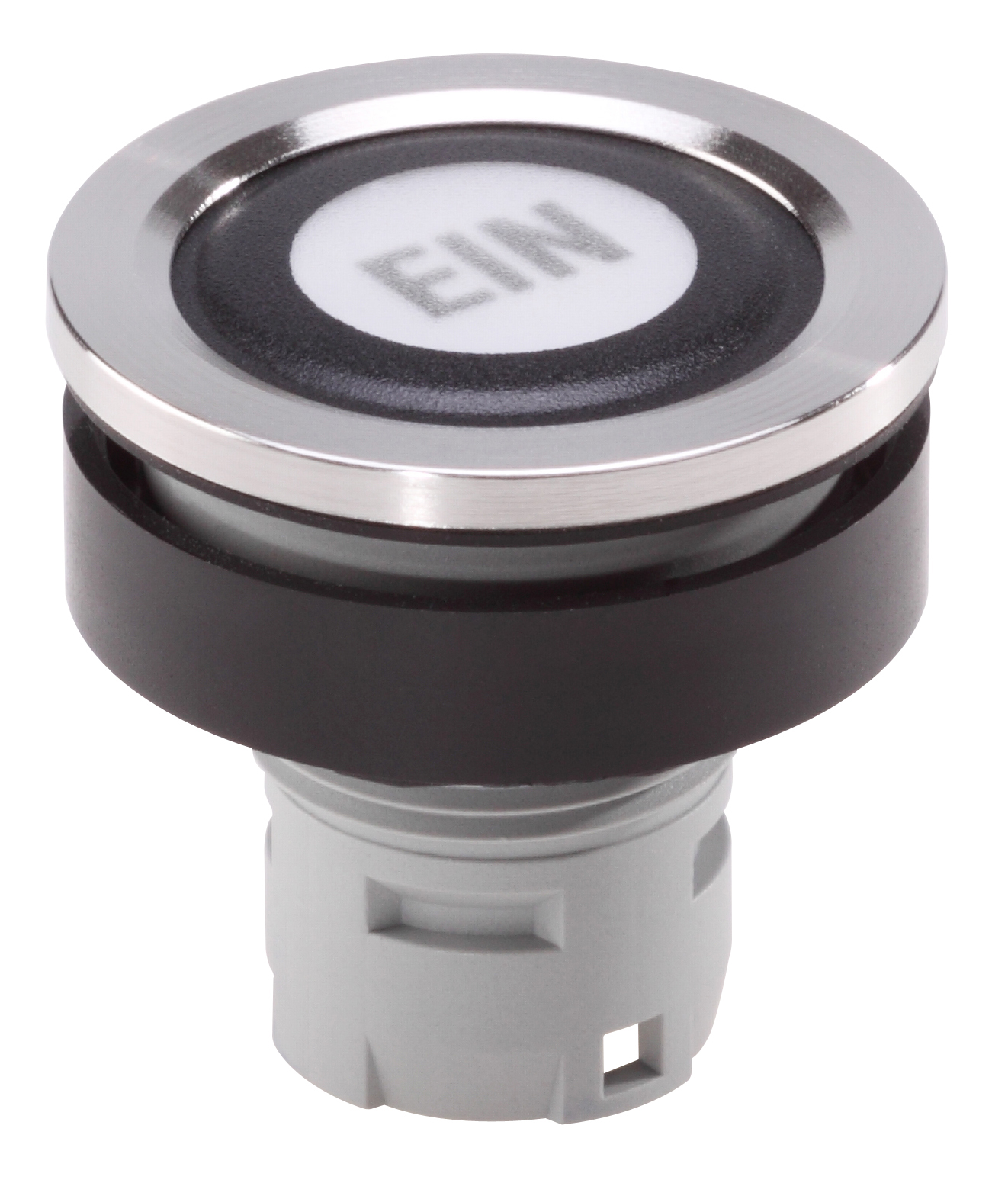

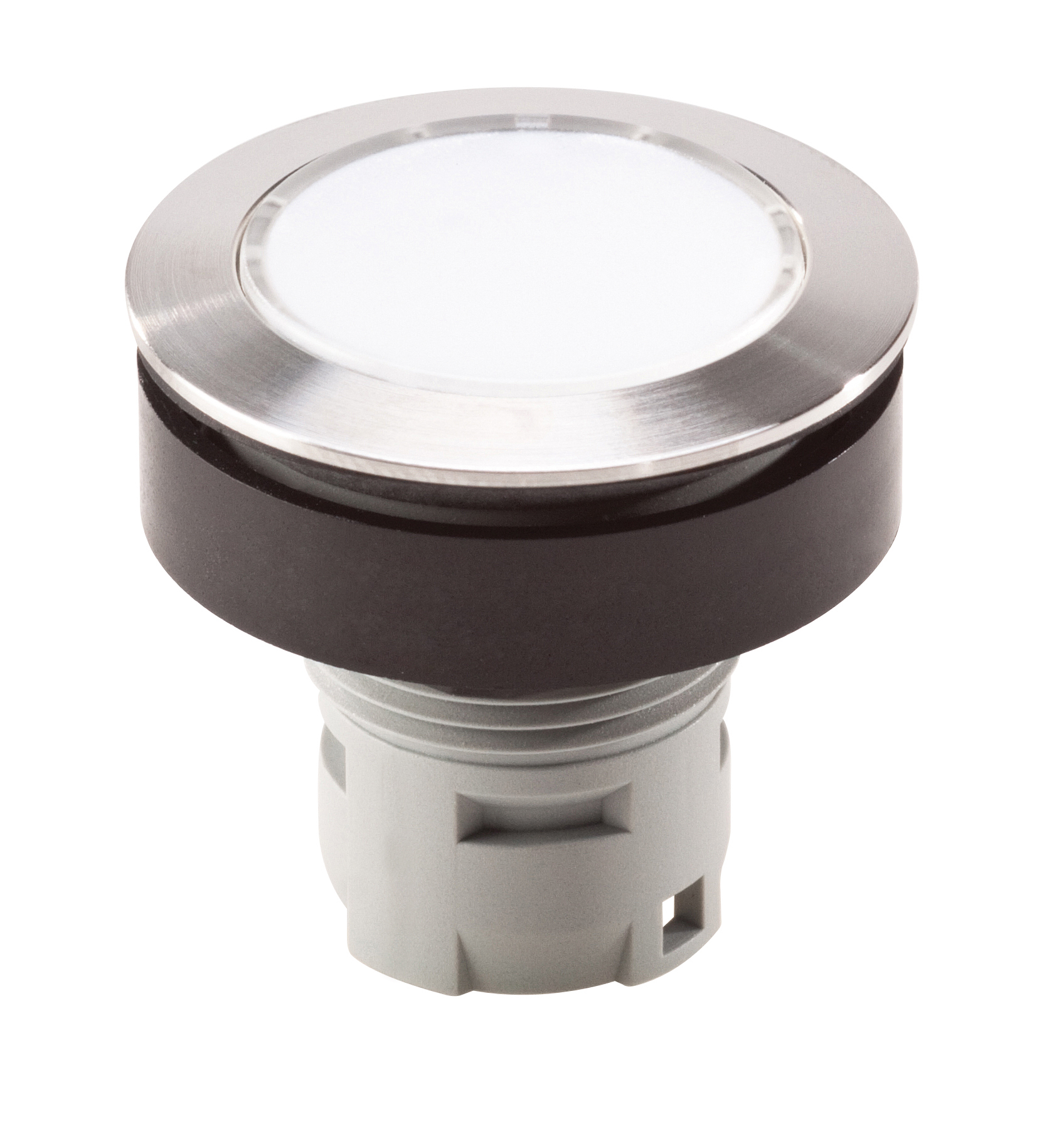

  • RRJVATPushbutton
    Series
    RONTRON-R-JUWEL
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP67
    Shape
    Round
    Bezel color
    Stainless steel
    Illuminated
    Yes
    More specifications (7)
    Travel
    3 mm
    Panel thickness
    1.5 mm to 5 mm
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    1,000,000 operations
    Approvals
    CCC, cCSAus, CE, cURus, UKCA
    Weight
    8.92 g

    Values as stated in Schlegel’s datasheet (16.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

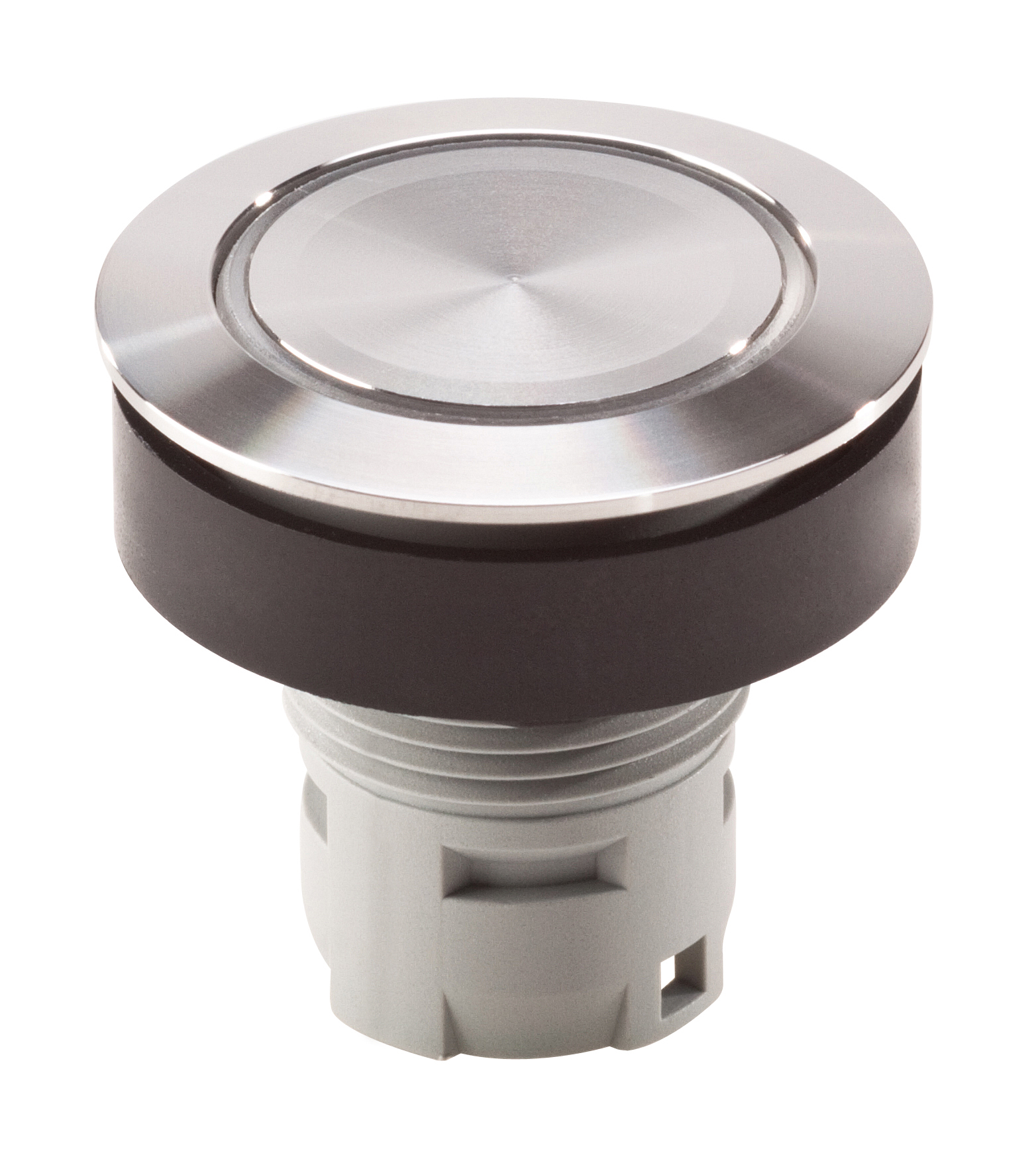

  • RRJVATLRPushbutton
    Panel cutout
    22.3 mm
    Protection (front)
    IP67
    Travel
    3 mm
    Approvals
    CCC, CE, cURus, UKCA

    Values as stated in Schlegel’s datasheet (08.07.2021)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

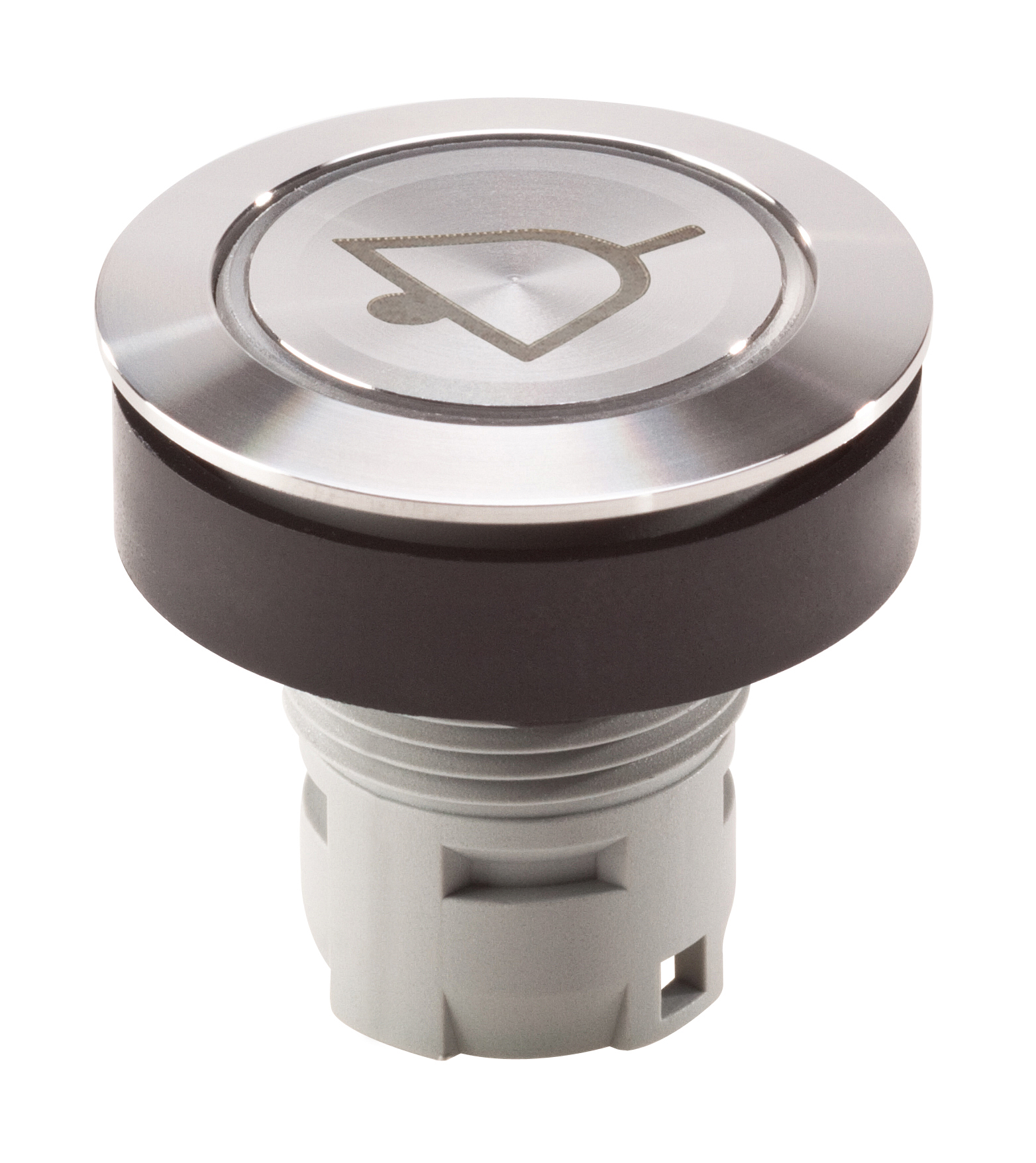

  • RRJVATLRL_0001Pushbutton
    Request a quoteView on GrossAutomation.com

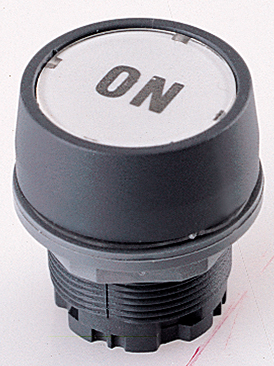

  • RTPushbutton
    Request a quoteView on GrossAutomation.com
  • RTAPushbutton
    Request a quoteView on GrossAutomation.com
  • RTAOPushbutton
    Request a quoteView on GrossAutomation.com

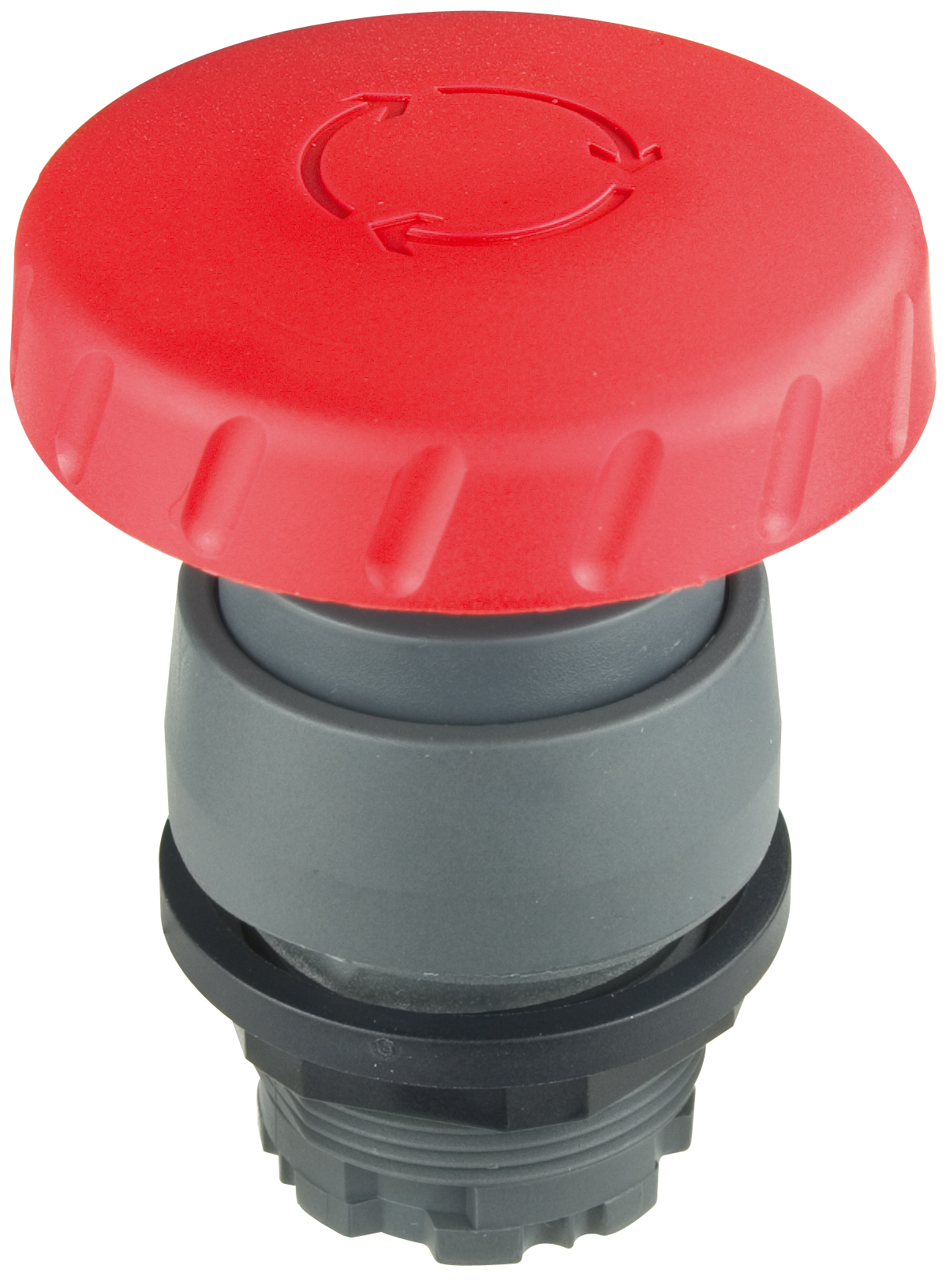

  • RVPushbutton
    Request a quoteView on GrossAutomation.com
  • RV_356Pushbutton
    Request a quoteView on GrossAutomation.com
  • RVAT_DGPushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP69K
    Shape
    Round
    Actuator color
    stainless steel
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    More specifications (1)
    Weight
    19.38 g

    Values as stated in Schlegel’s datasheet (17.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

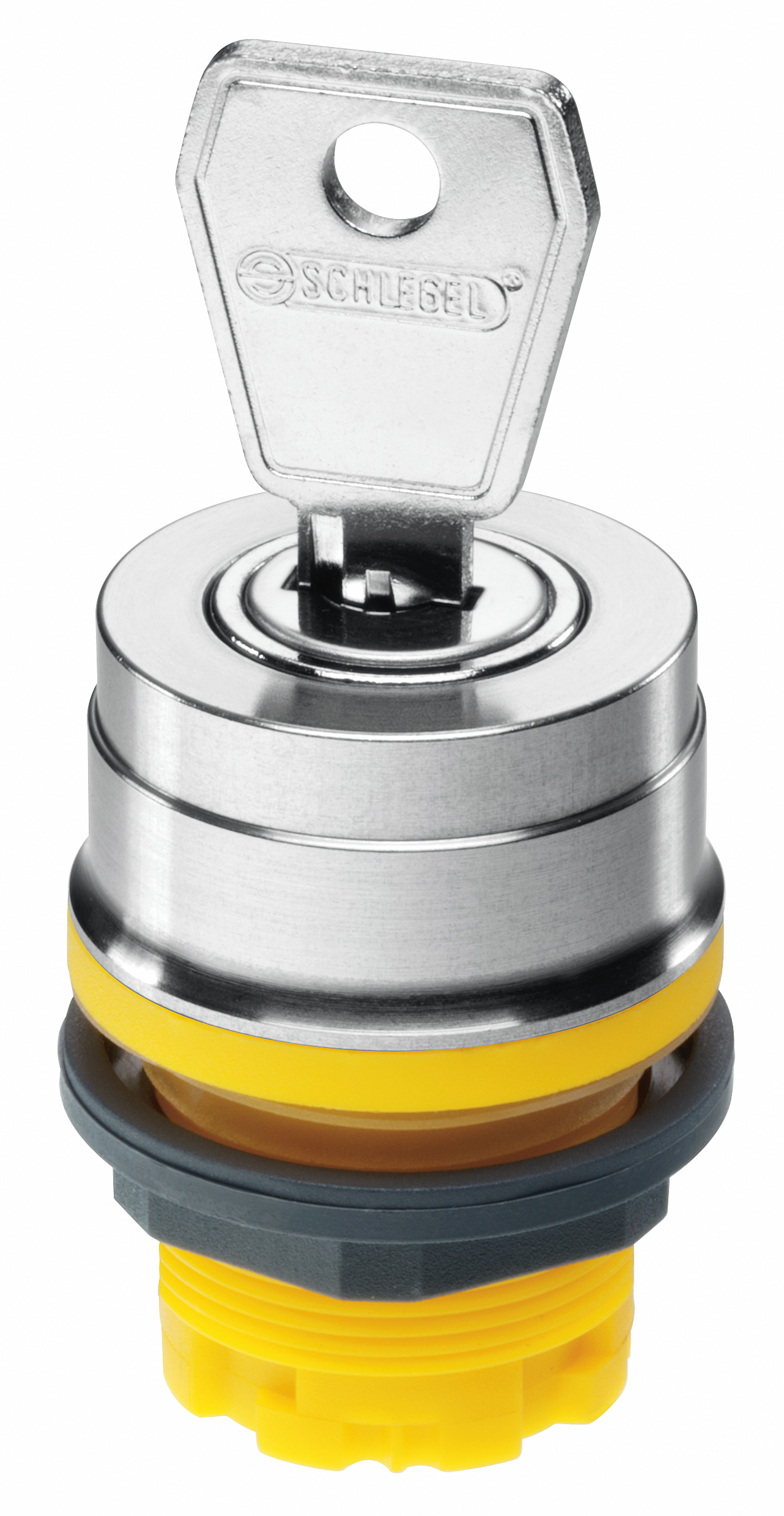

  • RVAT_RTPushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP69K
    Shape
    Round
    Color
    Red
    Bezel color
    red
    Actuator color
    stainless steel
    More specifications (3)
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Weight
    18.44 g

    Values as stated in Schlegel’s datasheet (17.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • RVATLR_GNPushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Shape
    Round
    Bezel color
    Green
    Actuator color
    stainless steel
    Illuminated
    Yes
    More specifications (4)
    Panel thickness
    1 mm to 7 mm
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Weight
    18.03 g

    Values as stated in Schlegel’s datasheet (24.06.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

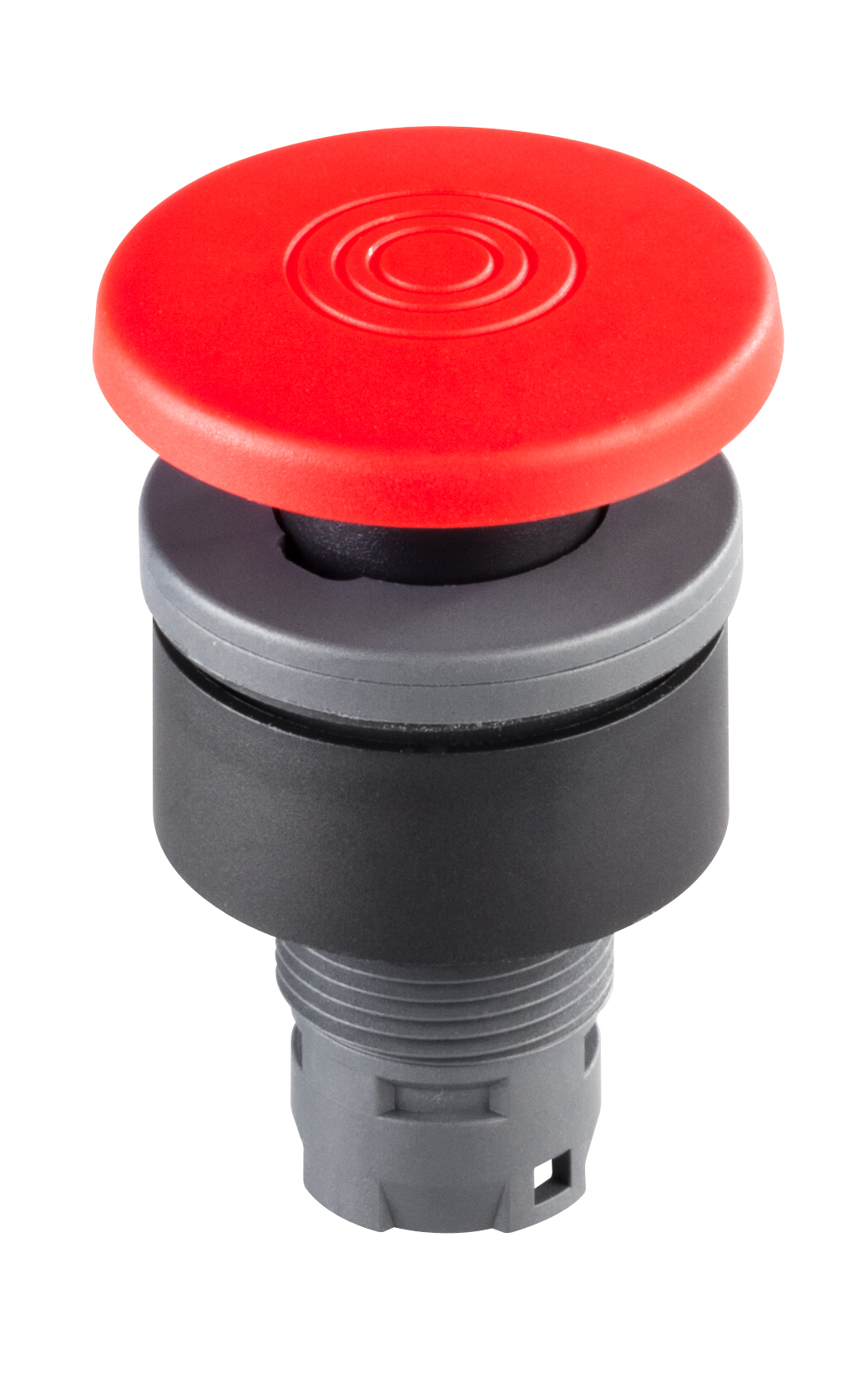

  • RXJTPushbutton
    Series
    RX-JUWEL
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP65
    Shape
    Round
    Bezel color
    anthracite
    Illuminated
    Yes
    More specifications (9)
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, UKCA, UR
    Weight
    9.24 g

    Values as stated in Schlegel’s datasheet (17.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

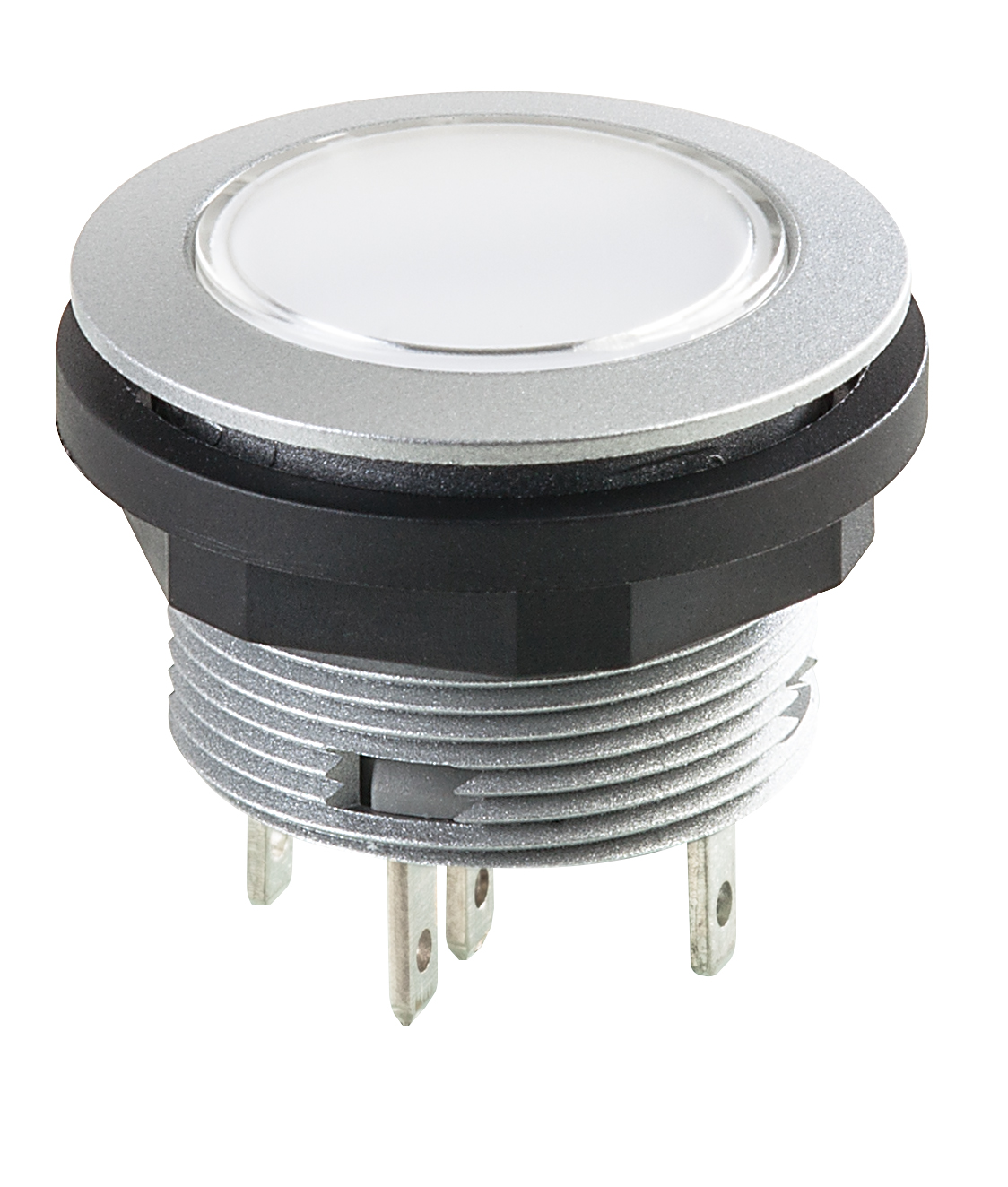

  • SCTLFPushbutton
    Series
    SHORTRON®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (14)
    Actuator color
    Clear
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1CO
    Connection
    Faston Terminals 2.8 X 0.8 Mm
    Travel
    2.3 mm
    Mounting depth
    16 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load
    Standards
    EN 61058-1
    Approvals
    CCC, CE, ENEC10, VDE, cURus, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

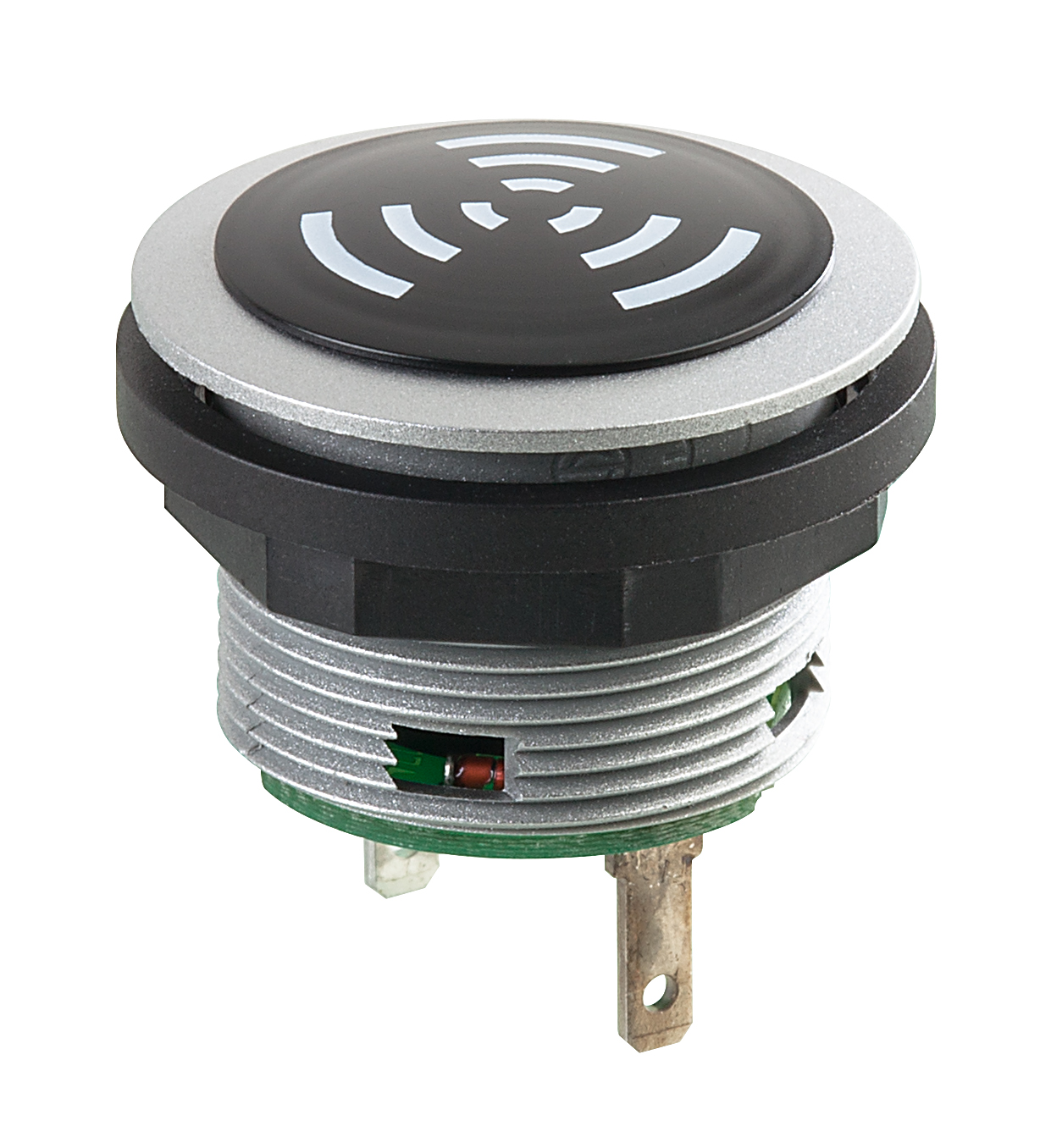

  • SNSG+SG-24VPushbutton
    Request a quoteView on GrossAutomation.com

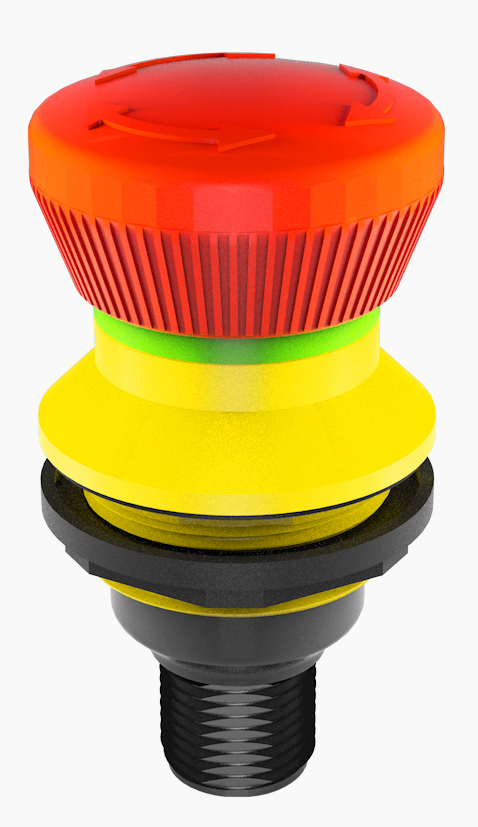

  • SSWTLI_C005Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    black
    More specifications (16)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • SSWTLRWI_C005Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    black
    More specifications (18)
    Actuator color
    black
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Connection
    M12 Connector
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (02.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STIPushbutton
    Series
    SHORTRON®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (19)
    Actuator color
    Clear
    Contacts
    1NO
    Connection
    Faston Terminals 2.8 X 0.8 Mm
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting depth
    16 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / > 100,000 operations DC13
    Utilization category
    AC-15 B300
    Insulation voltage
    250 V AC
    Rated voltage
    250 V AC
    Voltage
    240 V AC
    Current
    1.5 A AC
    Rated current
    6(4) A
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cURus, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (04.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STLI_C005Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    Silver
    More specifications (16)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STLI_M03Pushbutton
    Series
    SHORTRON®-M12
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65
    Shape
    Round
    Color
    Silver
    More specifications (17)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    250 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA
    Cable length
    250mm

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STLI_M04Pushbutton
    Series
    SHORTRON®-M12
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65
    Shape
    Round
    Illuminated
    Yes
    More specifications (16)
    Illuminant
    integrated LED
    Contacts
    1NO
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    250 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA
    Cable length
    1500mm

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STLRGOIPushbutton
    Series
    SHORTRON®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Bezel color
    Silver
    Illuminated
    Yes
    More specifications (20)
    Illuminant
    integrated LED
    Contacts
    1NC + 1NO
    Connection
    Faston Terminals 2.8 X 0.8 Mm
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting depth
    16 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / > 100,000 operations DC13
    Utilization category
    AC-15 B300
    Insulation voltage
    250 V AC
    Rated voltage
    250 V AC
    Voltage
    240 V AC
    Current
    1.5 A AC
    Rated current
    6(4) A
    Positive opening
    per EN 60947-5-1 Annex K
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cURus, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (02.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • STOIPushbutton
    Series
    SHORTRON®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Silver
    Bezel color
    Silver
    More specifications (20)
    Actuator color
    Clear
    Contacts
    1NC + 1NO
    Connection
    Faston Terminals 2.8 X 0.8 Mm
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting depth
    16 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / > 100,000 operations DC13
    Utilization category
    AC-15 B300
    Insulation voltage
    250 V AC
    Rated voltage
    250 V AC
    Voltage
    240 V AC
    Current
    1.5 A AC
    Rated current
    6(4) A
    Positive opening
    per EN 60947-5-1 Annex K
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cURus, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (04.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

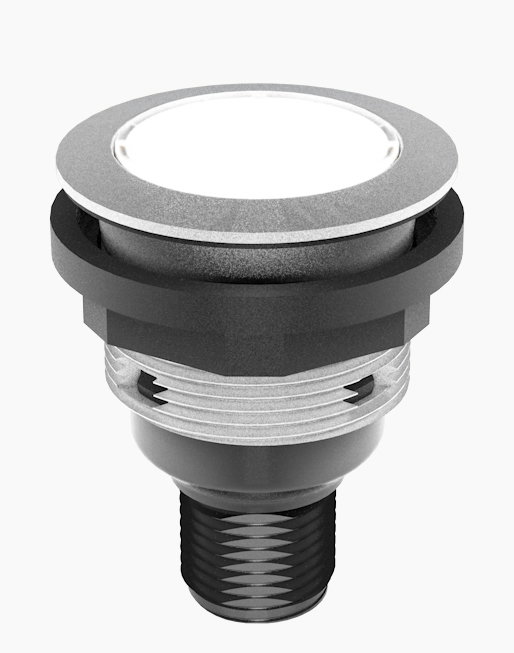

  • STOI_C008Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    Silver
    More specifications (15)
    Contacts
    1NC + 1NO
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    1A DC
    Positive opening
    per EN 60947-5-1 Annex K
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

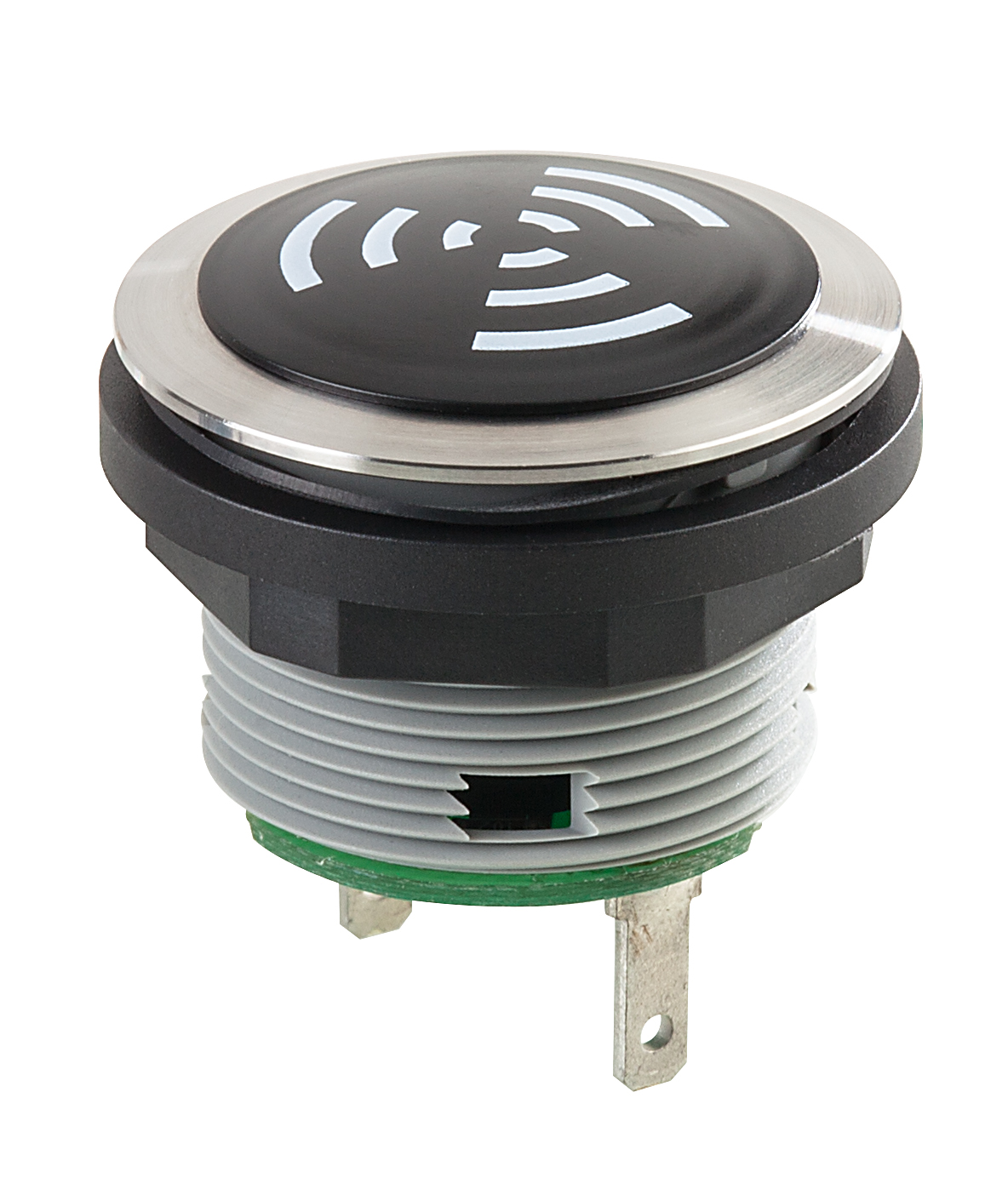

  • SVANSG+SG-24VPushbutton
    Bezel color
    Stainless steel
    Connection
    Faston Terminals

    Values as stated in Schlegel’s product data

    Request a quoteView on GrossAutomation.com

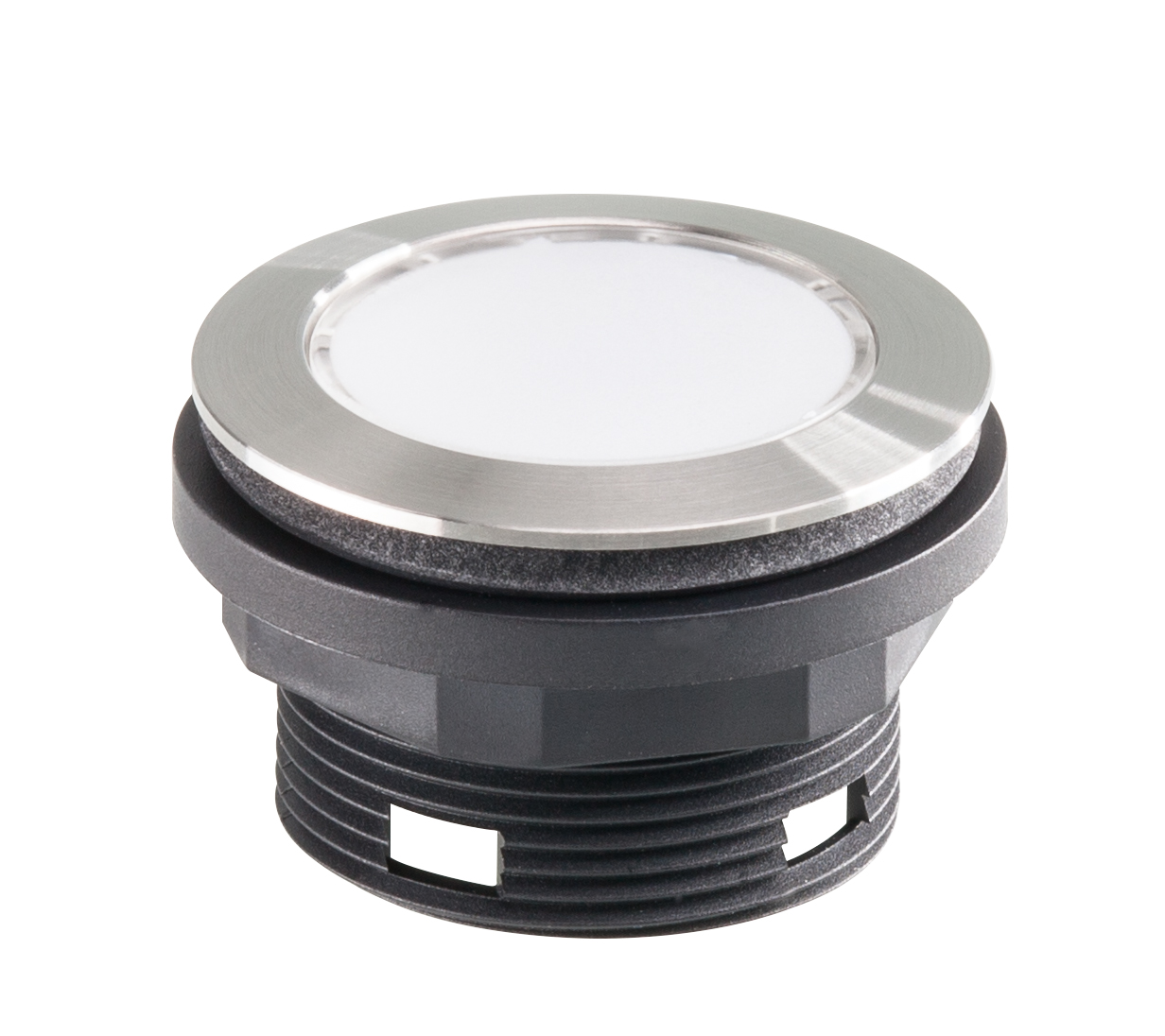

  • SVATPushbutton
    Series
    SHORTRON® Zwischenbau
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Bezel color
    Stainless steel
    Illuminated
    Yes
    More specifications (8)
    Travel
    2.3 mm
    Panel thickness
    1.5 mm to 8 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (17.07.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • SVATLIPushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Shape
    Round
    Color
    Stainless Steel
    Actuator color
    Clear
    Illuminated
    Yes
    More specifications (19)
    Illuminant
    integrated LED
    Contacts
    1NO
    Connection
    Faston Terminals 2.8 X 0.8 Mm
    Contact material
    AgNi
    Travel
    2.3 mm
    Mounting depth
    16 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15 B300
    Insulation voltage
    250 V AC
    Rated voltage
    250 V AC
    Voltage
    240 V AC
    Current
    1.5 A AC
    Rated current
    6(4) A
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CCC, CE, cURus, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (04.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • SVATLI_C005Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    Stainless steel
    More specifications (17)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Connection
    M12 Connector A Coded
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

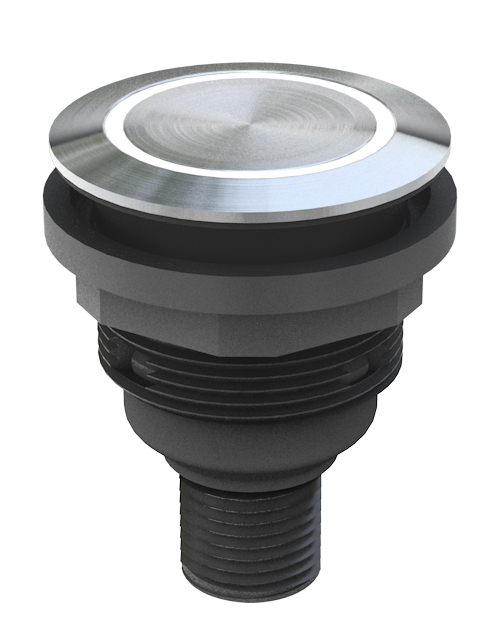

  • SVATLRWI_C005Pushbutton
    Series
    SHORTRON® connect
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP65 / IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    Stainless steel
    More specifications (17)
    Actuator color
    stainless steel
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    4 A AC
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (02.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • SVATOI_C008Pushbutton
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP67
    Protection (rear)
    IP65 with M12 cable connected / IP67 with M12 cable connected
    Shape
    Round
    Bezel color
    Stainless steel
    Contacts
    1NC + 1NO
    More specifications (15)
    Connection
    M12 A Coded
    Contact material
    AgNi
    Mounting depth
    34 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations
    Electrical life
    1,000,000 operations at rated load / max. 100,000 operations DC13
    Utilization category
    AC-15
    Insulation voltage
    50 V AC
    Voltage
    35 V AC
    Current
    1A DC
    Positive opening
    per EN 60947-5-1 Annex K
    Standards
    EN 60947-5-1 / EN 61058-1
    Approvals
    CE, cURus, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (03.03.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • YTLGPushbutton
    Series
    MYnitron®
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Color
    Green
    Actuator color
    green
    More specifications (17)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Connection
    Faston Terminals 2.8 mm x 0.5 mm
    Travel
    1 mm
    Mounting depth
    18 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    500,000 operations
    Electrical life
    500,000 operations at rated load
    Utilization category
    AC-12
    Insulation voltage
    42 V AC
    Voltage
    35 V AC
    Current
    0.1 A AC
    Standards
    IEC/EN 60947-5-1
    Approvals
    CE, cURus, UKCA

    Values as stated in Schlegel’s datasheet (15.04.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • YTLWPushbutton
    Series
    MYnitron®
    Panel cutout
    Ø 16.2 mm
    Protection (front)
    IP65 / IP67
    Shape
    Round
    Color
    Black
    Actuator color
    white
    More specifications (17)
    Illuminated
    Yes
    Illuminant
    integrated LED
    Contacts
    1NO
    Connection
    Faston Terminals 2.8 mm x 0.5 mm
    Travel
    1 mm
    Mounting depth
    18 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    500,000 operations
    Electrical life
    500,000 operations at rated load
    Utilization category
    AC-12
    Insulation voltage
    42 V AC
    Voltage
    35 V AC
    Current
    0.1 A AC
    Standards
    IEC/EN 60947-5-1
    Approvals
    CE, cURus, UKCA

    Values as stated in Schlegel’s datasheet (15.04.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

Membrane pushbutton 4

  • RRJVAFTMembrane pushbutton
    Panel cutout
    22.3 mm
    Travel
    1.5 mm
    Approvals
    CCC, cCSAus, CE, cURus, DGUV_Test, UKCA

    Values as stated in Schlegel’s datasheet (03.08.2022)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

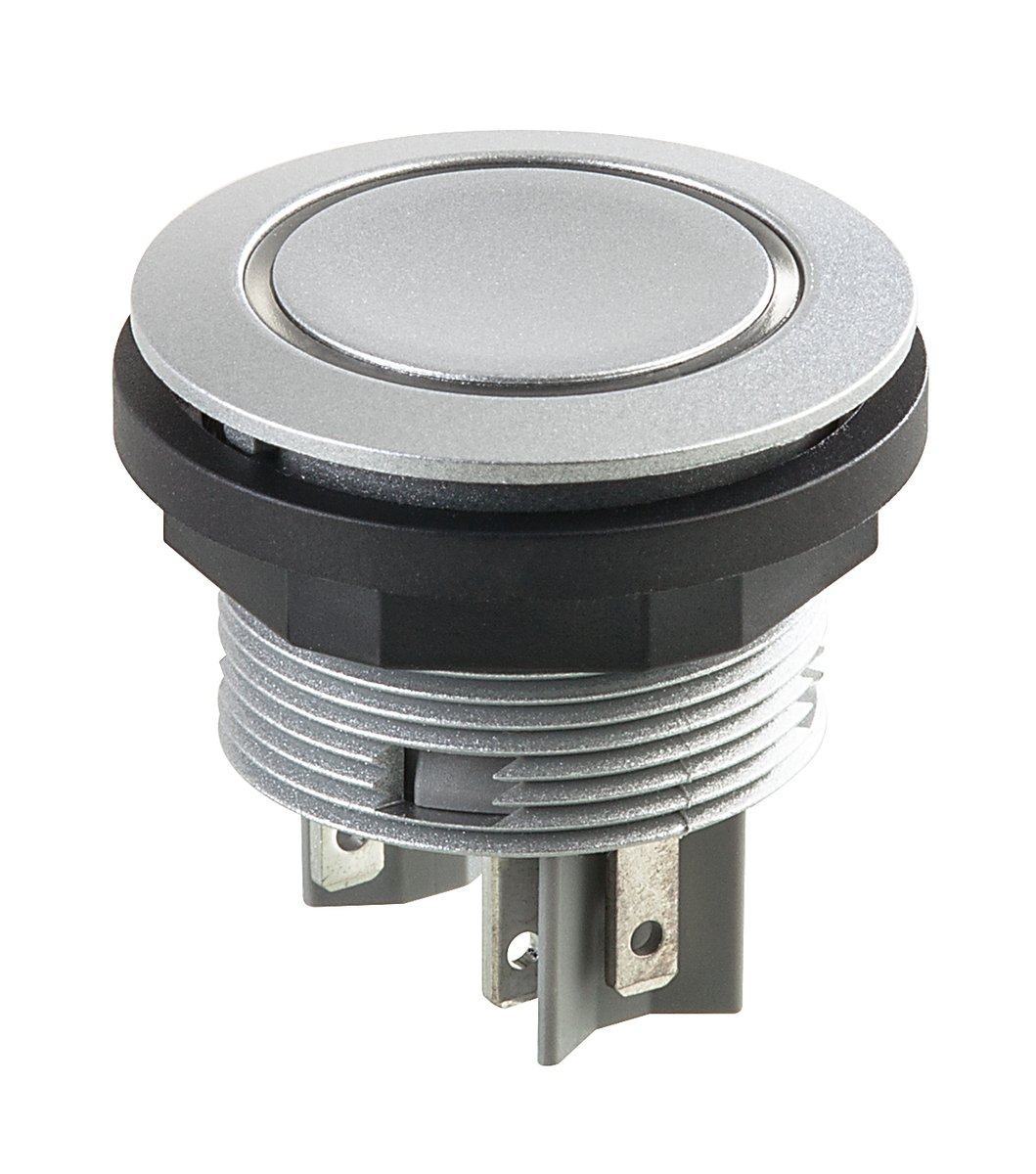

  • SVACFTMembrane pushbutton
    Panel cutout
    22.3 mm
    Travel
    1.8 mm
    Standards
    EN 61058-1
    Approvals
    CE, cURus, DGUV_Test, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (21.09.2023)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

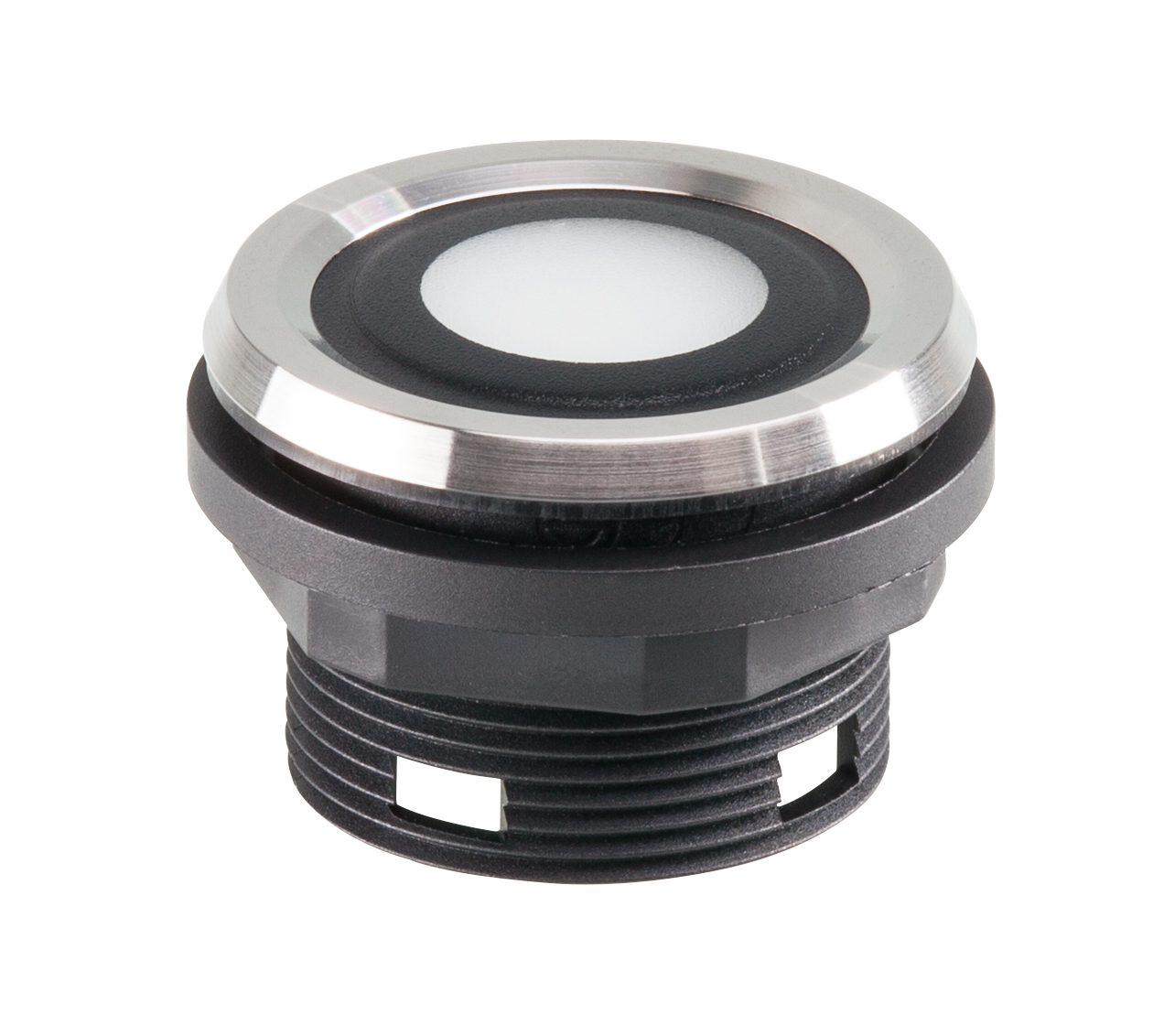

  • SVACFTFMembrane pushbutton
    Series
    SHORTRON
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP69K
    Shape
    Round
    Bezel color
    Stainless steel
    Contacts
    1CO
    More specifications (11)
    Connection
    Faston terminal 2.8 mm x 0.8 mm
    Travel
    1.8 mm
    Mounting depth
    22.6 mm
    Panel thickness
    1.5 mm to 8 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations 20°C
    Electrical life
    1,000,000 operations at rated load
    Standards
    EN 61058-1
    Approvals
    CE, cURus, DGUV_Test, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (07.08.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

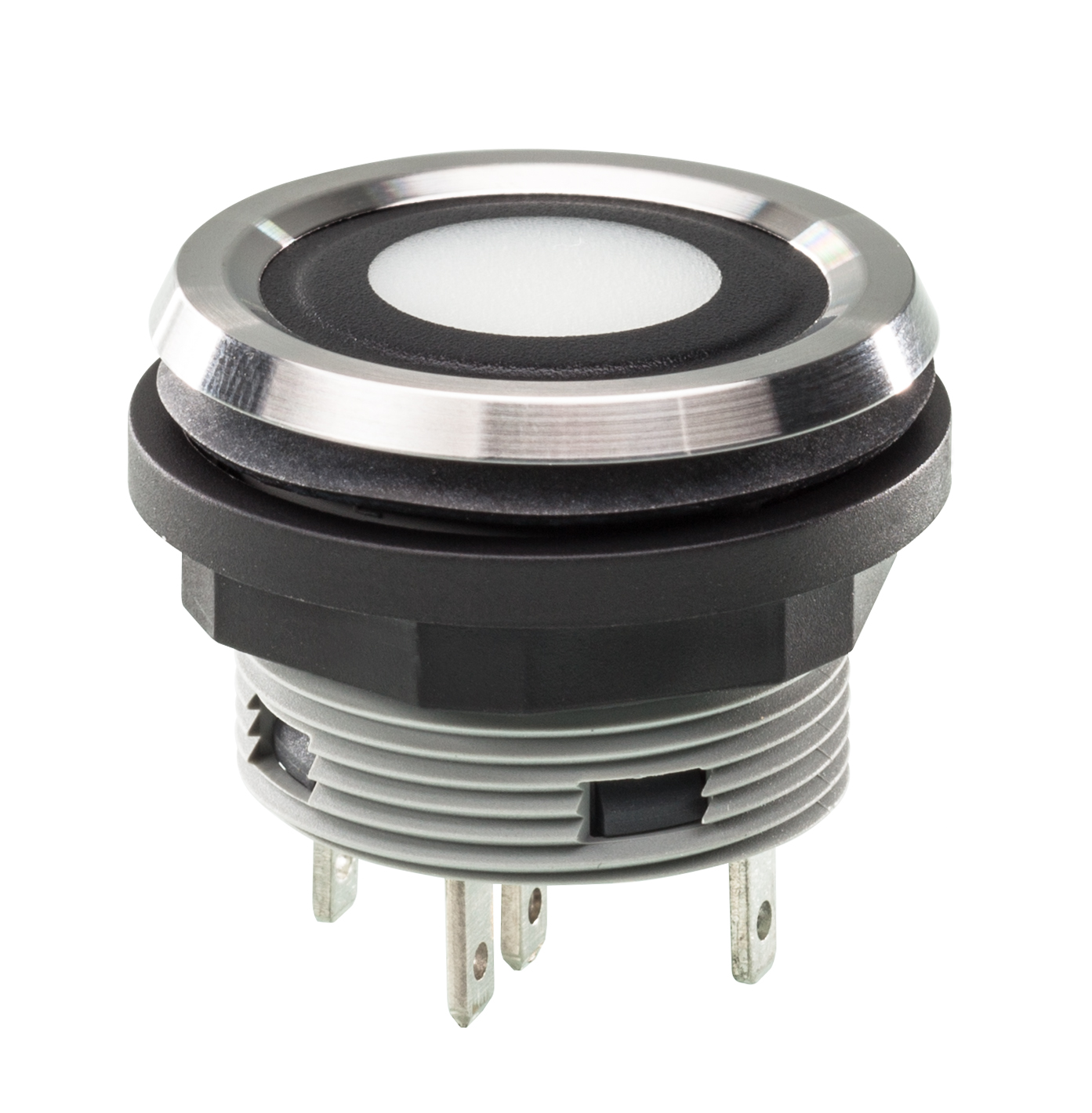

  • SVACFTLFMembrane pushbutton
    Series
    SHORTRON®
    Panel cutout
    Ø 22.3 mm
    Protection (front)
    IP66 / IP67 / IP69K
    Shape
    Round
    Bezel color
    Stainless steel
    Illuminated
    Yes
    More specifications (13)
    Illuminant
    integrated LED
    Contacts
    1CO
    Connection
    Faston terminal 2.8 mm x 0.8 mm
    Travel
    1.8 mm
    Mounting depth
    22.6 mm
    Panel thickness
    1.5 mm to 8 mm
    Mounting position
    any
    Operating temperature
    -25 °C to 70 °C
    Storage temperature
    -40 °C to 80 °C
    Mechanical life
    1,000,000 operations 20°C
    Electrical life
    1,000,000 operations at rated load
    Standards
    EN 61058-1
    Approvals
    CE, cURus, DGUV_Test, DNV, ENEC10, VDE, UKCA

    Values as stated in Schlegel’s datasheet (07.08.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

Foot switch 2

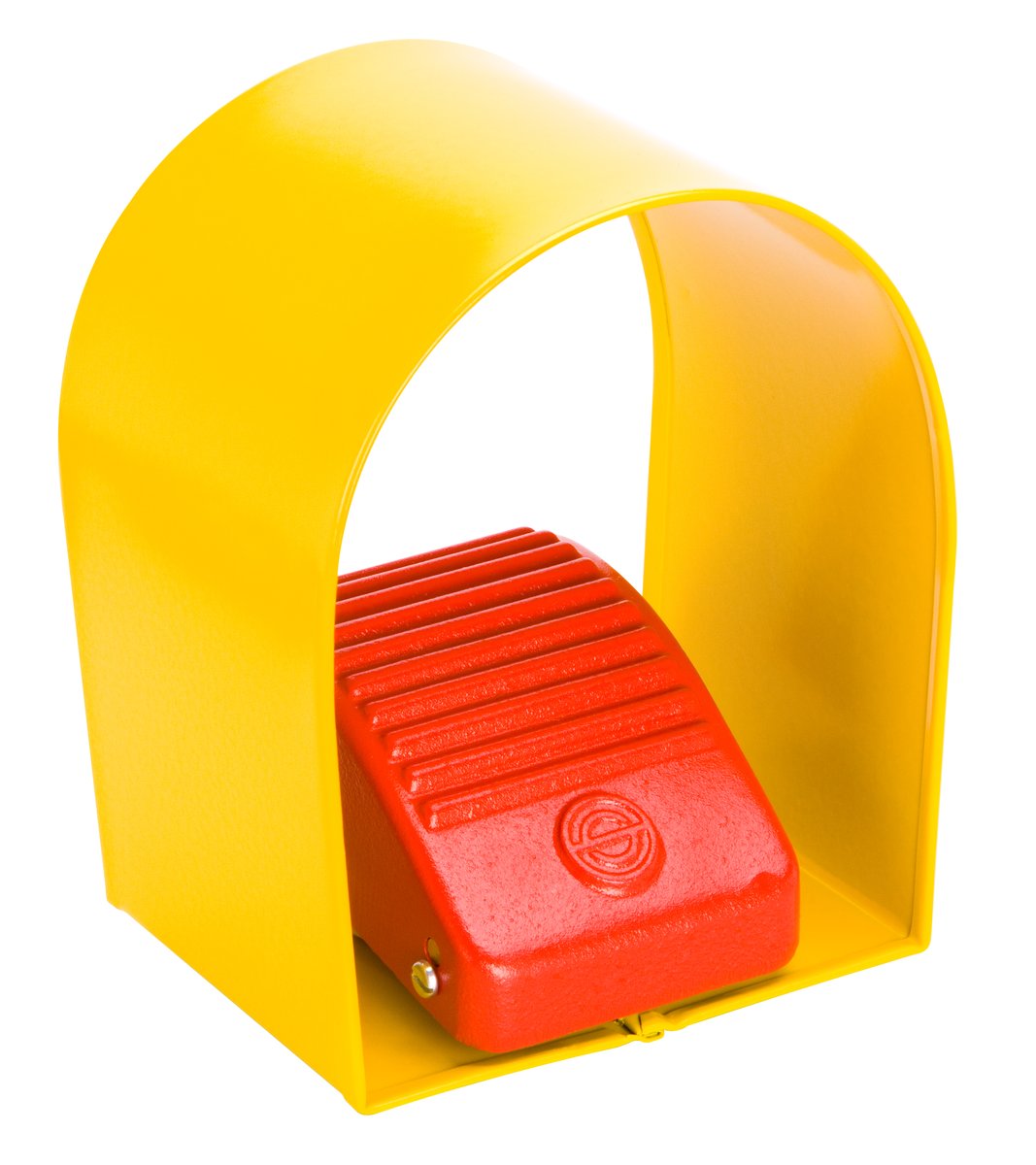

  • KEFBMFoot switch
    Actuator color
    red
    Housing color
    Yellow
    Contacts
    1NC + 1NO
    Contact material
    AgNi
    Travel
    6 mm
    Operating temperature
    -30 °C to 70 °C
    More specifications (11)
    Storage temperature
    -50 °C to 70 °C
    Mechanical life
    1,000,000 operations
    Utilization category
    AC15
    Insulation voltage
    400 V AC
    Rated voltage
    250 V AC/DC
    Voltage
    60V DC
    Current
    0.12A DC
    Rated current
    10(6) A
    Positive opening
    per EN 60947-5-1 Annex K
    Approvals
    CE, UKCA
    Weight
    1.011 g

    Values as stated in Schlegel’s datasheet (30.10.2025)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)
  • KEFMFoot switch
    Color
    Red
    Actuator color
    red
    Contacts
    1NC + 1NO
    Connection
    Screw Connection 2x2.5 mm²
    Contact material
    AgNi
    Travel
    6 mm
    More specifications (12)
    Operating temperature
    -30 °C to 70 °C
    Storage temperature
    -50 °C to 70 °C
    Mechanical life
    1,000,000 operations
    Utilization category
    AC15
    Insulation voltage
    400 V AC
    Rated voltage
    250 V AC/DC
    Voltage
    60V DC
    Current
    0.12A DC
    Rated current
    10(6) A
    Positive opening
    per EN 60947-5-1 Annex K
    Approvals
    CE, UKCA
    Weight
    498 g

    Values as stated in Schlegel’s datasheet (30.10.2025)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

Palm / mushroom pushbutton 1

Toggle actuator 1

Mushroom pushbutton 1

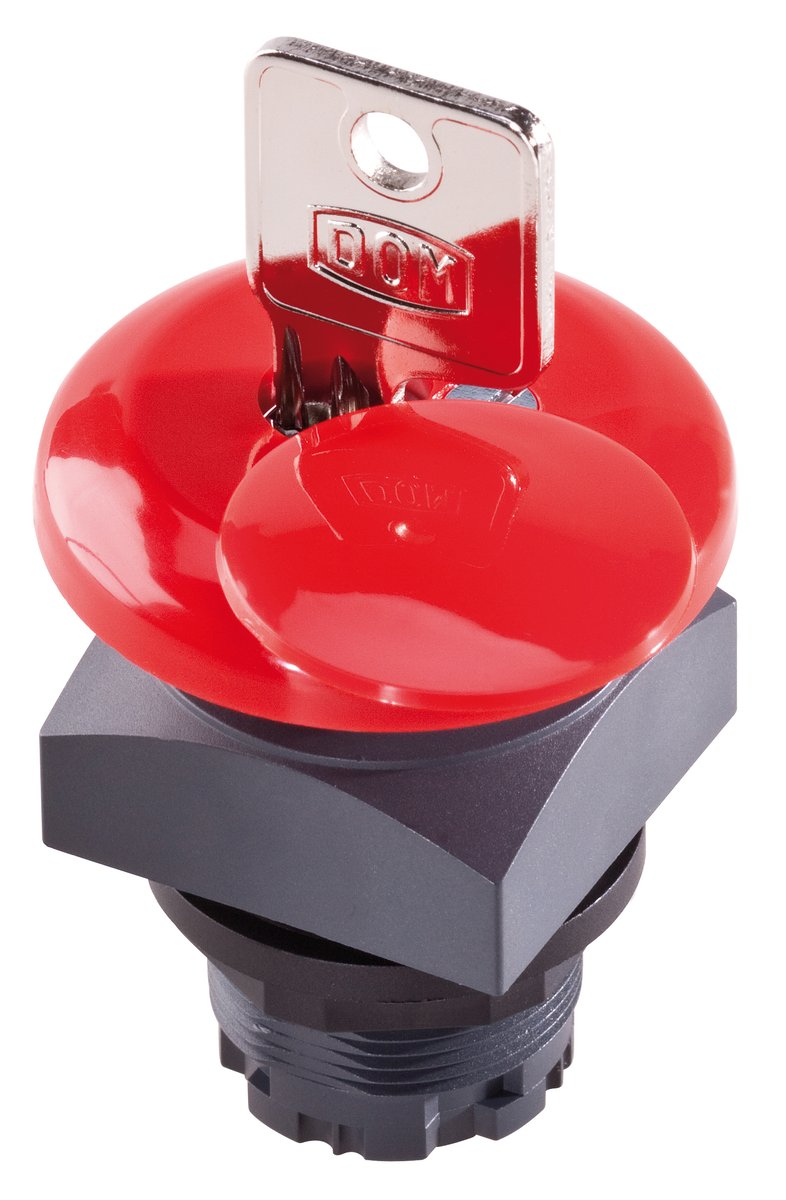

  • QRVMushroom pushbutton
    Series
    QUARTEX®-R
    Panel cutout
    Ø22.3mm
    Protection (front)
    IP65
    Shape
    Square
    Bezel color
    anthracite
    Actuator color
    red
    More specifications (8)
    Travel
    6 mm
    Panel thickness
    1 mm to 7 mm
    Mounting position
    any
    Operating temperature
    -30 °C to 70 °C
    Storage temperature
    -50 °C to 85 °C
    Mechanical life
    50,000 operations
    Approvals
    CCC, CE, cULus, TÜV_Süd, UKCA
    Weight
    26.22 g

    Values as stated in Schlegel’s datasheet (15.09.2026)

    Request a quoteView on GrossAutomation.comSchlegel datasheet (PDF, German)

More pushbuttons 1

Specifications: only values that Schlegel’s own datasheet for the part states (or Schlegel’s product data where we hold no datasheet), with English field names. The datasheet PDF, from Schlegel, has the complete data. Photos may show a variant.

Custom & OEM

Need custom? Gross Automation is your OEM channel

Schlegel USA sells the standard catalog at list price. Gross Automation works with OEMs and volume buyers to get the best price and to build custom products: color changes, custom text, and other unique challenges. Have a special need? We're your official OEM channel.

Configure a productTalk to an engineer

Need a quote, a cross-reference, or a complete panel?

Tell us what you’re building. A Gross Automation engineer will help you spec the right Schlegel parts.

Request a quoteCall +1 (262) 252-1600
