Schlegel contact blocks, lamp holders and lamps
The contact blocks, lamp holders and lamps that go behind Schlegel pushbuttons, selectors, pilot lights and E-stops. 145 part numbers below, each with a quote button.
Contact blocks set the circuit (NO, NC or changeover) and the connection (Faston, screw, push-in or PCB). Lamp holders and LEDs light the button or pilot light.
How to choose
- Contacts: NO, NC or changeover, and how many
- Connection type
- Lamp holder and lamp or LED voltage
- For E-stops: positive-opening contacts
No listed part matches. Send us the part number or what you need, and we will find it.

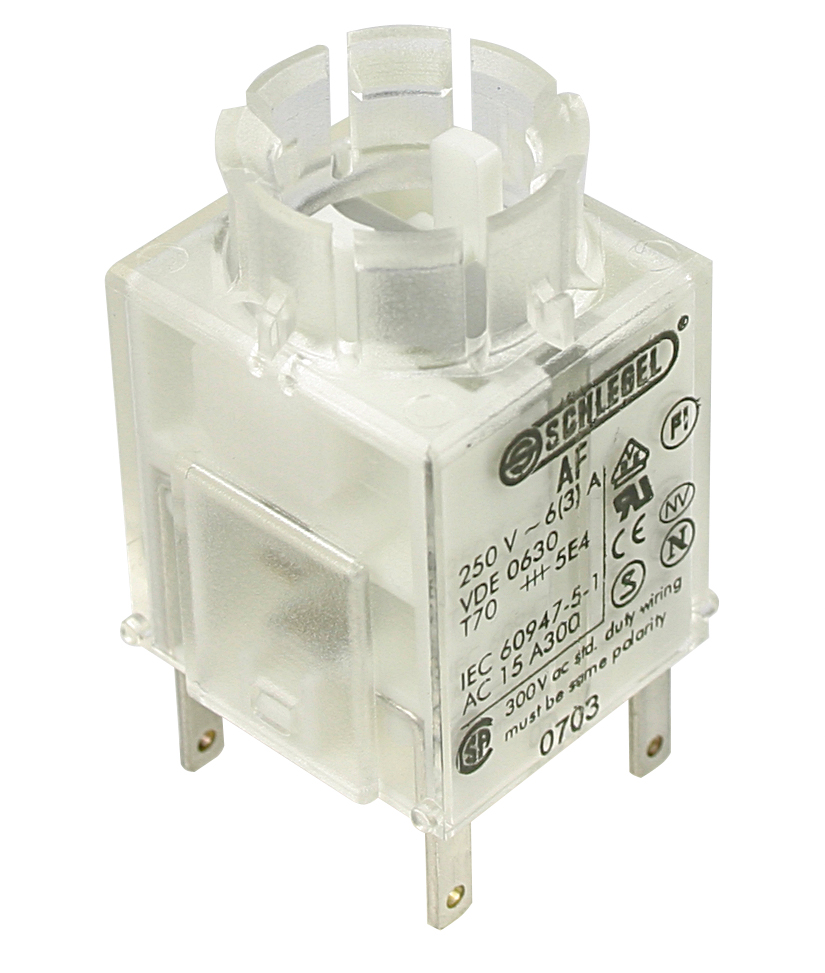

Request a quoteContact block 71
-
AFContact block- Protection (front)
- IP00
- Housing color
- Transparent
- Contacts
- 1NC / 1NO
- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (11)
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (13.03.2026)
-

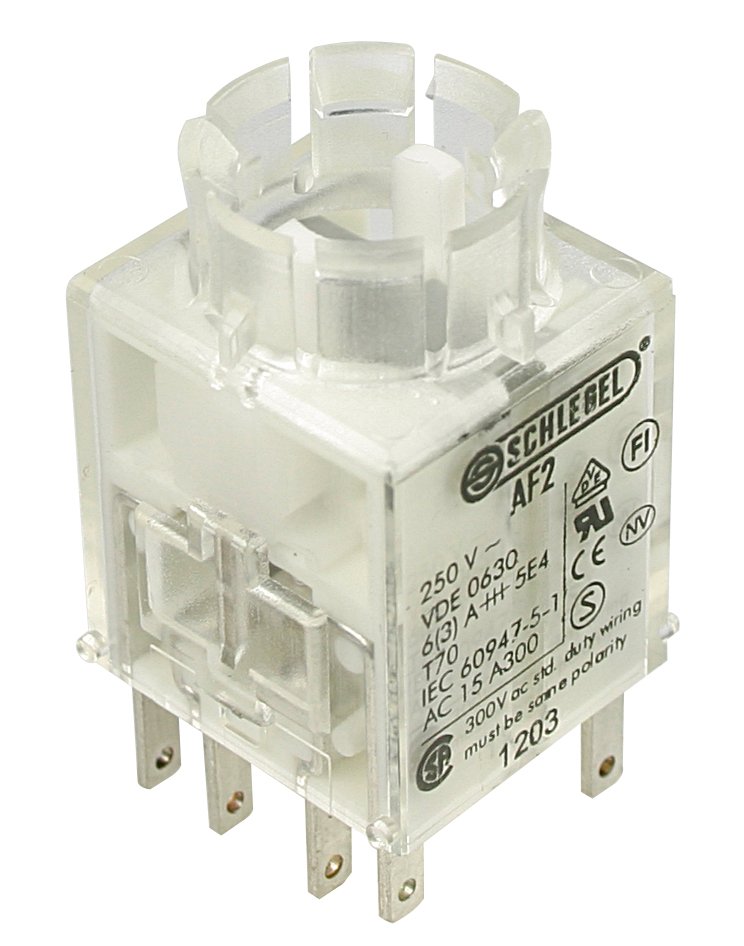

AF2Contact block- Protection (front)
- IP00
- Housing color
- Transparent
- Contacts
- 2NC / 2NO
- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (11)
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (13.03.2026)
-

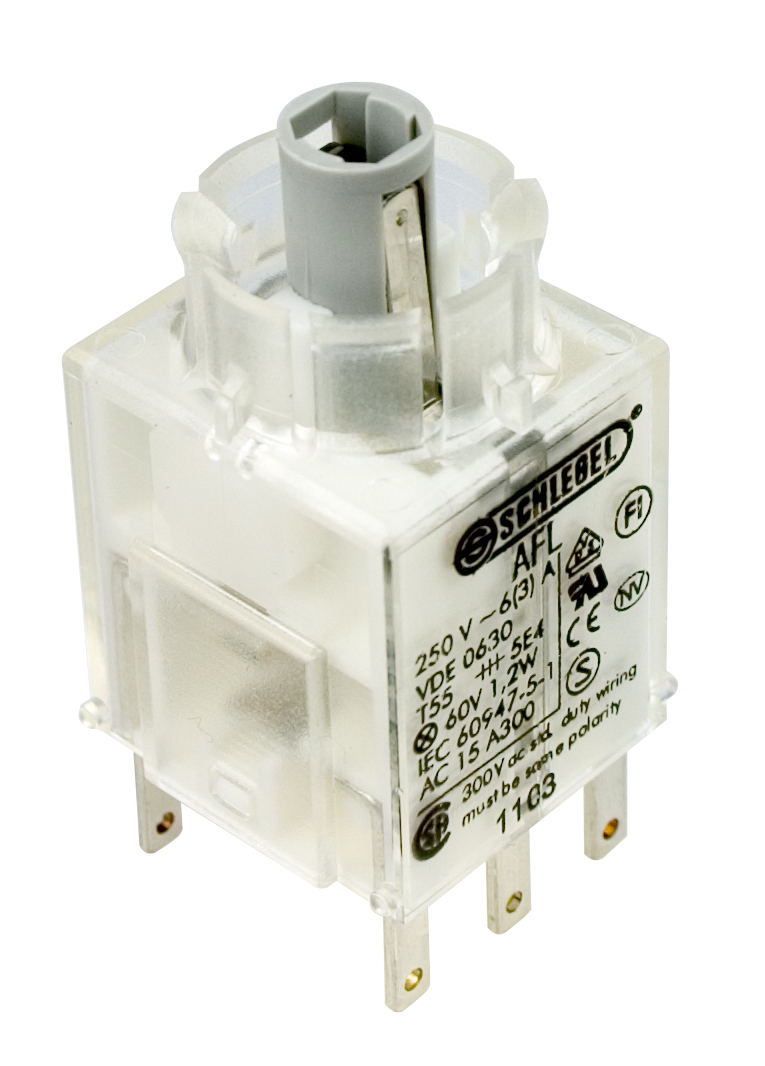

AFLContact block- Housing color
- Transparent
- Illuminated
- Yes
- Contacts
- 1NC / 1NO
- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (10)
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (15.04.2026)
-

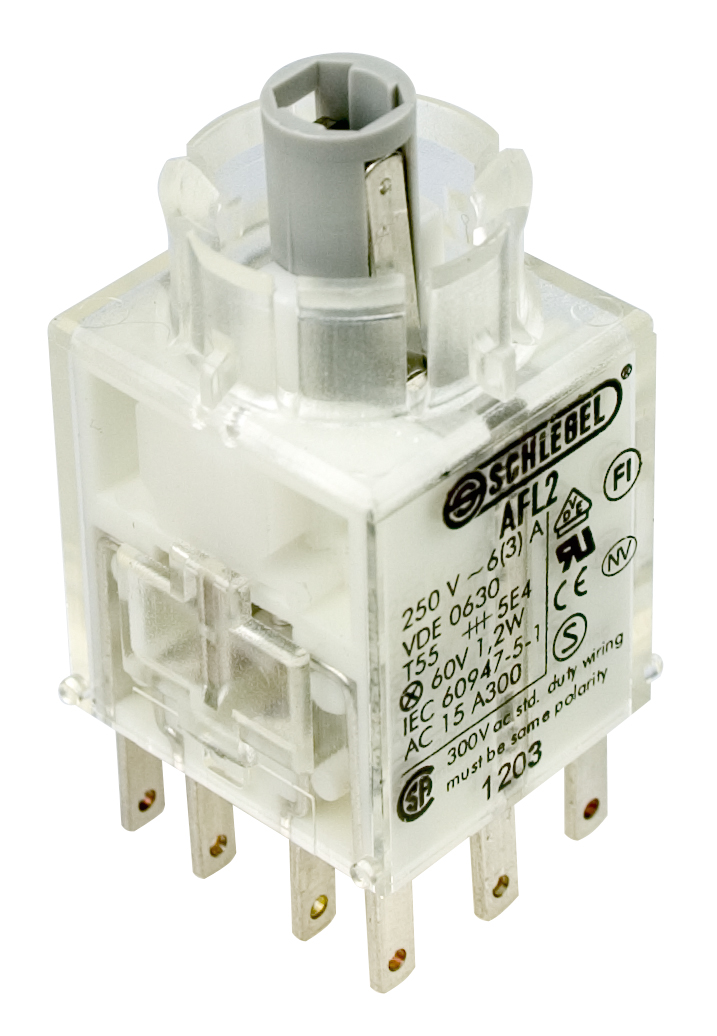

AFL2Contact block- Protection (front)
- IP00
- Housing color
- Transparent
- Illuminated
- Yes
- Contacts
- 2NC / 2NO
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
More specifications (11)
- Travel
- 6 mm
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (15.04.2026)
-

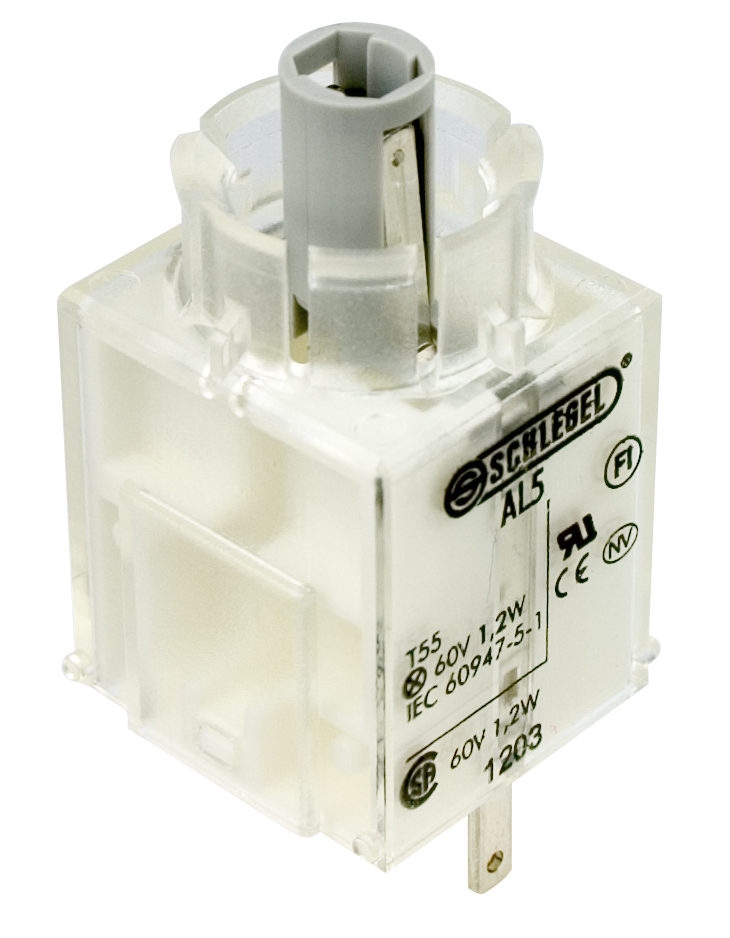

AL5Contact block- Protection (front)
- IP00
- Housing color
- Transparent
- Illuminated
- Yes
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Storage temperature
- -50 °C to 85 °C
- Approvals
- CCC, CE, CSA, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (15.04.2026)
-

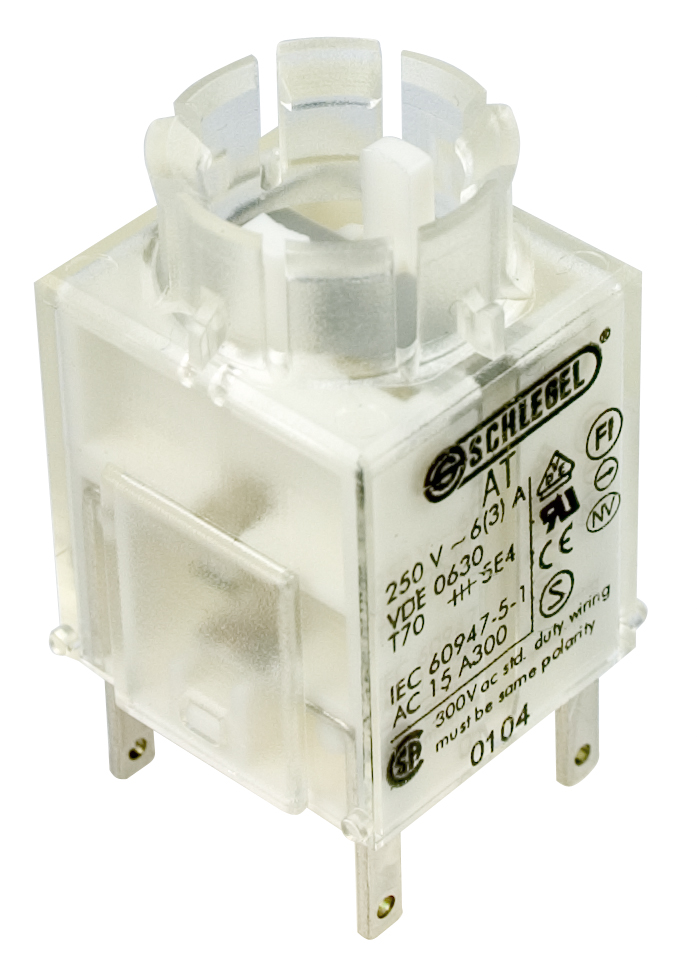

ATContact block- Protection (front)
- IP00
- Housing color
- Transparent
- Contacts
- 1NC / 1NO
- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (11)
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- DNV
Values as stated in Schlegel’s datasheet (13.03.2026)
-

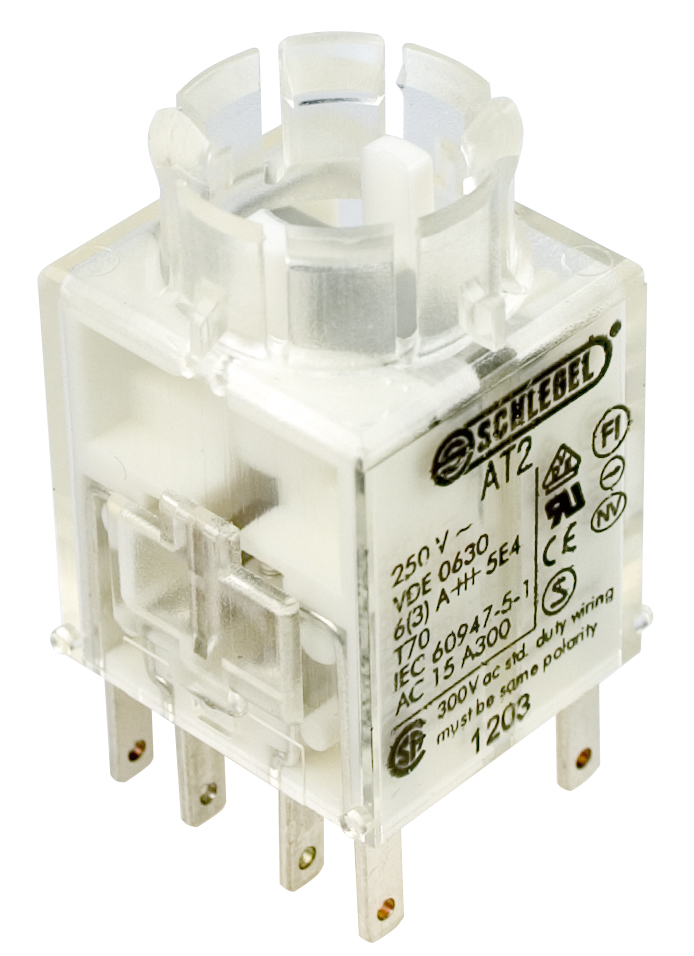

AT2Contact block- Protection (front)
- IP00
- Housing color
- Transparent
- Contacts
- 2NC / 2NO
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (11)
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, cURus, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (13.03.2026)
-

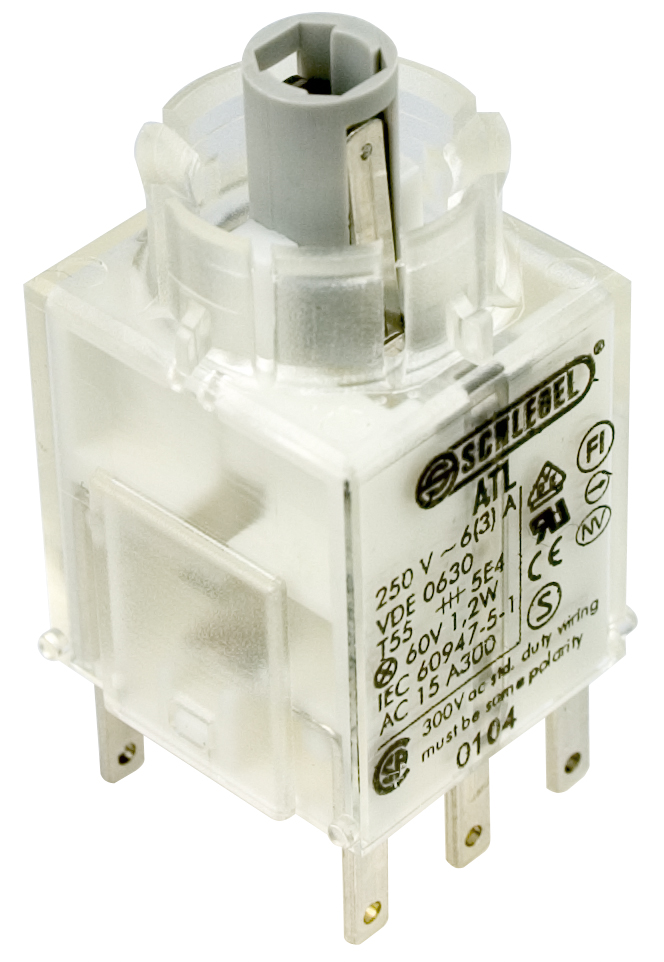

ATLContact block- Protection (front)
- IP00
- Housing color
- Transparent
- Illuminated
- Yes
- Contacts
- 1NC / 1NO
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
More specifications (11)
- Travel
- 6 mm
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- DNV
Values as stated in Schlegel’s datasheet (15.04.2026)
-

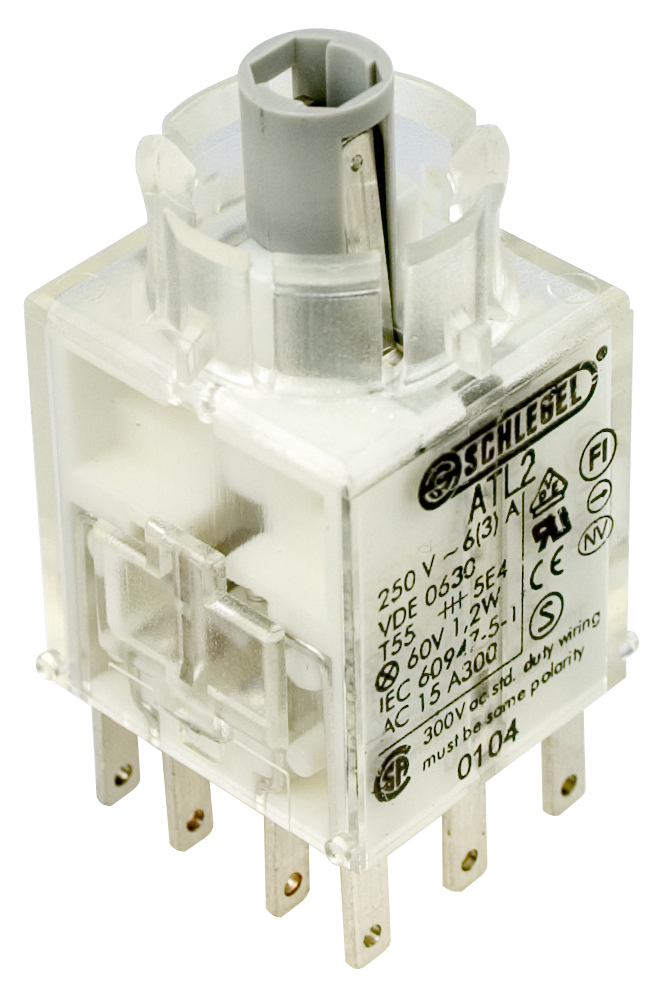

ATL2Contact block- Protection (front)
- IP00
- Housing color
- Transparent
- Illuminated
- Yes
- Contacts
- 2NC / 2NO
- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
More specifications (11)
- Travel
- 6 mm
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CSA, cURus, ENEC10, VDE, CE, UKCA, UR, DNV
Values as stated in Schlegel’s datasheet (15.04.2026)
-
ATL2_AUContact block- Protection (front)
- IP00
- Housing color
- Transparent
- Illuminated
- Yes
- Contacts
- 2NC / 2NO
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Travel
- 6 mm
More specifications (8)
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (15.04.2026)
-

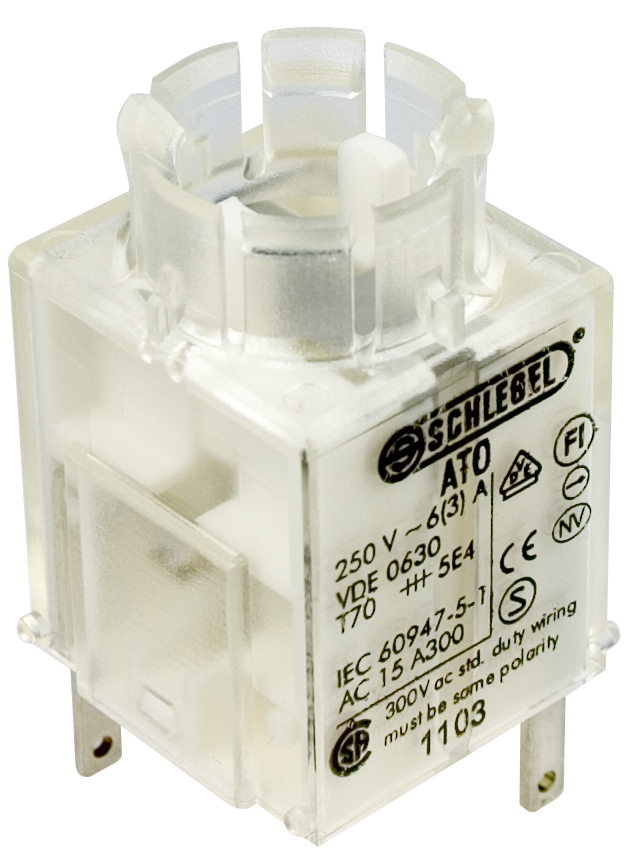

ATOContact block- Protection (front)
- IP00
- Housing color
- Transparent
- Contacts
- 1NC
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
- Travel
- 6 mm
More specifications (11)
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(3) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- DNV
Values as stated in Schlegel’s datasheet (13.03.2026)
-

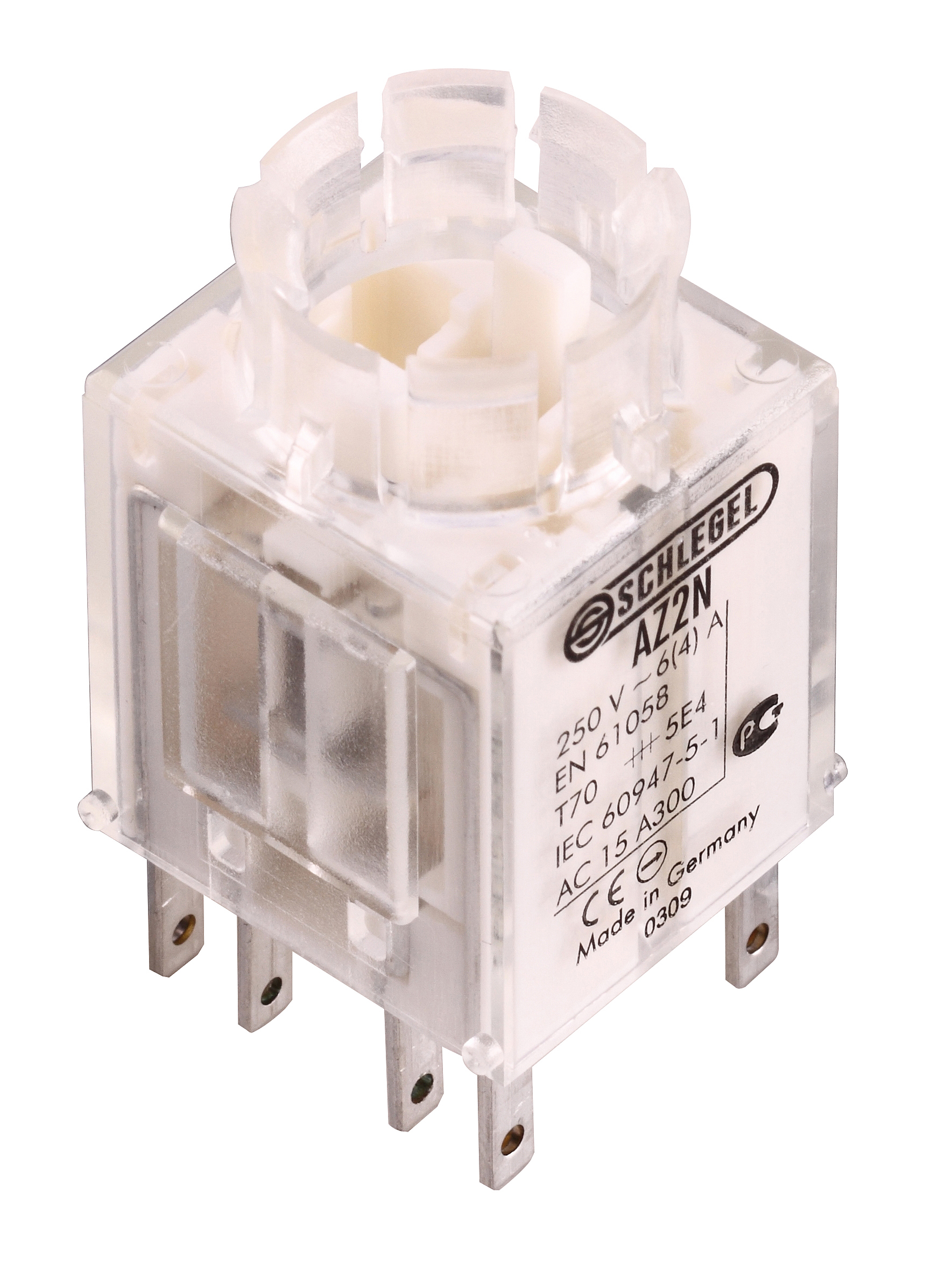

AZ2NContact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 / 6 mm
- Utilization category
- AC15 A300, DC13 Q300
- Approvals
- CCC, DNV, ENEC05, KEMA, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (30.04.2021)
-

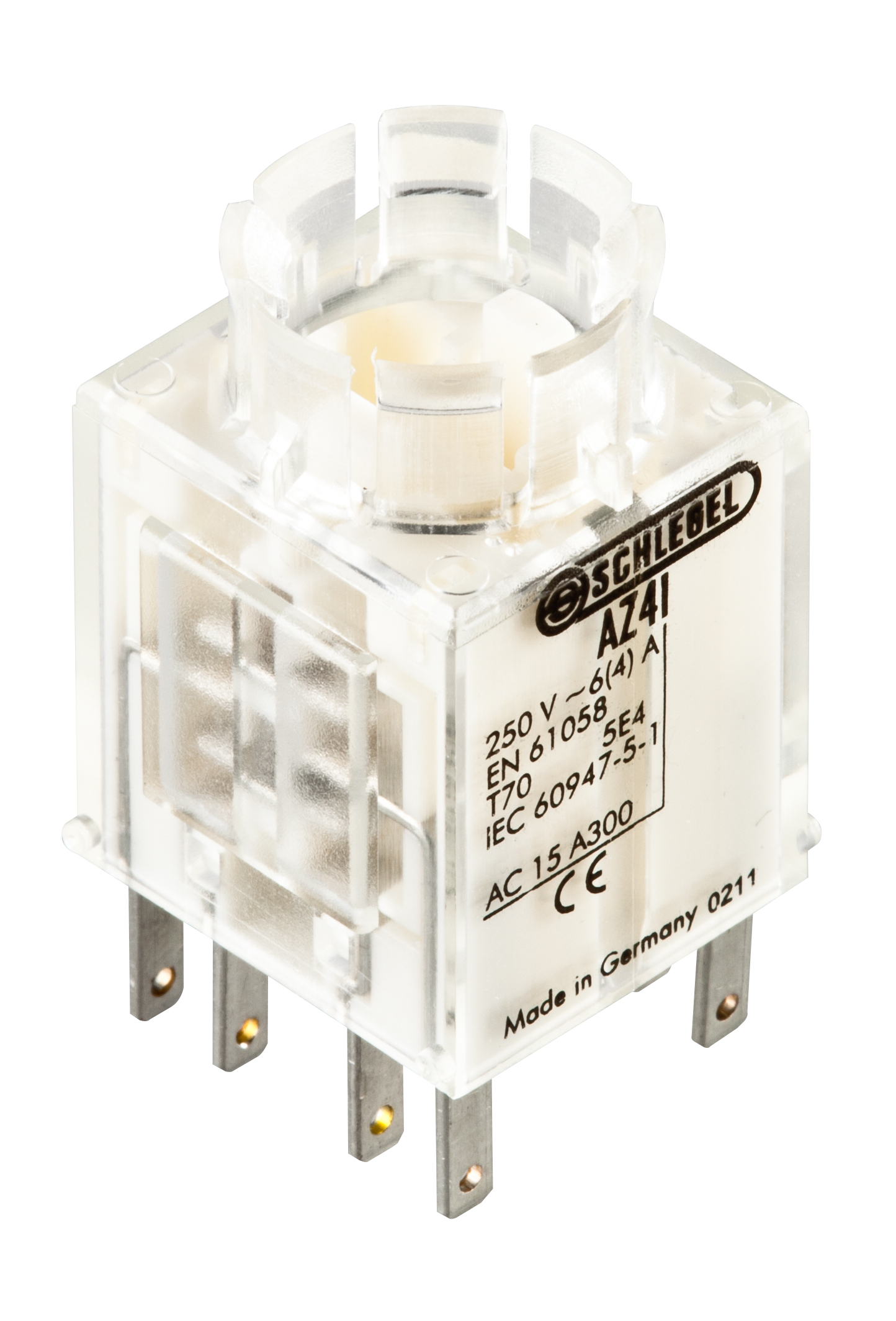

AZ4IContact block- Contact material
- AgNi
- Travel
- 3 / 6 mm
- Utilization category
- AC15 A300, DC13 Q300
- Approvals
- CCC, CE, ENEC05, KEMA, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (30.04.2021)
-

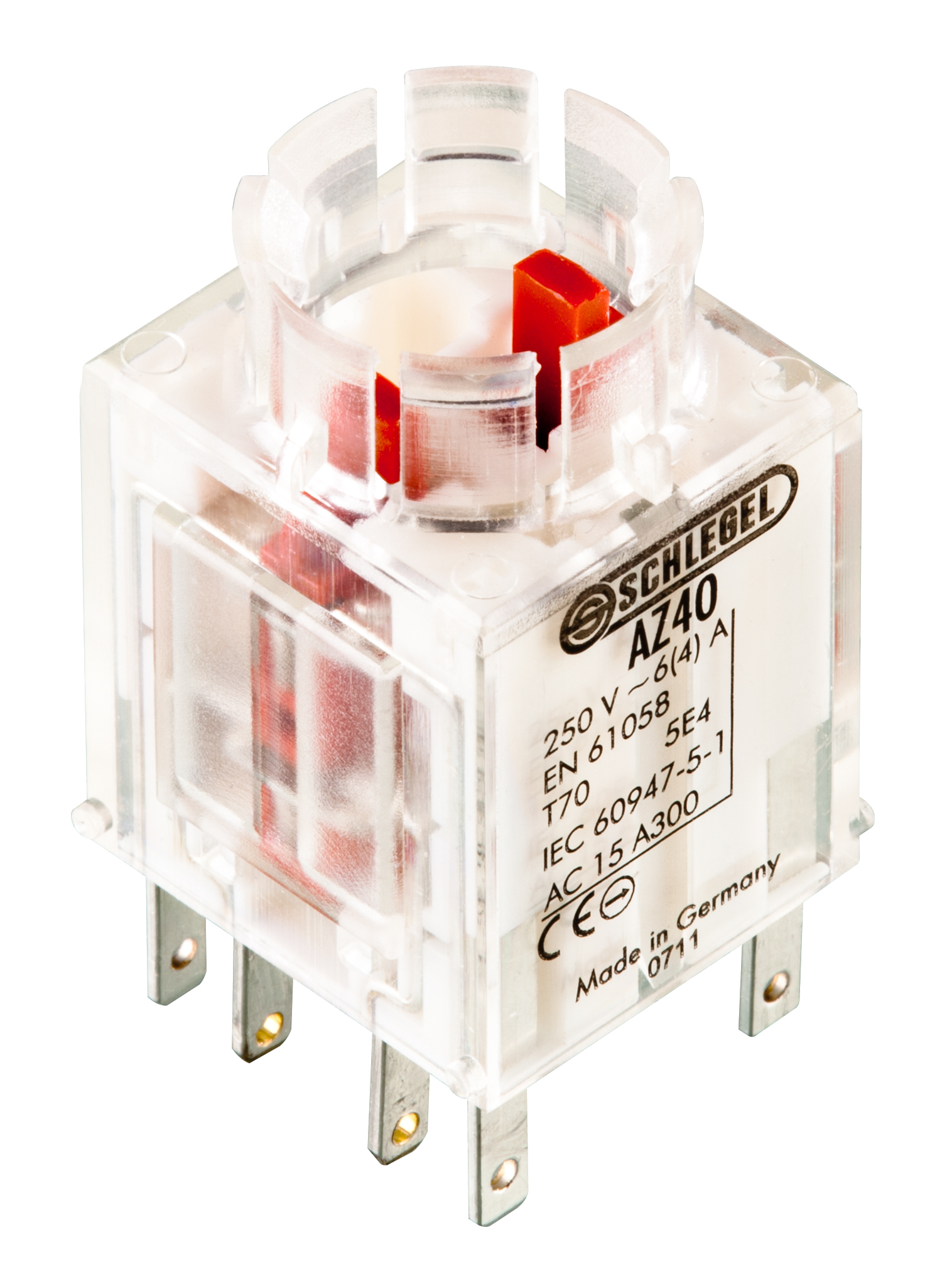

AZ4OContact block- Protection (front)
- IP00
- Contacts
- 4NC
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 mm / 6 mm
- Operating temperature
- -30 °C to 70 °C
More specifications (11)
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 1,000,000 operations
- Electrical life
- 750,000 operations at rated load AC / max. 100,000 operations DC-13
- Utilization category
- AC-15 A300
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 3 A AC
- Rated current
- 6(4) A
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CE, cURus, ENEC05, KEMA, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (13.03.2026)
-

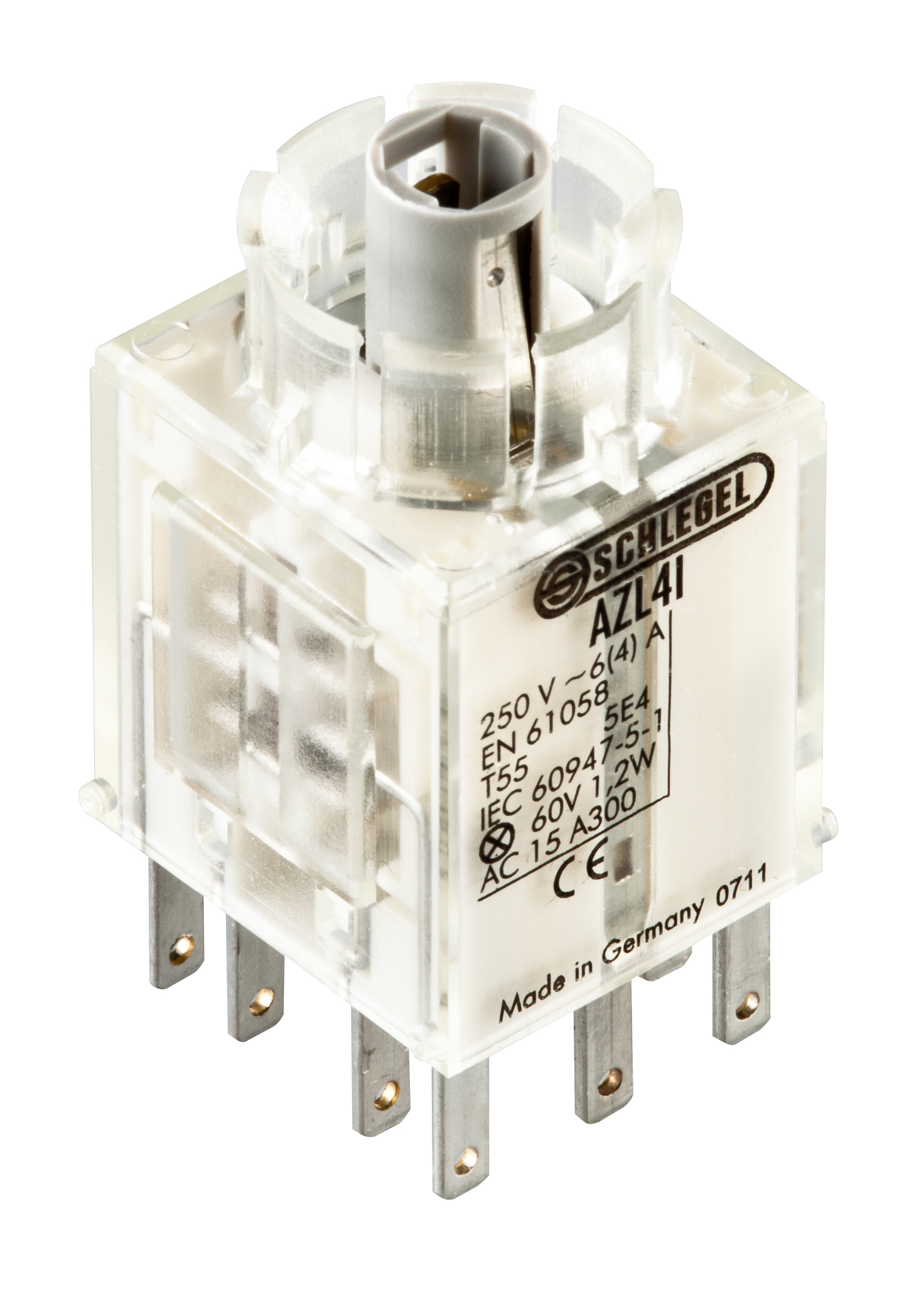

AZL4IContact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 / 6 mm
- Utilization category
- AC15 A300, DC13 Q300
- Approvals
- CCC, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (03.11.2022)
-

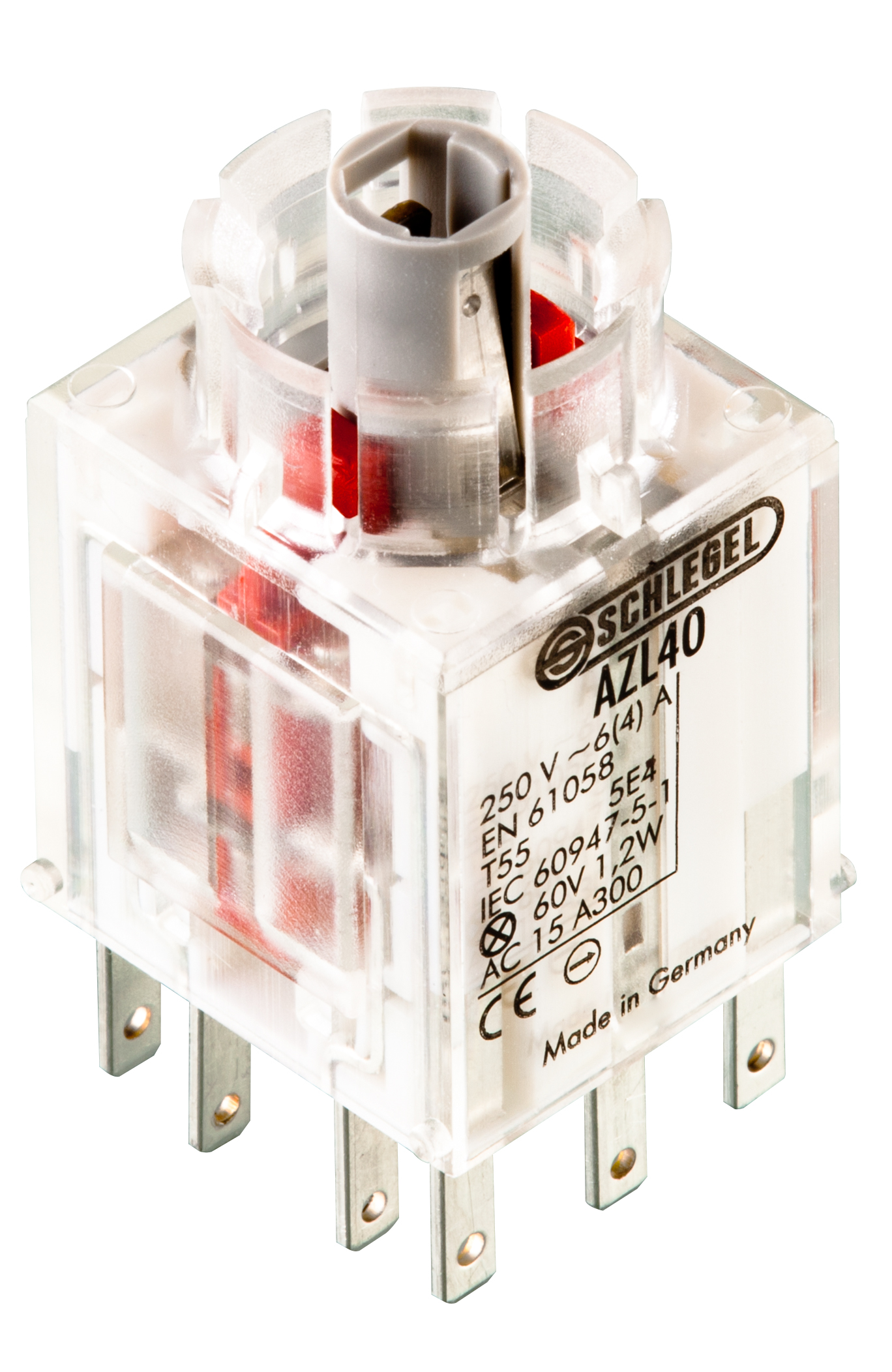

AZL4OContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 / 6 mm
- Utilization category
- AC15 A300, DC13 Q300
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (30.04.2021)
-

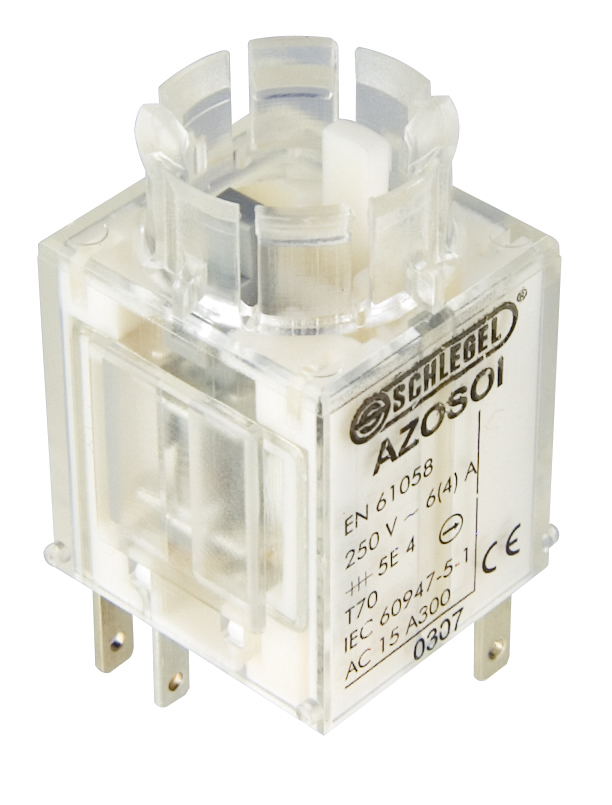

AZOSOIContact block- Contact material
- AgNi
- Travel
- 3 / 6 mm
- Utilization category
- AC15 A300, DC13 Q300
- Approvals
- CCC, cURus, DNV, ENEC05, KEMA, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (30.04.2021)
-

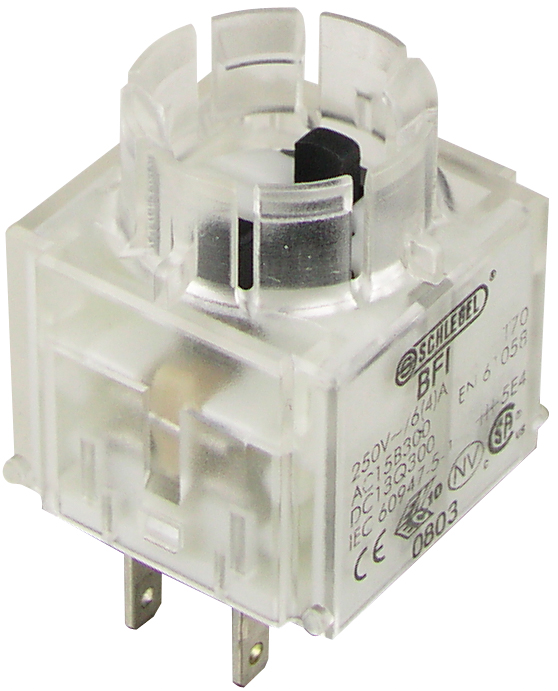

BFIContact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

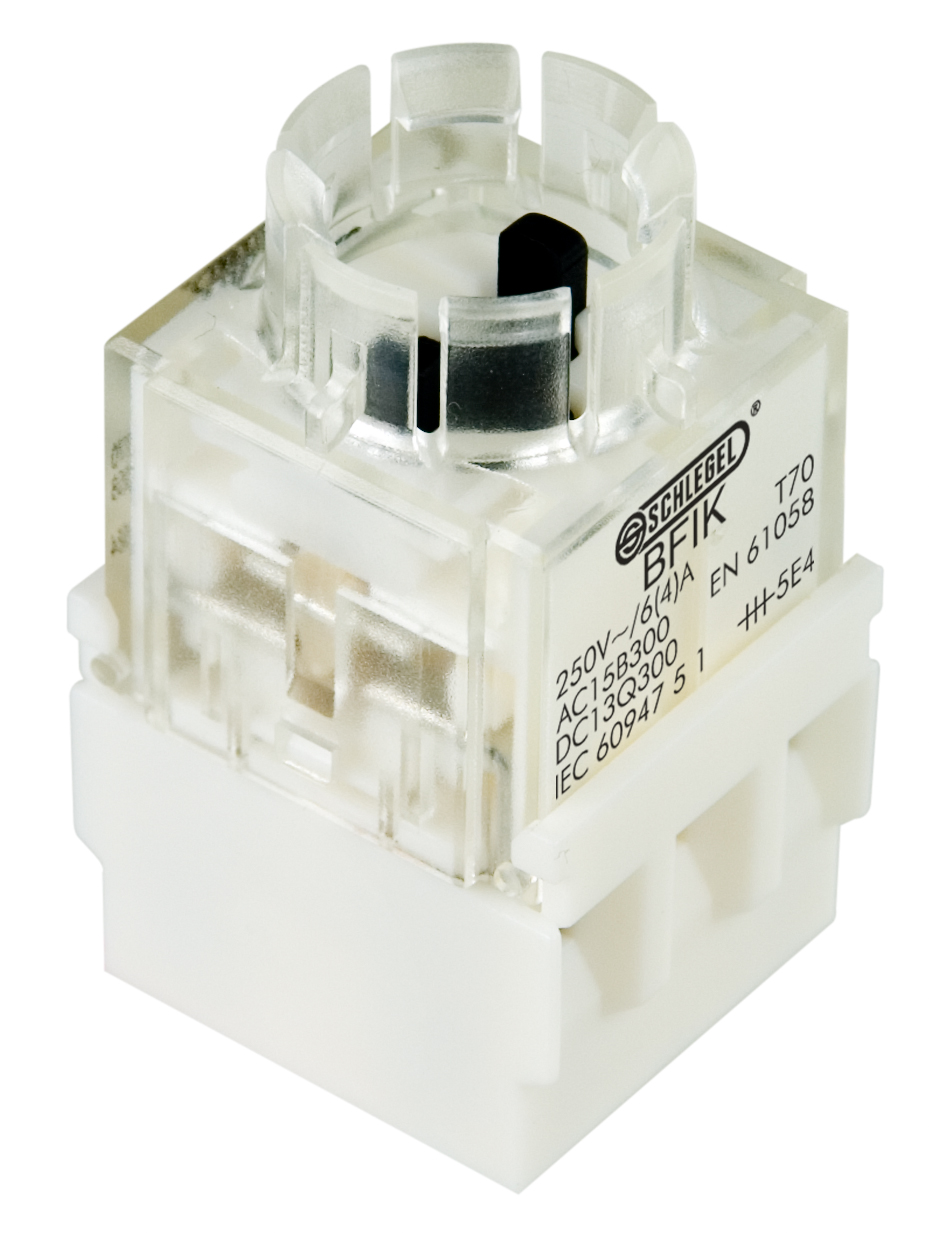

BFIKContact block- Connection
- Screw Connection
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

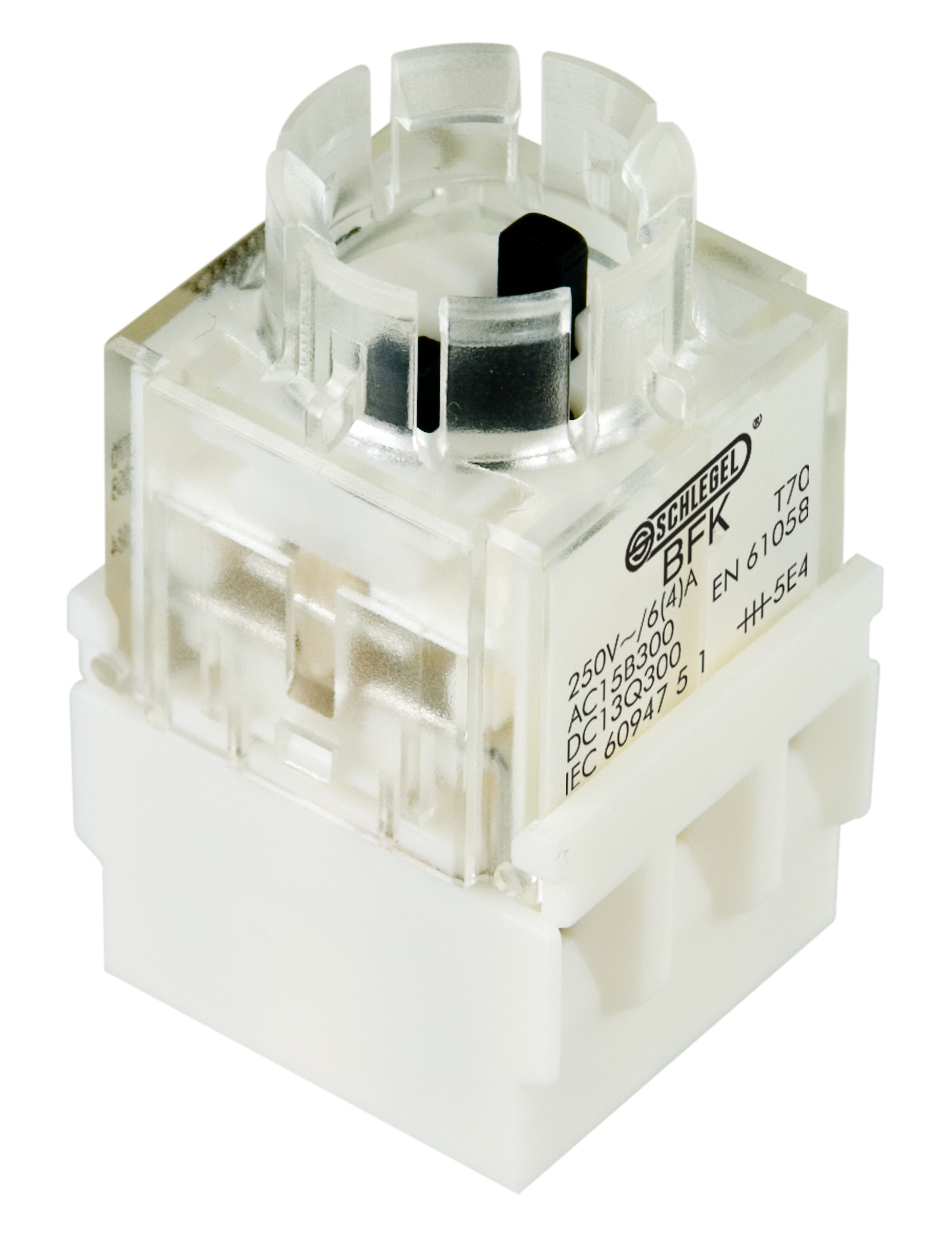

BFKContact block- Connection
- Screw Connection 2.5 mm²
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

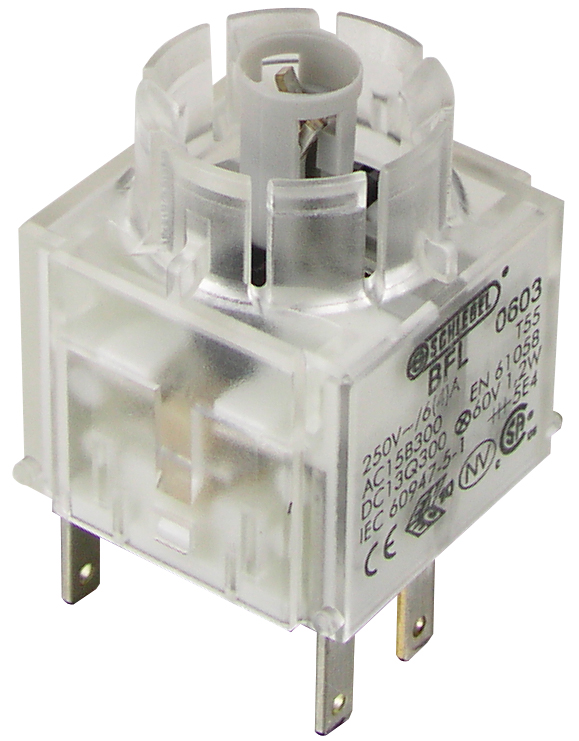

BFLContact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

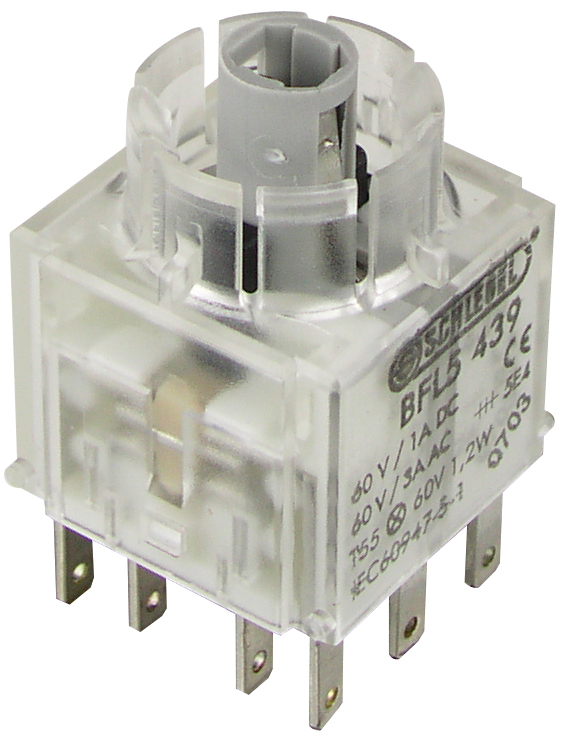

BFL5_439Contact block- Contact material
- AgNi
- Travel
- 3 mm
- Approvals
- CCC, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

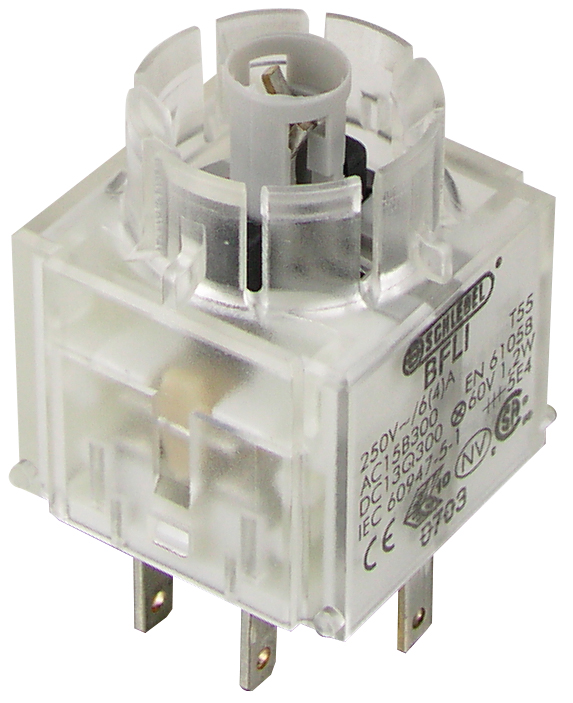

BFLIContact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

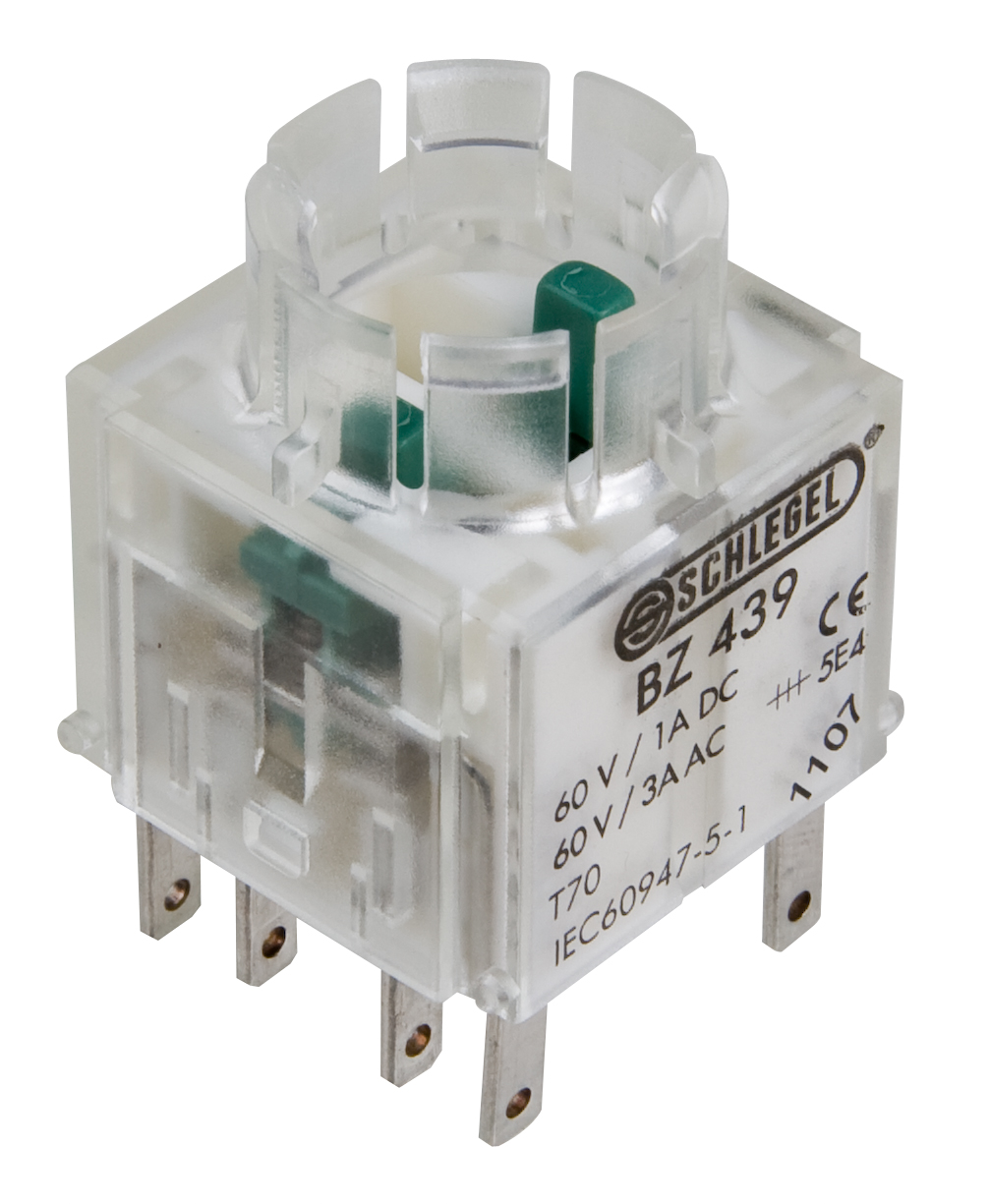

BZ_439Contact block- Contact material
- AgNi
- Travel
- 3 mm
- Approvals
- CCC, CE, UKCA
Values as stated in Schlegel’s datasheet (04.05.2021)
-

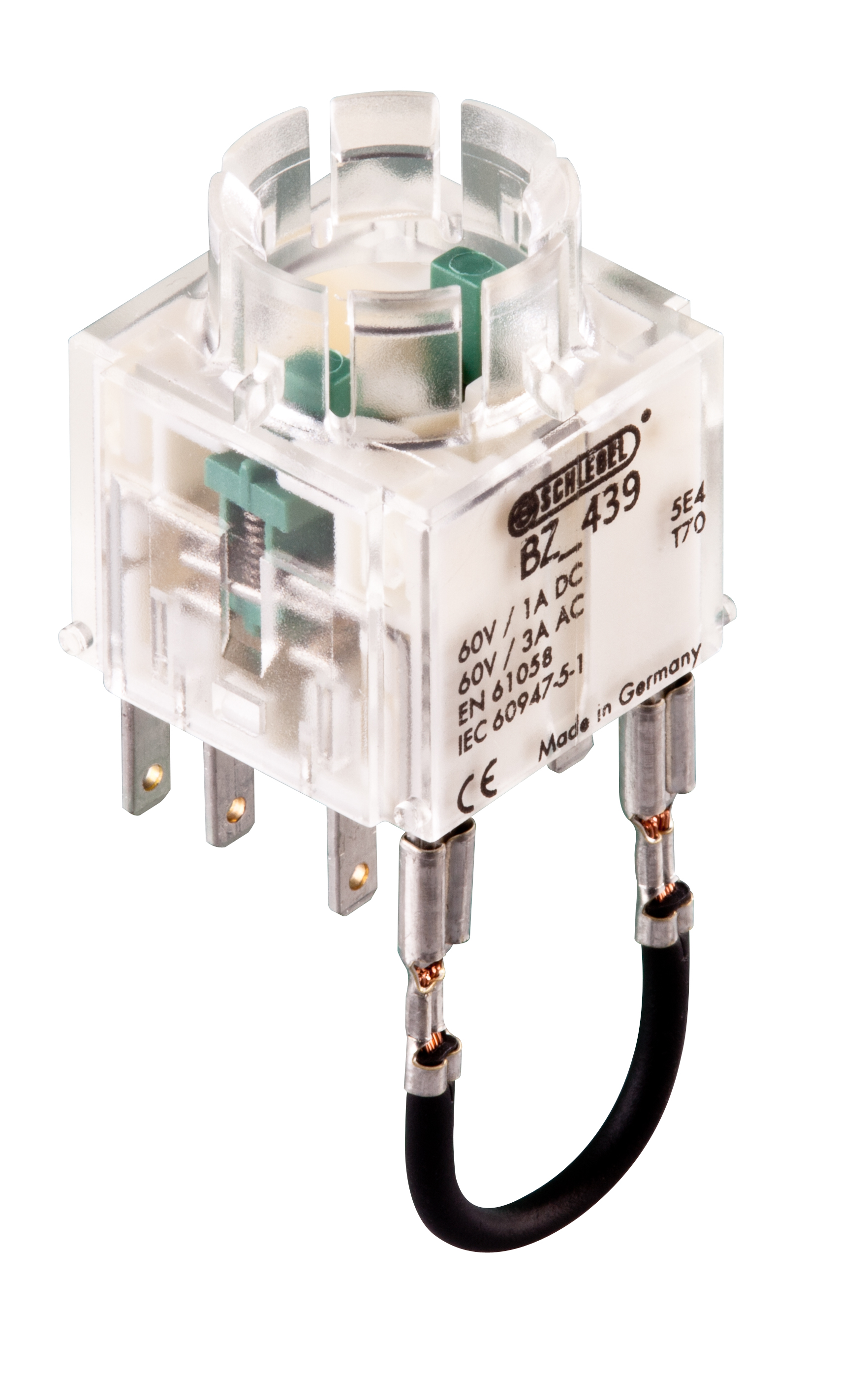

BZ_494Contact block- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 mm
- Approvals
- CE, UKCA
Values as stated in Schlegel’s datasheet (04.05.2021)
-

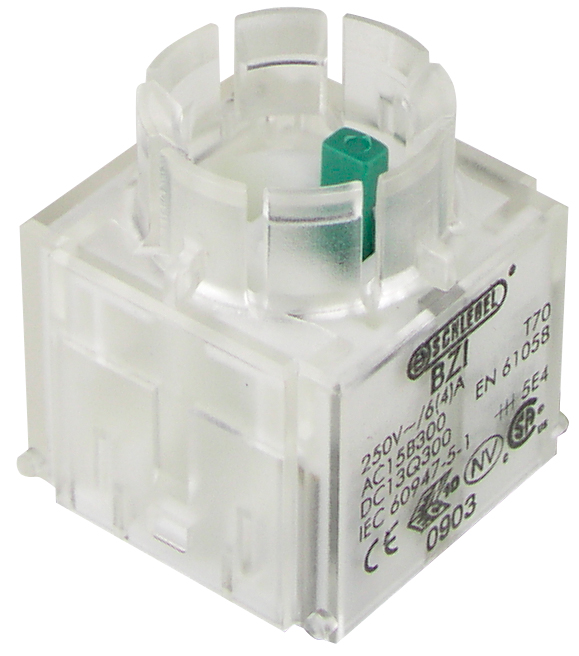

BZIContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

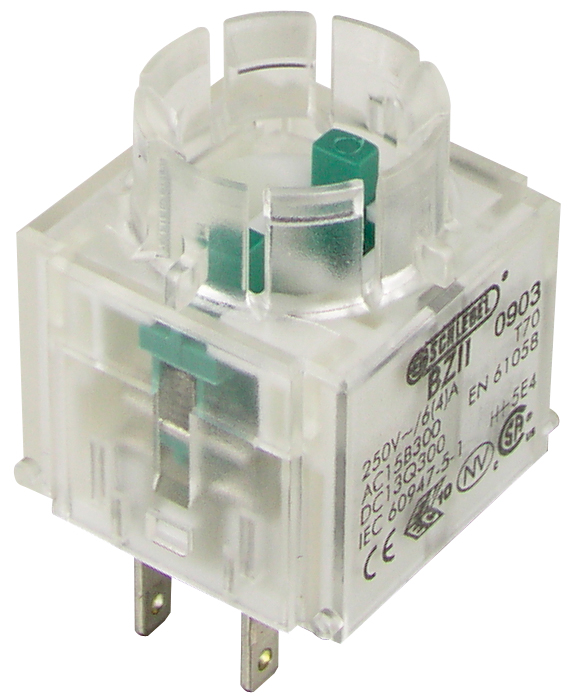

BZIIContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Utilization category
- AC15 B300, DC13 Q300
Values as stated in Schlegel’s datasheet (09.08.2024)
-

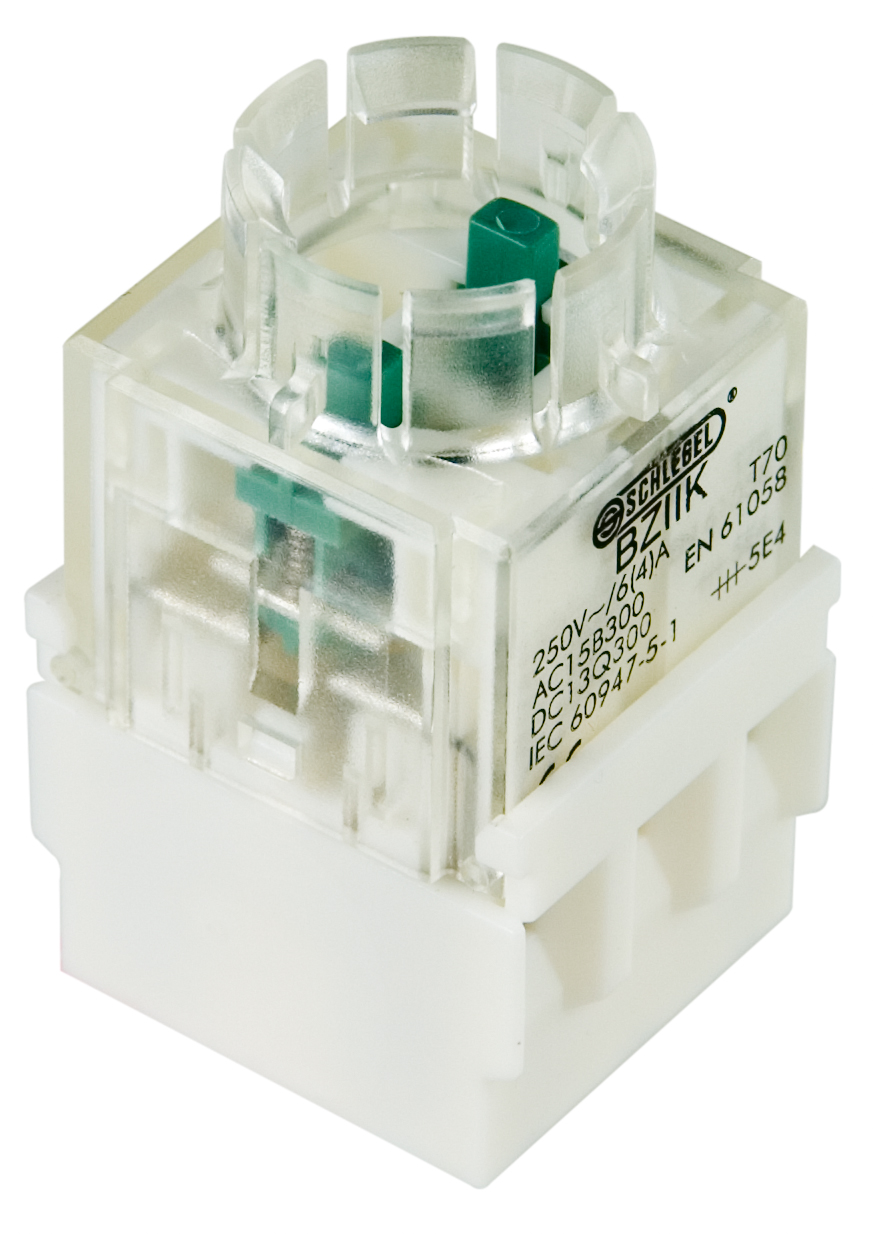

BZIIKContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

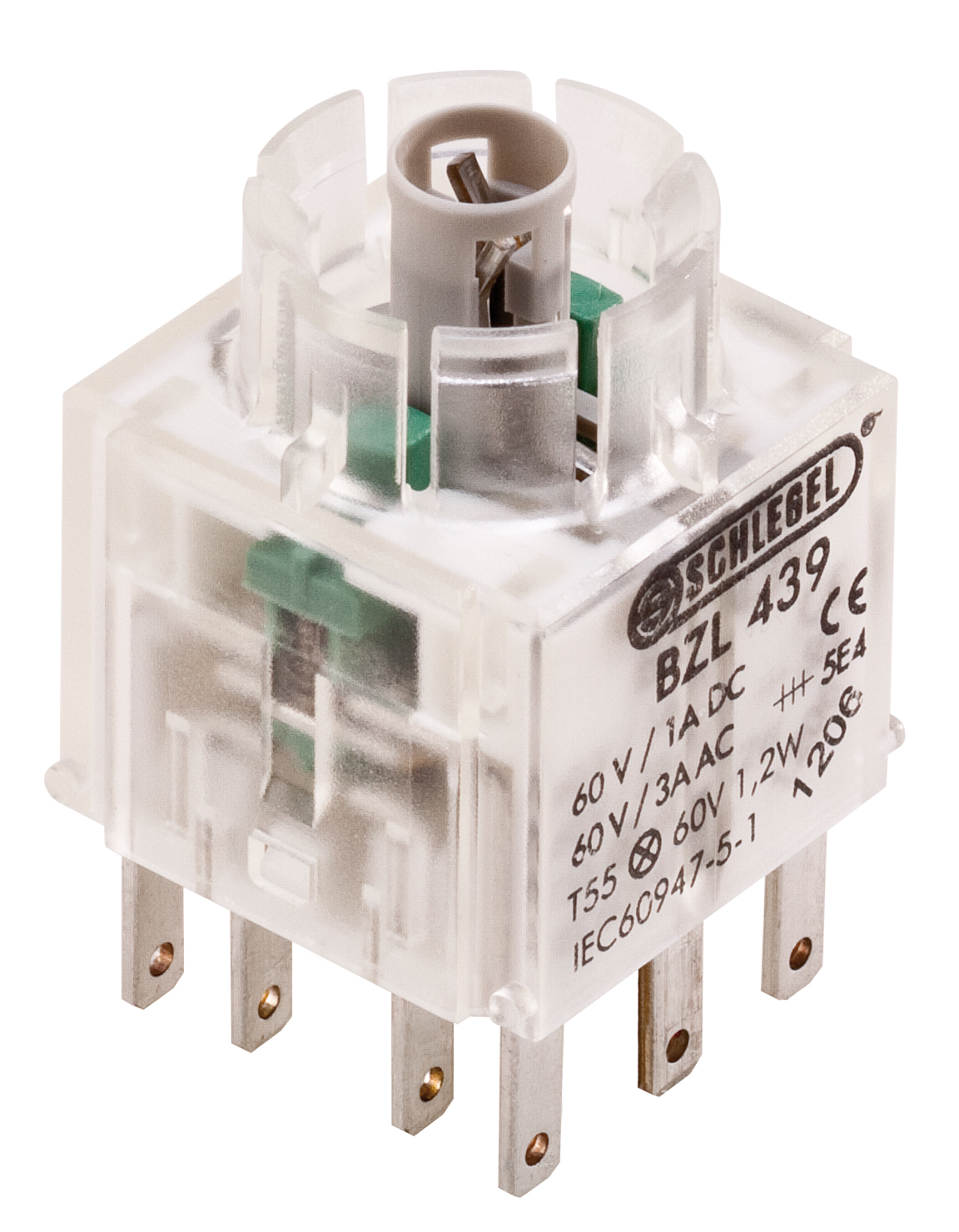

BZL_439Contact block- Contact material
- AgNi
- Travel
- 3 mm
- Approvals
- CCC, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

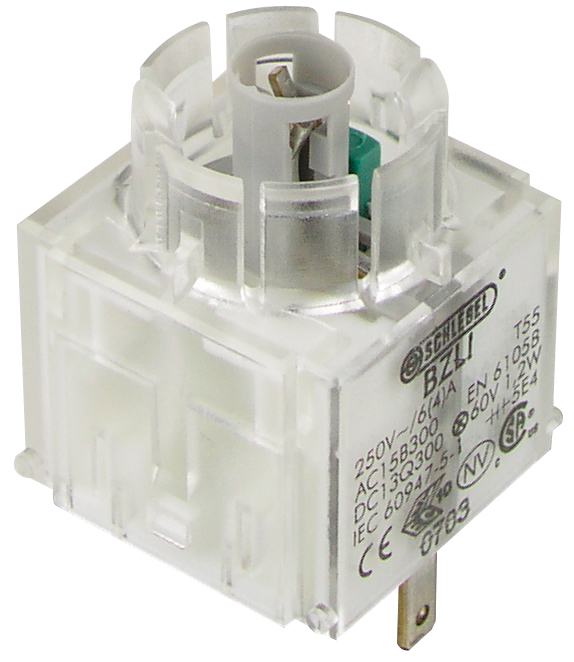

BZLIContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-
BZLI_AUContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Travel
- 3 mm
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

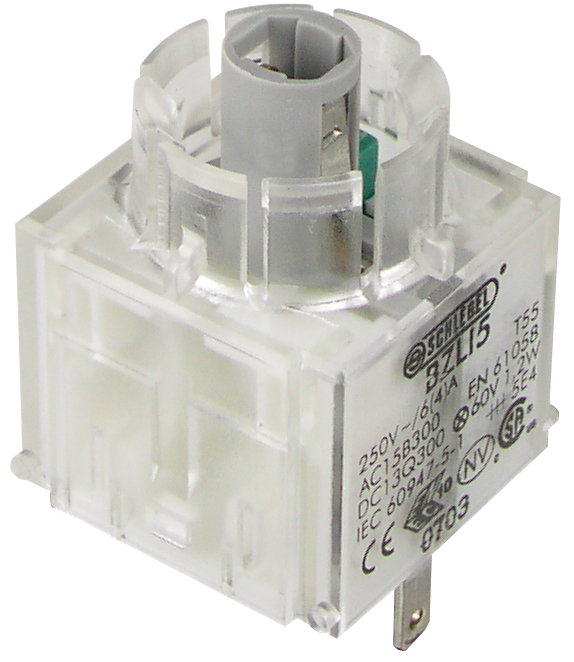

BZLI5Contact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-
BZLII_AUContact block- Travel
- 3 mm
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

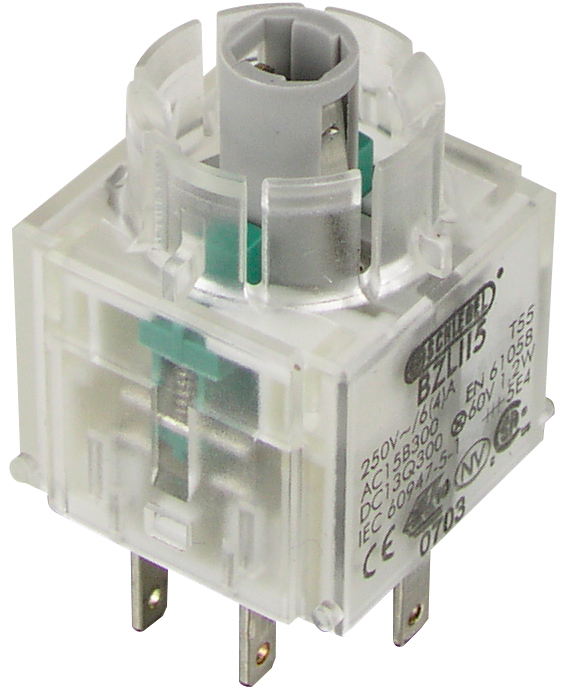

BZLII5Contact block- Utilization category
- AC15 B300, DC13 Q300
Values as stated in Schlegel’s datasheet (13.05.2024)
-

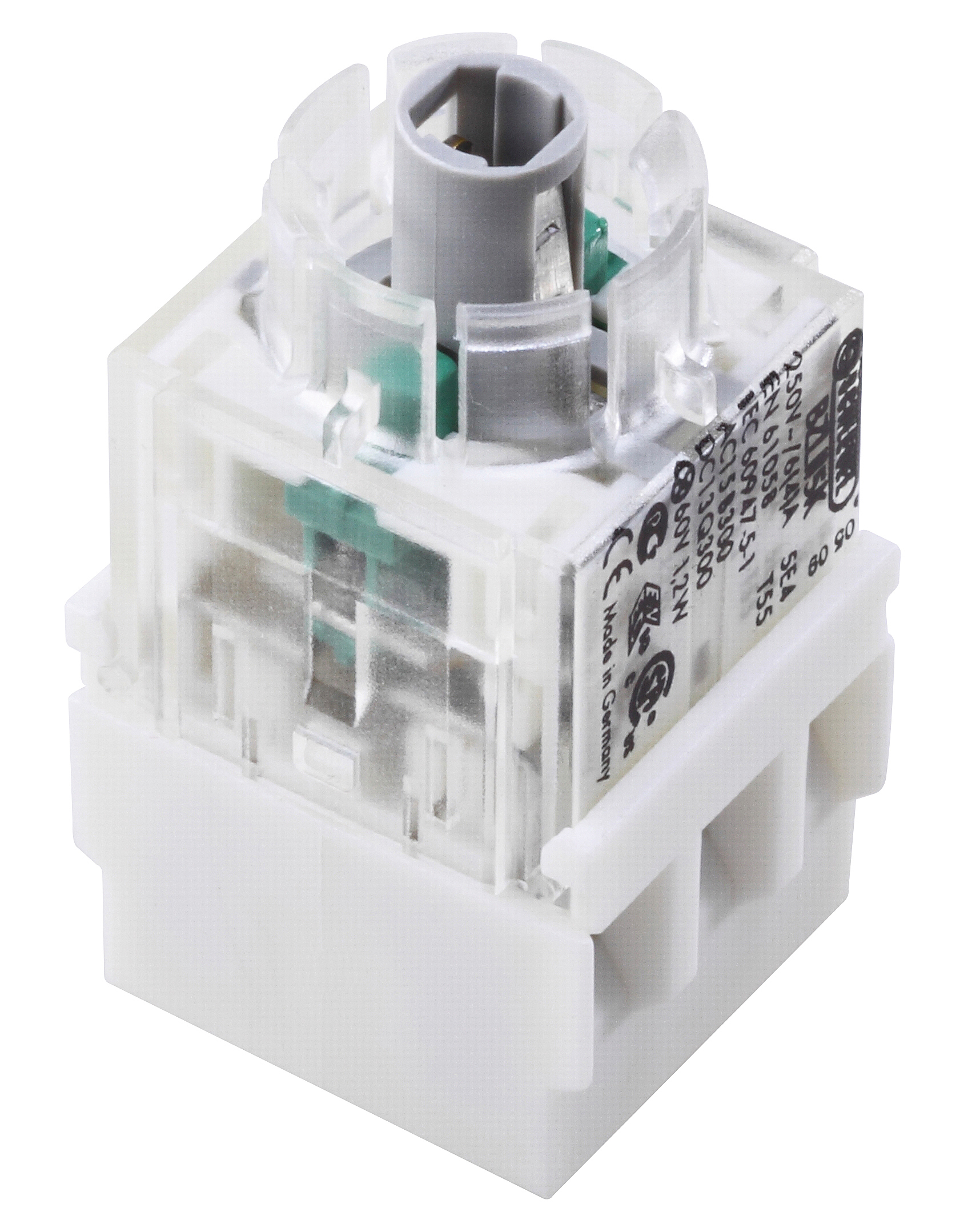

BZLII5KContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

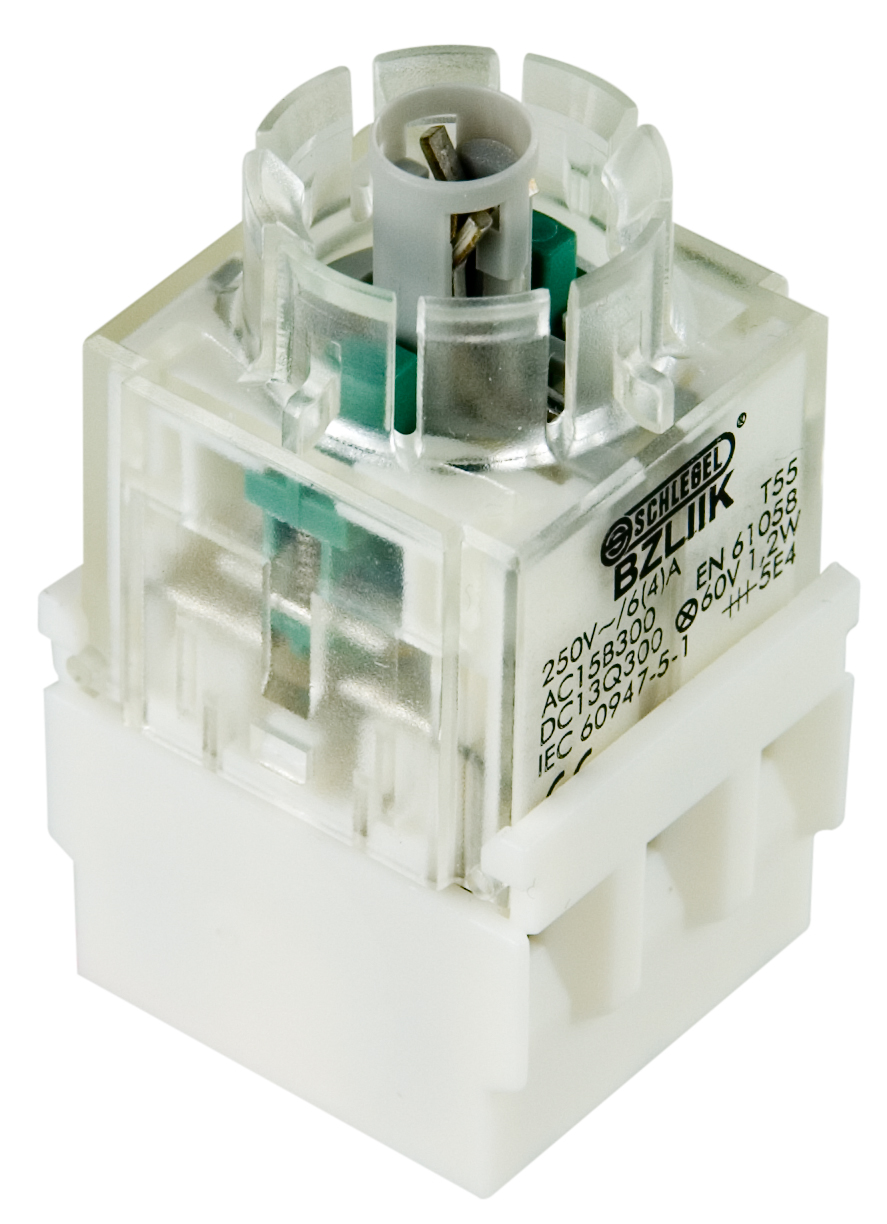

BZLIIKContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

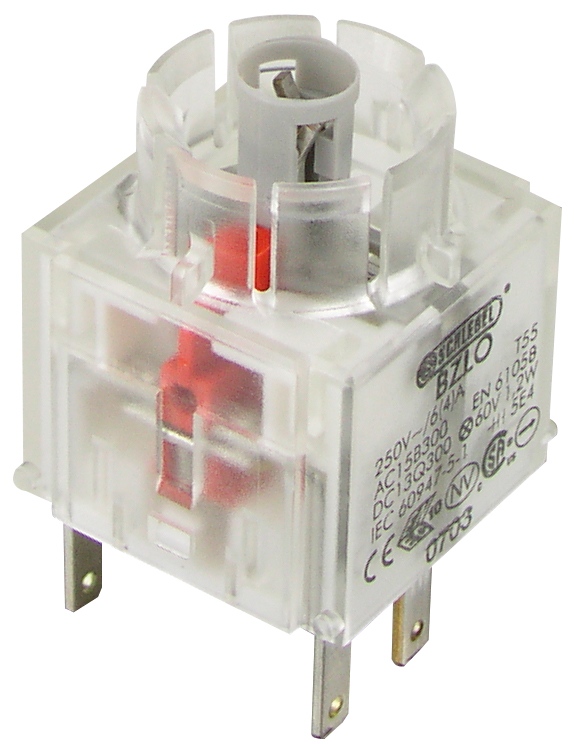

BZLOContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, cURus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

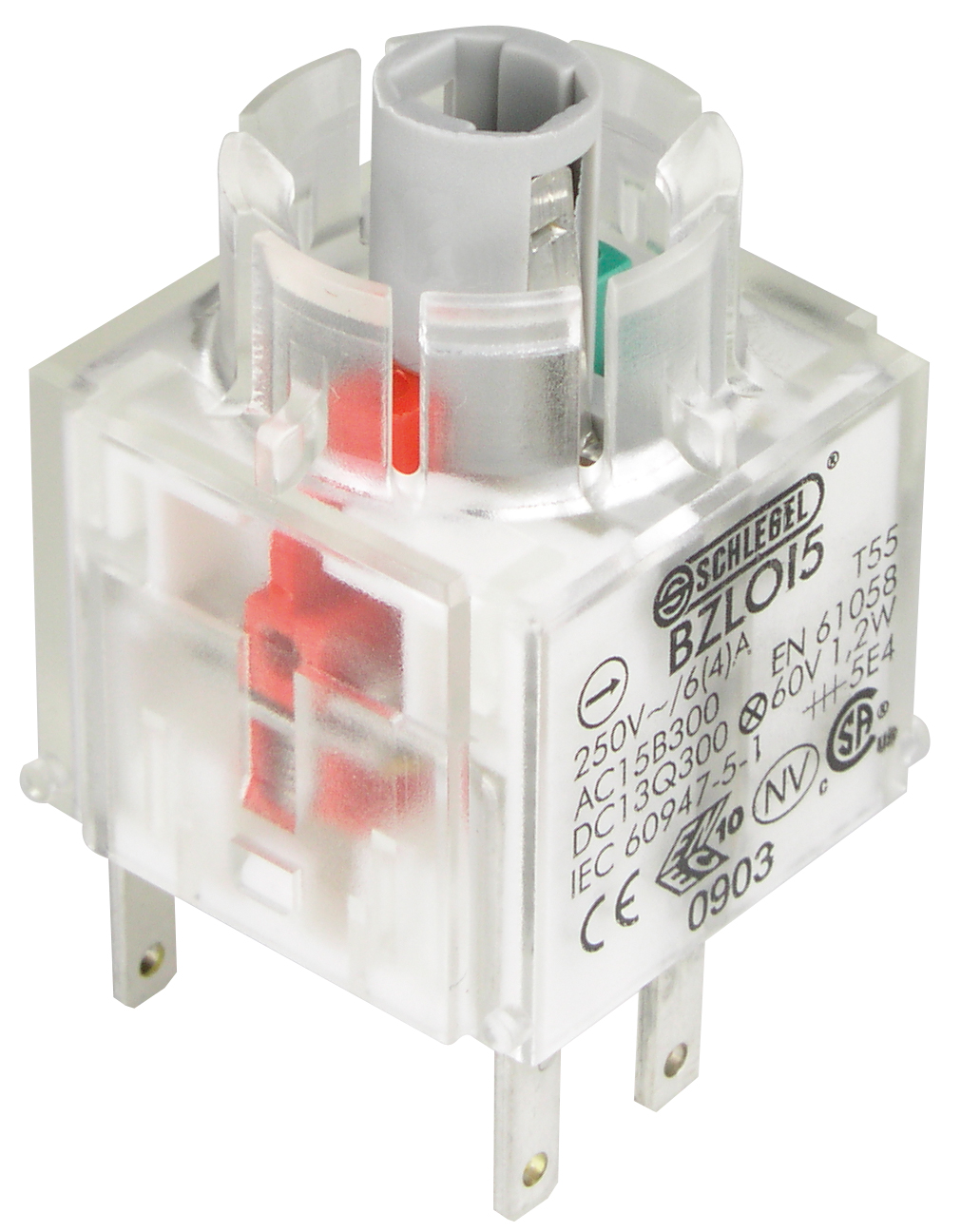

BZLOI5Contact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, cURus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (03.05.2021)
-

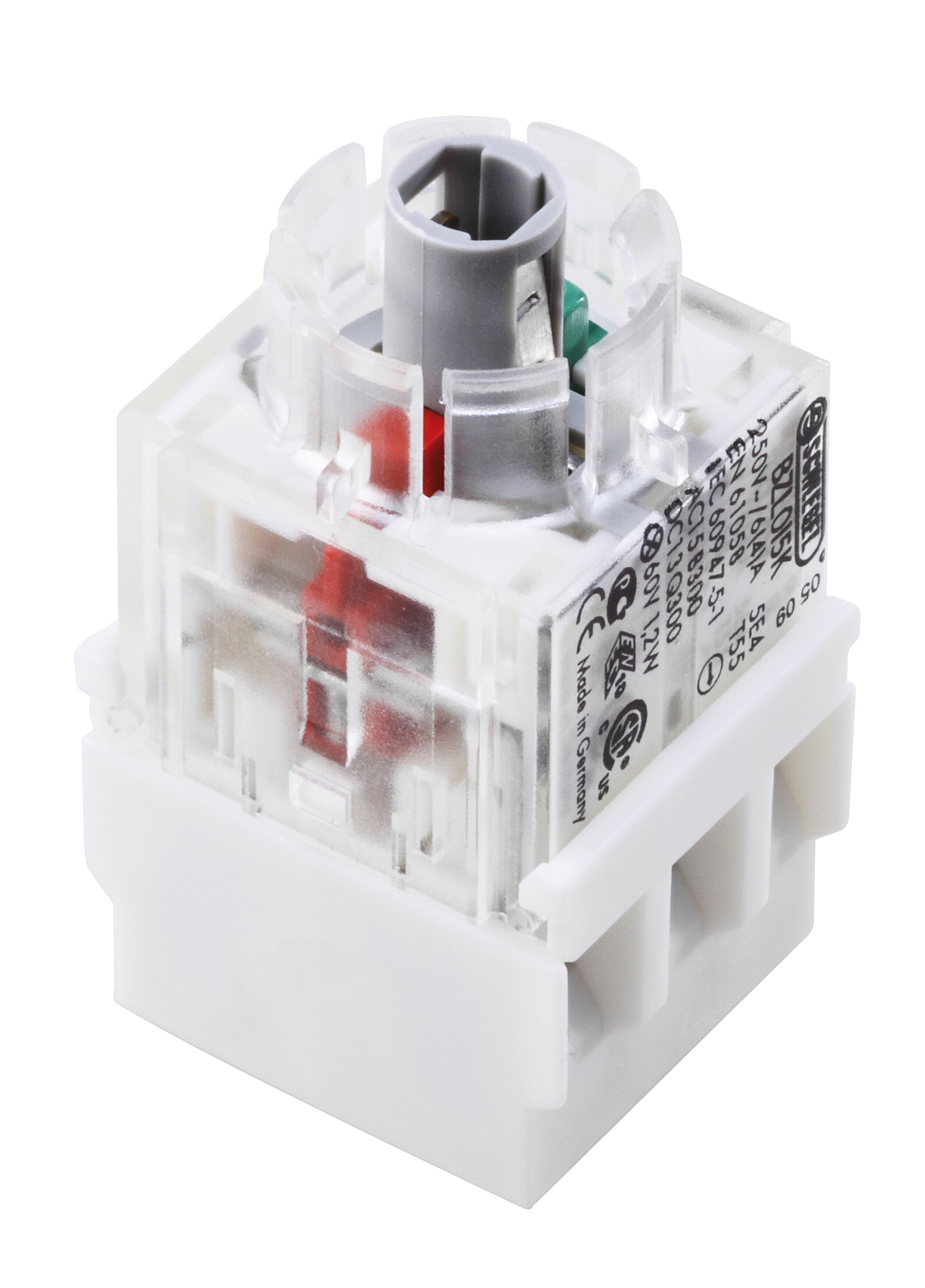

BZLOI5KContact block- Connection
- Screw Connection
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

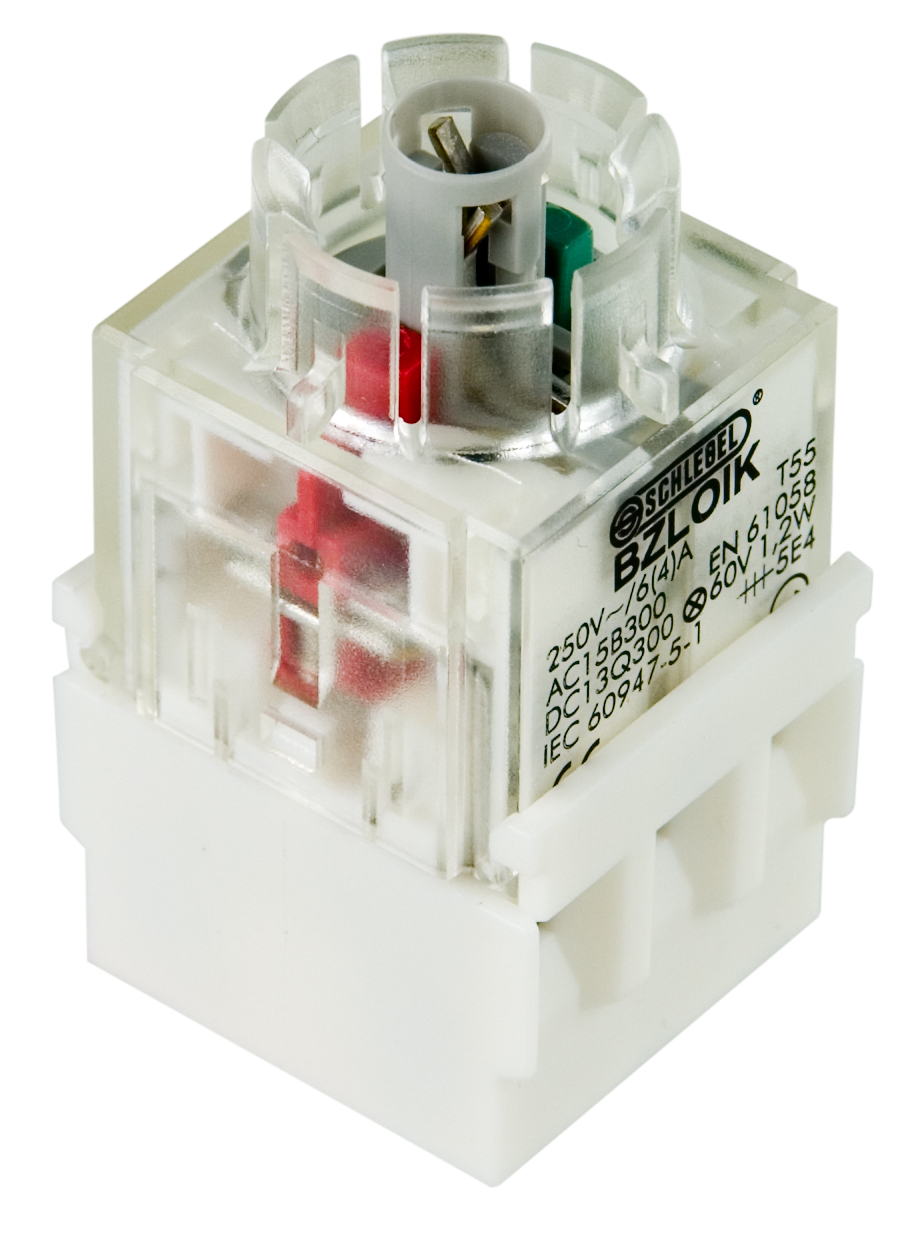

BZLOIKContact block- Connection
- Screw Connection
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

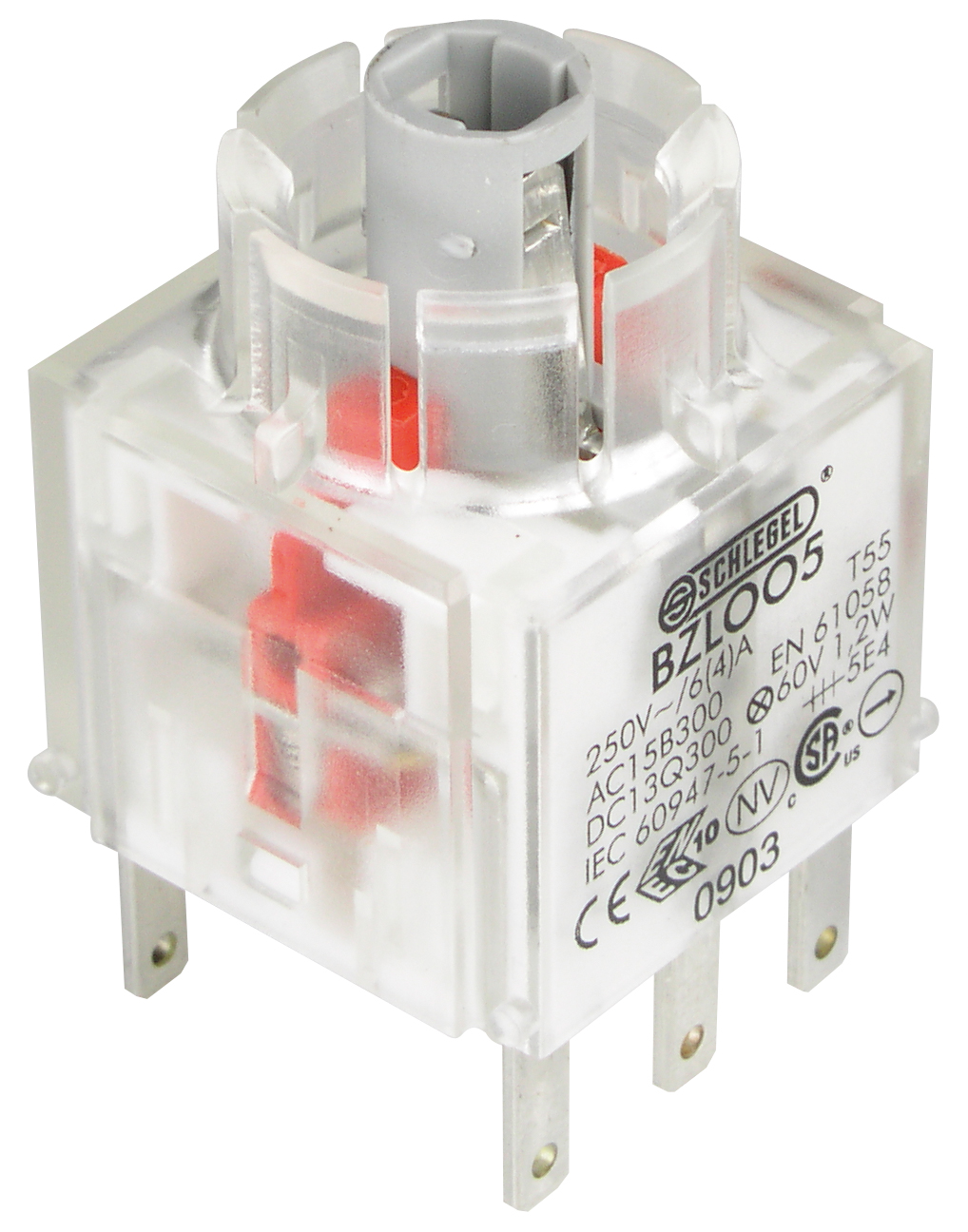

BZLOO5Contact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, cURus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (29.06.2021)
-

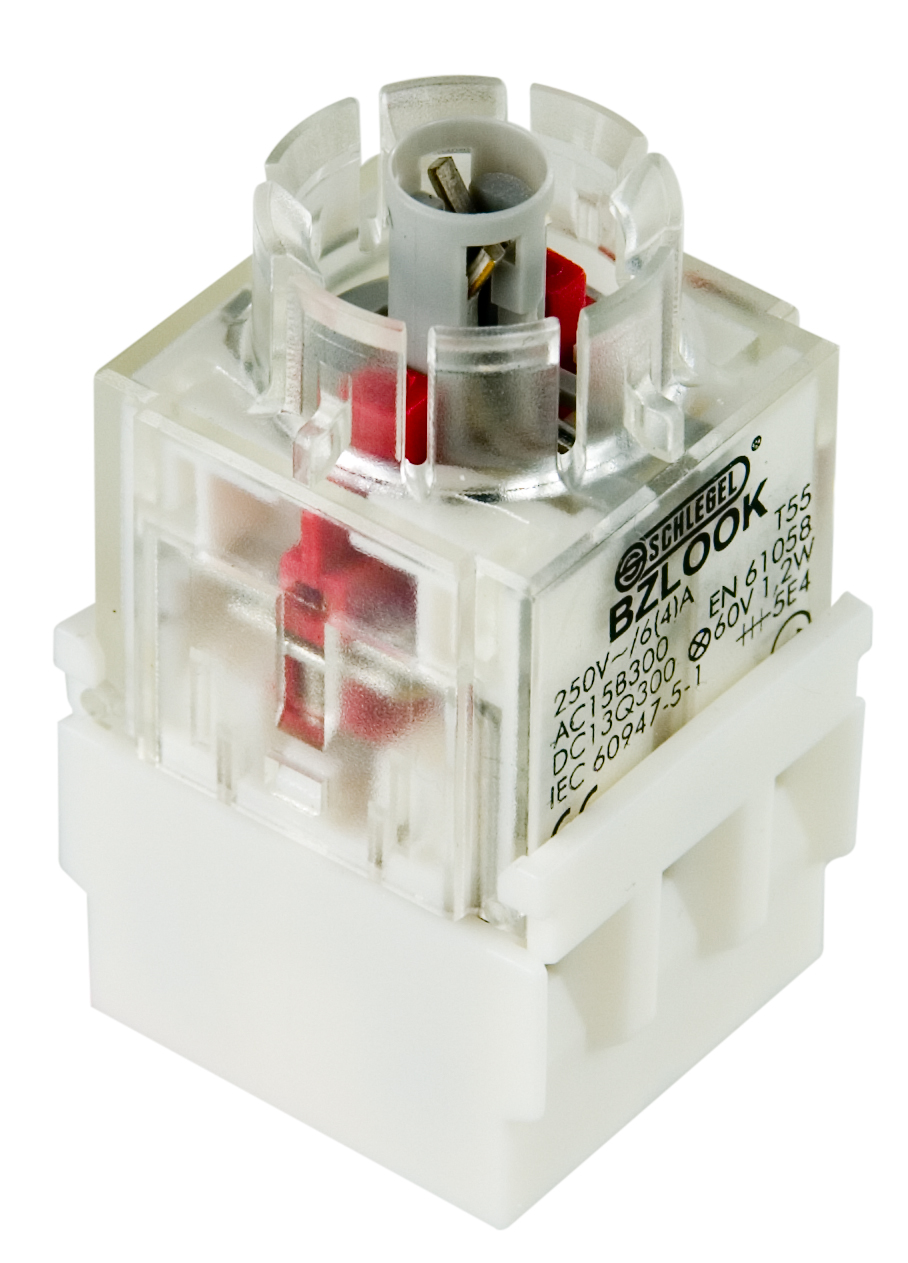

BZLOOKContact block- Connection
- Screw Connection 2.5 mm²
- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, CE, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

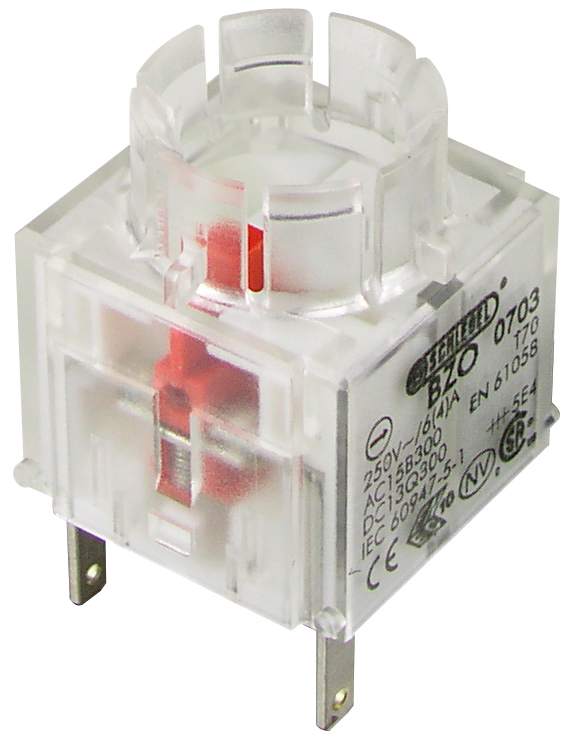

BZOContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

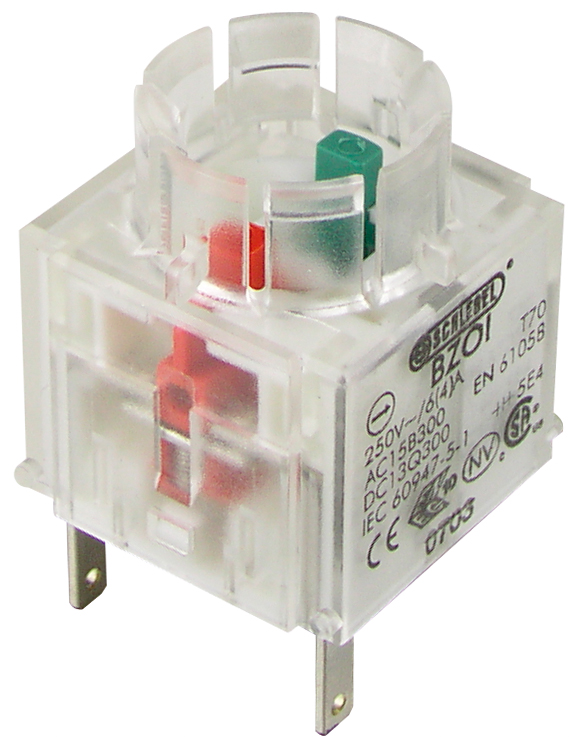

BZOIContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, cURus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (03.05.2021)
-

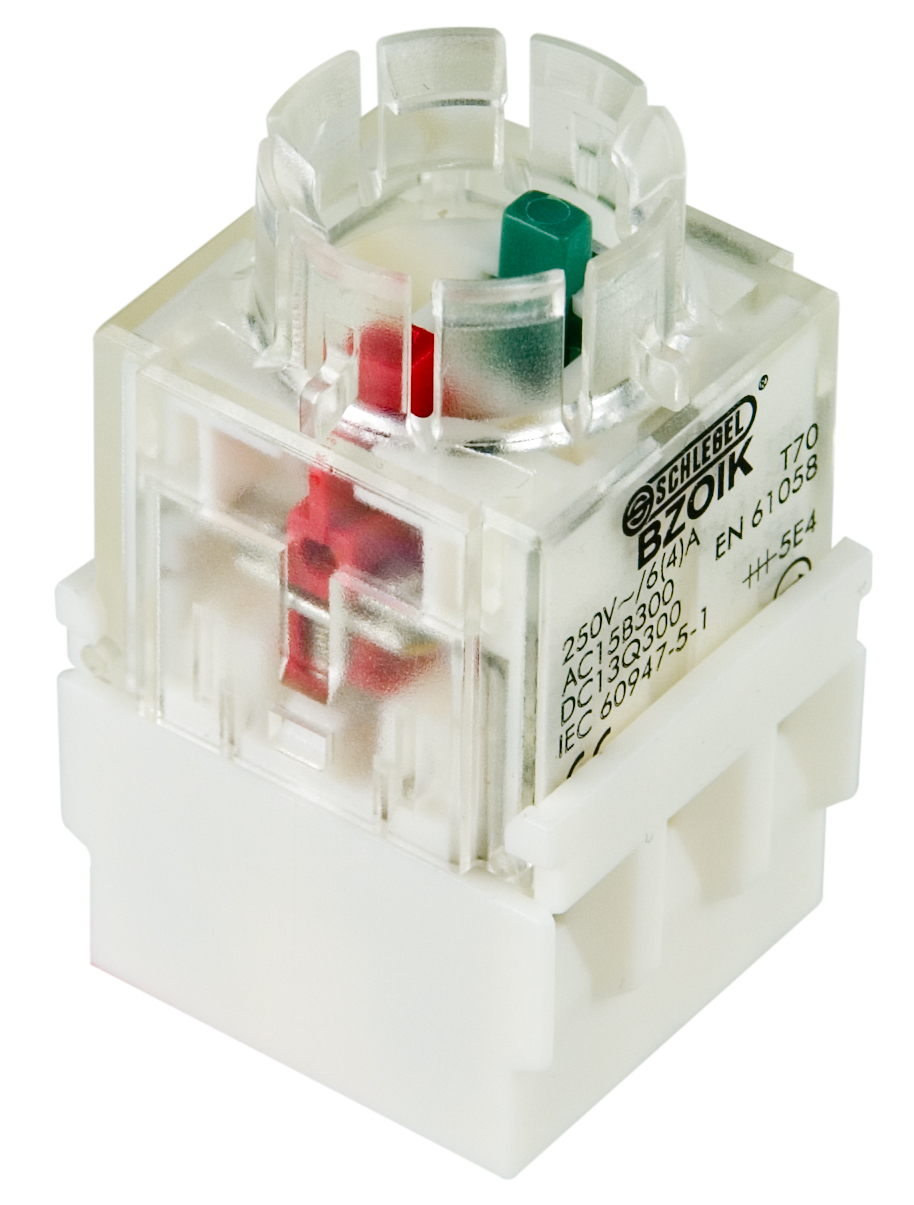

BZOIKContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-

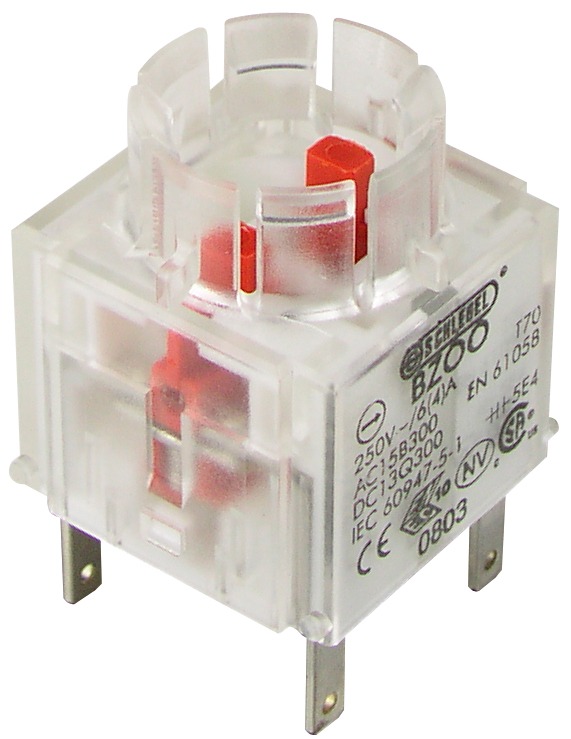

BZOOContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, cURus, DNV, ENEC10, VDE, CE, TÜV_Süd, UKCA, UR
Values as stated in Schlegel’s datasheet (28.06.2021)
-

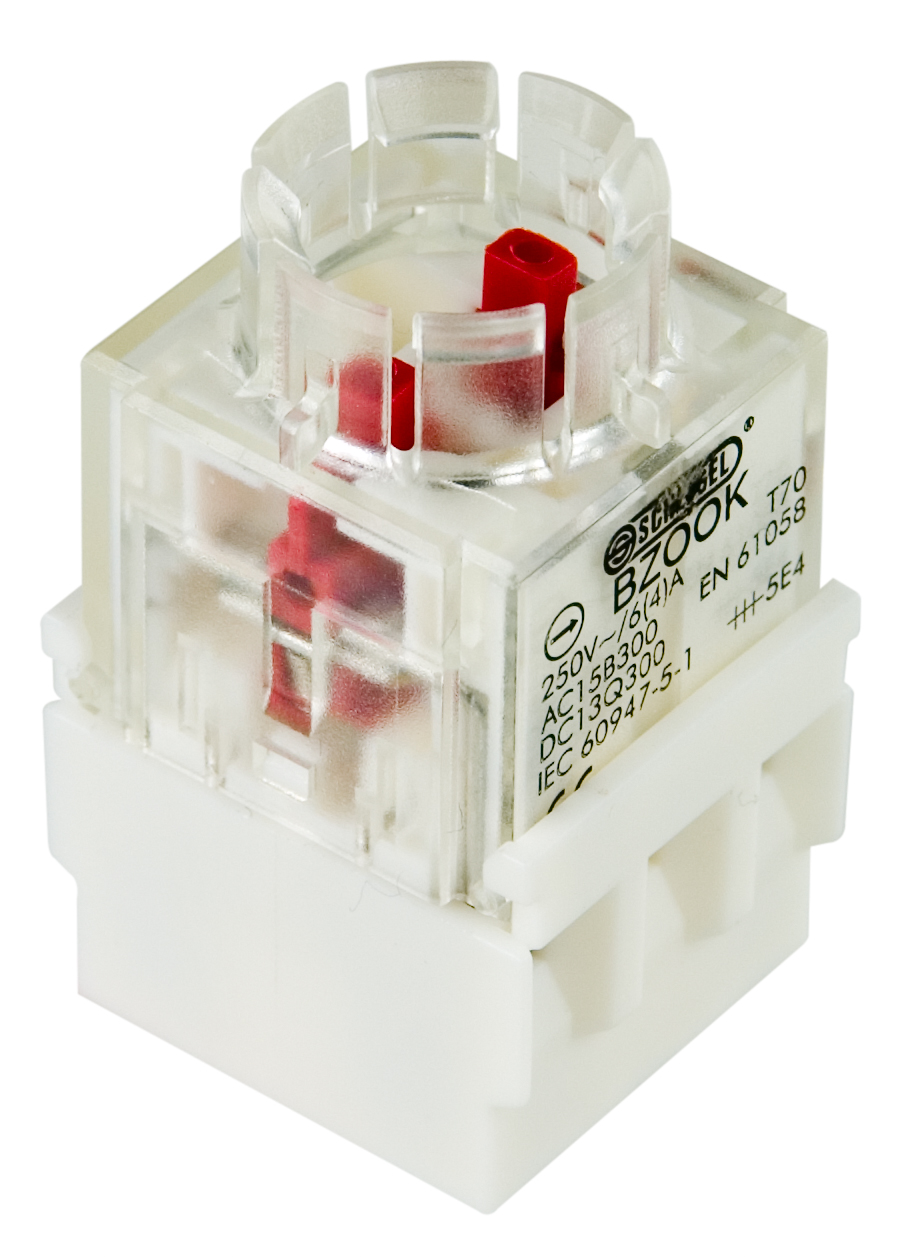

BZOOKContact block- Contact material
- AgNi
- Travel
- 3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, cCSAus, CE, DNV, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-
CT2_549Contact block- Travel
- 3 mm
- Approvals
- CCC, cCSAus, CE, cURus, UKCA
Values as stated in Schlegel’s datasheet (30.06.2021)
-

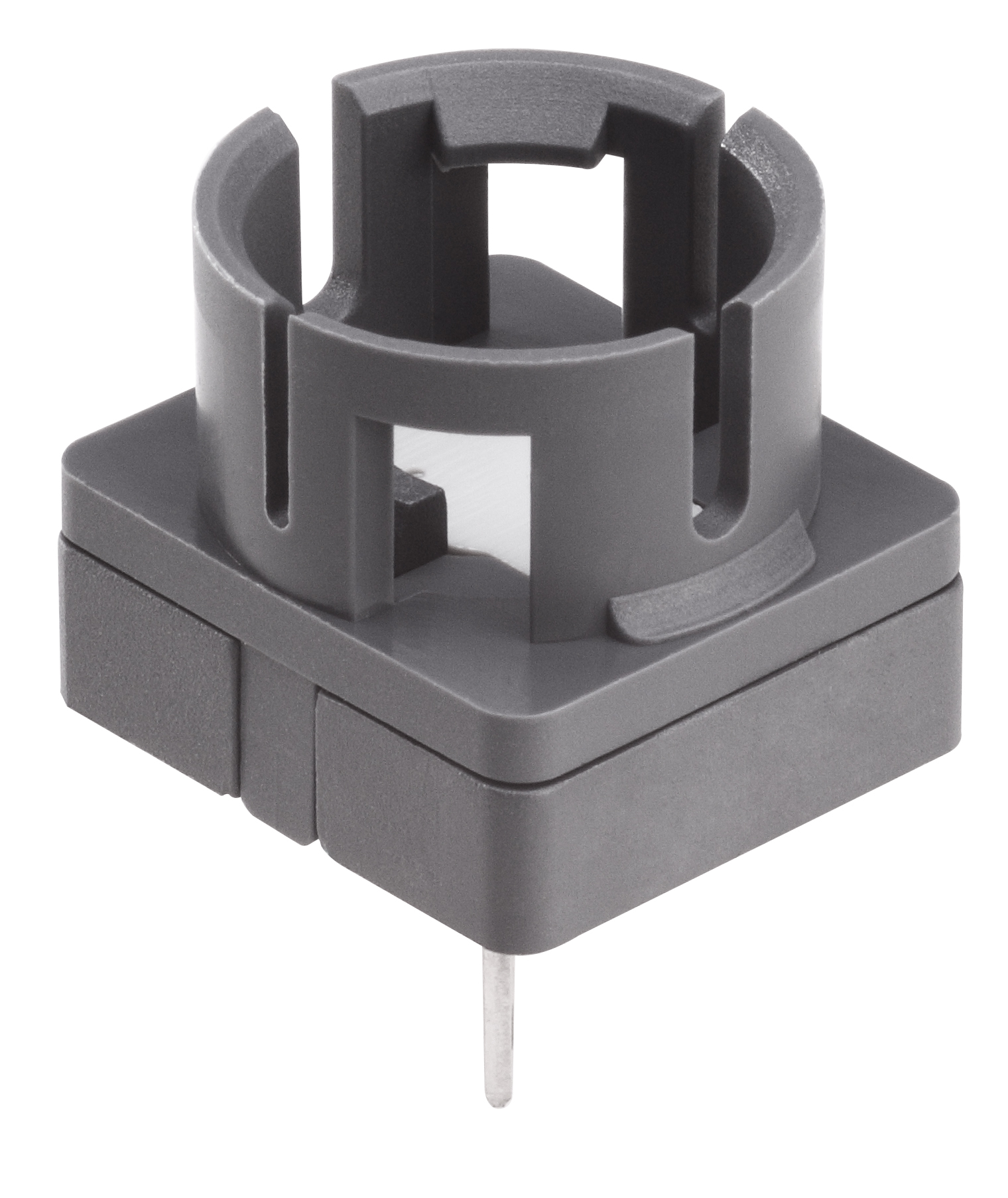

CTFContact block- Protection (front)
- IP00
- Connection
- Faston Terminal 2.8 x 0.8 mm
- Travel
- 3 mm
- Approvals
- CCC, cCSAus, CE, cURus, DNV, UKCA
Values as stated in Schlegel’s datasheet (04.05.2021)
-

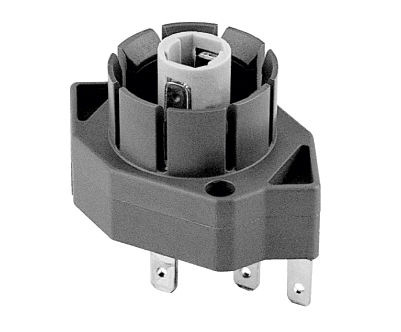

CTL2Contact block- Travel
- 3 mm
- Approvals
- CCC, cCSAus, cURus, DNV
Values as stated in Schlegel’s datasheet (30.06.2021)
-
CTLFContact block- Connection
- Faston Terminal 2.8 x 0.8 mm
- Travel
- 3 mm
- Approvals
- CCC, cCSAus, CE, cURus, DNV, UKCA
Values as stated in Schlegel’s datasheet (30.06.2021)
-

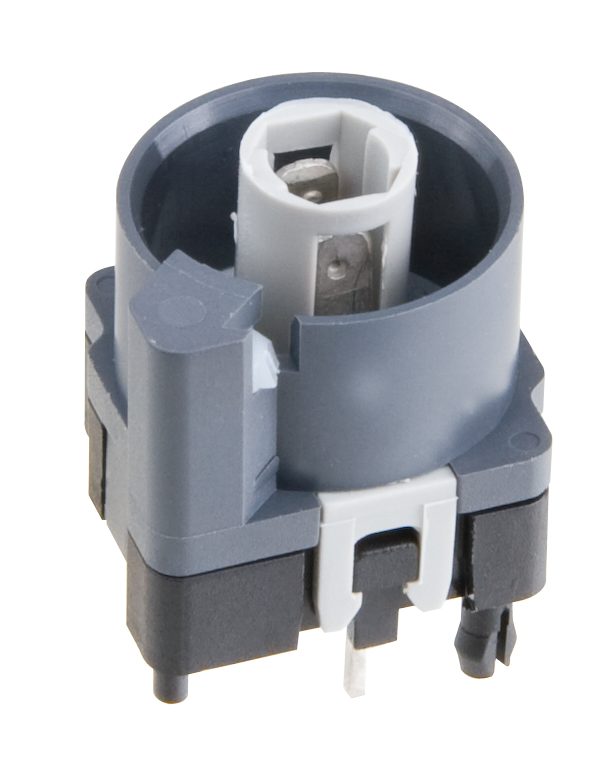

CTLP_485Contact block- Travel
- 3 mm
- Approvals
- CCC, cURus, DNV
Values as stated in Schlegel’s datasheet (30.06.2021)
-
DMRContact block- Color
- Black
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -50 °C to 85 °C
- Approvals
- CCC, cCSAus, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (13.06.2025)
-

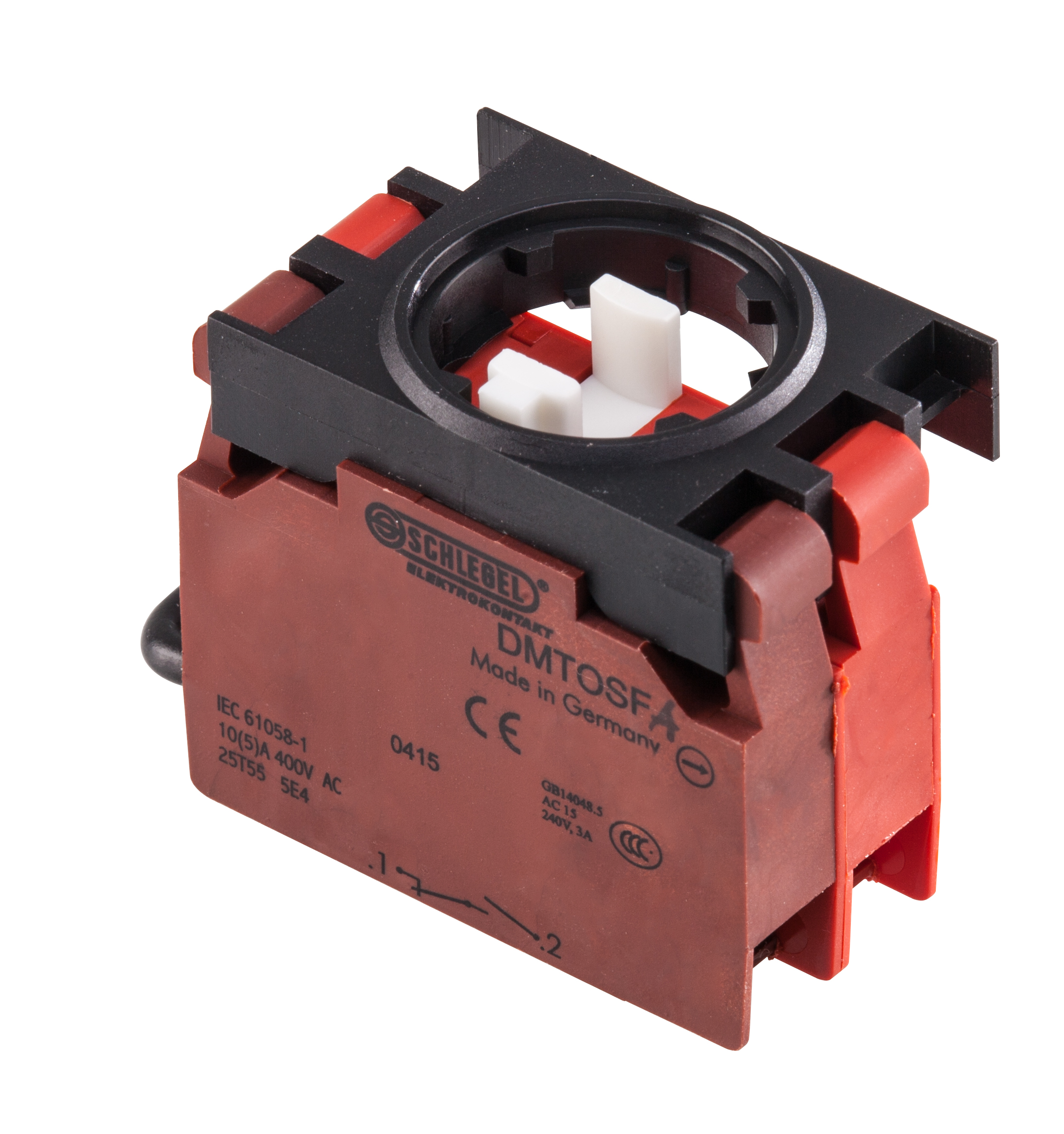

DMTOSFAContact block- Connection
- Cage-Clamp 0.08-2.5 mm²
- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q300
- Current
- 16 A
- Approvals
- CE, UKCA
Values as stated in Schlegel’s datasheet (19.05.2021)
-

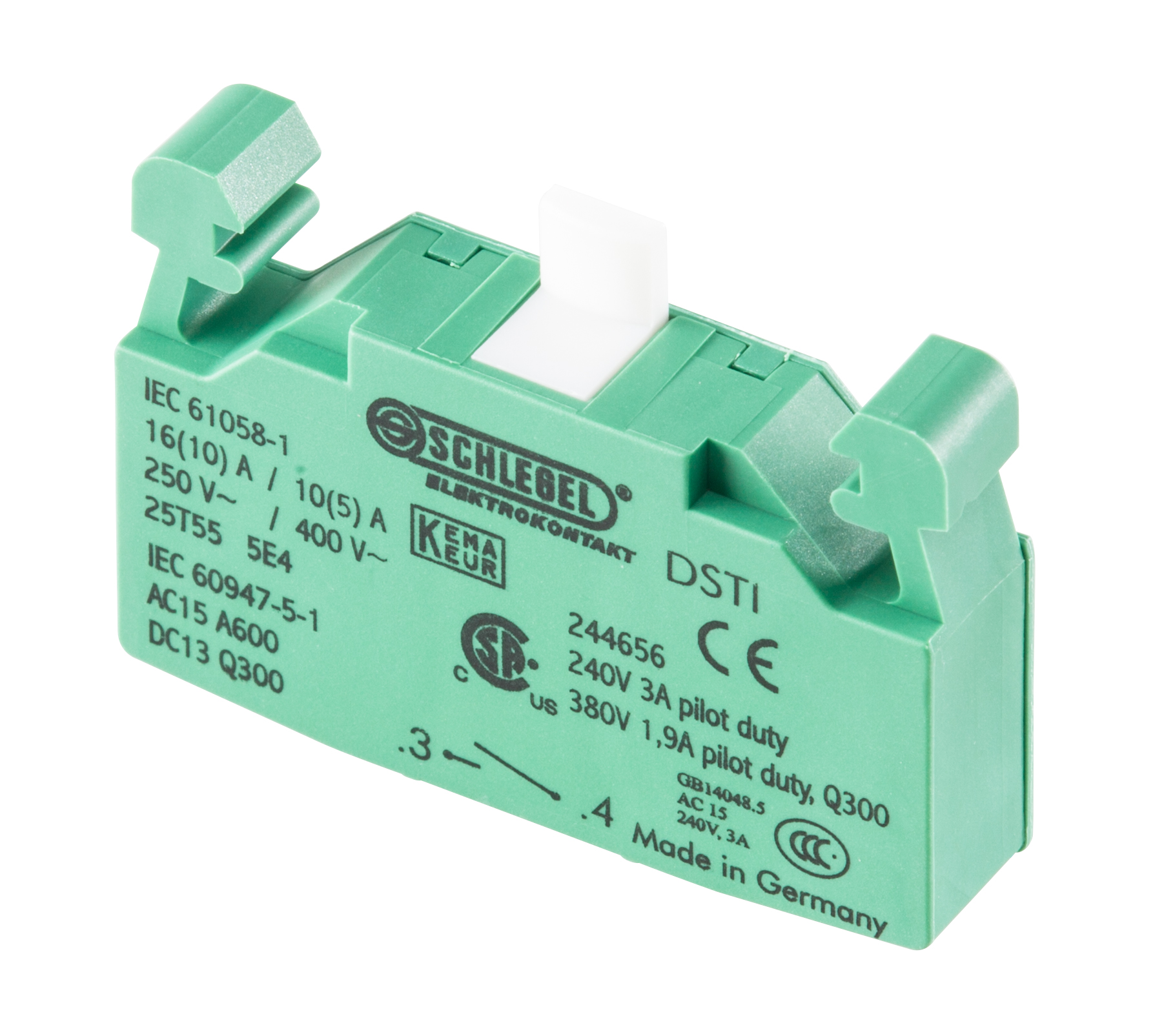

DSTIContact block- Contact material
- AgNi
- Travel
- 5 mm
- Utilization category
- AC15 A600, DC13 Q300
- Approvals
- CCC, cCSAus, CE, DNVGL, KEMA KEUR, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (19.05.2021)
-

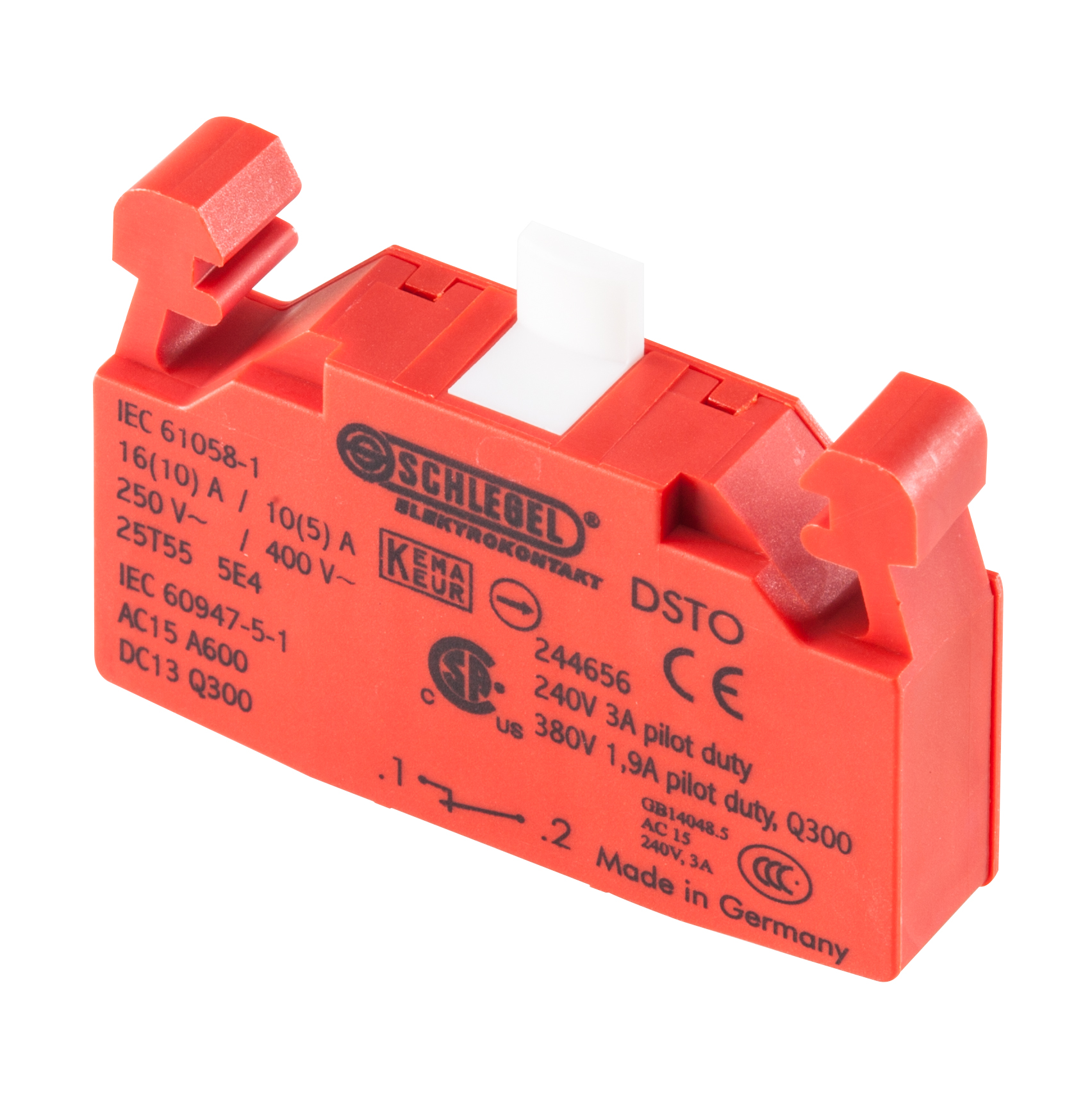

DSTOContact block- Contact material
- AgNi
- Travel
- 5 mm
- Utilization category
- AC15 A600, DC13 Q300
- Approvals
- CCC, cCSAus, CE, DNVGL, KEMA KEUR, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (19.05.2021)
-

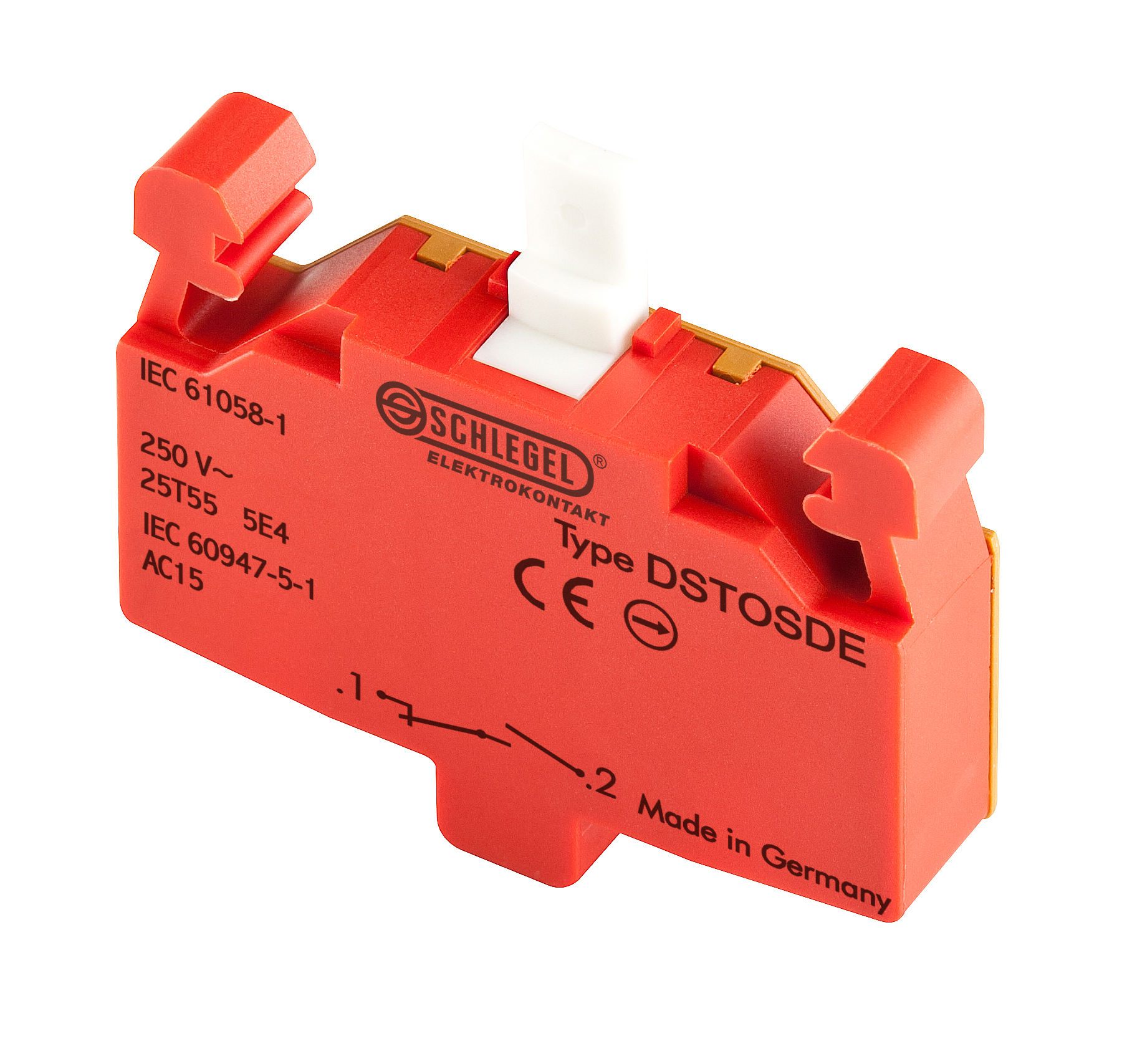

DSTOSDEContact block -

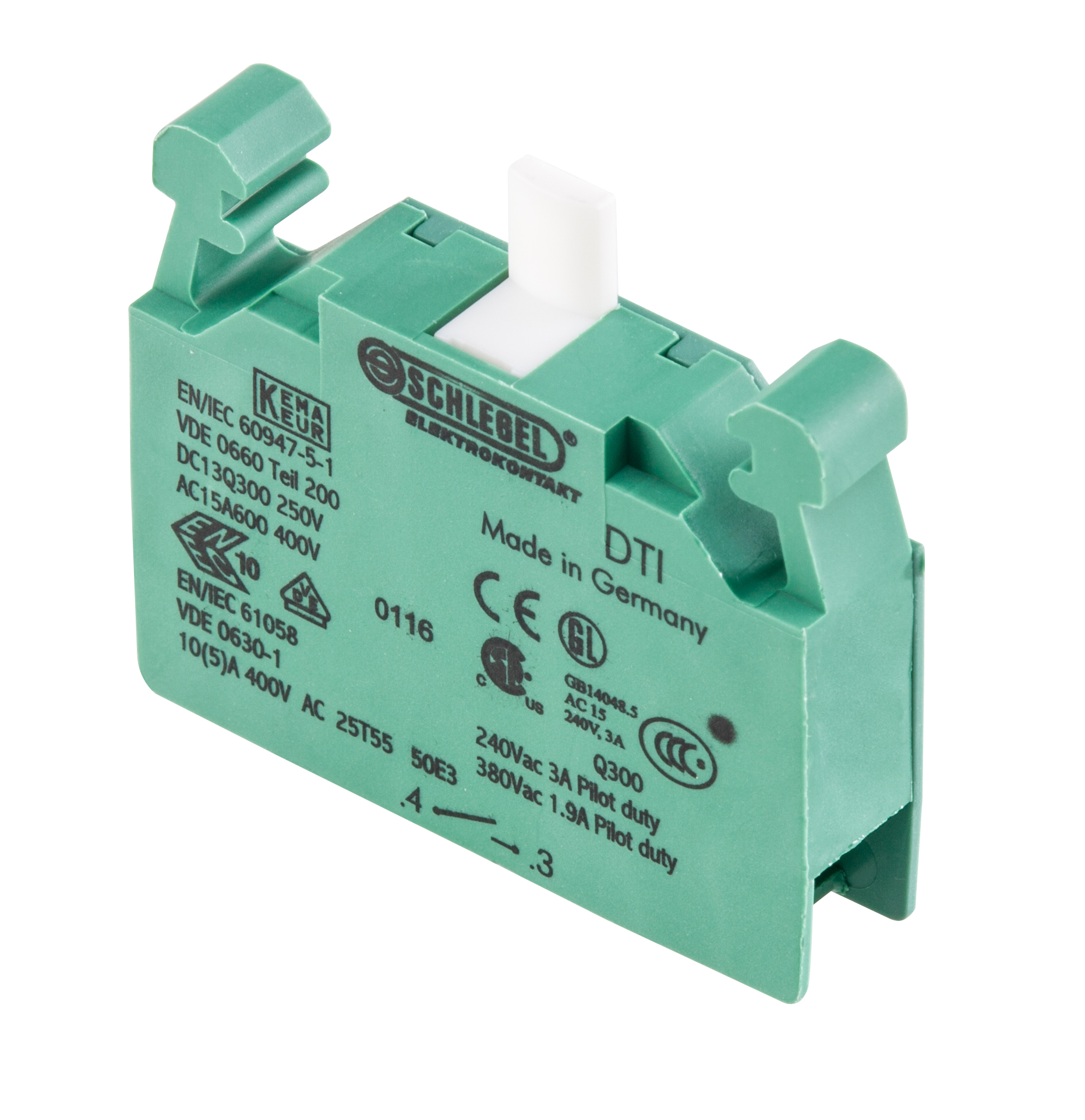

DTIContact block- Connection
- Cage-Clamp
- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q300
- Current
- 16 A
- Approvals
- CCC, cCSAus, DNVGL, ENEC10, VDE, CE, KEMA KEUR, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (27.04.2021)
-

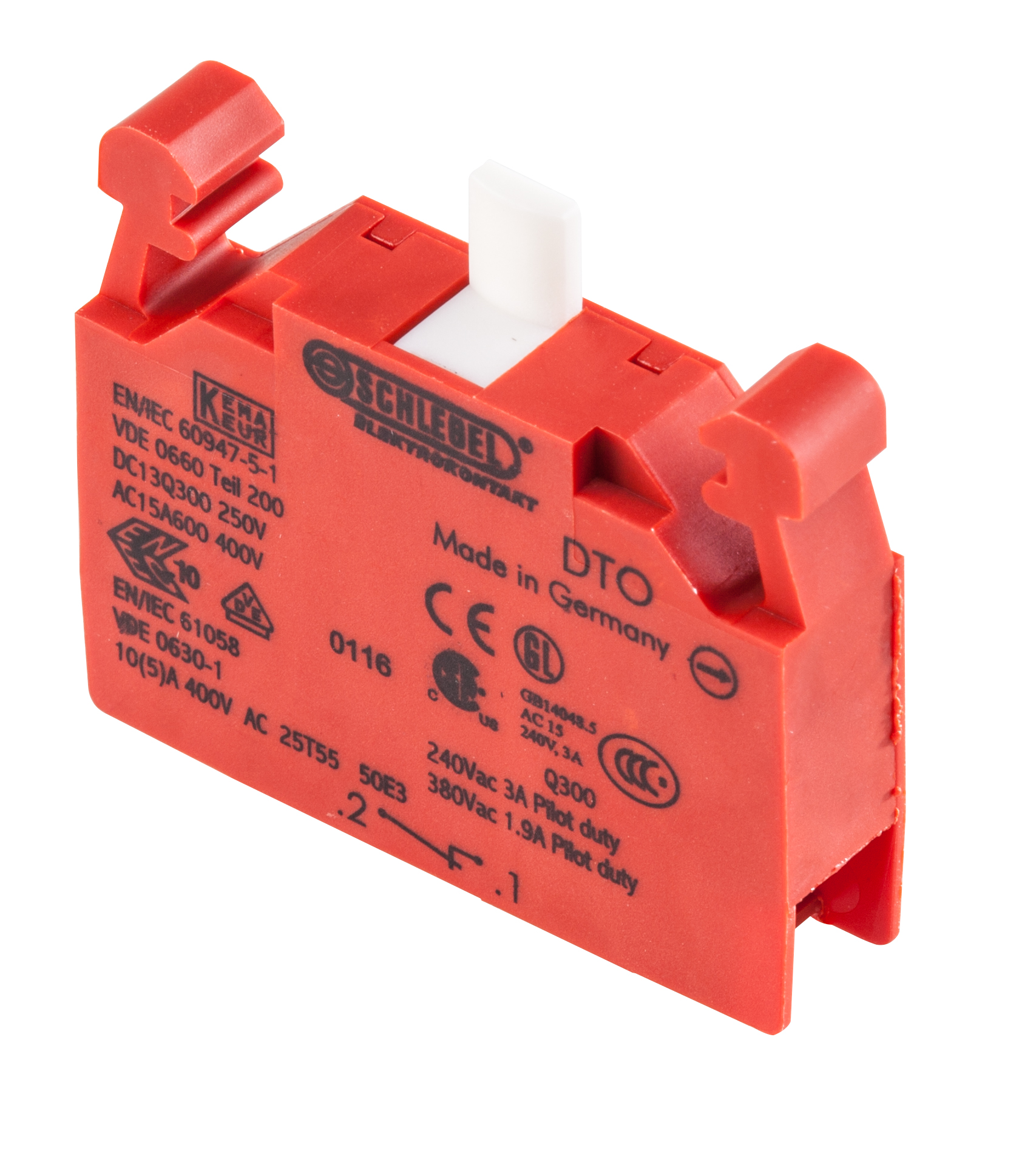

DTOContact block- Connection
- Cage-Clamp
- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q300
- Approvals
- CCC, cCSAus, DNVGL, ENEC10, VDE, CE, KEMA KEUR, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (27.04.2021)
-

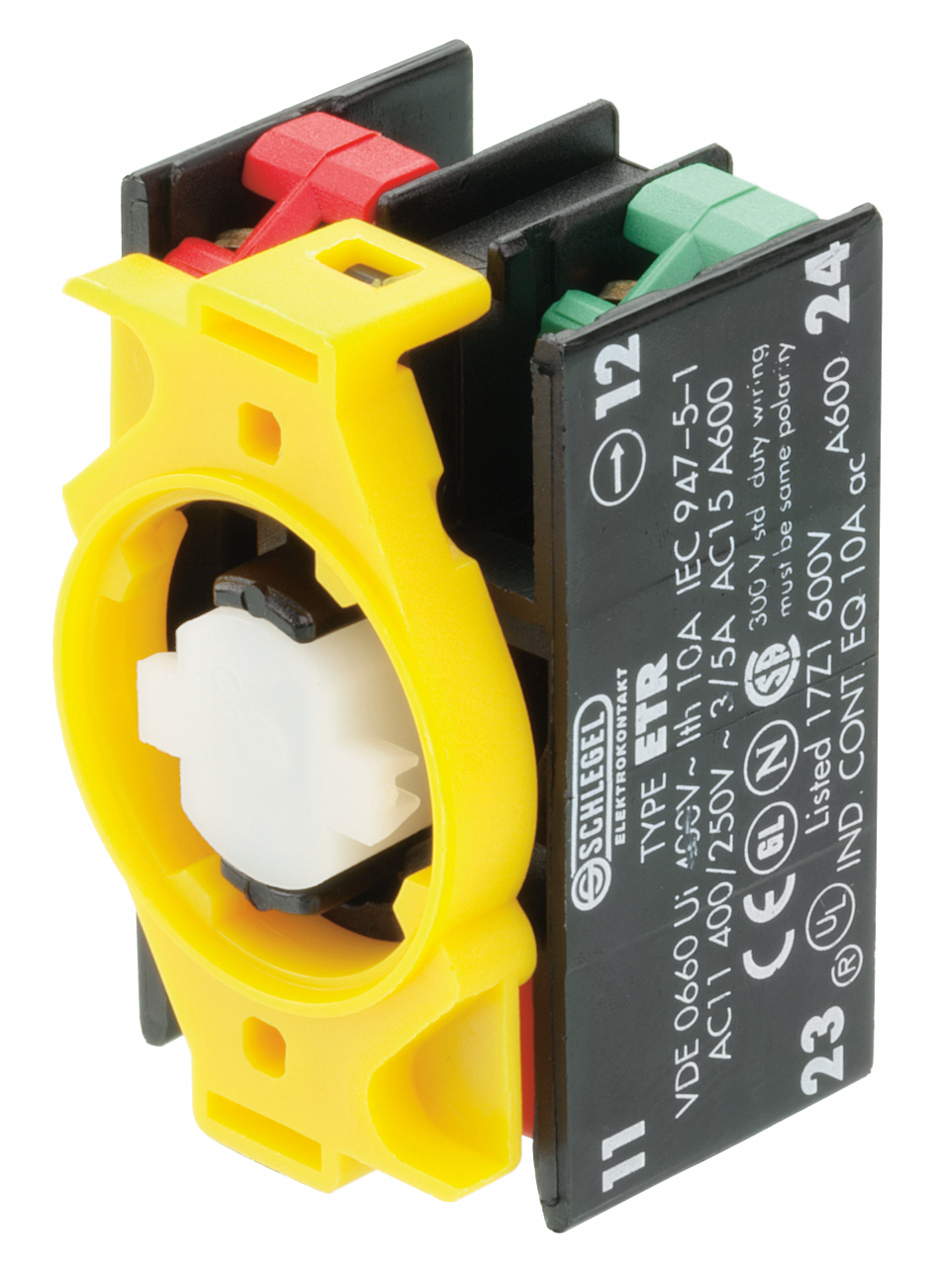

ETRContact block- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15, DC13
- Approvals
- CCC, CE, cULus, DNVGL, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (07.11.2022)
-

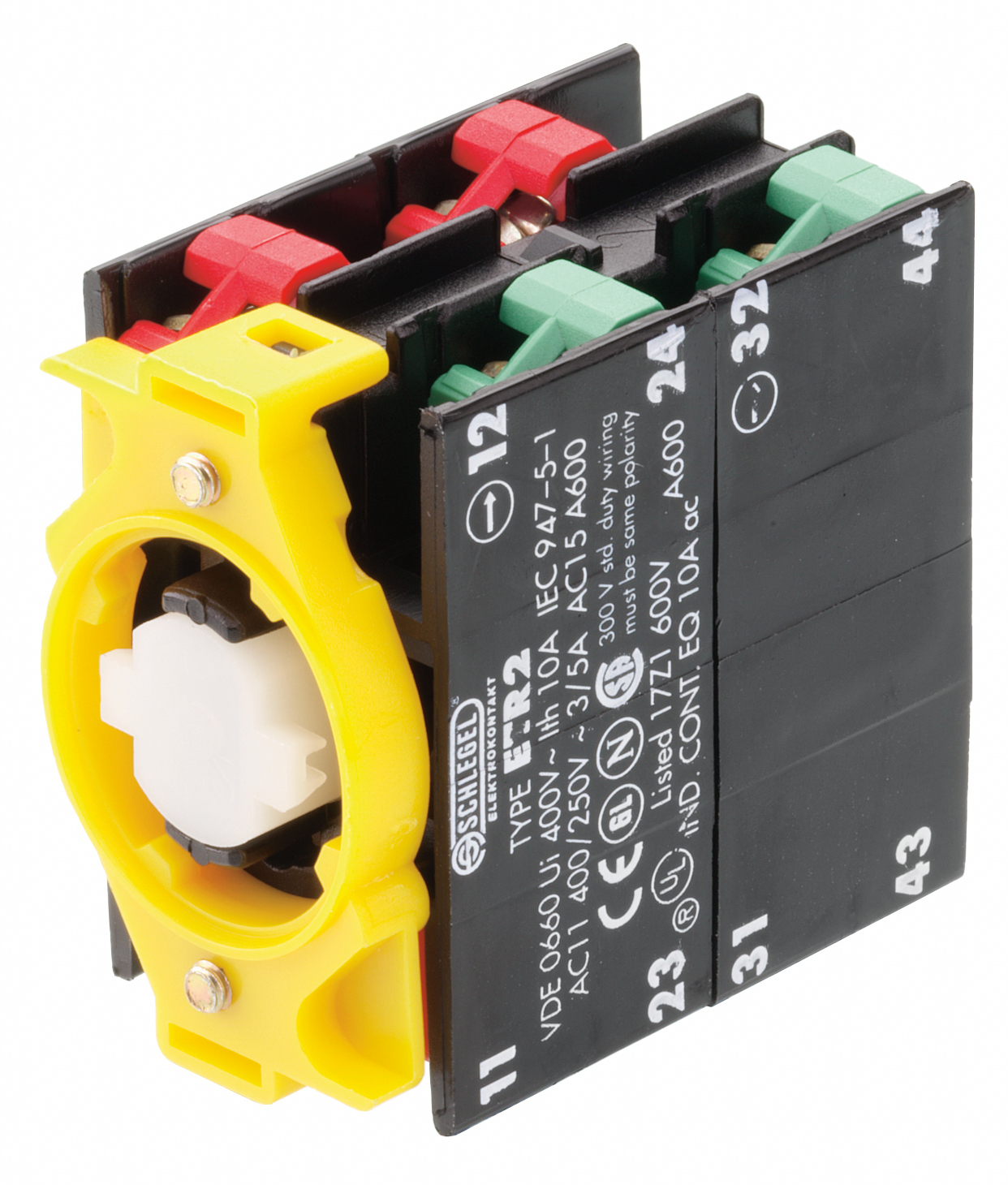

ETR2Contact block- Connection
- Screw Terminal
- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15, DC13
- Approvals
- CCC, CE, cULus, DNVGL, UKCA
Values as stated in Schlegel’s datasheet (07.11.2022)
-

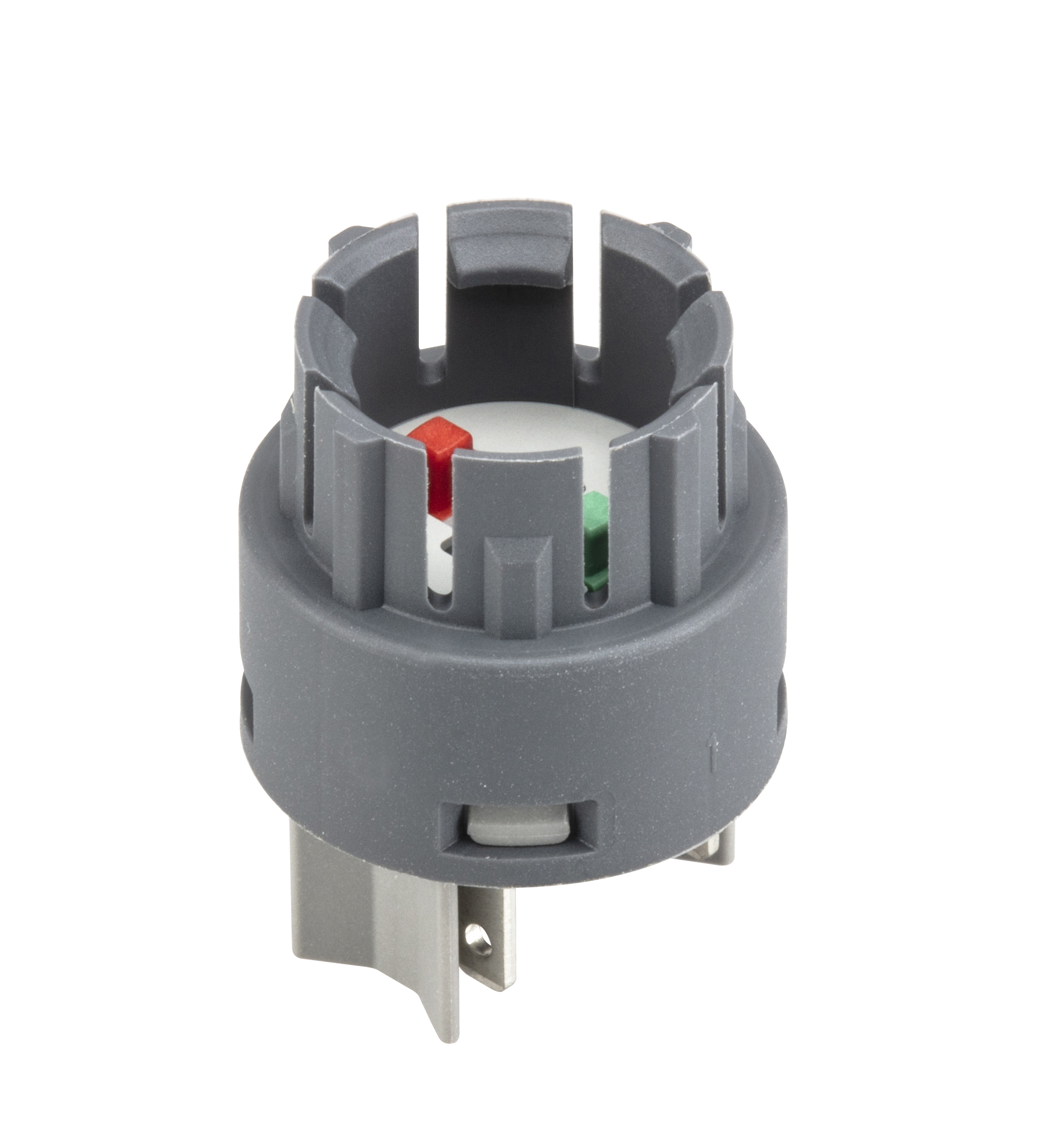

FRTFOI_AUContact block- Protection (front)
- IP00
- Shape
- Round
- Housing color
- Grey
- Illuminated
- No
- Contacts
- 1NC / 1NO
- Connection
- Faston Terminals 2.8 X 0.8 Mm
More specifications (9)
- Travel
- 2.3 mm
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 600,000 operations
- Electrical life
- 600,000 operations at rated load
- Utilization category
- AC15
- Insulation voltage
- 250 V AC
- Positive opening
- per EN 60947-5-1 Annex K
- Approvals
- CCC, CE, cURus, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (10.09.2025)
-

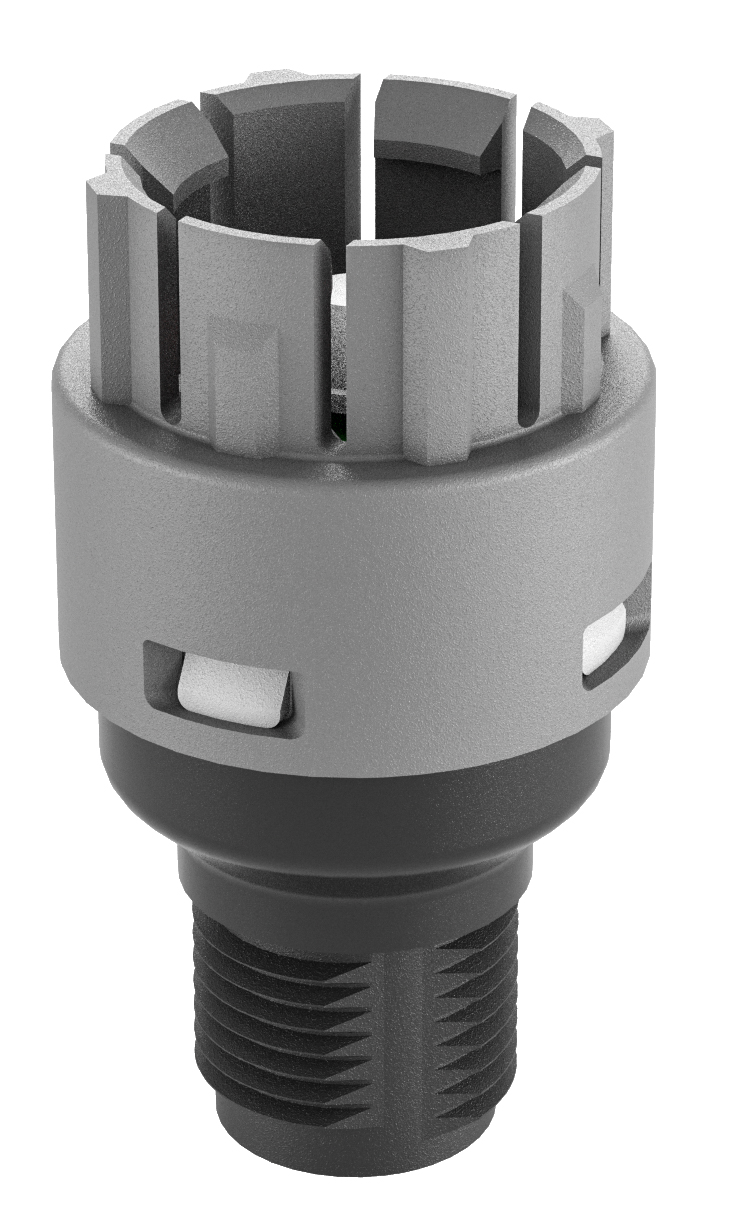

FRTLOO_C113Contact block- Contact material
- AgNi
- Utilization category
- AC15, DC13
- Standards
- EN 60947-5-1
- Approvals
- CE, UKCA
Values as stated in Schlegel’s datasheet (31.01.2024)
-

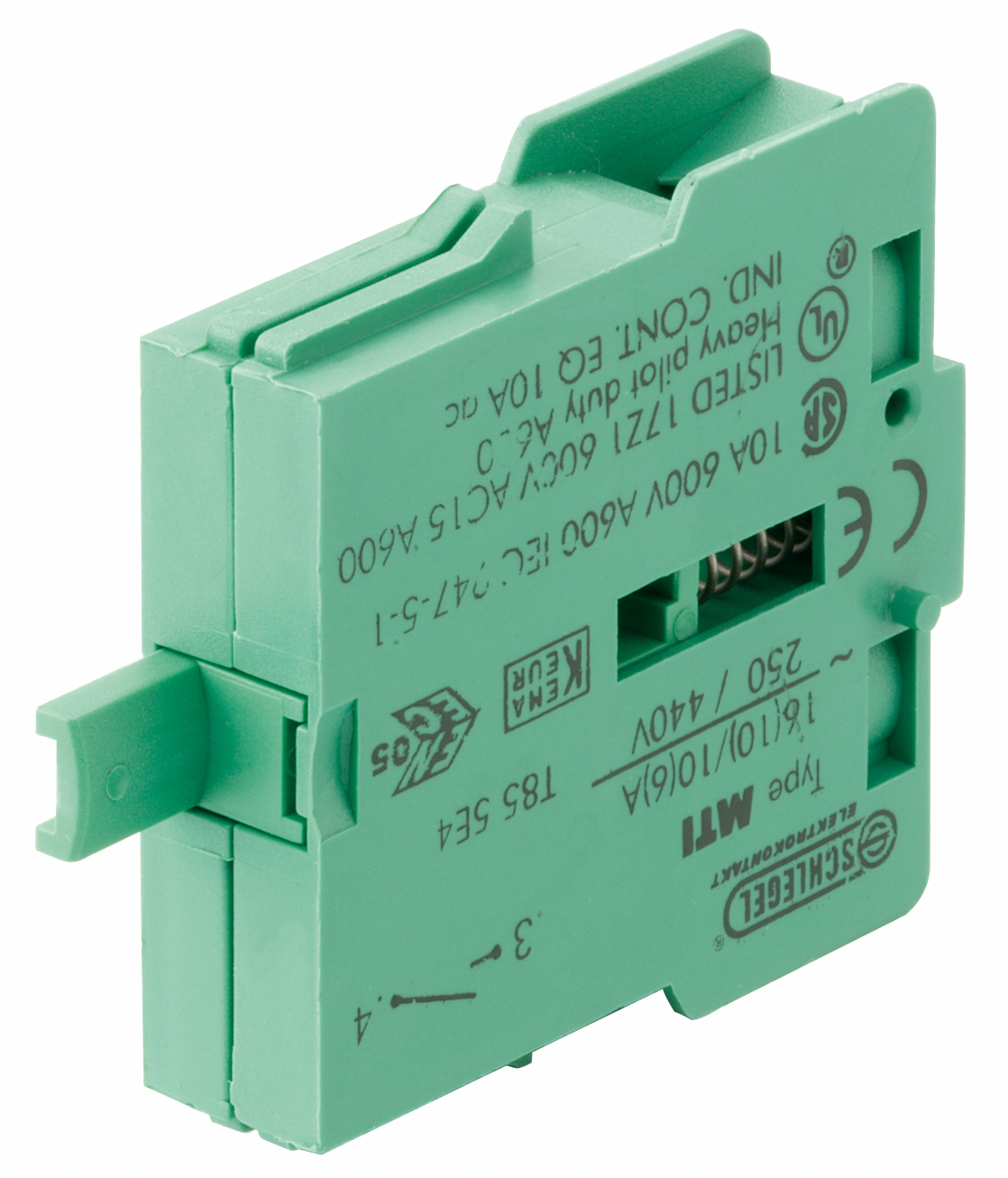

MTIContact block- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q600
- Approvals
- CCC, CSA, cULus, DNVGL, ENEC05, KEMA, CE, UKCA
Values as stated in Schlegel’s datasheet (09.11.2023)
-

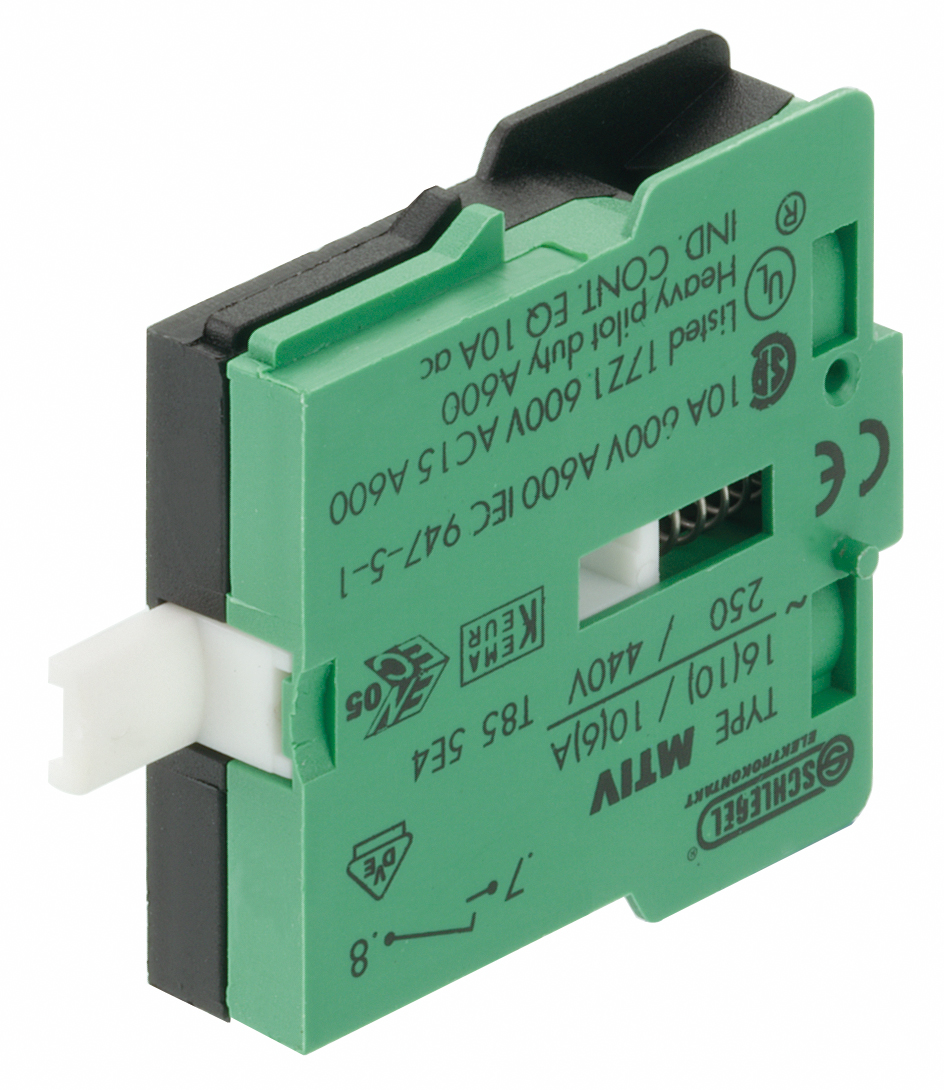

MTIVContact block- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q600
- Approvals
- CCC, CSA, cULus, DNVGL, ENEC05, KEMA, CE, UKCA
Values as stated in Schlegel’s datasheet (10.01.2024)
-

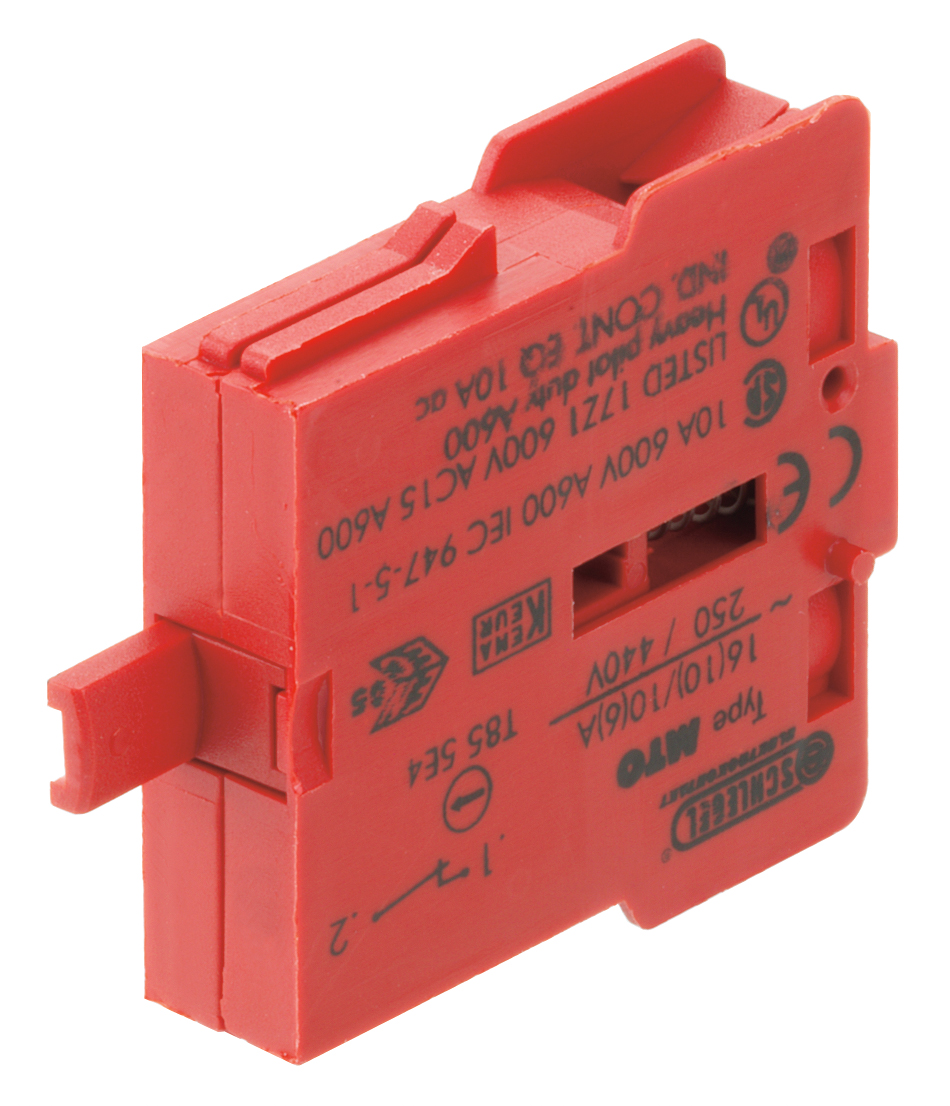

MTOContact block- Contact material
- AgNi
- Travel
- 6 mm
- Utilization category
- AC15 A600, DC13 Q600
- Approvals
- CCC, CSA, cULus, DNVGL, ENEC05, KEMA, CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (09.11.2023)
-

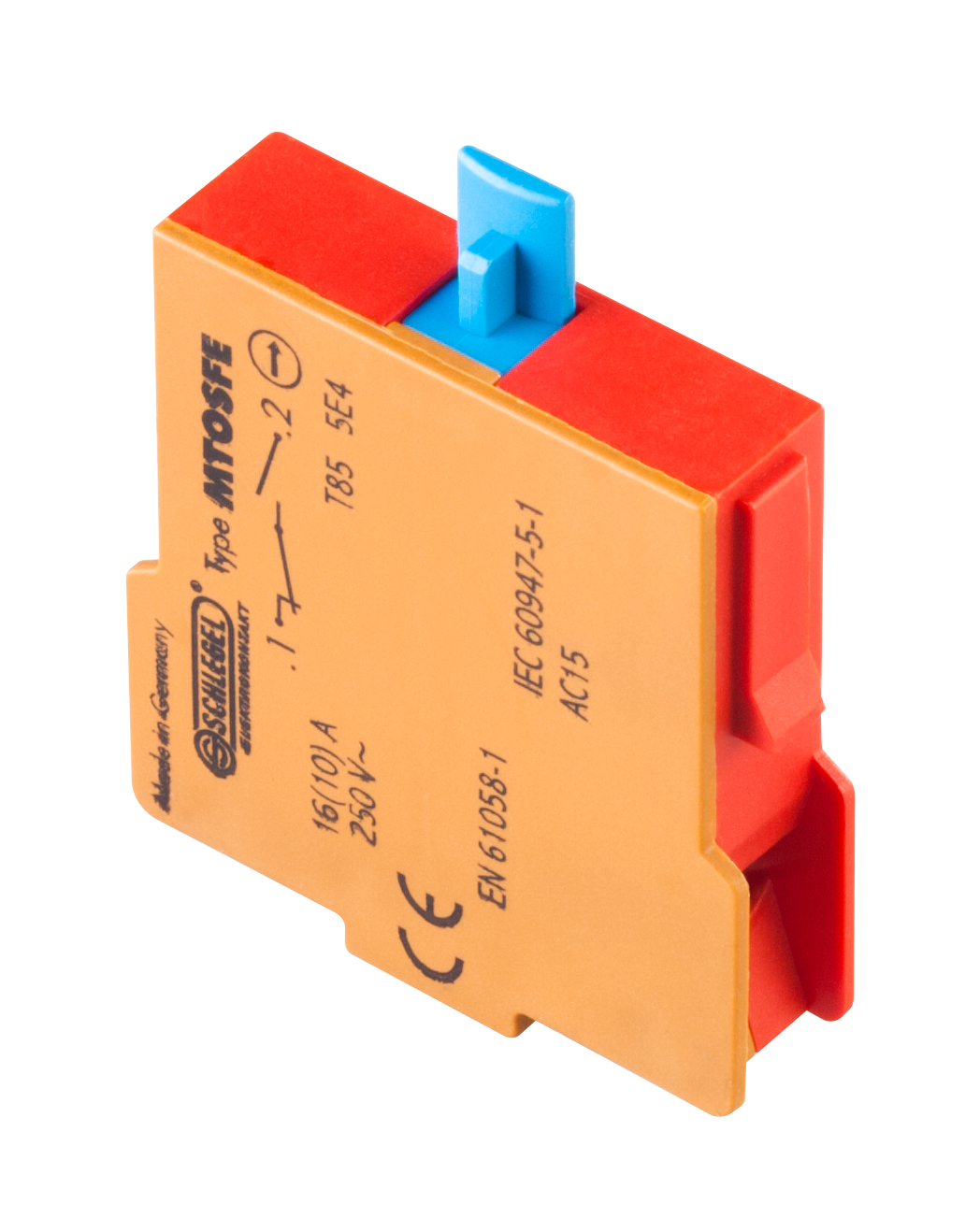

MTOSFEContact block- Protection (front)
- IP20
Values as stated in Schlegel’s datasheet (24.07.2024)
-
PTSOContact block- Contact material
- AgNi
- Travel
- 2.3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, CE, cURus, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (16.12.2021)
-

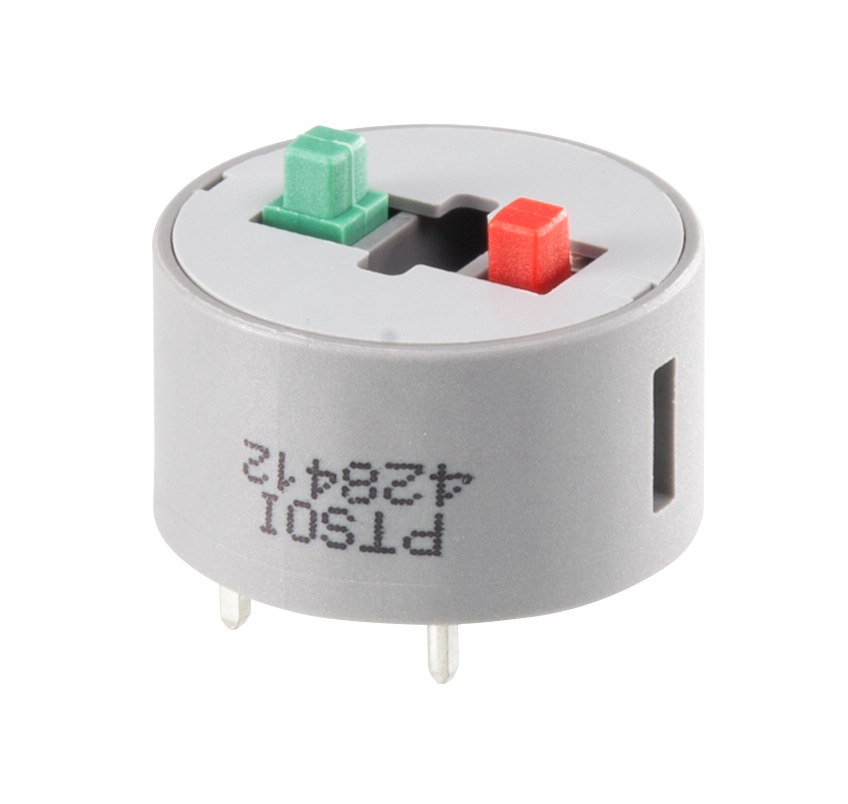

PTSOIContact block- Contact material
- AgNi
- Travel
- 2.3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, CE, cURus, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (16.06.2023)
-

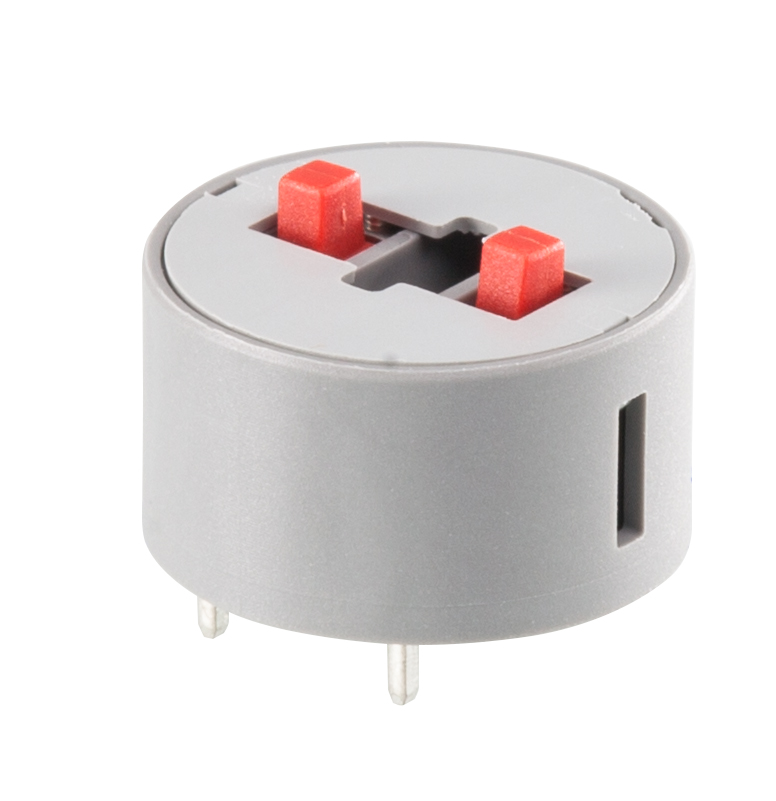

PTSOOContact block- Contact material
- AgNi
- Travel
- 2.3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, CE, cURus, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (16.06.2023)
-

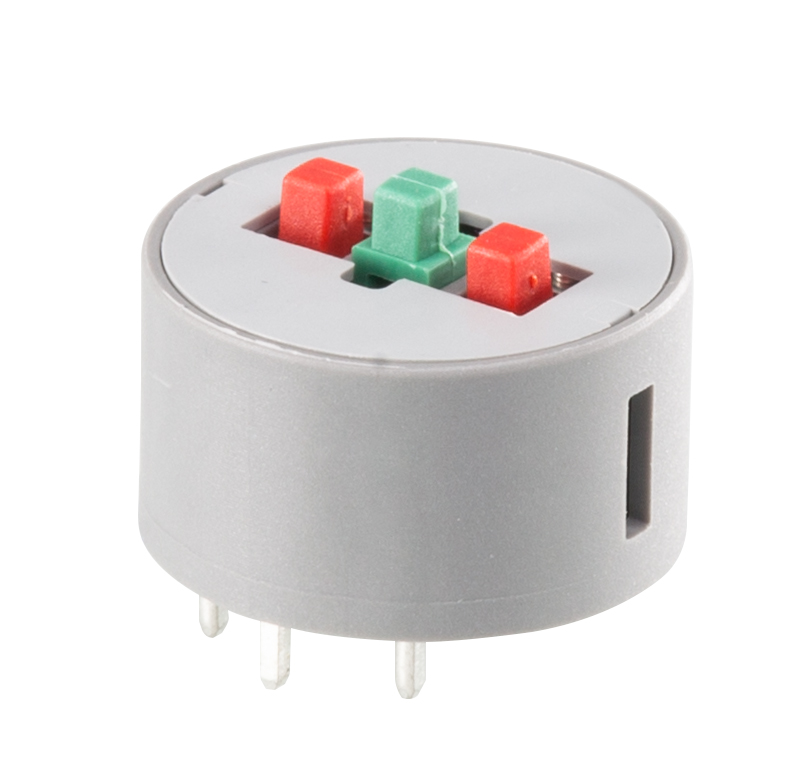

PTSOOIContact block- Contact material
- AgNi
- Travel
- 2.3 mm
- Utilization category
- AC15 B300, DC13 Q300
- Approvals
- CCC, CE, ENEC10, VDE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (16.12.2021)
Contact block or lamp holder 20
-
ATL2_457Contact block or lamp holder -

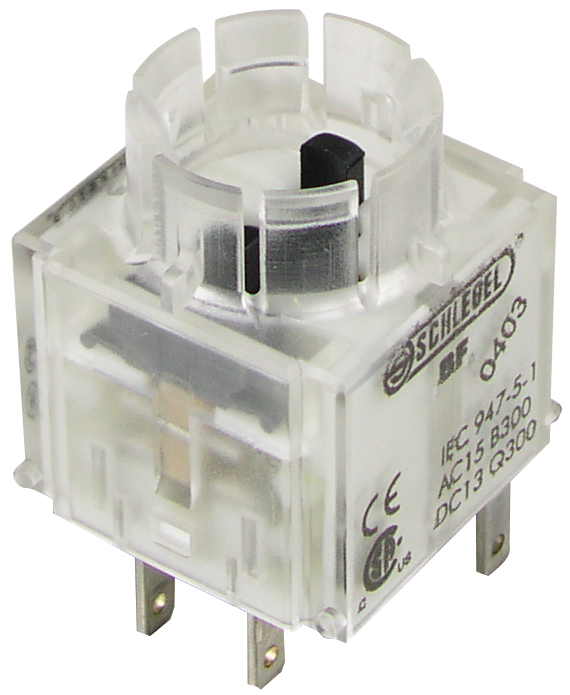

BFL5_538/02Contact block or lamp holder -

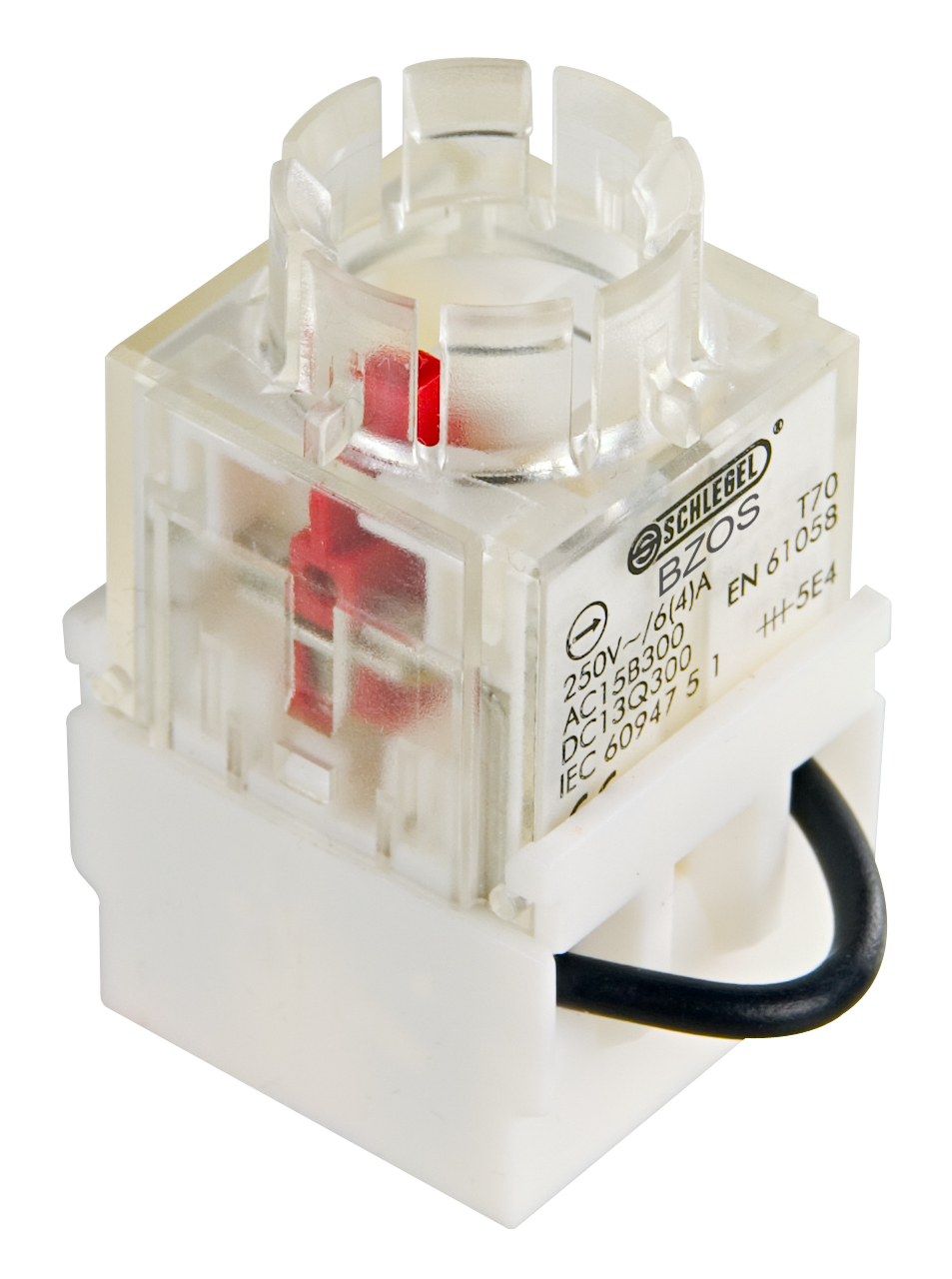

BZOSContact block or lamp holder- Protection (front)
- IP00
- Connection
- Faston Terminals
Values as stated in Schlegel’s product data
-
CTP_485Contact block or lamp holder- Connection
- Pcb-Mount Terminals
Values as stated in Schlegel’s product data
-
GO6073F1Contact block or lamp holder- Protection (front)
- IP00
Values as stated in Schlegel’s product data
-
GO6073F1_454Contact block or lamp holder -
GO6073F2Contact block or lamp holder -
IW2Contact block or lamp holder -
IW4Contact block or lamp holder -
IW16Contact block or lamp holder -
IW50Contact block or lamp holder -
MLED24WContact block or lamp holder -
MTI_AUContact block or lamp holder -
MTO_AUContact block or lamp holder -
MTOSFContact block or lamp holder- Protection (front)
- IP20
- Connection
- Screw Connection
Values as stated in Schlegel’s product data
-
MUKO_010Contact block or lamp holder -
MUKO1501Contact block or lamp holder -
MZLContact block or lamp holder -
VB4-12Contact block or lamp holder -
VB16-12Contact block or lamp holder
Lamp 10
-
L2X46-24UWLamp -
L5.5K-24UWLamp -
L55K12UWLamp -

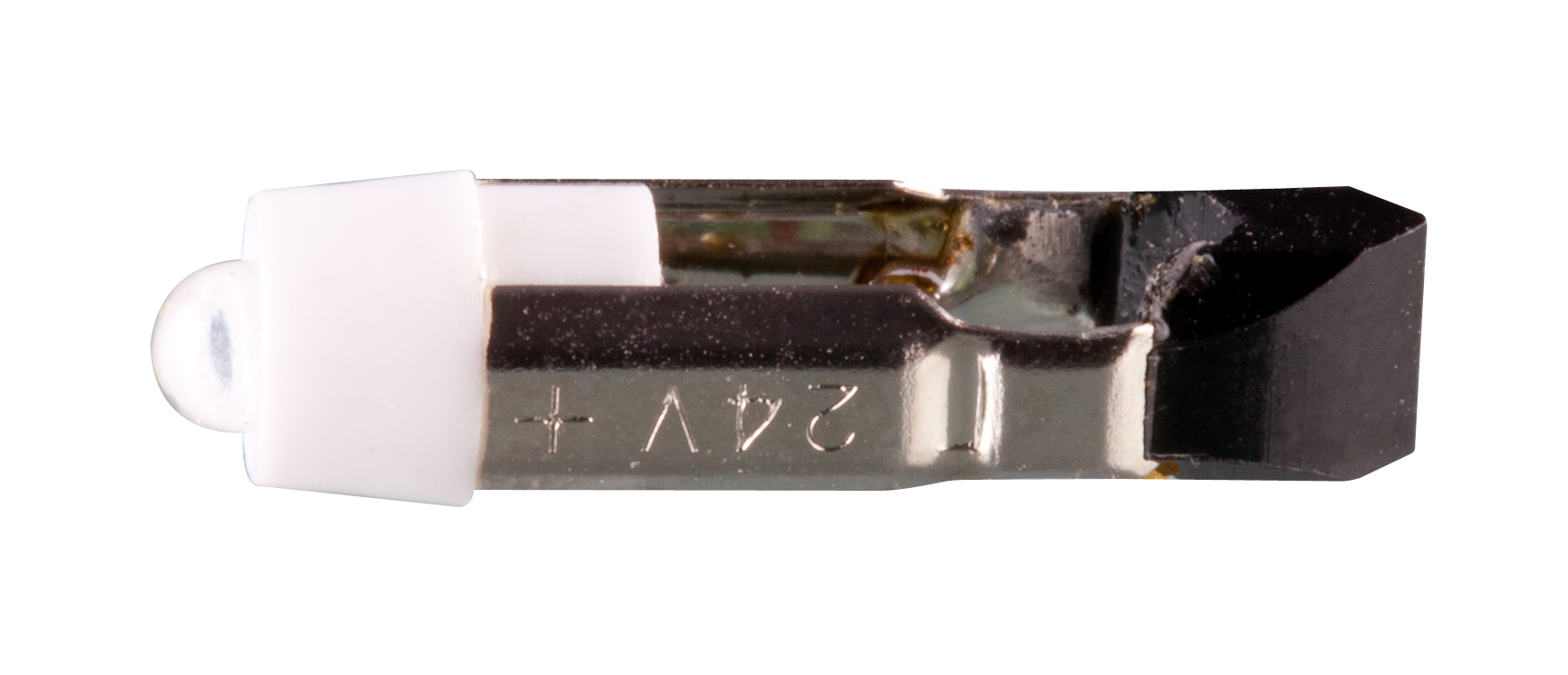

L55K24RGLamp -
L55K24UBLamp -
L55K24UGLamp -
L55K24URLamp -
L55K24UWLamp -
L55K24UYLamp -
T5,5K-24VLamp
Lamp or contact-block accessory 7
-
L5,5K24UWLamp or contact-block accessory -
LD9-24UWLamp or contact-block accessory- Operating temperature
- -20 °C to 60 °C
- Storage temperature
- -25 °C to 80 °C
- Voltage
- 24V AC/DC
Values as stated in Schlegel’s datasheet (15.07.2026)
-
LD9-130UGLamp or contact-block accessory- Operating temperature
- -20 °C to 60 °C
- Storage temperature
- -25 °C to 80 °C
- Approvals
- CCC, CE, UKCA
Values as stated in Schlegel’s datasheet (15.07.2026)
-
LD9-130URLamp or contact-block accessory- Operating temperature
- -20 °C to 60 °C
- Storage temperature
- -25 °C to 80 °C
- Approvals
- CCC, CE, UKCA
Values as stated in Schlegel’s datasheet (15.07.2026)
-
XAP4Lamp or contact-block accessory -
XAP601Lamp or contact-block accessory -
XAP611Lamp or contact-block accessory
Lamp holder 4
-

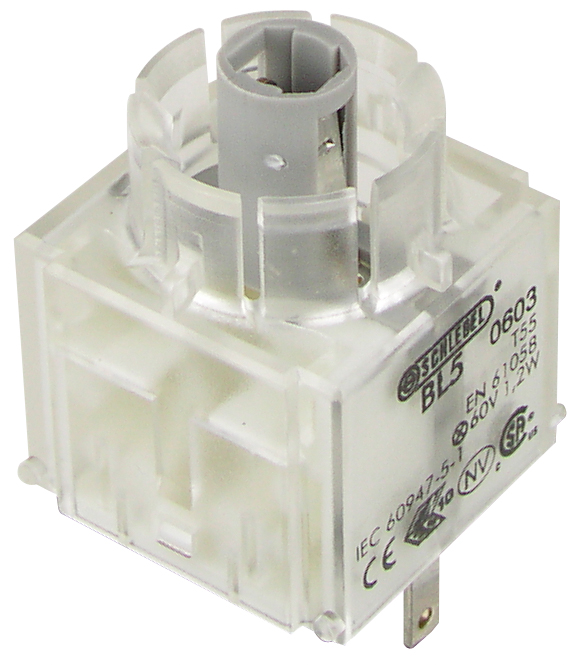

BL5Lamp holder- Approvals
- CCC, cCSAus, ENEC10, VDE, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (29.06.2021)
-

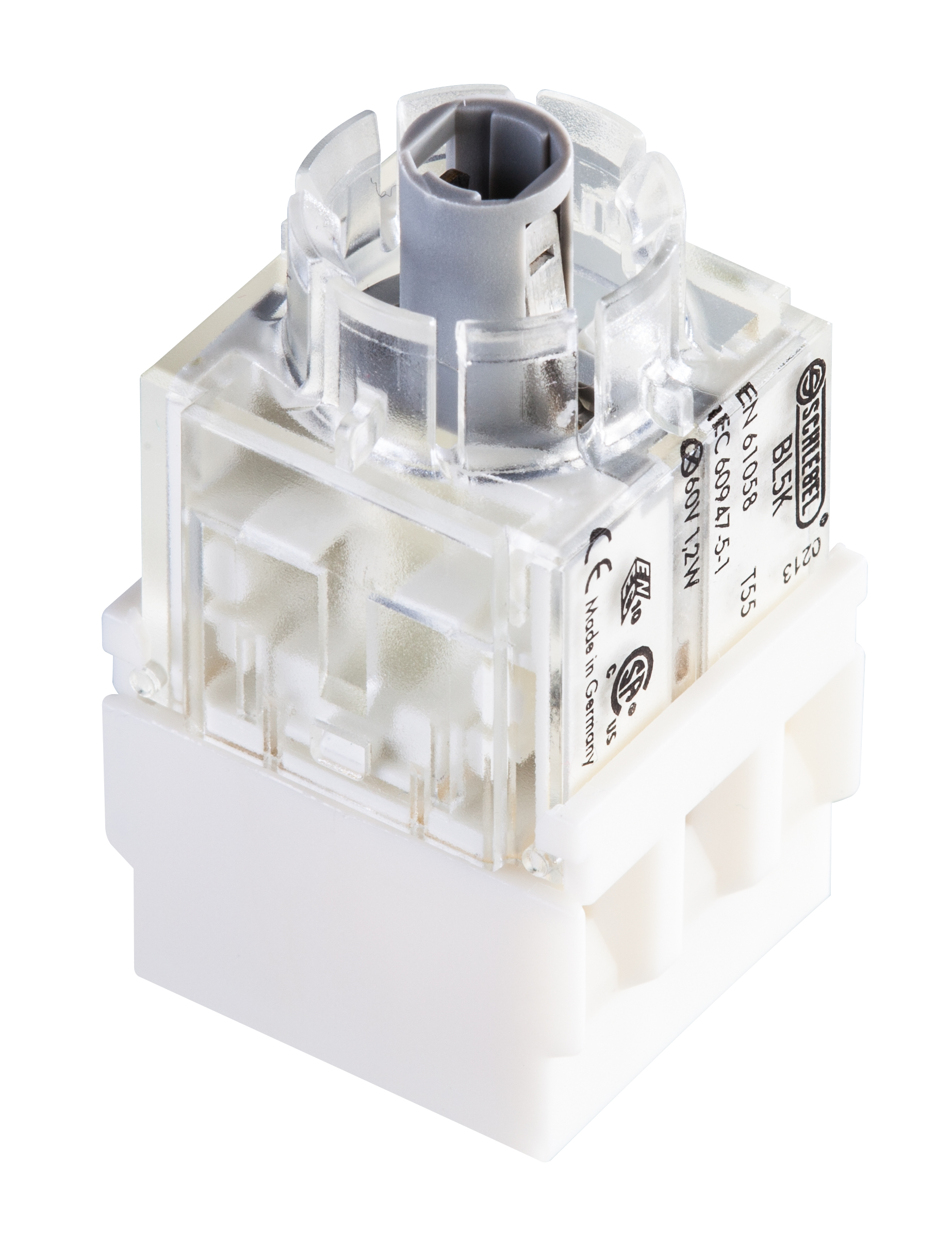

BL5KLamp holder- Approvals
- CCC, cCSAus, ENEC10, VDE, CE, UKCA
Values as stated in Schlegel’s datasheet (03.05.2021)
-
L9RLamp holder- Connection
- Screw Connection
- Approvals
- CCC, cULus
Values as stated in Schlegel’s datasheet (23.06.2021)
-

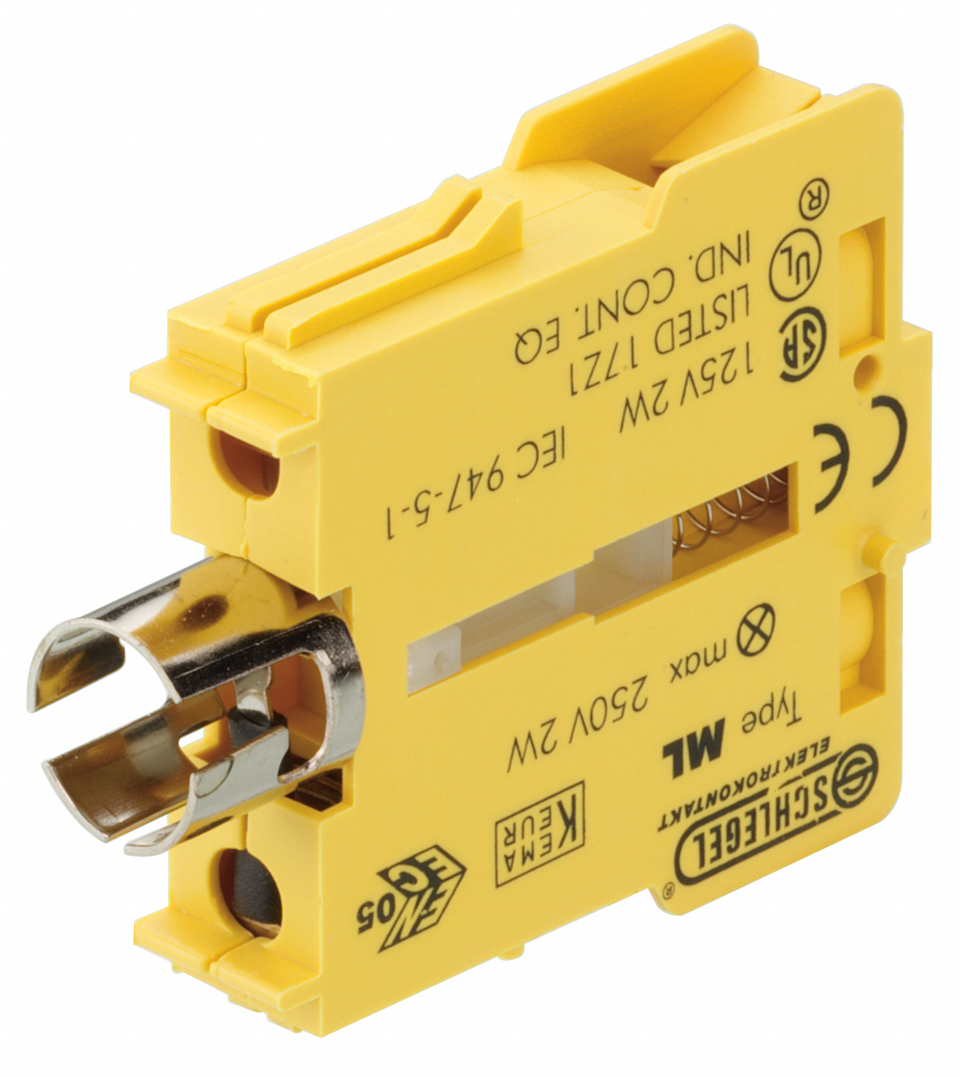

MLLamp holder- Protection (front)
- IP00
- Connection
- Screw Connection (2x 2.5 mm²)
- Approvals
- CCC, CSA, cULus, DNVGL, ENEC05, KEMA, CE, UKCA
Values as stated in Schlegel’s datasheet (22.06.2021)
Contact element 2
-

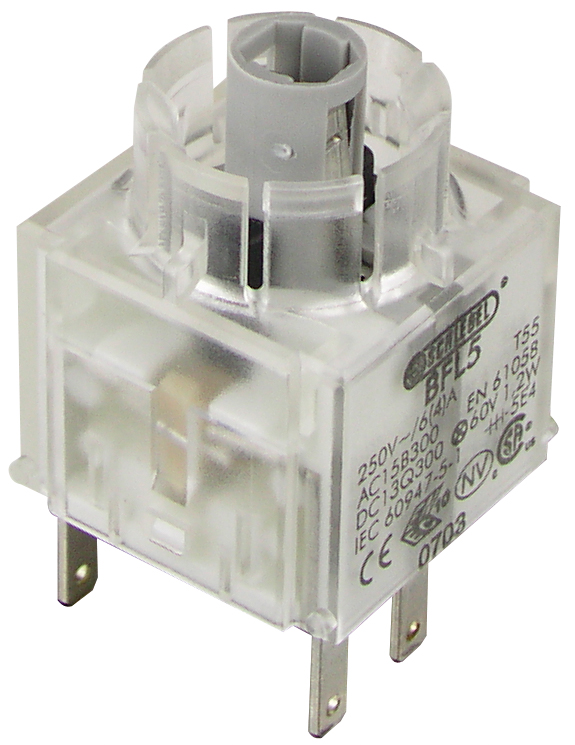

BFL5Contact element- Illuminated
- Yes
- Contacts
- 1NC / 1NO
- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Travel
- 3 mm
- Storage temperature
- -50 °C to 85 °C
More specifications (10)
- Mechanical life
- 1,000,000 operations
- Electrical life
- 1,000,000 operations at rated load
- Utilization category
- AC-15 B300
- Insulation voltage
- 250 V AC
- Rated voltage
- 250 V AC/DC
- Voltage
- 24 V AC/DC
- Current
- 1.5 A AC
- Rated current
- 6(4) A
- Approvals
- CCC, cCSAus, DNVGL, ENEC10, VDE, CE, UKCA, UR
- Weight
- 10.56 g
Values as stated in Schlegel’s datasheet (24.07.2026)
-

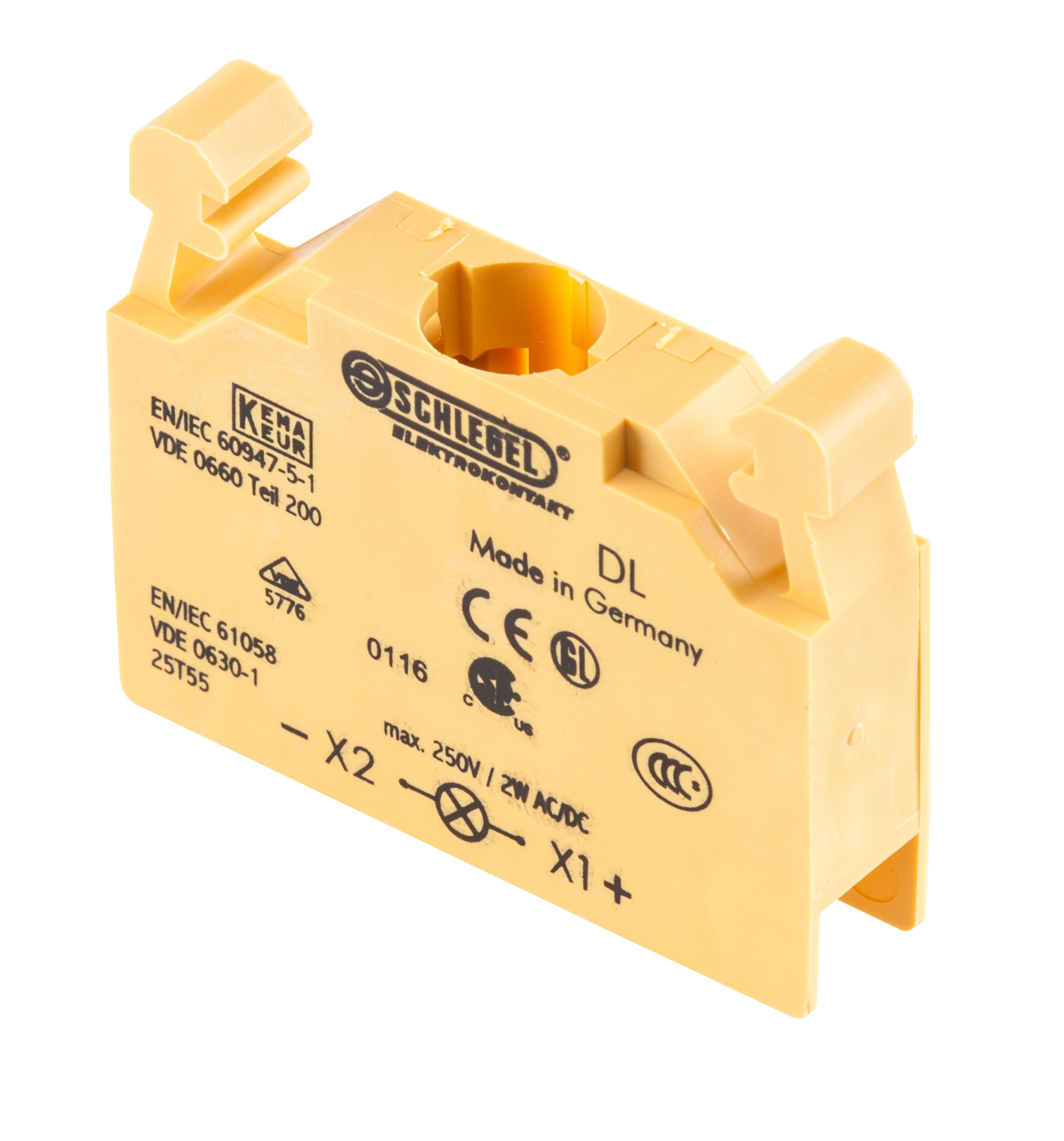

DLContact element- Protection (front)
- IP20
- Housing color
- Yellow
- Illuminated
- Yes
- Operating temperature
- -25 °C to 55 °C
- Storage temperature
- -40 °C to 70 °C
- Insulation voltage
- 600 V AC
More specifications (1)
- Approvals
- CCC, cCSAus, CE, DNVGL, KEMA KEUR, UKCA
Values as stated in Schlegel’s datasheet (28.07.2026)
Latching element 2
-
MFLatching element- Approvals
- CCC, CE, CSA, cULus, DNVGL, UKCA
Values as stated in Schlegel’s datasheet (23.06.2021)
-

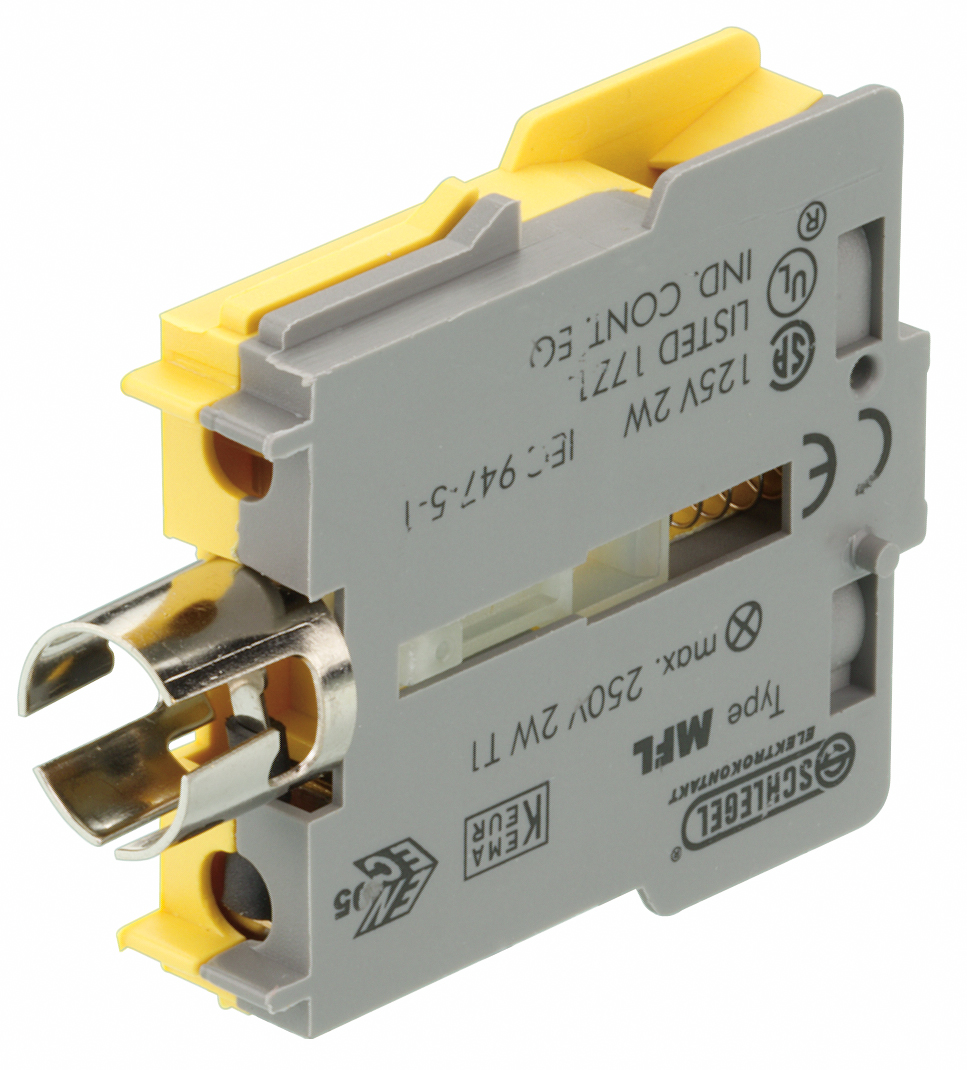

MFLLatching element- Connection
- Screw Connection 2.5 mm²
- Approvals
- CCC, CSA, cULus, DNVGL, ENEC05, KEMA, CE, UKCA
Values as stated in Schlegel’s datasheet (27.04.2021)
Module holder 2
-

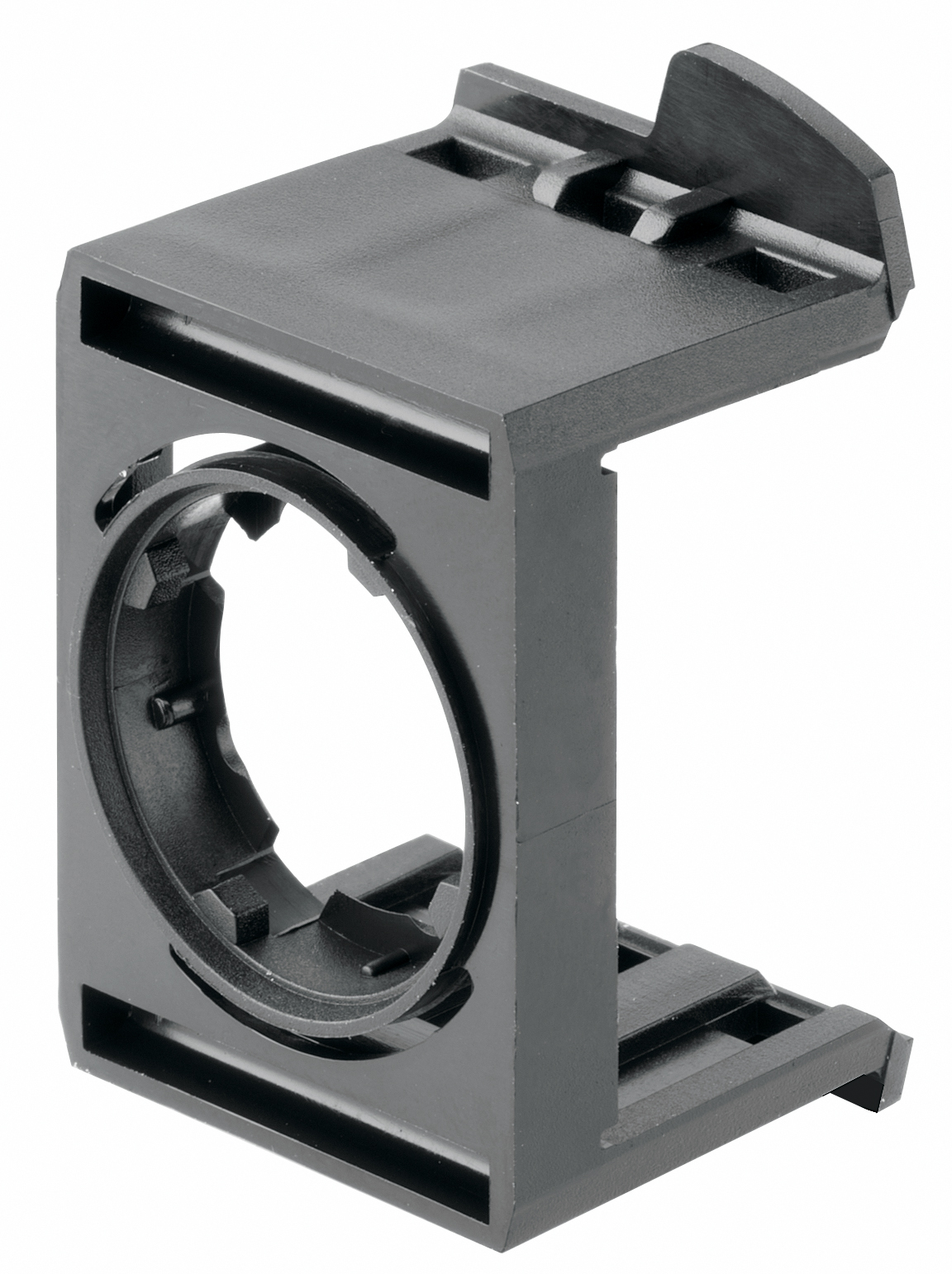

MHR_3Module holder- Approvals
- CCC, CE, CSA, cULus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (21.03.2022)
-

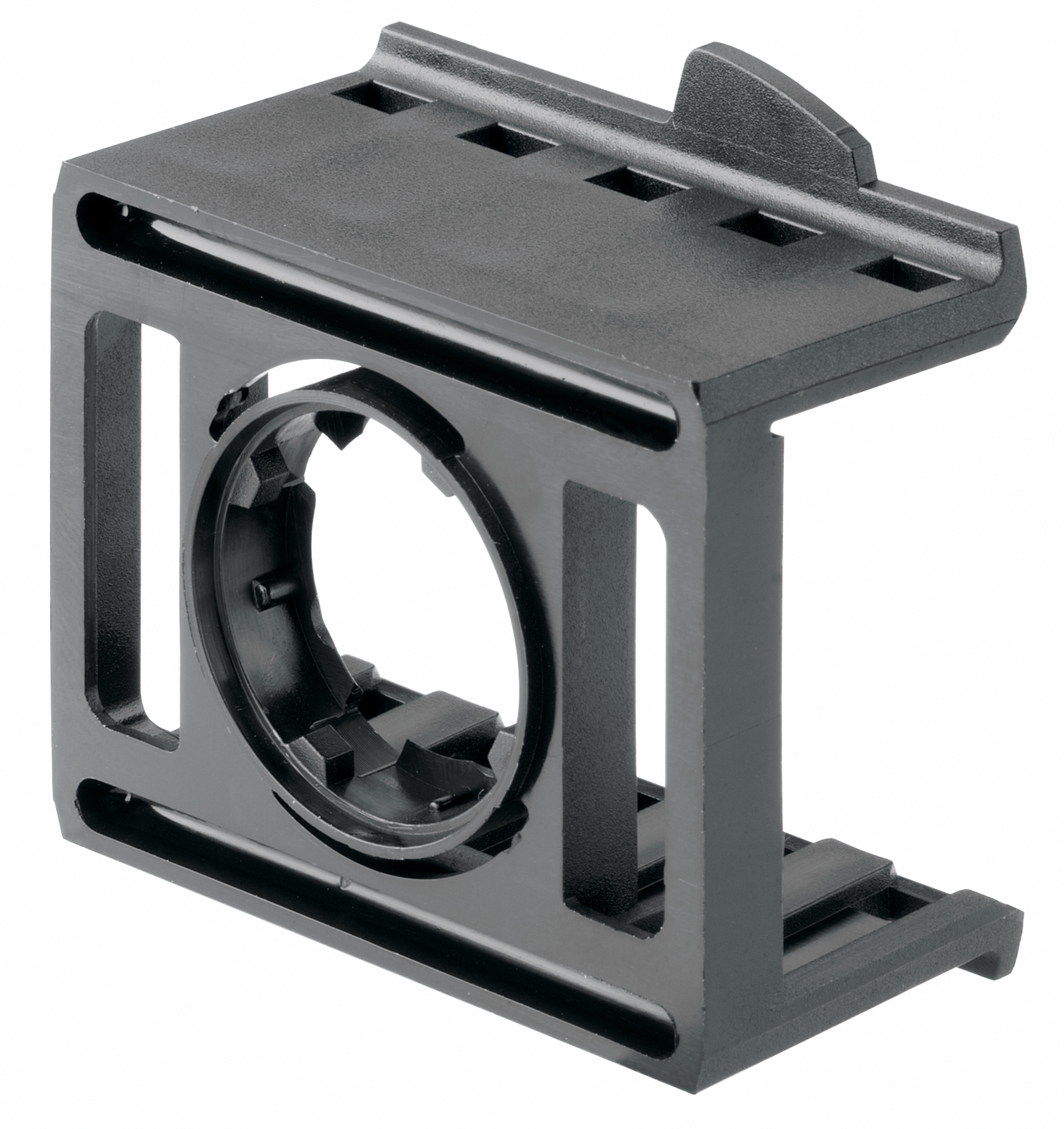

MHR_5Module holder- Approvals
- CCC, CE, CSA, cULus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (10.11.2022)
LED light ring 1
-

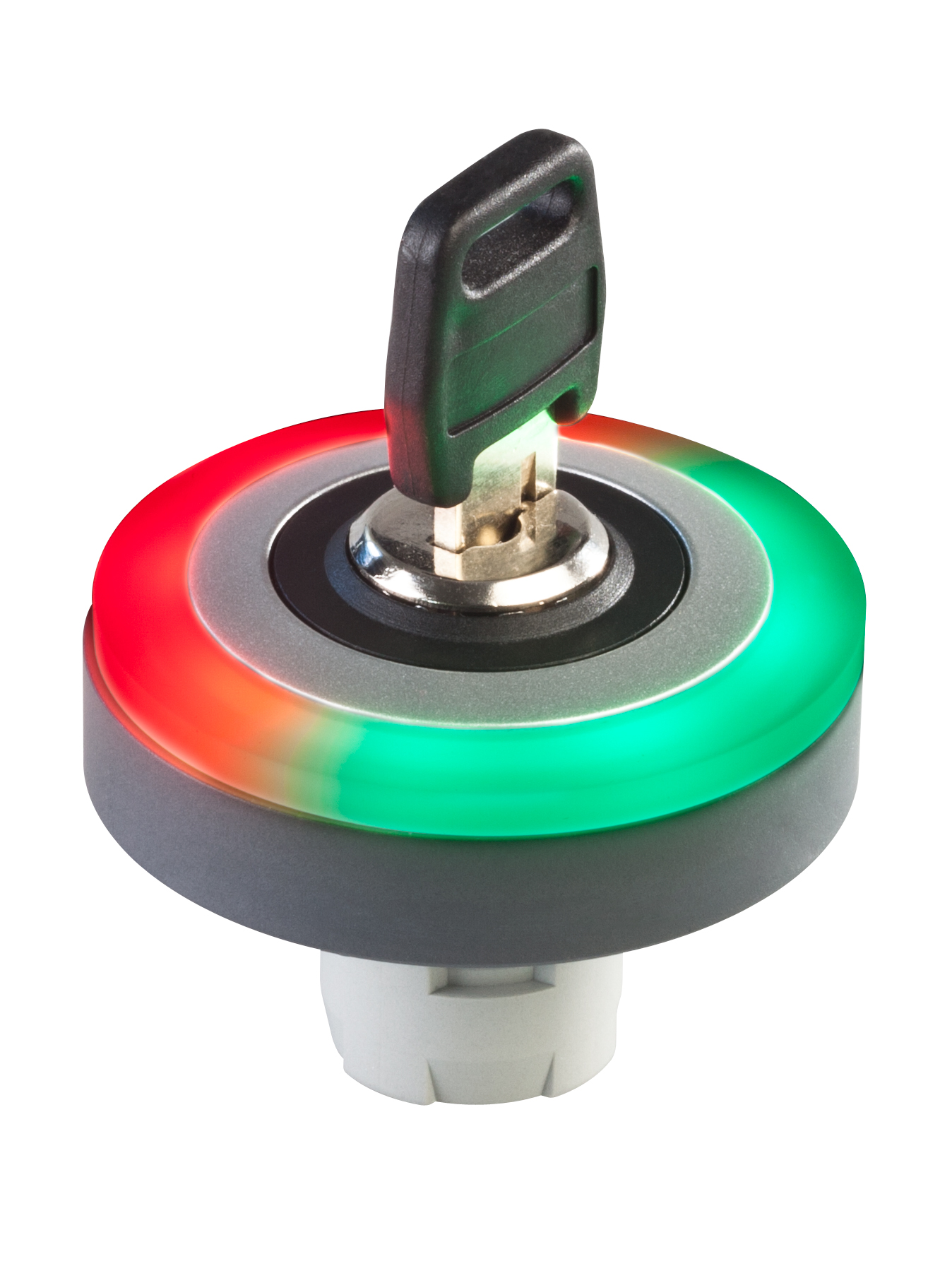

LR22K_24RGBLED light ring- Protection (front)
- IP65
- Panel thickness
- 2.0...4.0mm
- Voltage
- 24 V AC/DC
Values as stated in Schlegel’s datasheet (26.07.2023)
Modular contact block 1
-

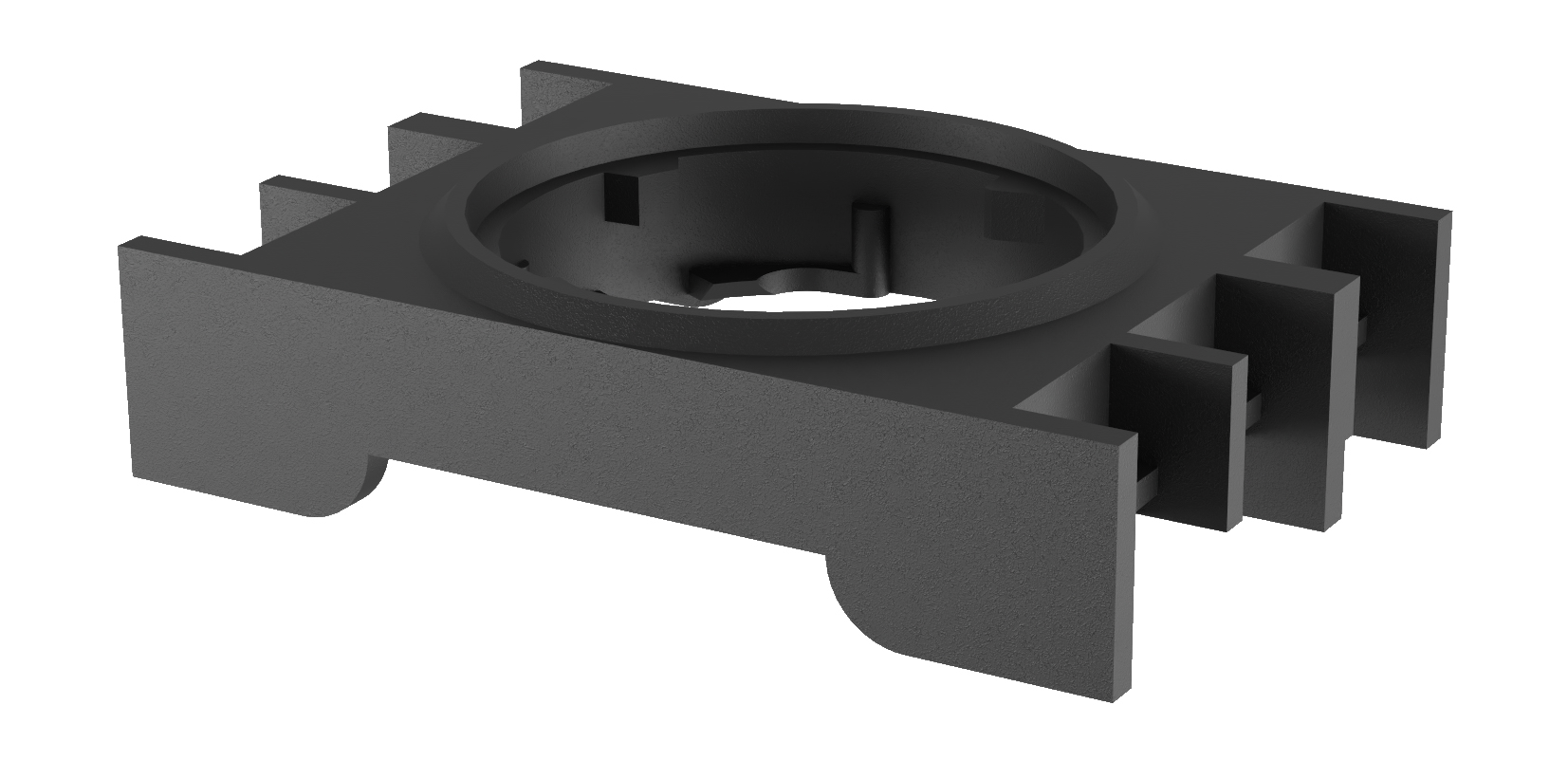

MKHR_3Modular contact block- Housing color
- Black
- Operating temperature
- -40 °C to 85 °C
- Storage temperature
- -50 °C to 85 °C
- Approvals
- CE, UKCA, cULus
- Weight
- 3g
Values as stated in Schlegel’s datasheet (09.09.2025)
More contact blocks and lamps 25
-

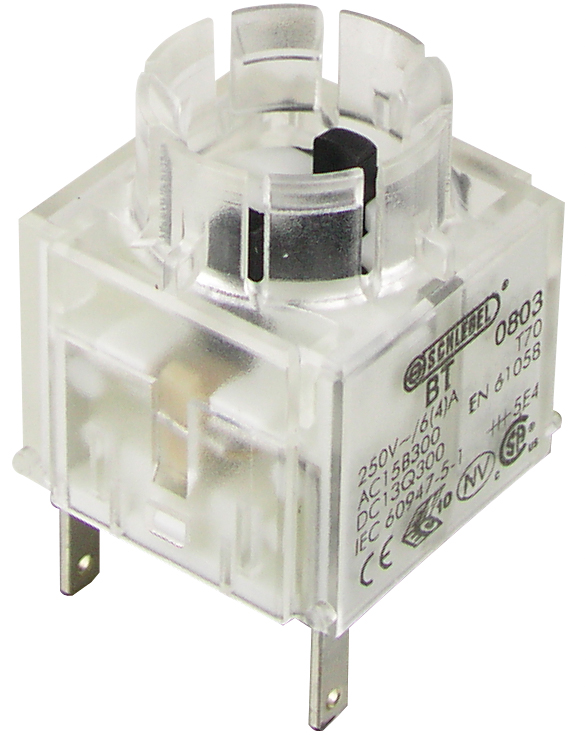

BT- Protection (front)
- IP00
- Connection
- Faston Terminals 2.8 X 0.8 Mm
Values as stated in Schlegel’s product data
-

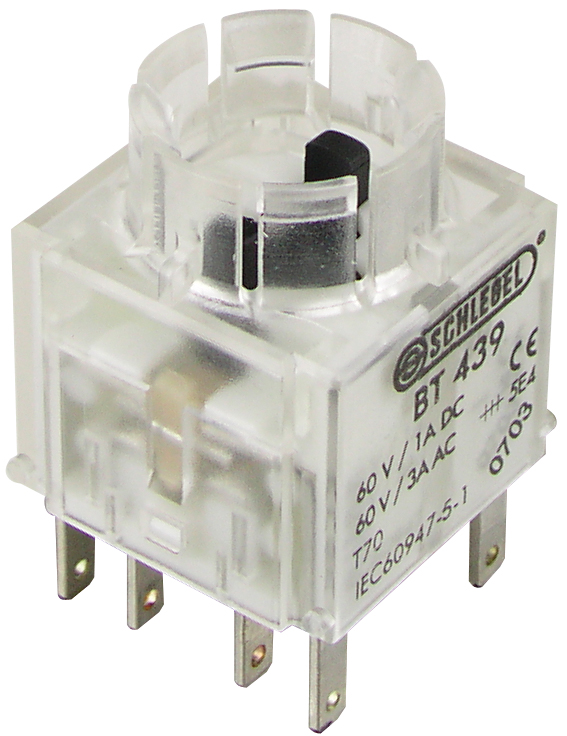

BT_439- Protection (front)
- IP00
- Connection
- Faston Terminal 2.8 x 0.8 mm
Values as stated in Schlegel’s product data
-

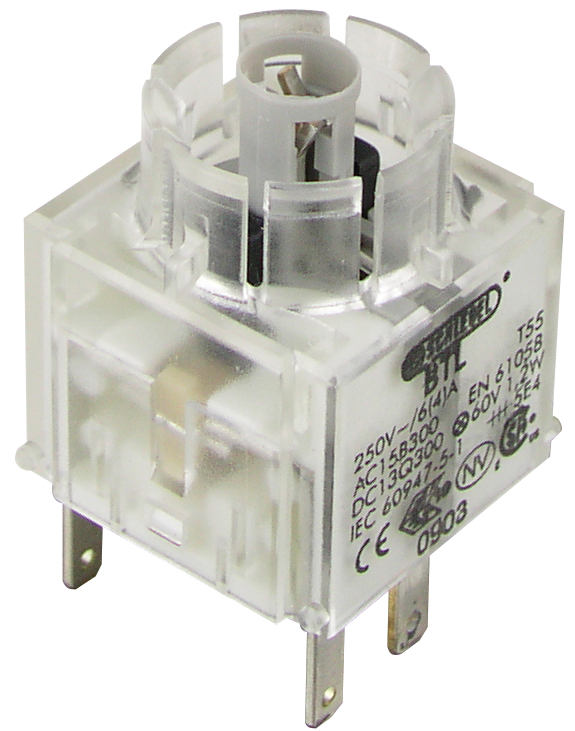

BTL- Connection
- Faston Terminals
Values as stated in Schlegel’s product data
-

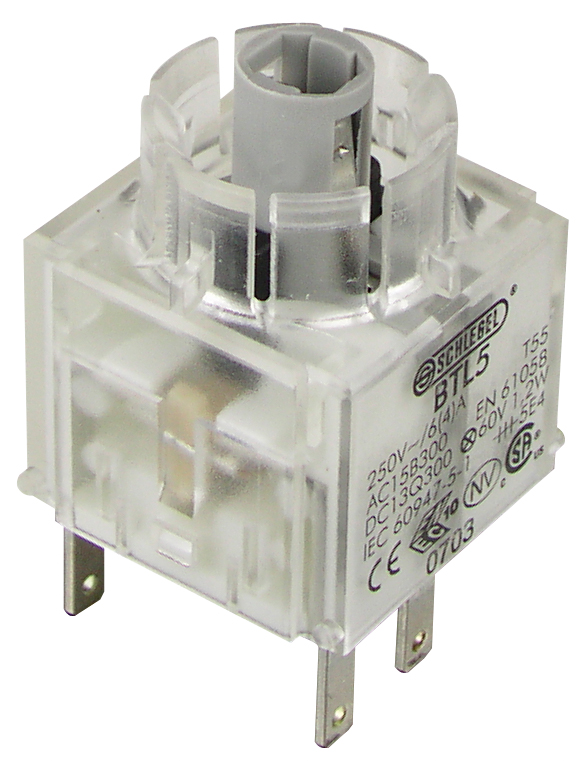

BTL5 -

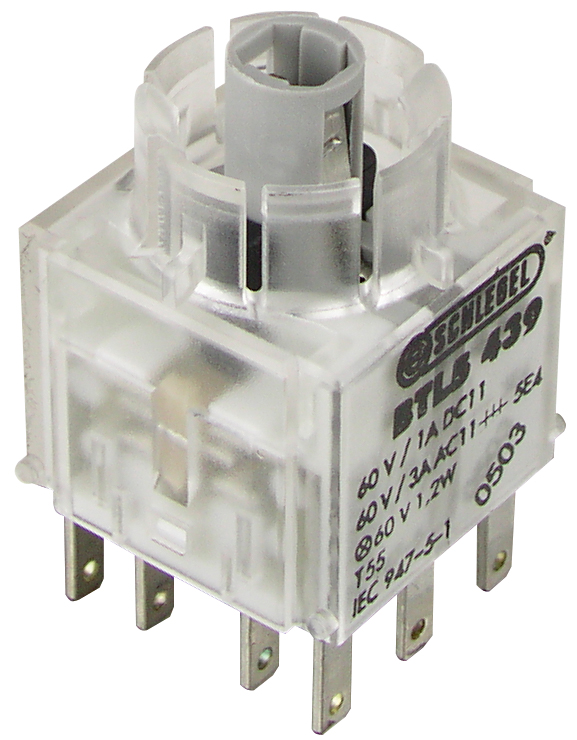

BTL5_439 -

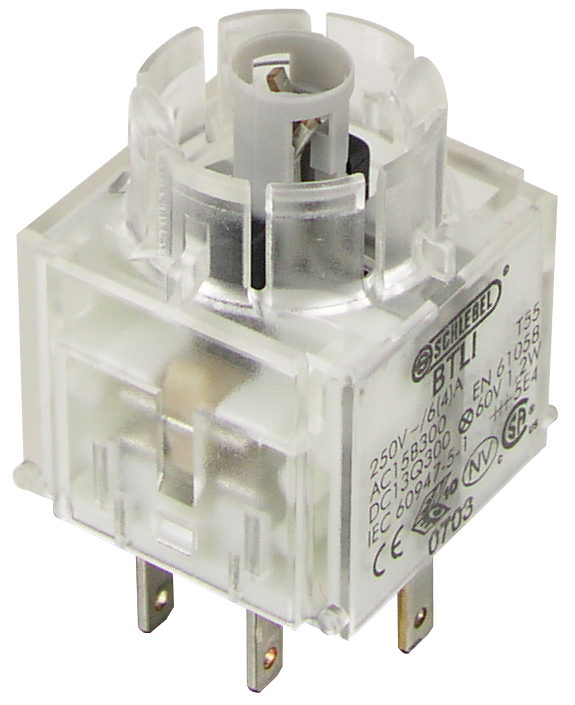

BTLI- Connection
- Faston Terminals 2.8 X 0.8 Mm
Values as stated in Schlegel’s product data
-
BTLI_AU -

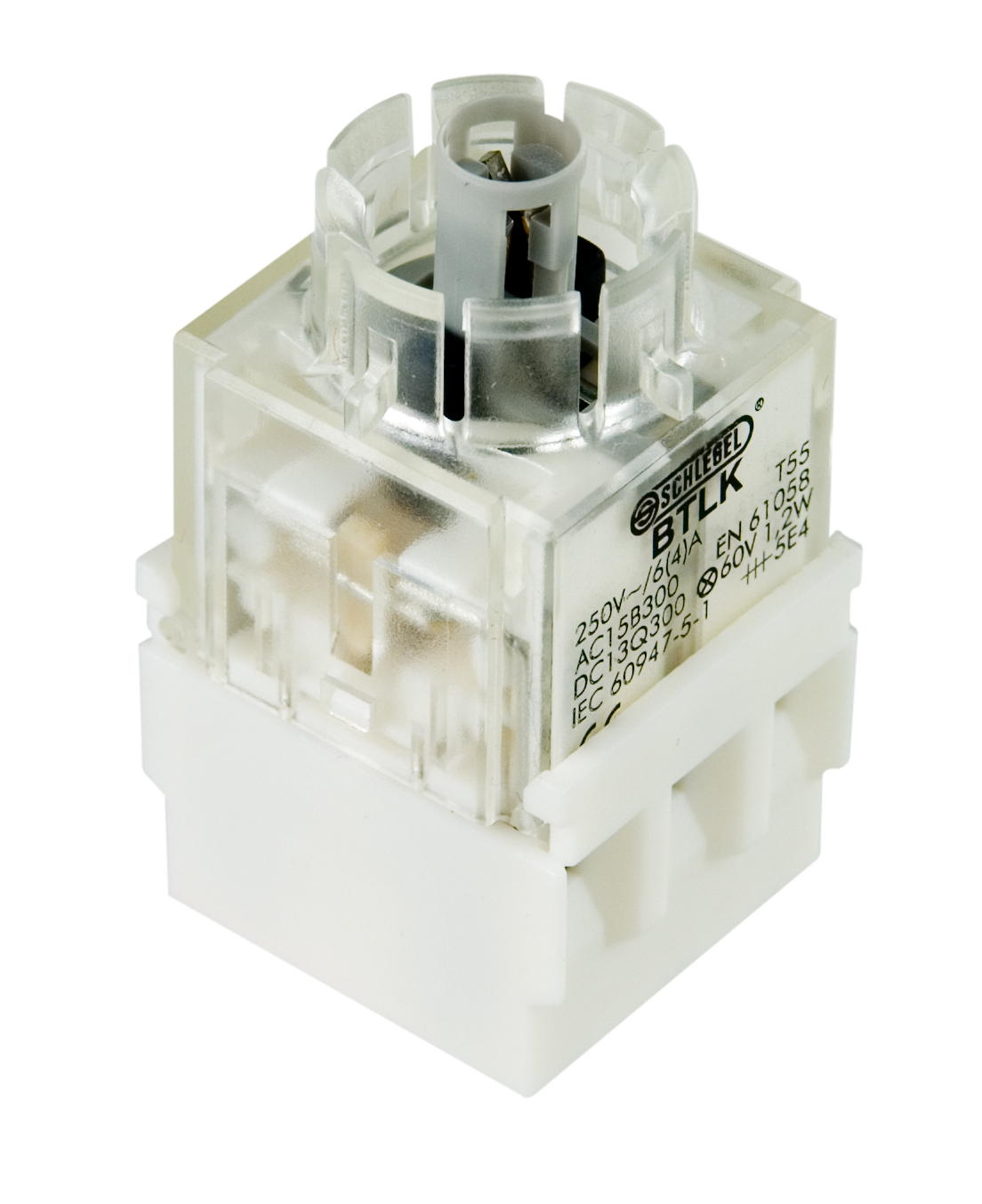

BTLK- Connection
- Screw Connection
Values as stated in Schlegel’s product data
-

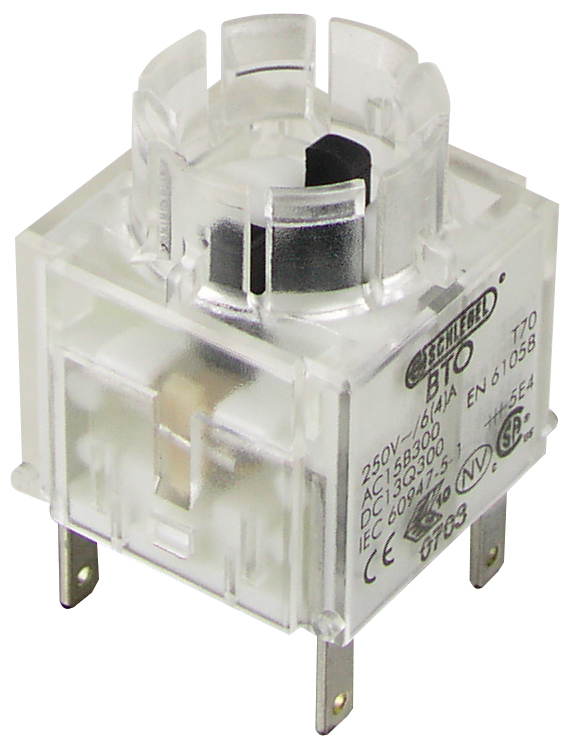

BTO- Connection
- Faston Terminals 2.8 X 0.8 Mm
Values as stated in Schlegel’s product data
-
BTO_111033 -

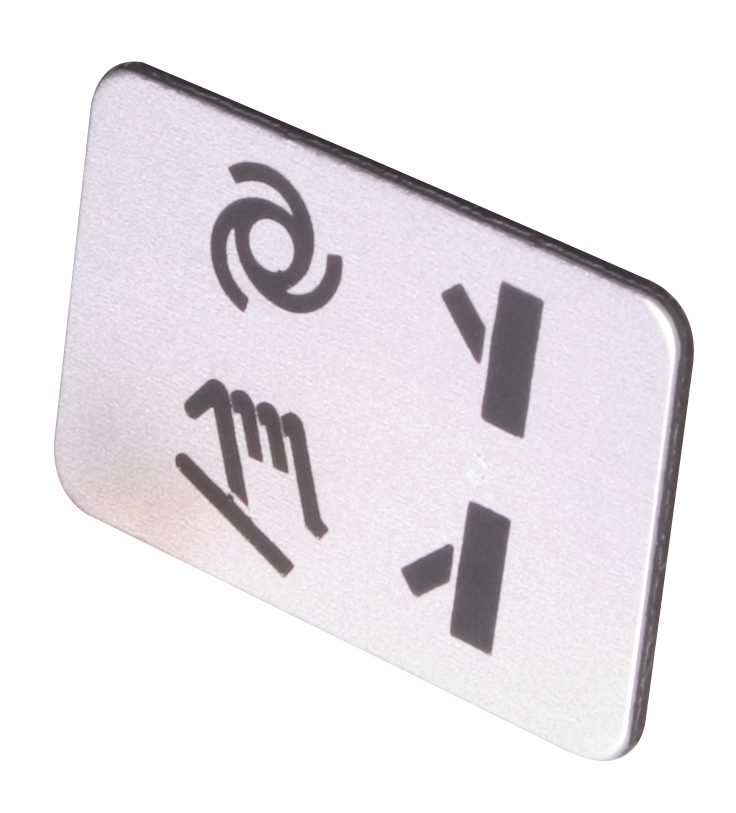

BZ23B6004 -

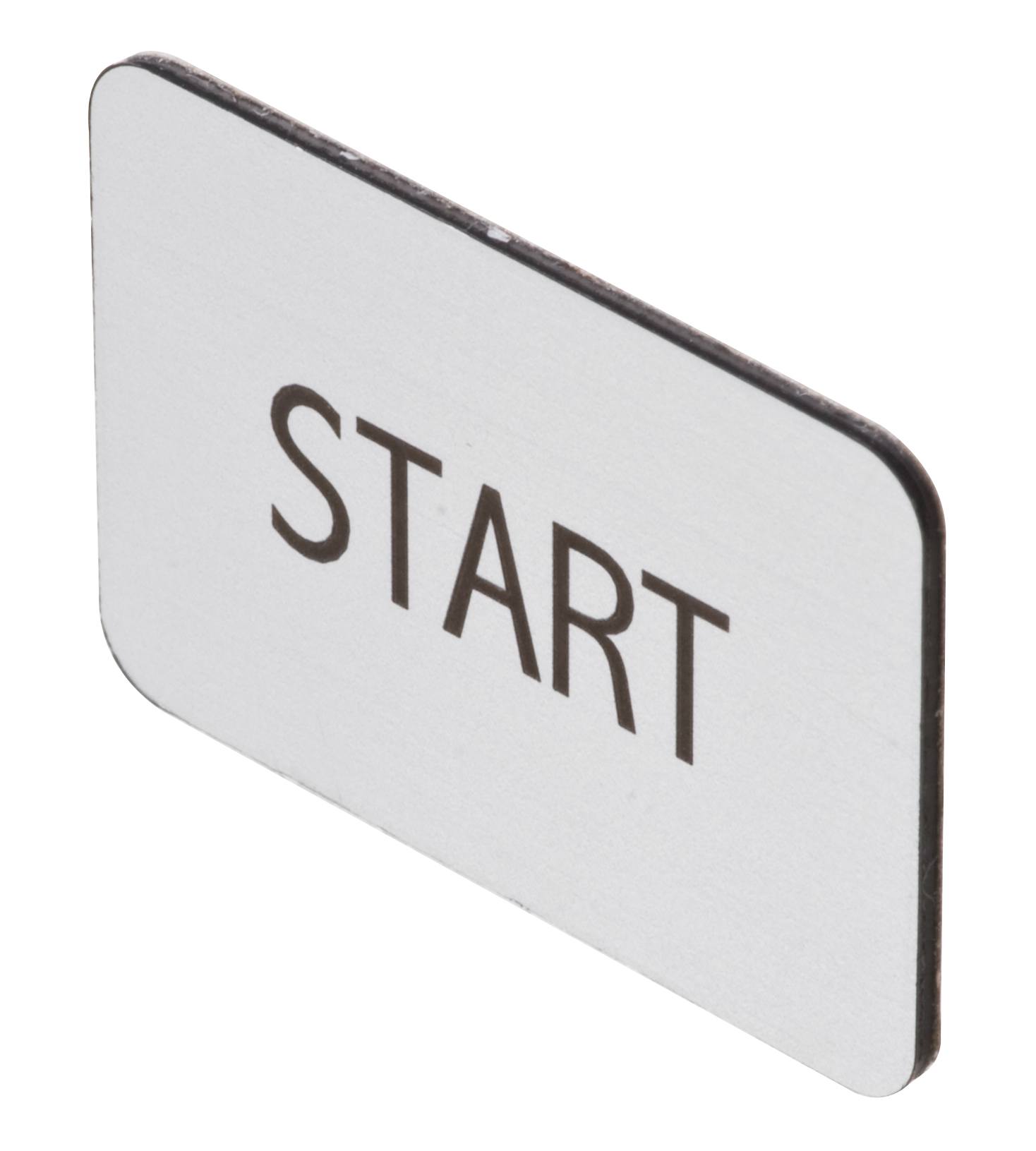

BZ23G105072_01 -
BZ23G105072_002 -

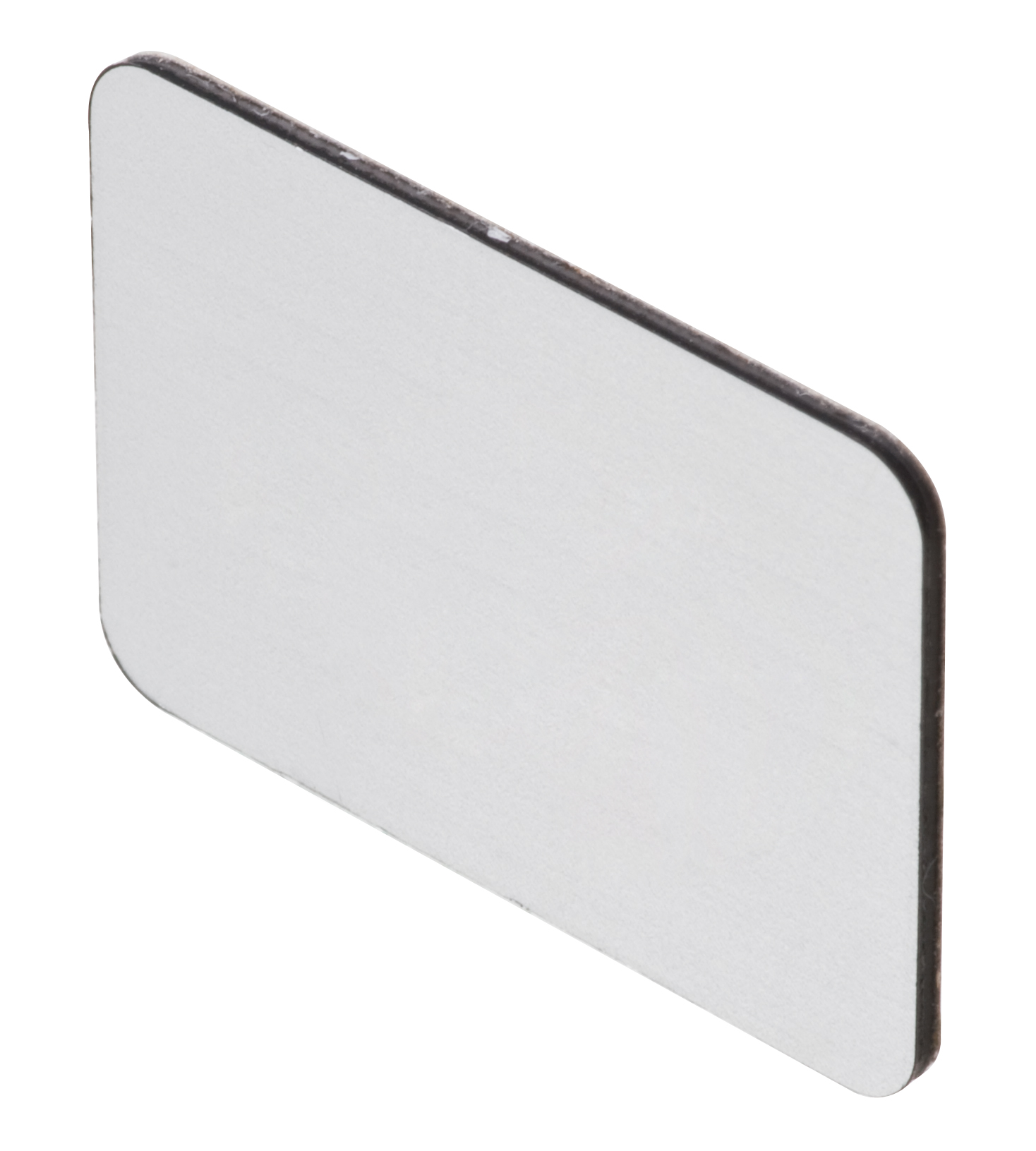

BZ23U -

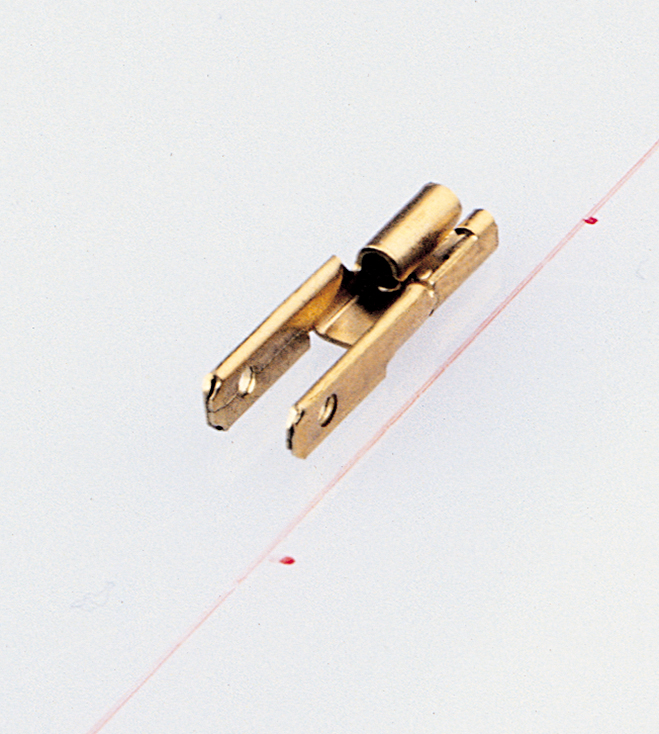

FD28 -
FH28 -
FZR9-24 -
IH28 -
LA55 -
LZ5 -
MHTOSF -
MHTOSFEO -
MZ3G- Color
- Black
Values as stated in Schlegel’s product data
-
MZTI -
MZTO
Specifications: only values that Schlegel’s own datasheet for the part states (or Schlegel’s product data where we hold no datasheet), with English field names. The datasheet PDF, from Schlegel, has the complete data. Photos may show a variant.
Custom & OEM
Need custom? Gross Automation is your OEM channel
Schlegel USA sells the standard catalog at list price. Gross Automation works with OEMs and volume buyers to get the best price and to build custom products: color changes, custom text, and other unique challenges. Have a special need? We're your official OEM channel.
Need a quote, a cross-reference, or a complete panel?
Tell us what you’re building. A Gross Automation engineer will help you spec the right Schlegel parts.
