Schlegel fieldbus and bus systems
Connect Schlegel operators to your network with fieldbus and bus systems from Gross Automation: AS-Interface, EtherCAT, CANopen, Profibus, Profinet, Powerlink, and EtherNet/IP. 19 part numbers below, each with a quote button.
Schlegel’s modular bus operating concept integrates pushbuttons, switches, and indicators onto a network with far less point-to-point wiring, reducing terminals, labor, and the chance of wiring errors.
Choose the protocol that matches your controls platform; Gross Automation engineers can help you map operators to I/O and pick the right interface.
How to choose
- Network protocol (AS-i, EtherCAT, CANopen, Profibus, Profinet, Powerlink, EtherNet/IP)
- Modular bus operating concept to reduce wiring
- Number of operators / I/O points
- Integration with your existing controls platform
No listed part matches. Send us the part number or what you need, and we will find it.
Request a quoteAS-Interface slave 2
-

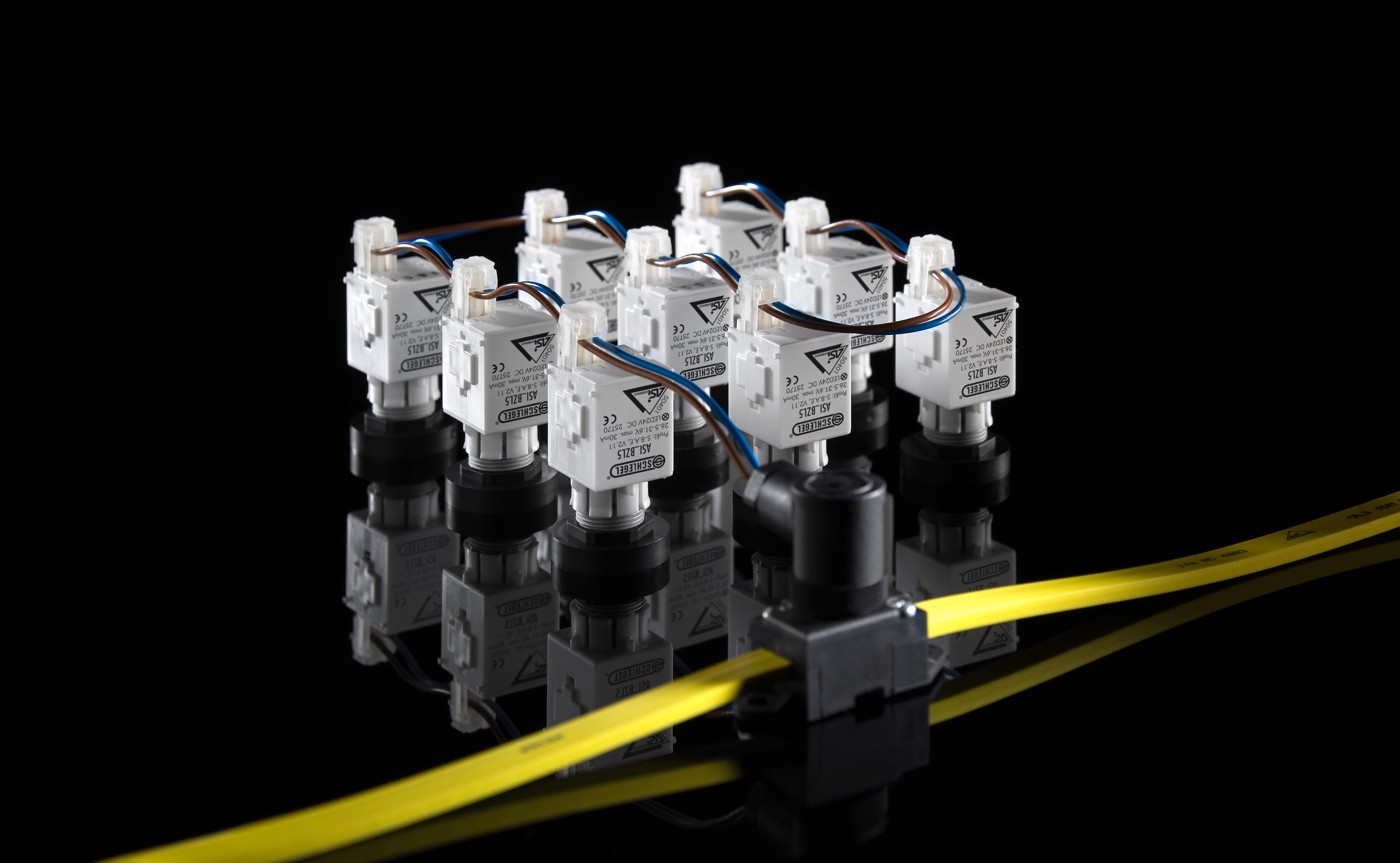

ASI_BZL5AS-Interface slave -

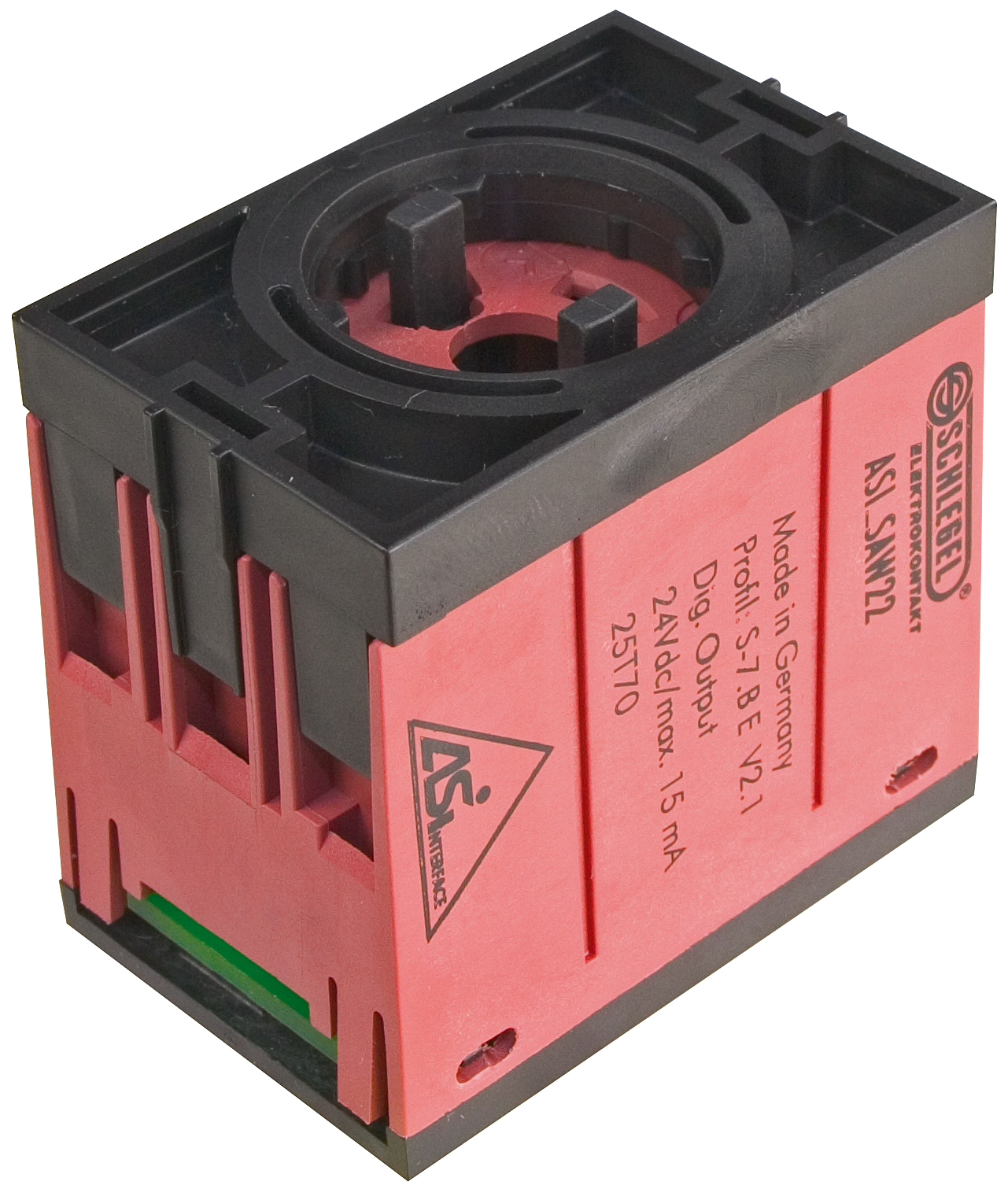

ASI_SAW22AAS-Interface slave- Approvals
- ASI, cCSAus, CE, TÜV_Süd
Values as stated in Schlegel’s datasheet (27.08.2012)
AS-Interface accessory 2
-
ASI_K2AS-Interface accessory- Approvals
- cURus
- Weight
- 0.19 g
- Dimensions
- 7.9 x 9.4 x 5.8 mm
Values as stated in Schlegel’s datasheet (03.07.2026)
-
ASI_SB2AWG18AS-Interface accessory- Mounting depth
- 38.5 mm
Values as stated in Schlegel’s datasheet (30.10.2024)
Bus system 2
-
DP_BTK25_04Bus system- Illuminated
- Yes
- Mounting depth
- 38.65 mm
Values as stated in Schlegel’s datasheet (30.10.2024)
-
E_BTK25_04Bus system- Illuminated
- Yes
- Mounting depth
- 38.65 mm
Values as stated in Schlegel’s datasheet (30.10.2024)
Contact block 1
-

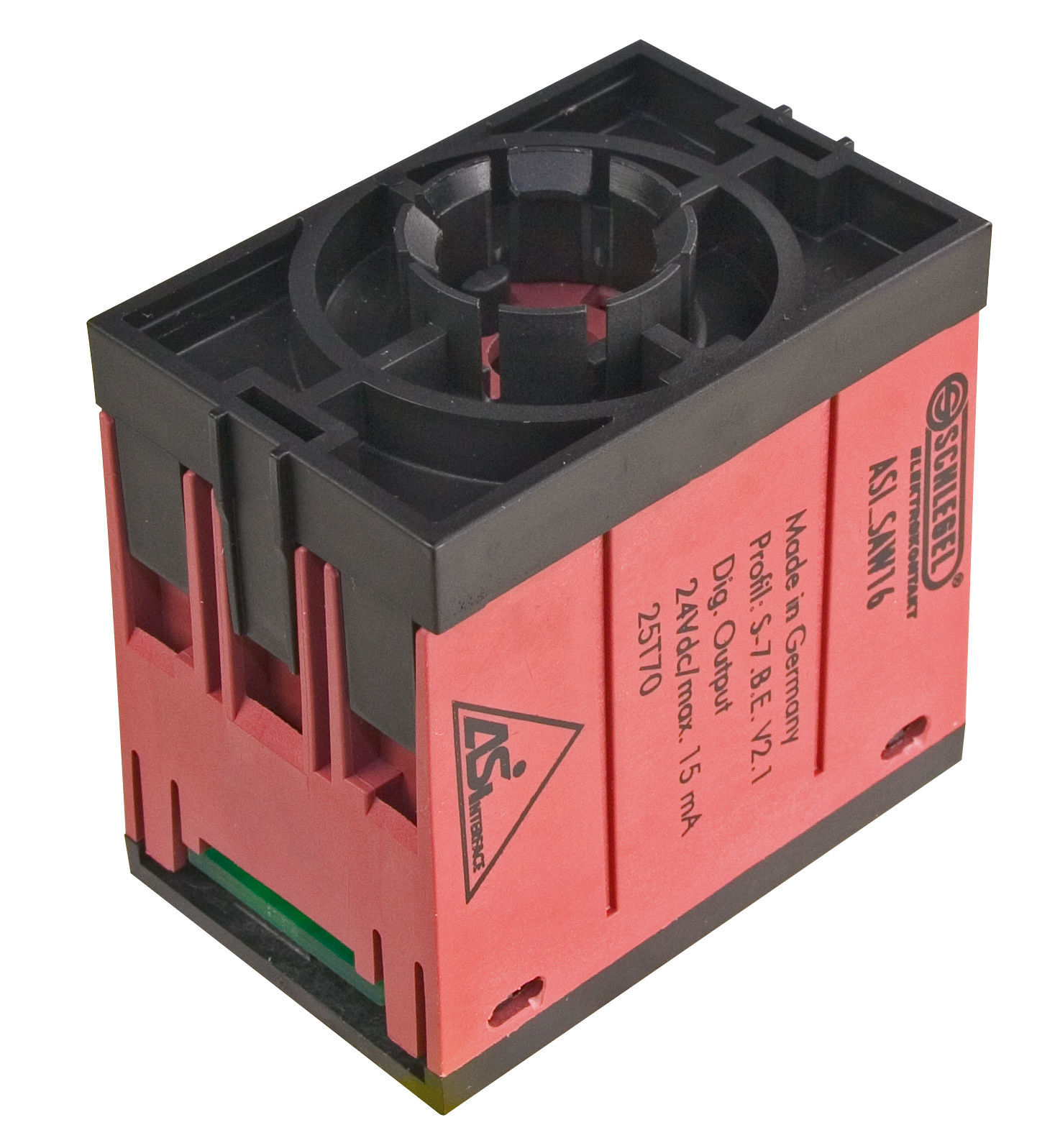

ASI_SAW16AContact block- Illuminated
- No
- Mounting depth
- 38.5 mm
- Approvals
- ASI, cCSAus, CE, TÜV_Süd
Values as stated in Schlegel’s datasheet (30.10.2024)
More fieldbus and bus systems 12
-
ASI_PK500M12 -
ASI_SB2AWG22 -
CO_BTK25_04 -
EC_BTK25_04 -
EN_BTK25_04 -
IL_BTK25_04 -
PB_118346_02 -
PB_118346_03 -
PL_BTK25_04 -
PN_BTK25_04 -

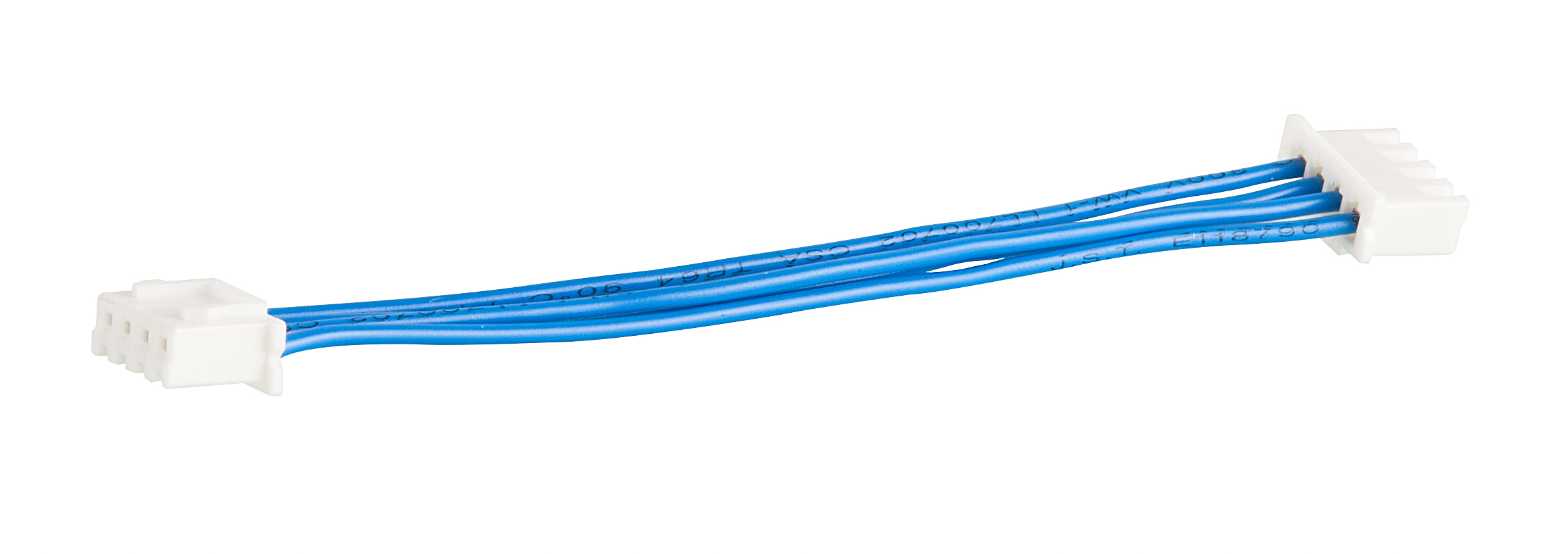

VK_BTK_002_90 -

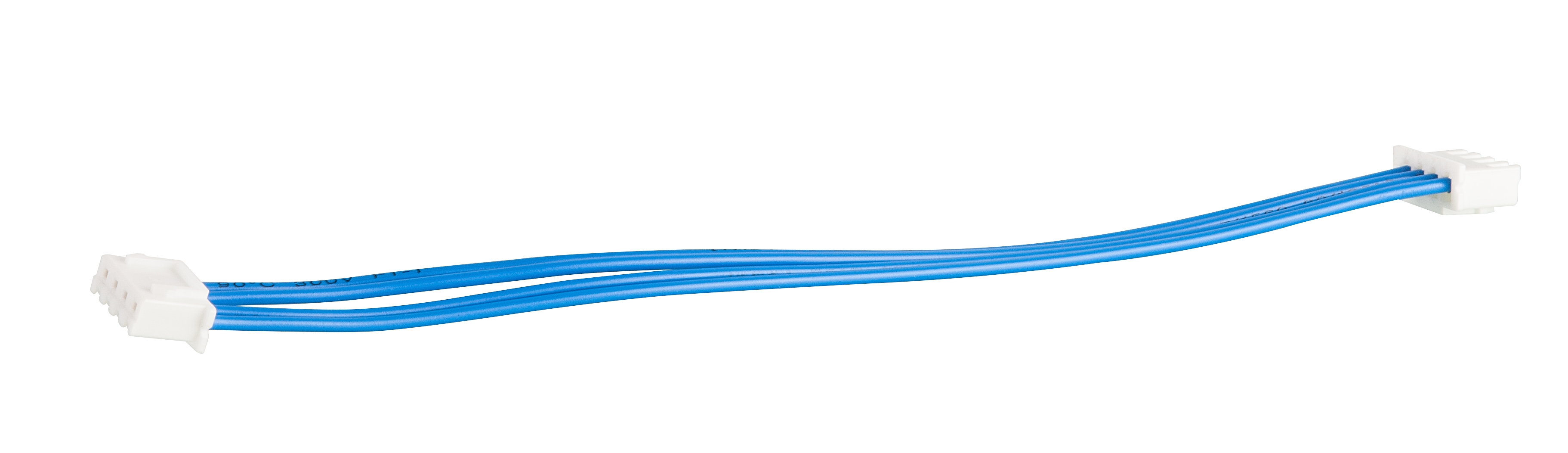

VK_BTK_002_140
Specifications: only values that Schlegel’s own datasheet for the part states (or Schlegel’s product data where we hold no datasheet), with English field names. The datasheet PDF, from Schlegel, has the complete data. Photos may show a variant.
Custom & OEM
Need custom? Gross Automation is your OEM channel
Schlegel USA sells the standard catalog at list price. Gross Automation works with OEMs and volume buyers to get the best price and to build custom products: color changes, custom text, and other unique challenges. Have a special need? We're your official OEM channel.
Need a quote, a cross-reference, or a complete panel?
Tell us what you’re building. A Gross Automation engineer will help you spec the right Schlegel parts.
