Schlegel emergency stops (E-stops)
Need Schlegel emergency stops? Gross Automation supplies Schlegel red mushroom E-stops (Not-Halt) designed for machine-safety applications. 48 part numbers below, each with a quote button.
Schlegel E-stops use red actuators on yellow backing per common machine-safety practice, with twist or key release. Many carry EN ISO 13850 and positive-opening contacts per EN 60947-5-1 Annex K (see each part's datasheet).
Specify protective guards or collars to prevent accidental actuation, and illuminated versions where status indication matters. Confirm the exact safety rating you need for your application.
How to choose

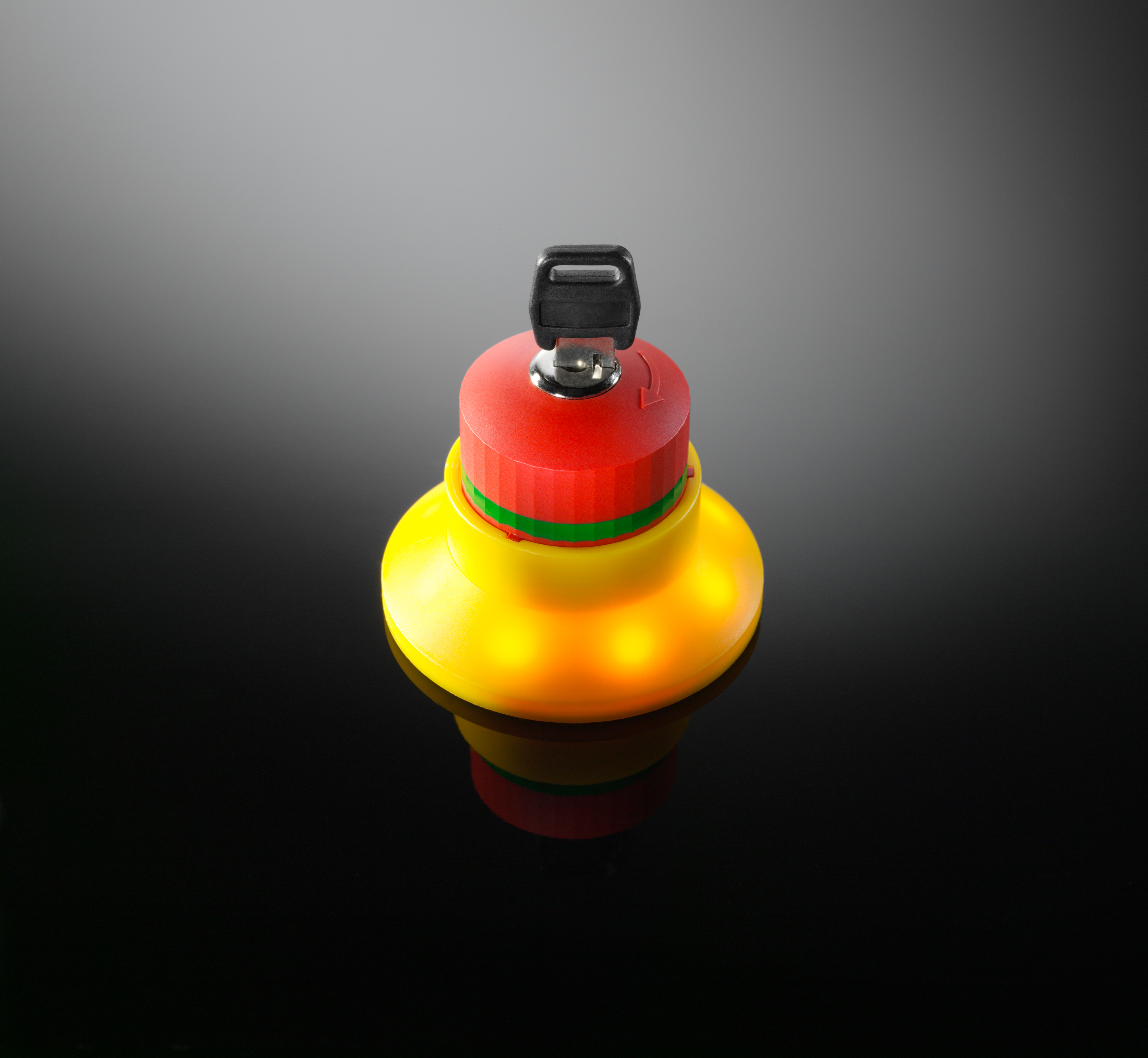

- Release method: twist or key
- Connection: Faston terminals, screw terminals or M12
- Illuminated vs. non-illuminated
- Protective collar / guard against accidental actuation
- Panel size and contact configuration
No listed part matches. Send us the part number or what you need, and we will find it.
Request a quoteEmergency stop 48
-
FRUVDG_NEUEmergency stop- Panel cutout
- 22.3 mm
- Shape
- Round
- Illuminated
- No
Values as stated in Schlegel’s product data
-
FRVKEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP67
- Shape
- Round
- Color
- Yellow
- Actuator color
- red
- Housing color
- Yellow
More specifications (9)
- Release
- Twist L/R
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA, CCC
Values as stated in Schlegel’s datasheet (08.06.2026)
-

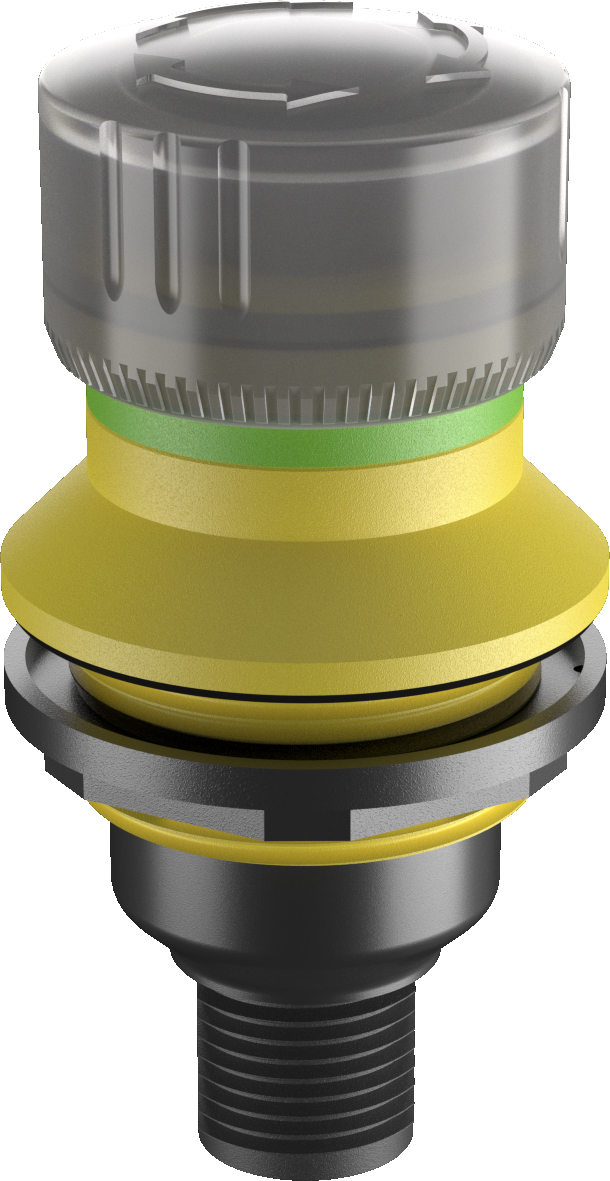

FRVKDOOEmergency stop- Series
- SHORTRON®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65 / IP67
- Shape
- Round
- Housing color
- Yellow
- Illuminated
- Yes
More specifications (20)
- Illuminant
- integrated LED
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Mounting depth
- 18.5 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 250 V AC/DC
- Voltage
- 35V DC
- Current
- 5A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (11.05.2026)
-

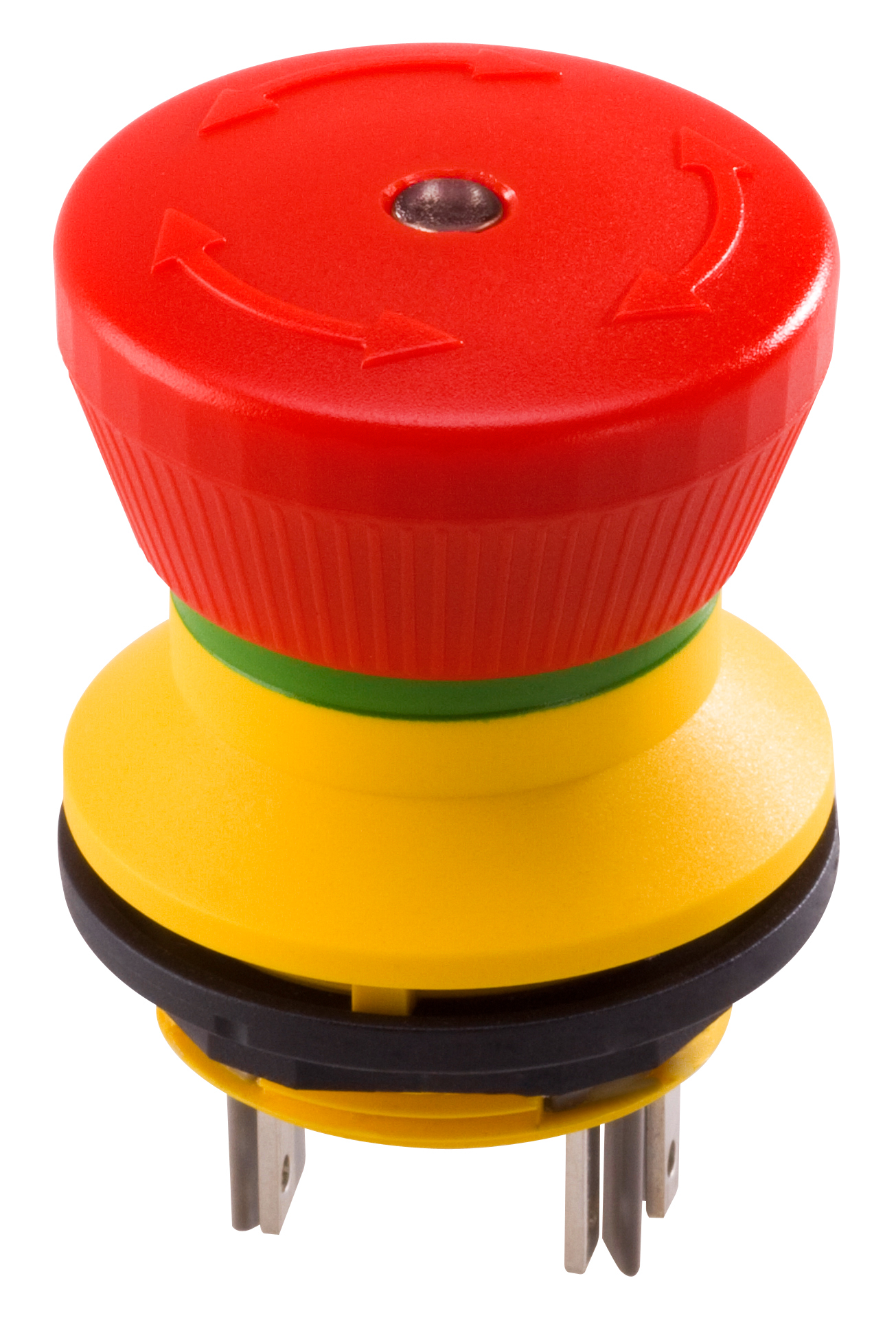

FRVKLOOEmergency stop- Series
- SHORTRON®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP67
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (22)
- Illuminated
- Yes
- Illuminant
- integrated LED
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- Faston Terminals
- Contact material
- AgNi
- Mounting depth
- 18.1 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 B300
- Insulation voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 1.5 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA
- Weight
- 18.01 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-

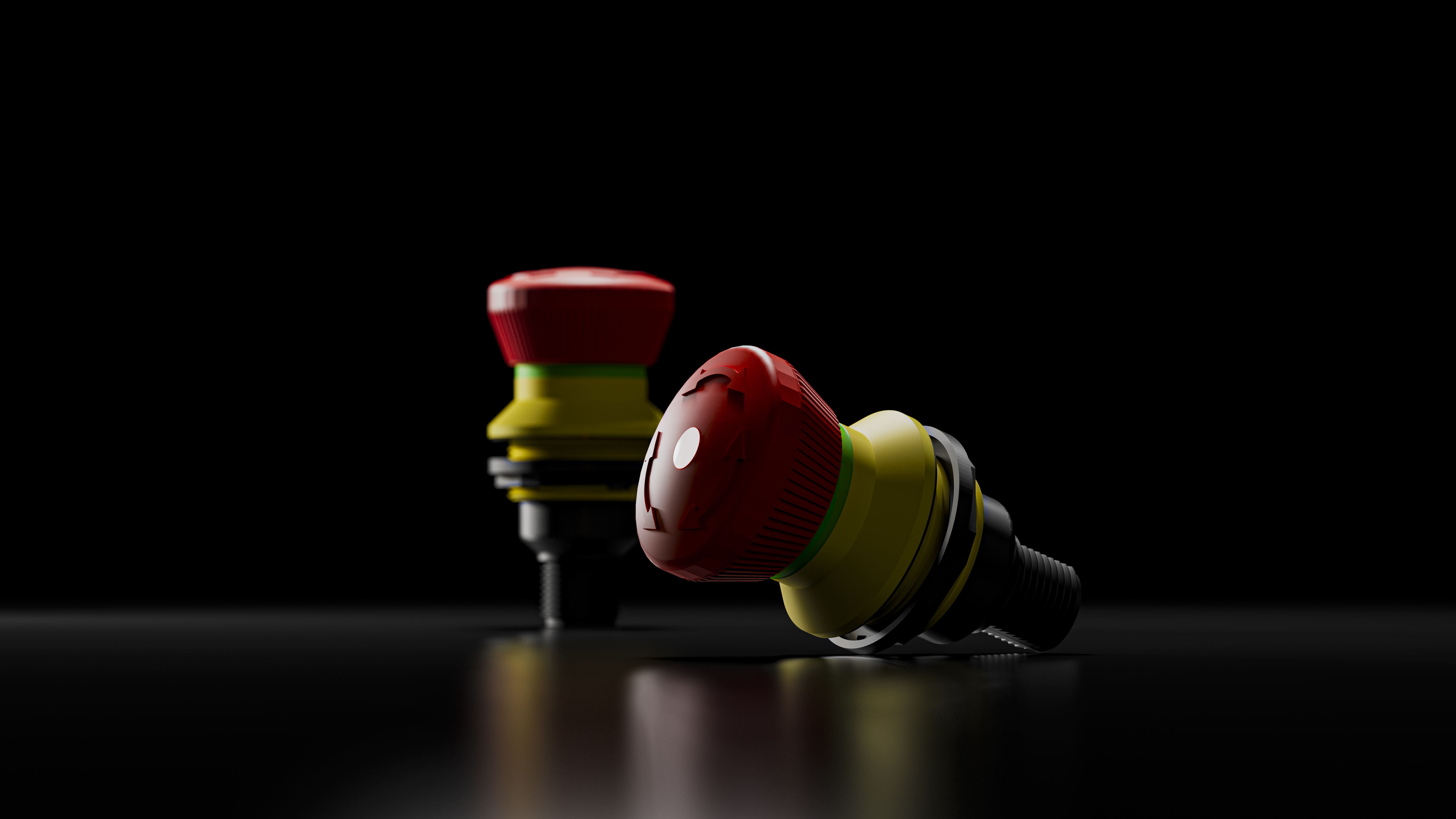

FRVKLOO_C233Emergency stop- Series
- SHORTRON connect
- Panel cutout
- 22.3 mm
- Illuminant
- LED
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- M12 plug, 8-pin, A-coded
More specifications (12)
- Contact material
- AgNi
- Mounting depth
- 28.5 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 / DC-13
- Voltage
- 30 V AC/DC
- Current
- 0.5 A AC/DC
- Positive opening
- per EN 60947-5-1 Annex K
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- cURus, CE, UKCA
- Weight
- 20.8 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKOOEmergency stop- Series
- SHORTRON®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP66 / IP67
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (20)
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- Faston Terminals
- Contact material
- AgNi
- Mounting depth
- 18.1 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 B300
- Insulation voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 1.5 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA
- Weight
- 16.9 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-

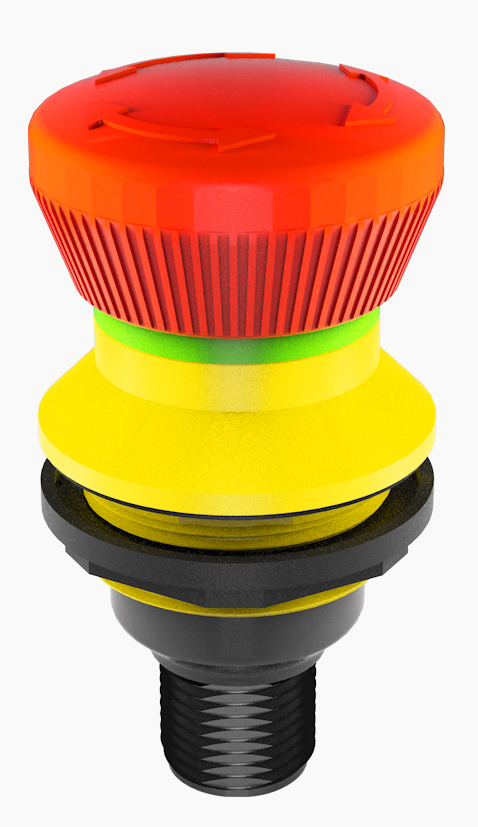

FRVKOO_C001Emergency stop- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP66 / IP67
- Protection (rear)
- IP65 with M12 cable connected / IP67 with M12 cable connected
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (20)
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- M12 Connector A Coded
- Contact material
- AgNi
- Mounting depth
- 27 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 250 V AC
- Voltage
- 35 V AC
- Current
- 4 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
- Weight
- 19.68 g
Values as stated in Schlegel’s datasheet (30.06.2026)
-
FRVKOO_C231Emergency stop- Series
- SHORTRON connect
- Panel cutout
- 22.3 mm
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- M12 Connector
- Contact material
- AgNi
More specifications (11)
- Mounting depth
- 28.5 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 / DC-13
- Voltage
- 30 V AC/DC
- Current
- 0.5 A AC/DC
- Positive opening
- per EN 60947-5-1 Annex K
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- cURus, CE, UKCA
- Weight
- 20.2 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKOO_SW.P_C001Emergency stop -

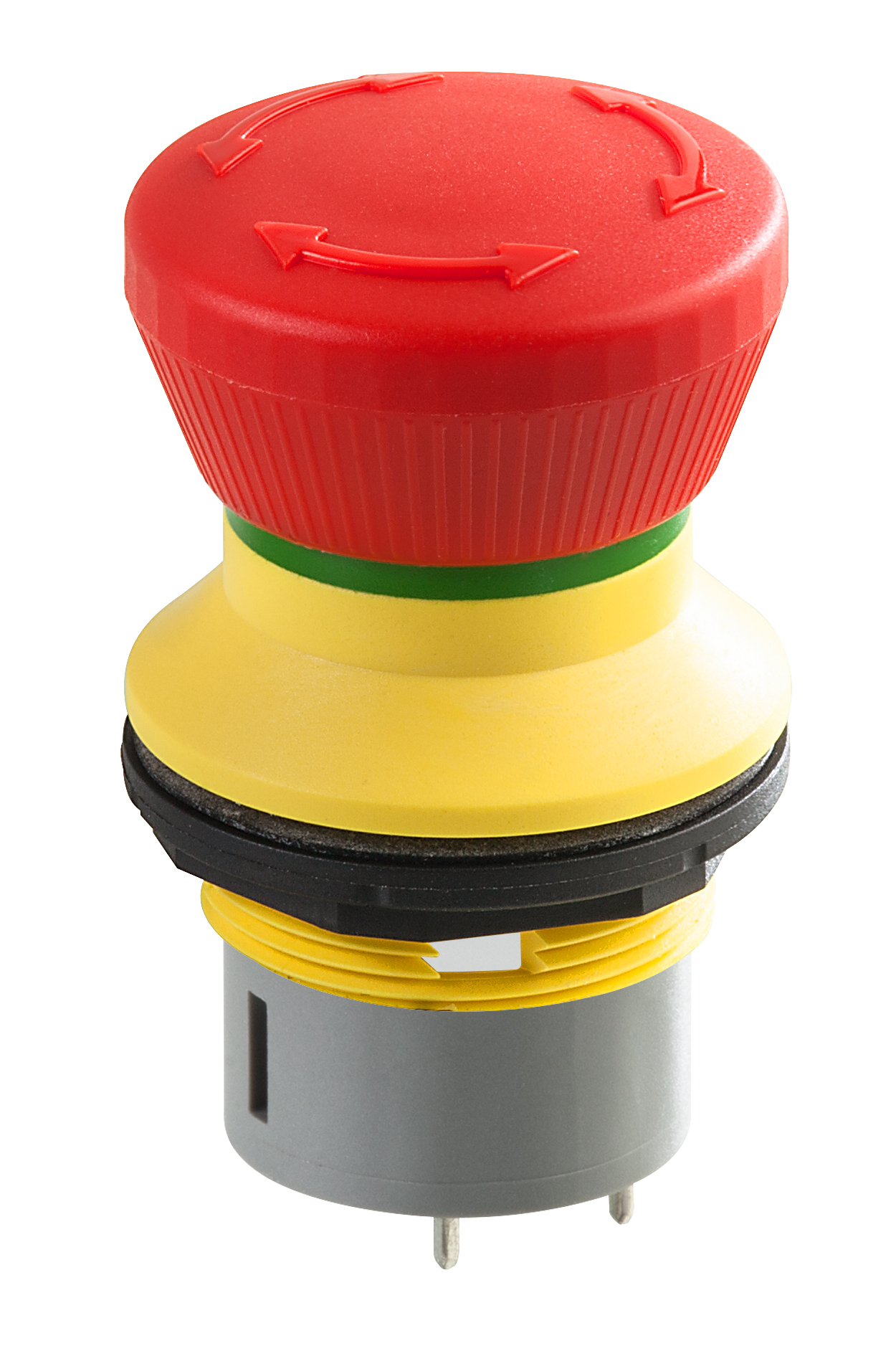

FRVKOOIEmergency stop- Series
- SHORTRON®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP66 / IP67
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (20)
- Release
- twist release, left or right
- Contacts
- 2NC + 1NO
- Connection
- Faston Terminals 2.8 X 0.8 Mm
- Contact material
- AgNi
- Mounting depth
- 18.1 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 B300
- Insulation voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 1.5 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA
- Weight
- 17.8 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-

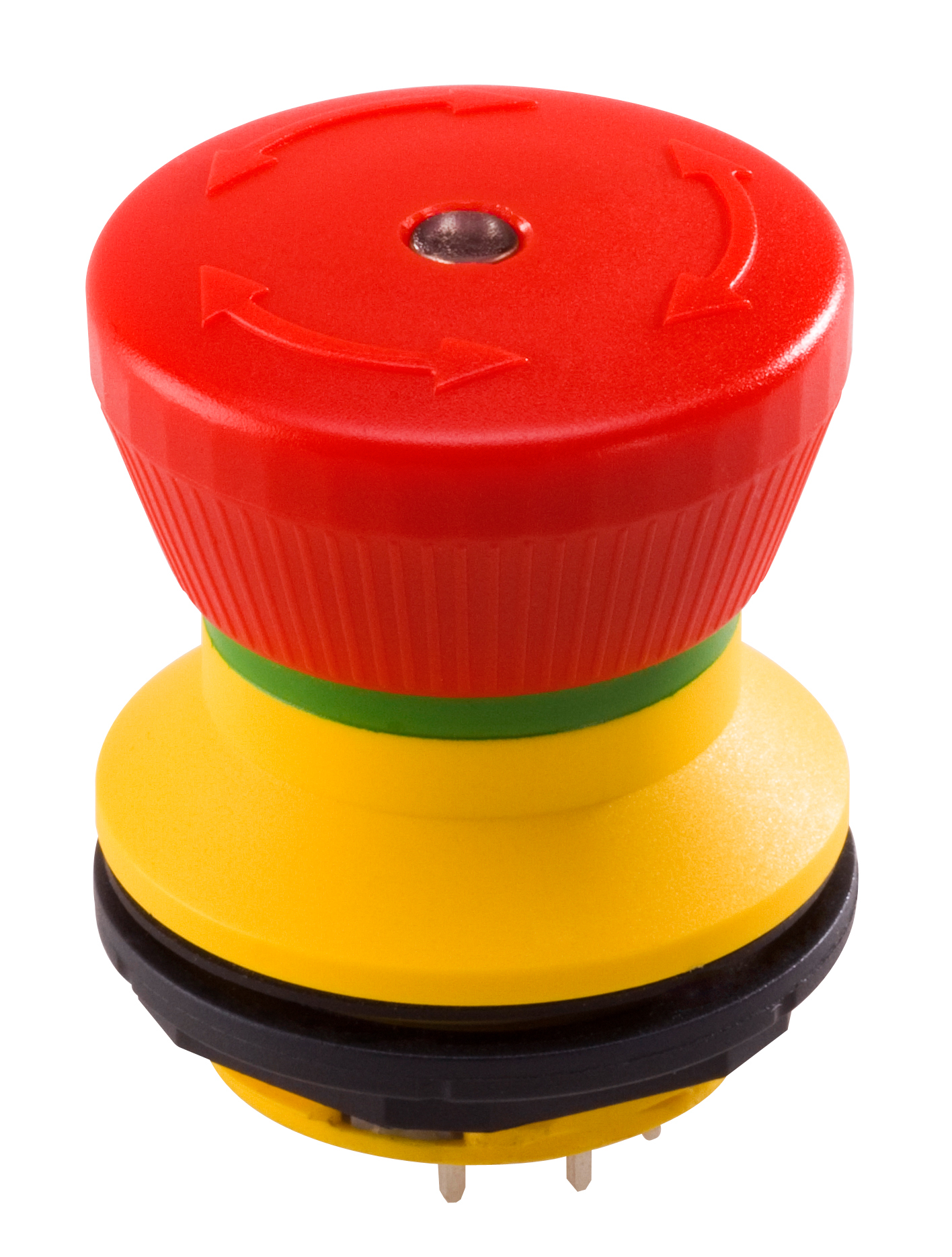

FRVKOOI_C112Emergency stop- Series
- SHORTRON® connect
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP66 / IP67
- Protection (rear)
- IP65 with M12 cable connected / IP67 with M12 cable connected
- Shape
- Round
- Actuator color
- red
More specifications (21)
- Housing color
- Yellow
- Release
- twist release, left or right
- Contacts
- 2NC + 1NO
- Connection
- M12 Connector (A Coded)
- Contact material
- AgNi
- Mounting depth
- 28.5 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 50 V AC
- Voltage
- 35 V AC
- Current
- 2 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
- Weight
- 20.76 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKOOI_C232Emergency stop- Series
- SHORTRON connect
- Panel cutout
- 22.3 mm
- Release
- twist release, left or right
- Contacts
- 2NC / 1NO
- Connection
- M12 plug, 8-pin, A-coded
- Contact material
- AgNi
More specifications (11)
- Mounting depth
- 28.5 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 / DC-13
- Voltage
- 30 V AC/DC
- Current
- 0.5 A AC/DC
- Positive opening
- per EN 60947-5-1 Annex K
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- cURus, CE, UKCA
- Weight
- 20.6 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKPEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP67
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
- Release
- Twist L/R
More specifications (7)
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 20,000 operations 20°C / > 6,050 operations -25°C / > 6,050 operations 70°C
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (08.06.2026)
-

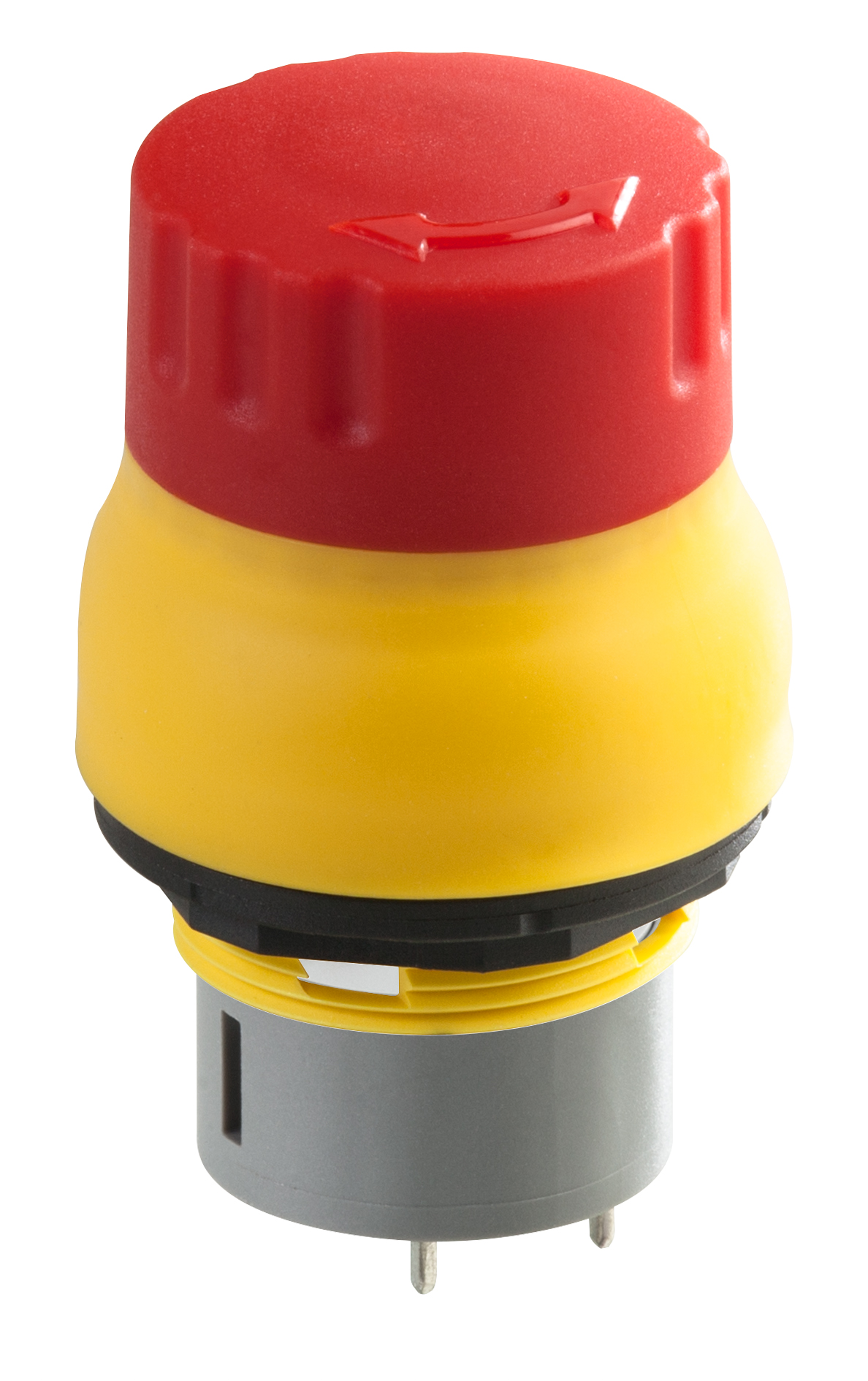

FRVKPOOIEmergency stop- Series
- SHORTRON®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP66 / IP67 / IP69K
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (19)
- Release
- twist release, left or right
- Contacts
- 2NC + 1NO
- Connection
- Faston terminal 2.8 mm x 0.8 mm
- Contact material
- AgNi
- Mounting depth
- 18.1 mm
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 20,000 operations 20°C / > 6,050 operations -25°C / > 6,050 operations 70°C
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 B300
- Insulation voltage
- 250 V AC/DC
- Voltage
- 240 V AC
- Current
- 1.5 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CCC, CE, cURus, TÜV_Süd, UKCA
- Weight
- 17.45 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKZEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP67
- Shape
- Round
- Color
- Yellow
- Actuator color
- red
- Housing color
- Yellow
More specifications (10)
- Release
- Twist L/R
- Panel thickness
- 1 mm to 4.5 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
- Weight
- 14.83 g
Values as stated in Schlegel’s datasheet (08.06.2026)
-
FRVKZALEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP65
- Shape
- Round
- Bezel color
- yellow
- Illuminated
- No
- Release
- Twist L/R
More specifications (4)
- Operating temperature
- -25 to 70 °C
- Storage temperature
- -40 to 80 °C
- Mechanical life
- 50,000 operations
- Approvals
- CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (31.10.2024)
-

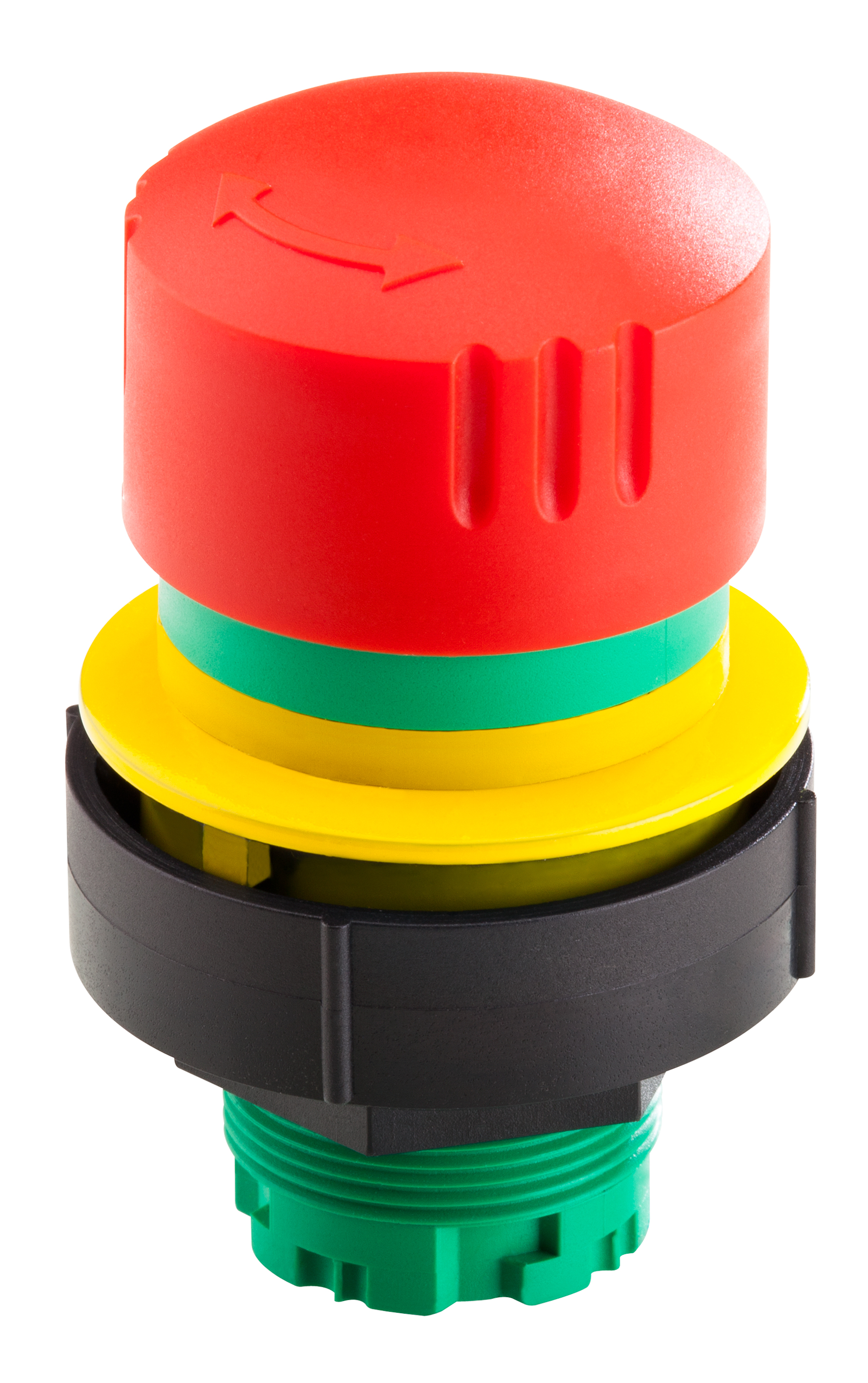

KRJUVEmergency stop- Panel cutout
- Ø30.5mm
- Bezel color
- yellow
- Actuator color
- red
- Illuminated
- No
Values as stated in Schlegel’s product data
-
KRVEmergency stop -
KRVSCHEmergency stop -
OKJBUVEmergency stop- Panel cutout
- 23.1 x 23.1mm
- Protection (front)
- IP65
- Operating temperature
- -30°C to +70°C
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (06.06.2024)
-

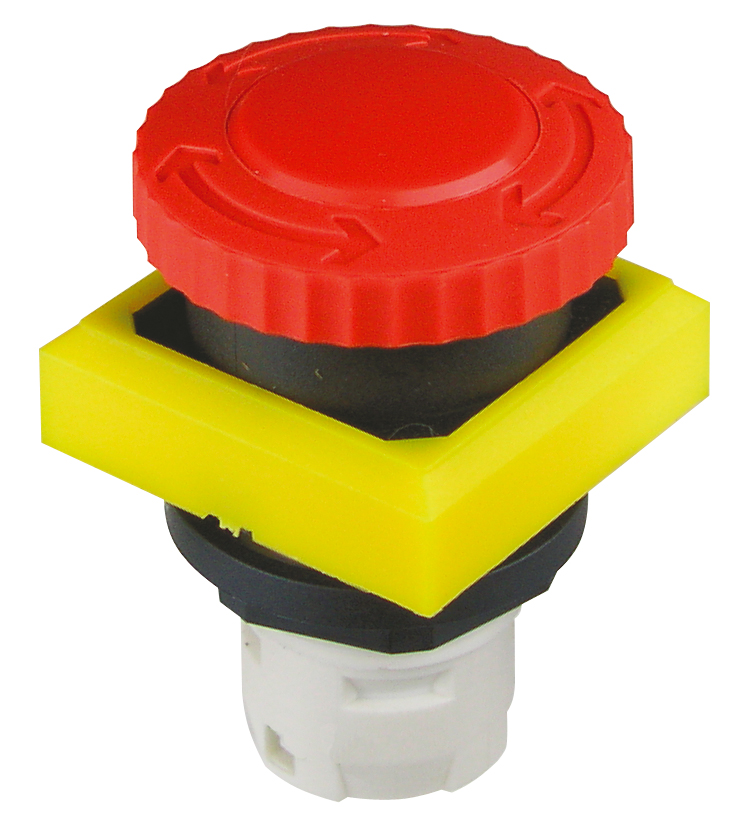

OKVGBEmergency stop- Panel cutout
- 16.2 mm
- Release
- twist release, left or right
- Travel
- 3 mm
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, CE, cURus, UKCA
Values as stated in Schlegel’s datasheet (07.06.2021)
-

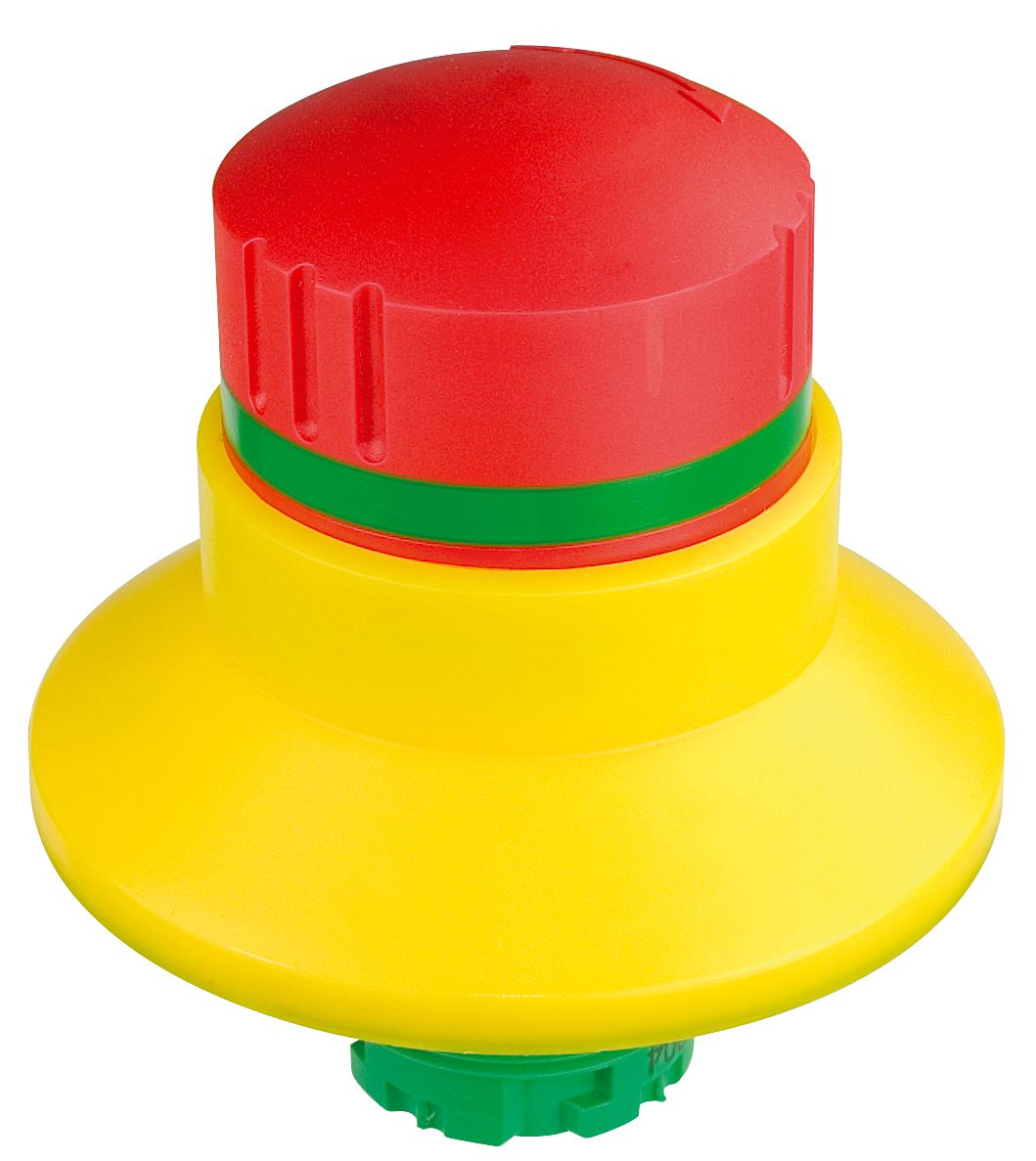

QRBLUVEmergency stop- Panel cutout
- 22.3 mm
- Release
- Twist L/R
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- TÜV_SÜD
Values as stated in Schlegel’s datasheet (07.07.2021)
-

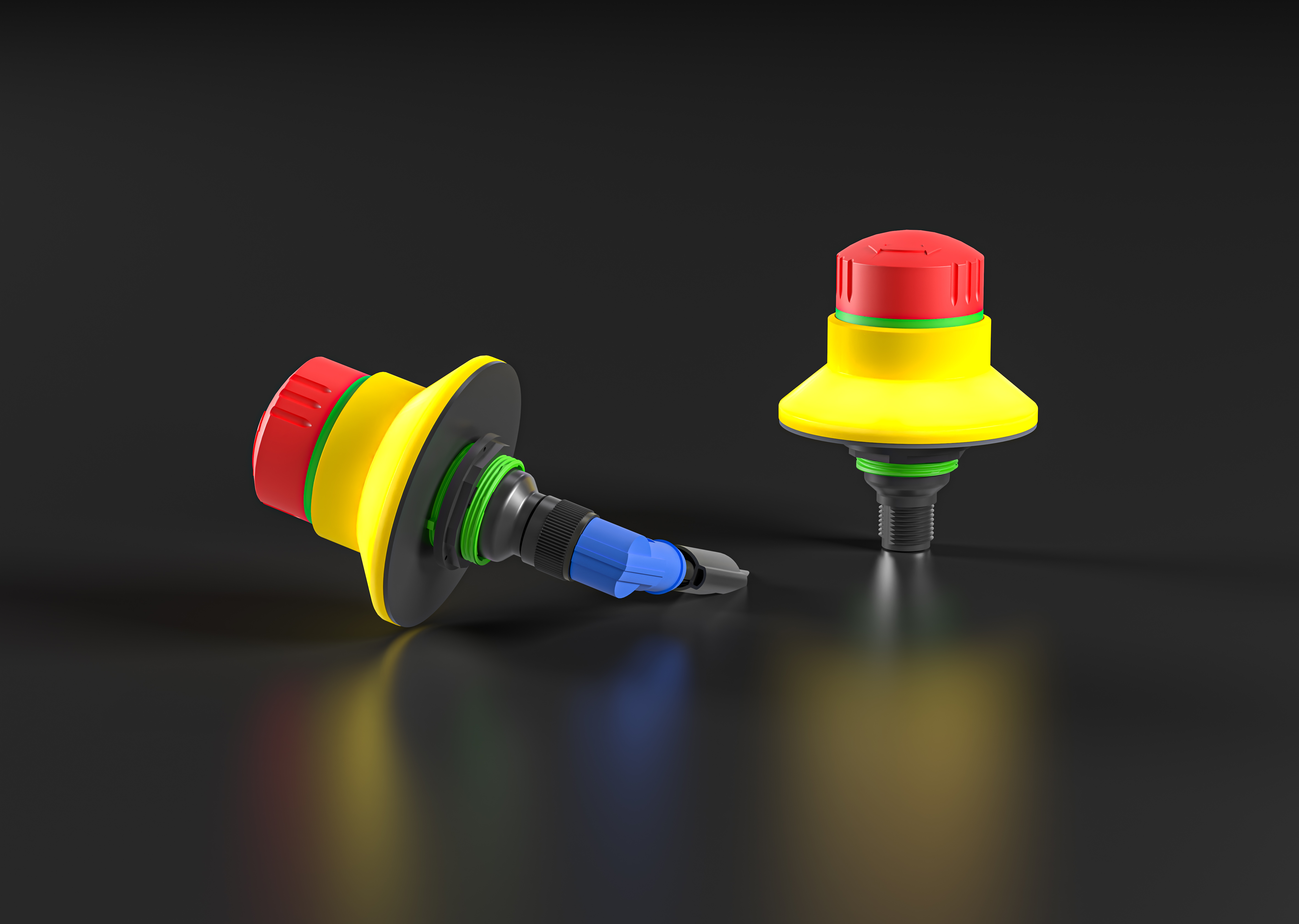

QRBLUVOOI_C1190Emergency stop- Series
- QUARTEX® connect
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65
- Protection (rear)
- IP54 with M12 cable connected
- Shape
- Round
- Actuator color
- red
More specifications (20)
- Housing color
- Yellow
- Illuminated
- Yes
- Illuminant
- LED
- Release
- Twist L/R
- Contacts
- 2NC
- Contact material
- AgNi
- Mounting depth
- 27.5 mm
- Mounting position
- any
- Operating temperature
- -30 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 50 V AC
- Voltage
- 35 V AC
- Current
- 2 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850 / EN 60068-2-1/-2-2/-2-30
- Approvals
- CE, TÜV_Süd, cURus
Values as stated in Schlegel’s datasheet (17.06.2026)
-
QRBLUVSEEmergency stop- Panel cutout
- 22.3 mm
- Release
- Key
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- TÜV_SÜD
Values as stated in Schlegel’s datasheet (07.07.2021)
-

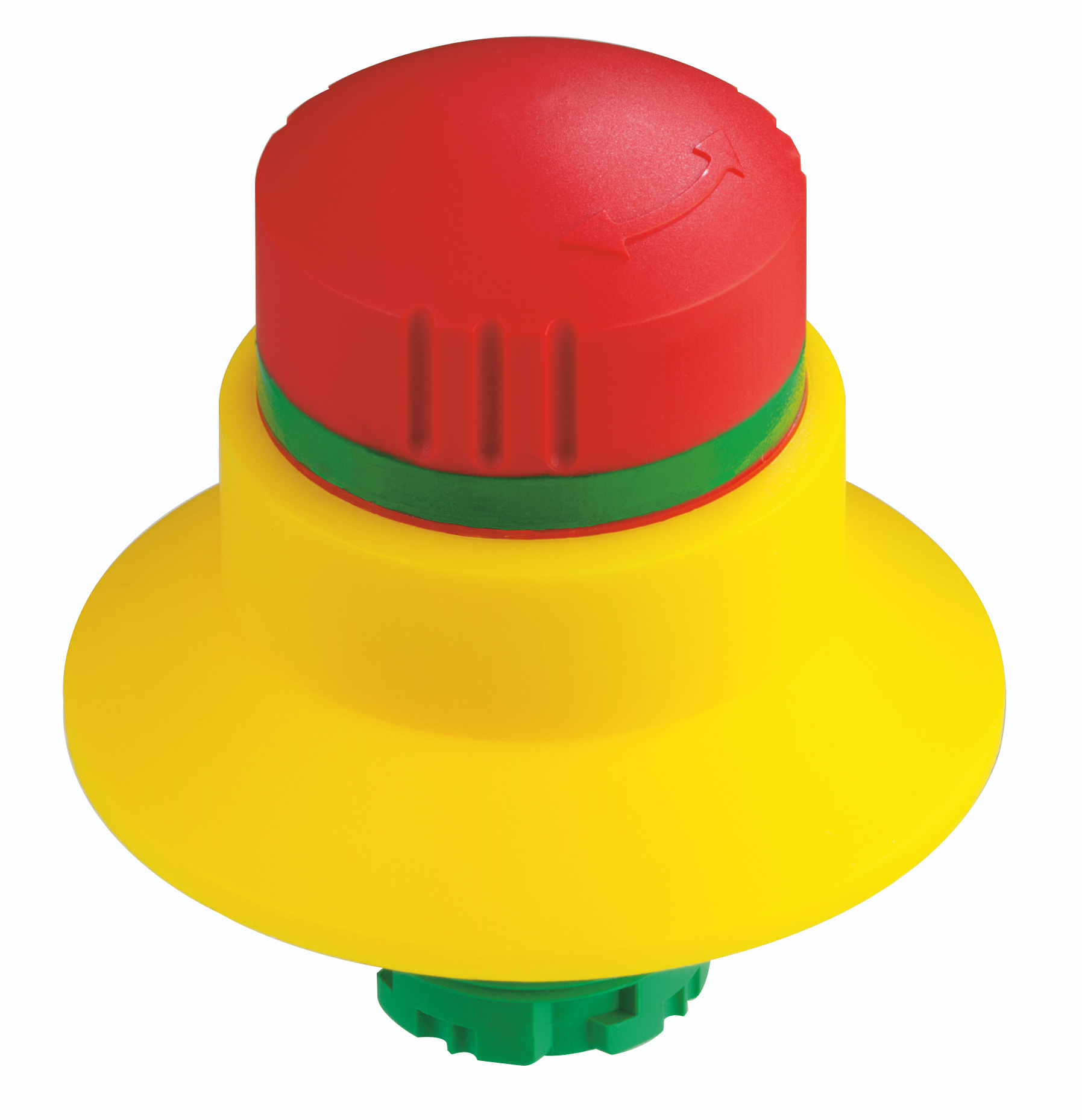

QRBUVEmergency stop- Protection (front)
- IP69K
Values as stated in Schlegel’s datasheet (06.06.2024)
-

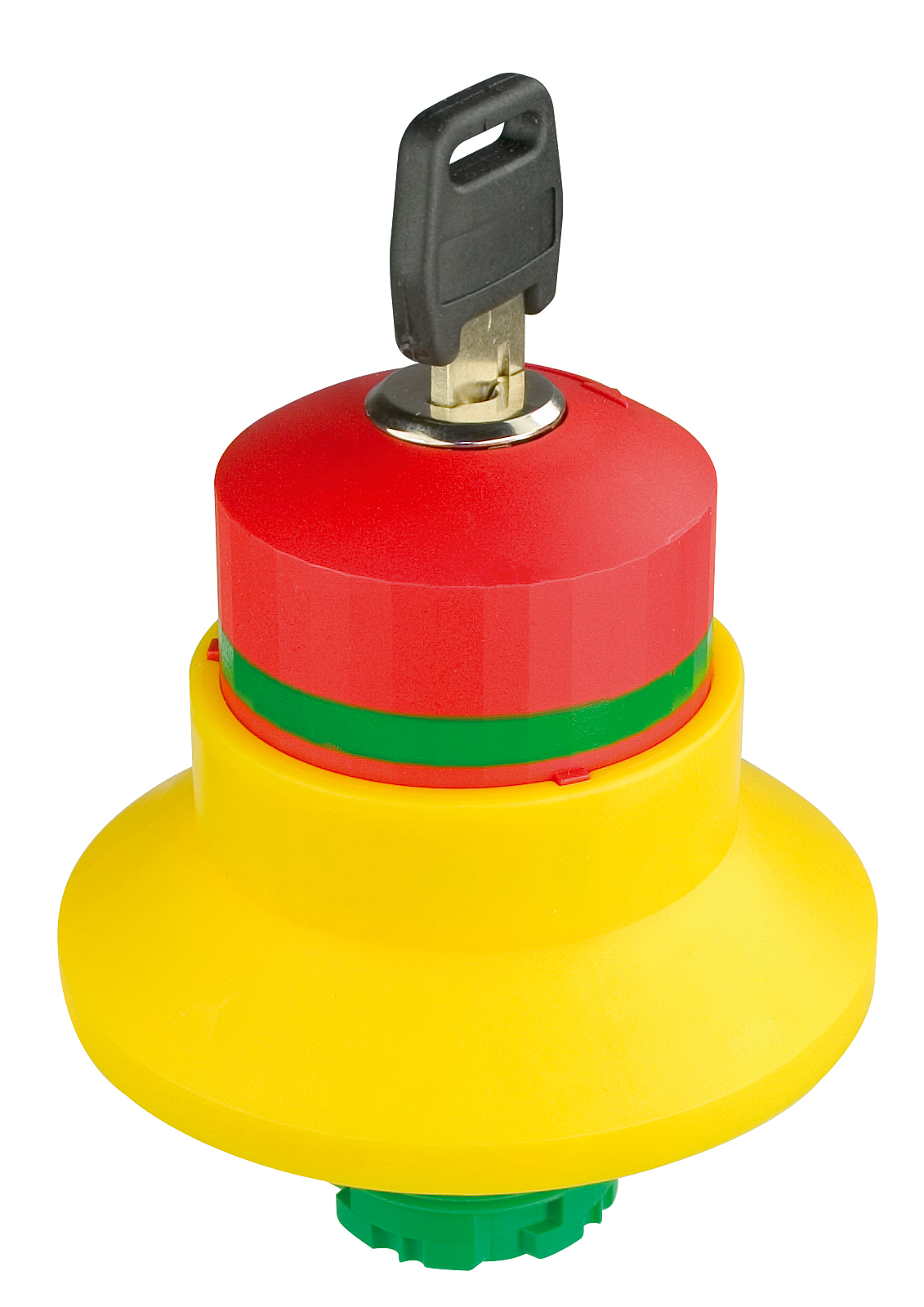

QRBUVSEEmergency stop- Panel cutout
- 22.3 mm
- Protection (front)
- IP66
- Release
- Key
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, cULus, TÜV_SÜD, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (07.07.2021)
-

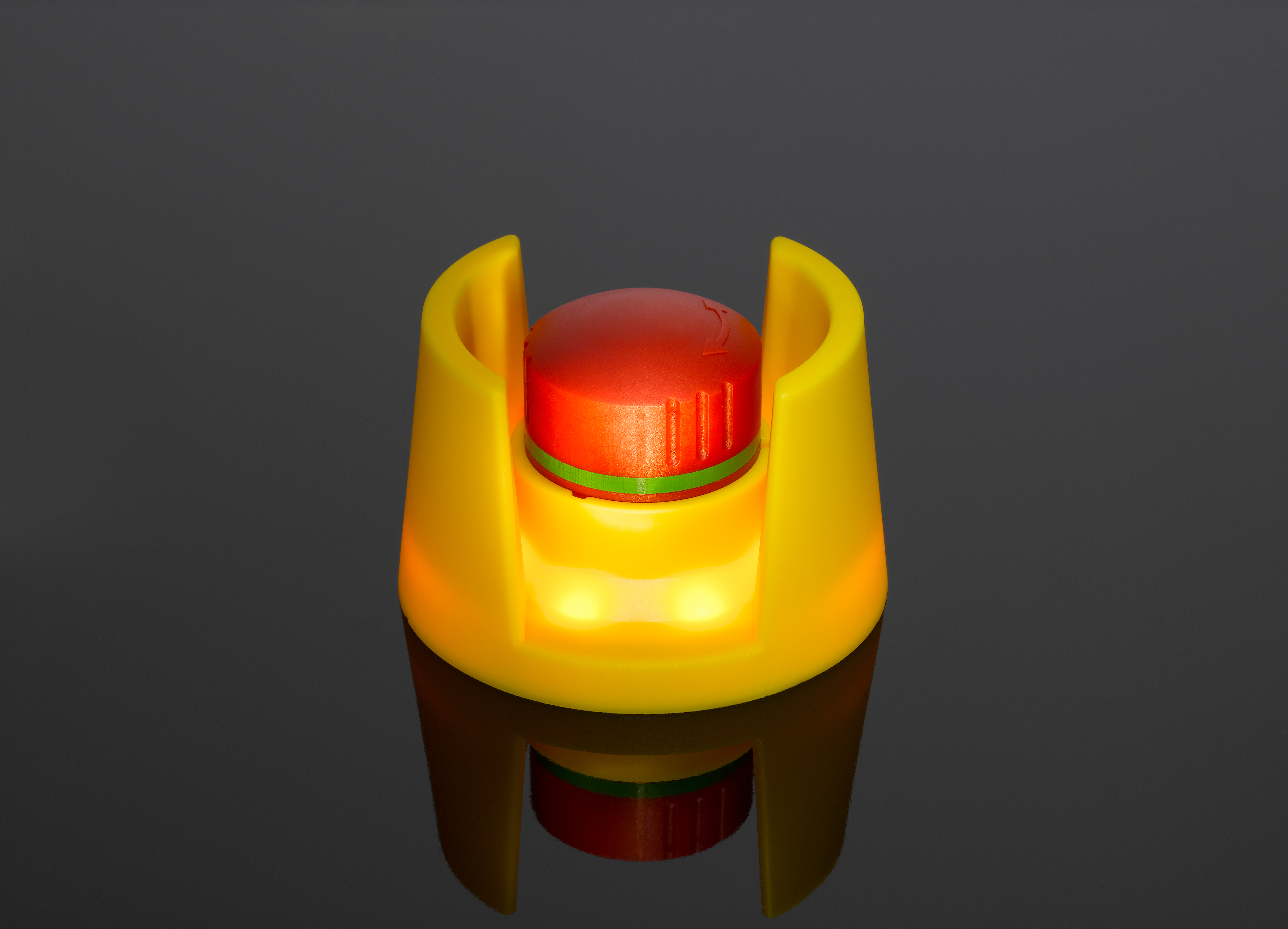

QRSKLUVSEEmergency stop- Panel cutout
- 22.3 mm
- Release
- Key
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, cULus, TÜV_SÜD, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (07.07.2021)
-

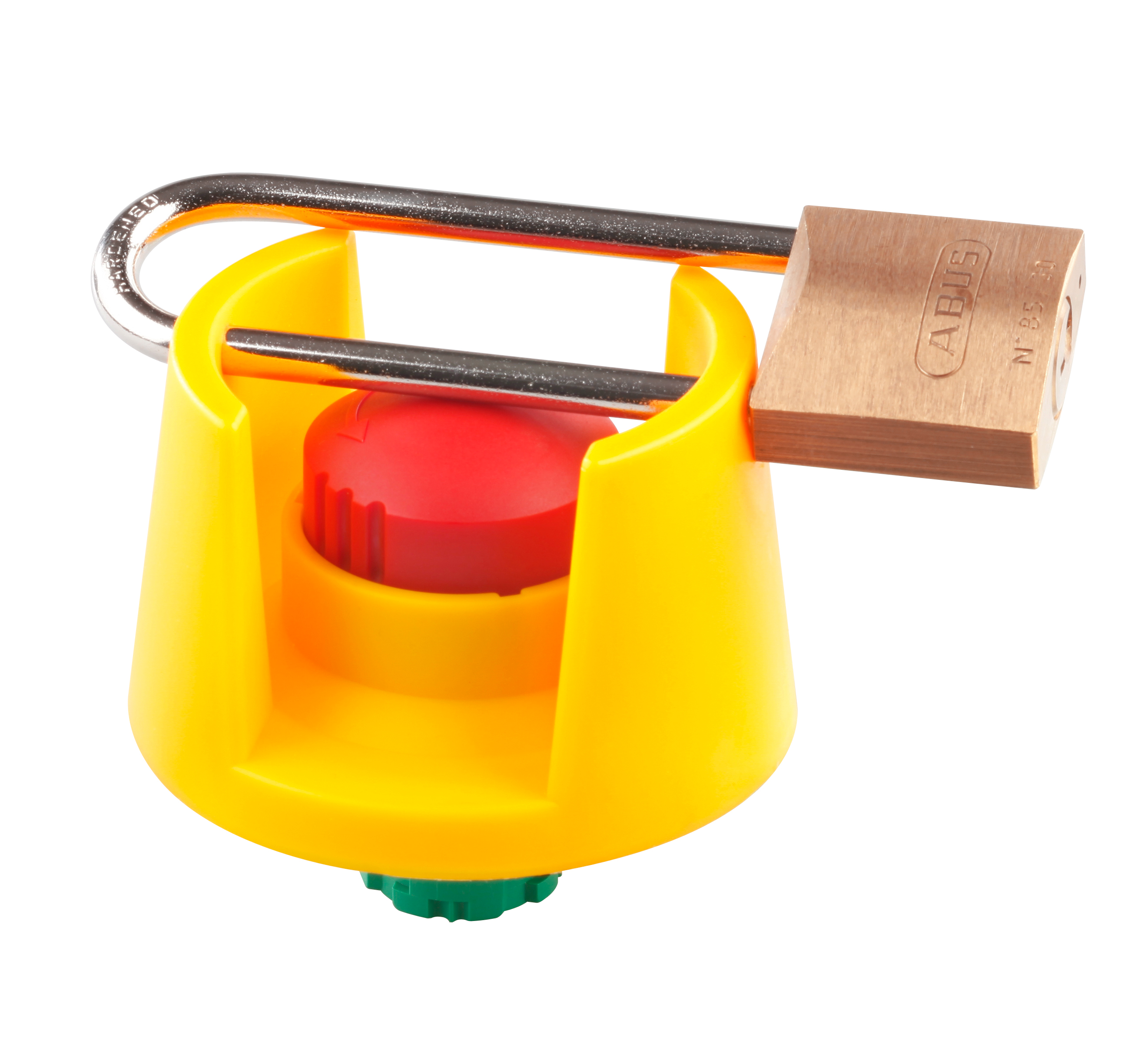

QRSKUVEmergency stop- Panel cutout
- 22.3 mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, cULus, TÜV_SÜD, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (07.07.2021)
-
QRSKUVSEEmergency stop- Panel cutout
- 22.3 mm
- Protection (front)
- IP66
- Release
- Key
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, cULus, TÜV_SÜD, CE, UKCA, UR
Values as stated in Schlegel’s datasheet (07.07.2021)
-

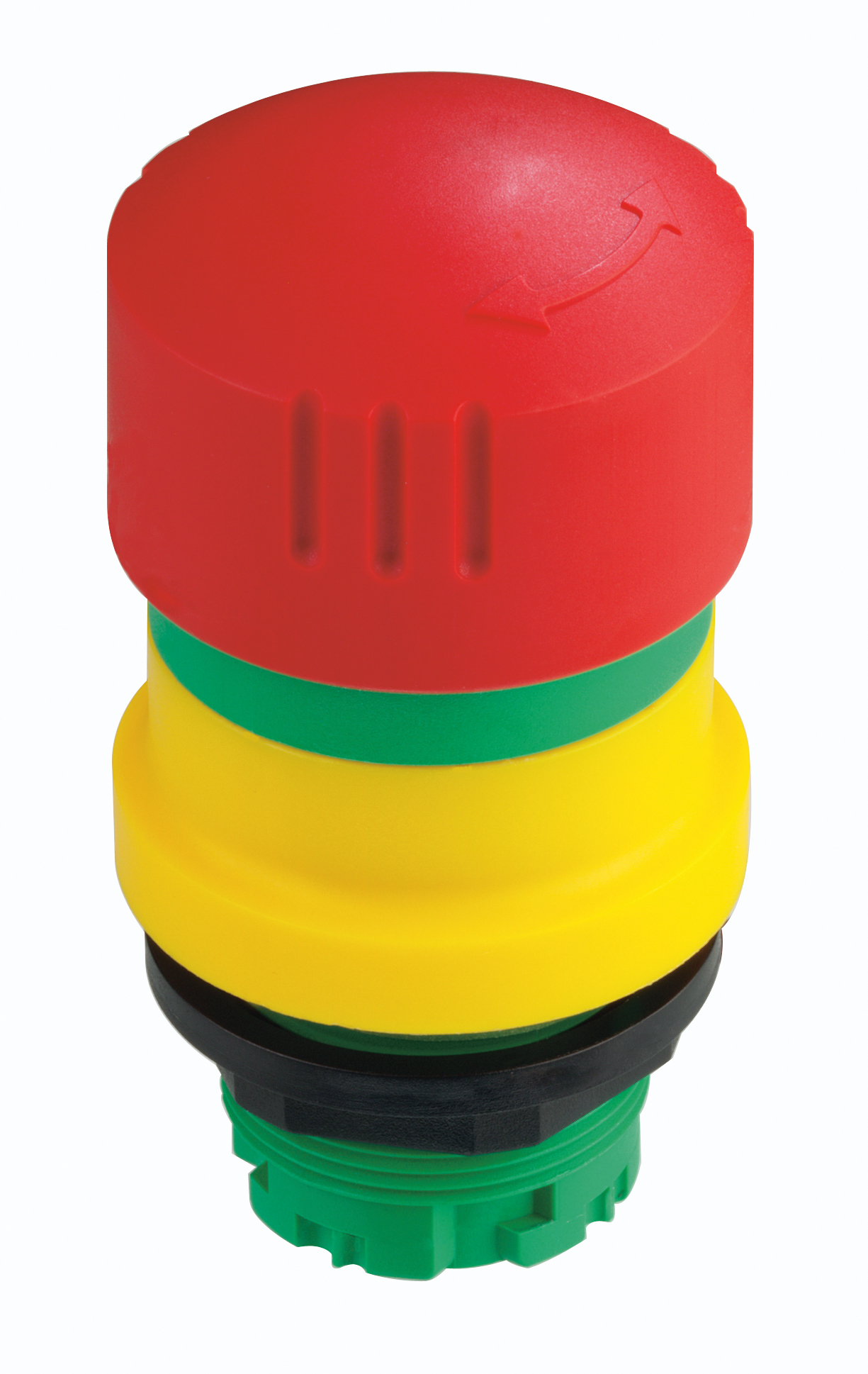

QRUVEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Operating temperature
- -30°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (16.02.2024)
-

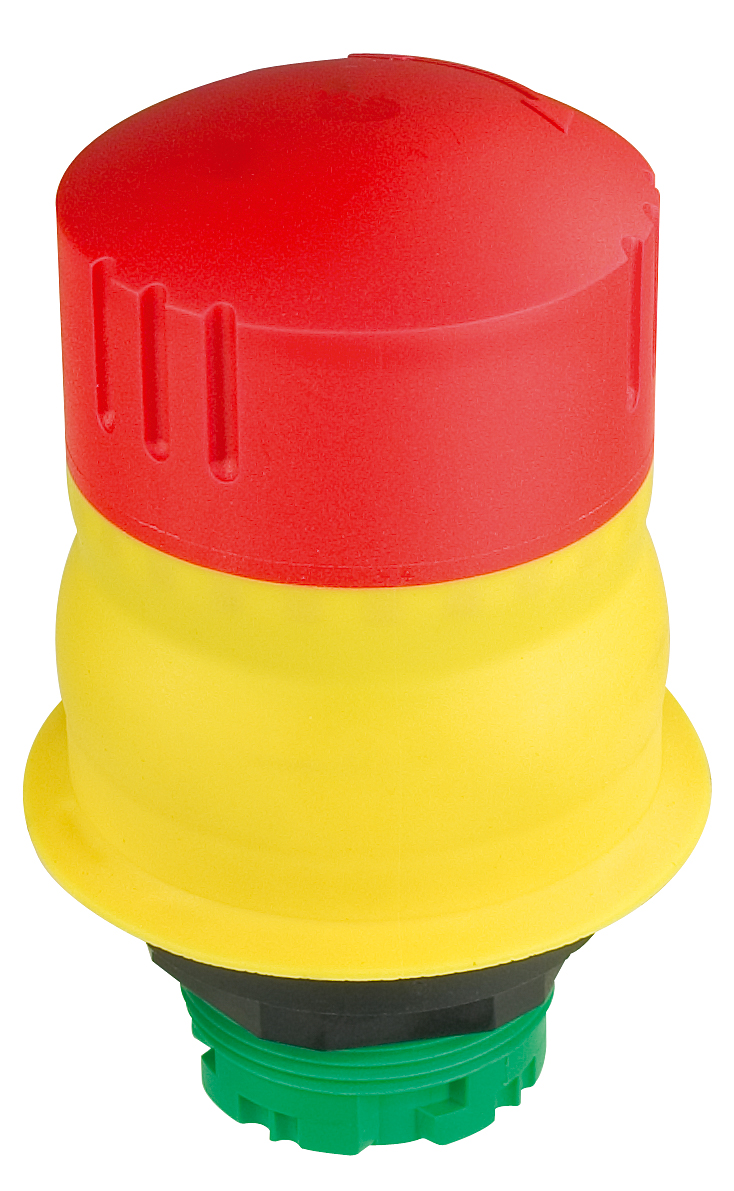

QRUVPEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP66
- Operating temperature
- -30°C to +70°C
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (06.06.2024)
-
QRV_GBEmergency stop -
QXJFVEmergency stop -

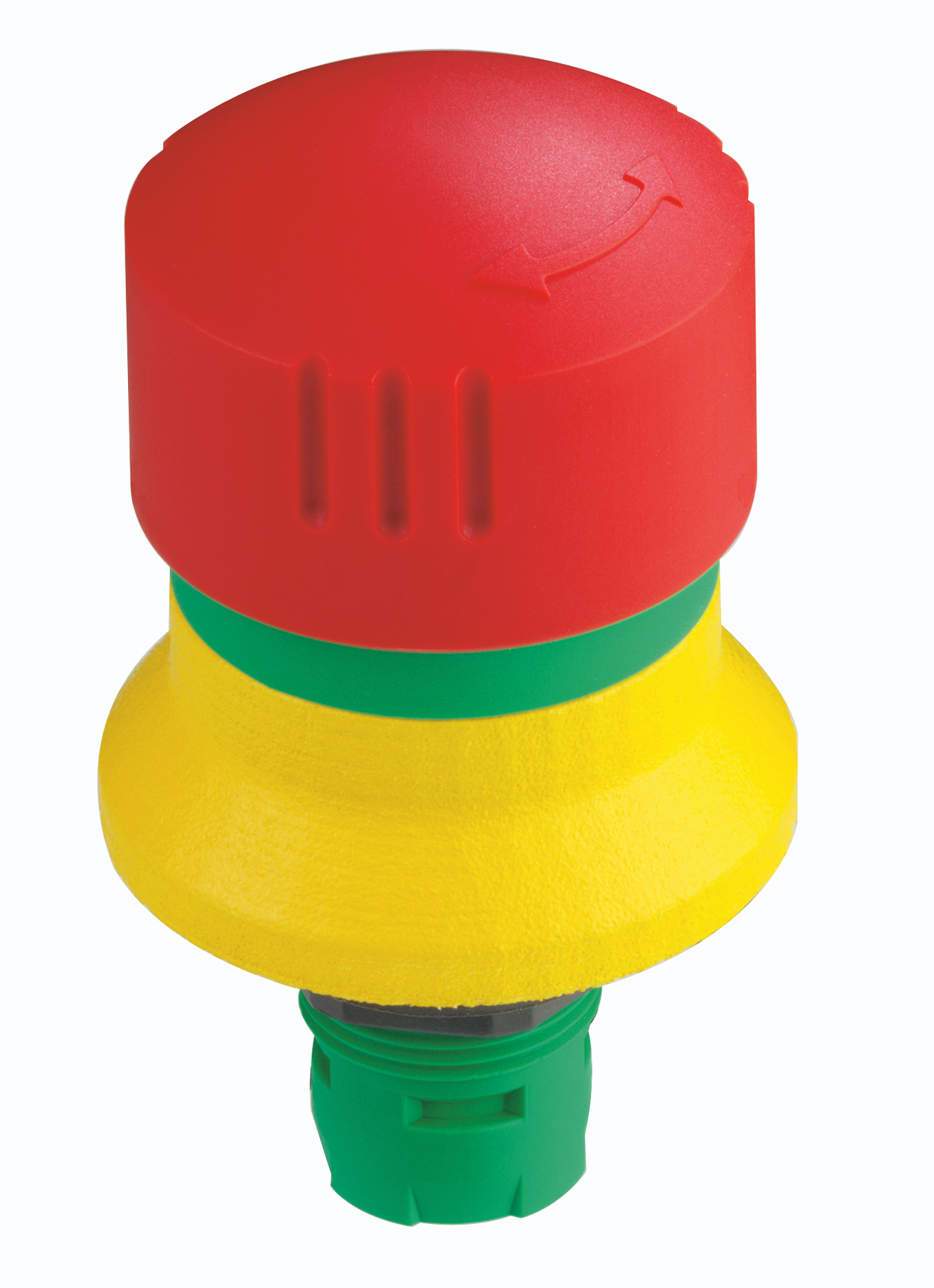

QXJUVEmergency stop- Panel cutout
- 24 x 24mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Operating temperature
- -30°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC
Values as stated in Schlegel’s datasheet (14.10.2015)
-
RFVEmergency stop -
RGVEmergency stop -
RKUV_111033Emergency stop -

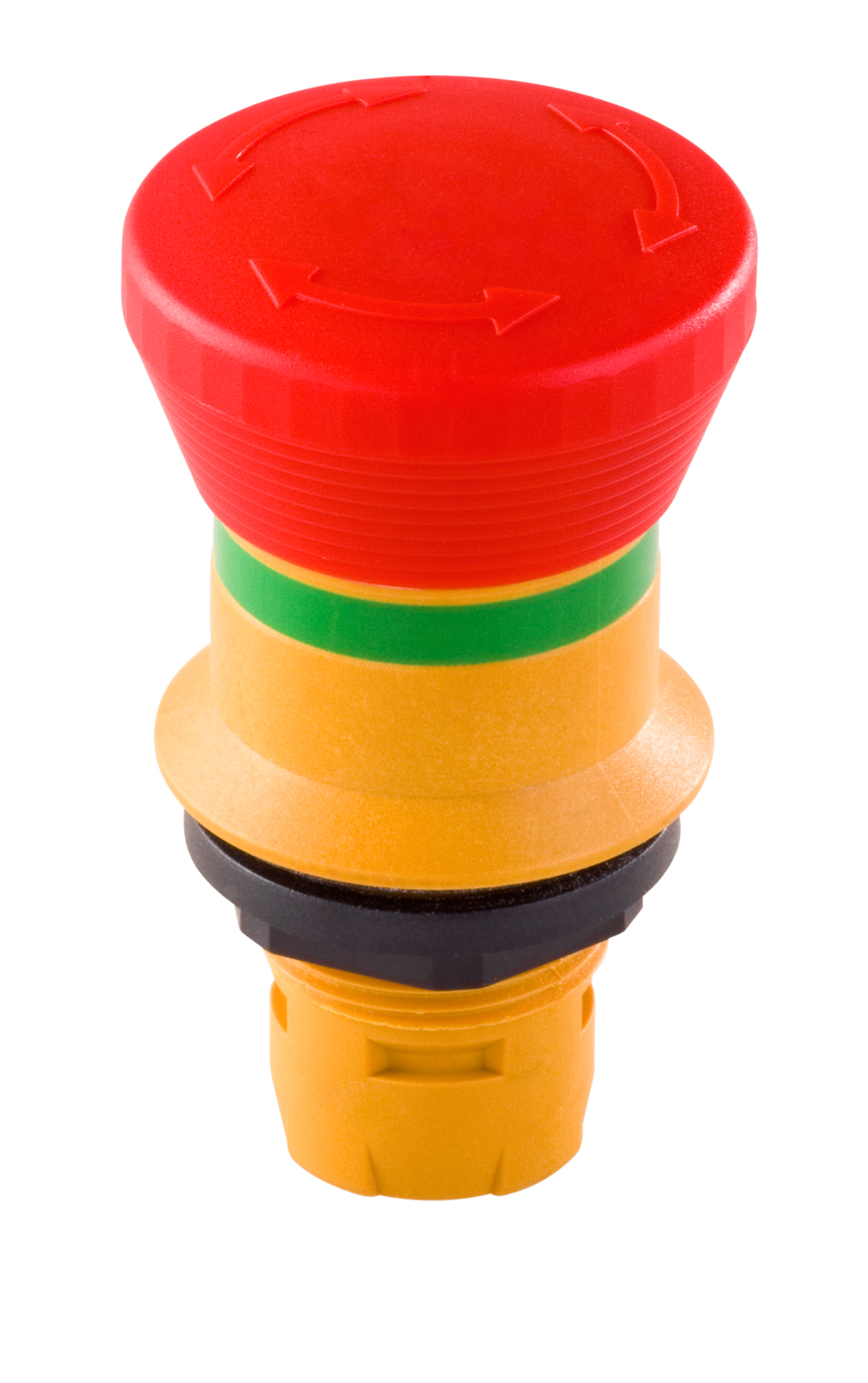

RKUV28Emergency stop- Series
- OKTRON®-R
- Panel cutout
- Ø16.2mm
- Protection (front)
- IP65
- Shape
- Round
- Color
- Yellow
- Actuator color
- red
More specifications (9)
- Housing color
- Yellow
- Release
- Twist L/R
- Mounting position
- any
- Operating temperature
- -30°C to +70°C
- Storage temperature
- -50 °C to 85 °C
- Mechanical life
- 30,000 operations
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (24.07.2025)
-
RKUV32Emergency stop- Panel cutout
- Ø16.2mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Operating temperature
- -30°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (02.06.2021)
-

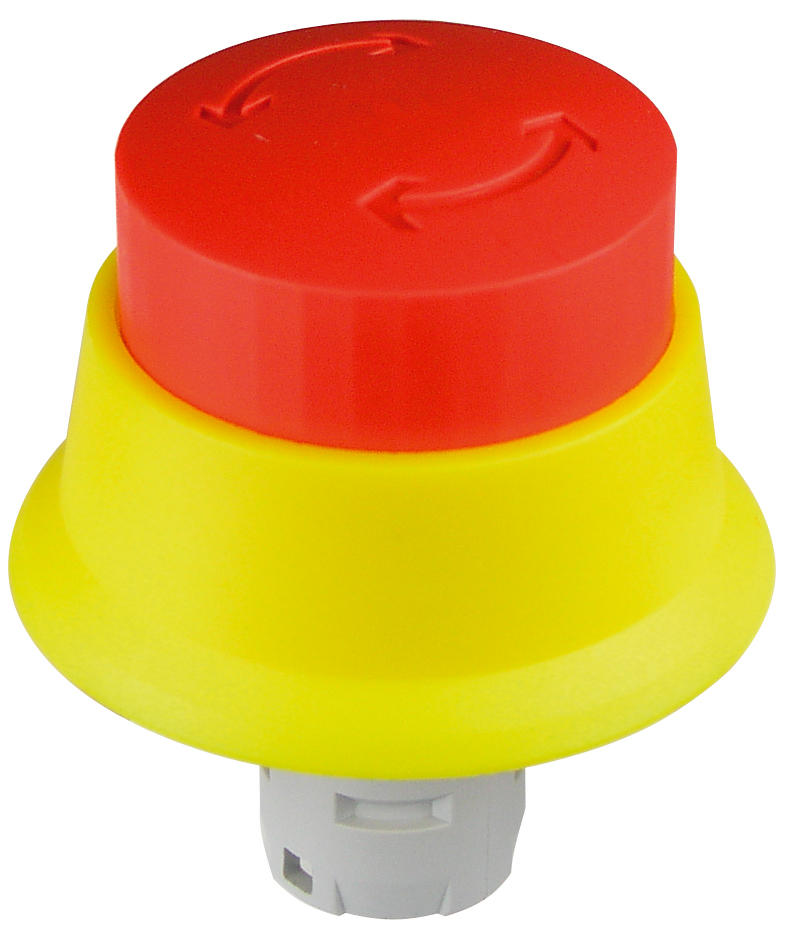

RKUV40Emergency stop- Panel cutout
- Ø16.2mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Operating temperature
- -30°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (02.06.2021)
-

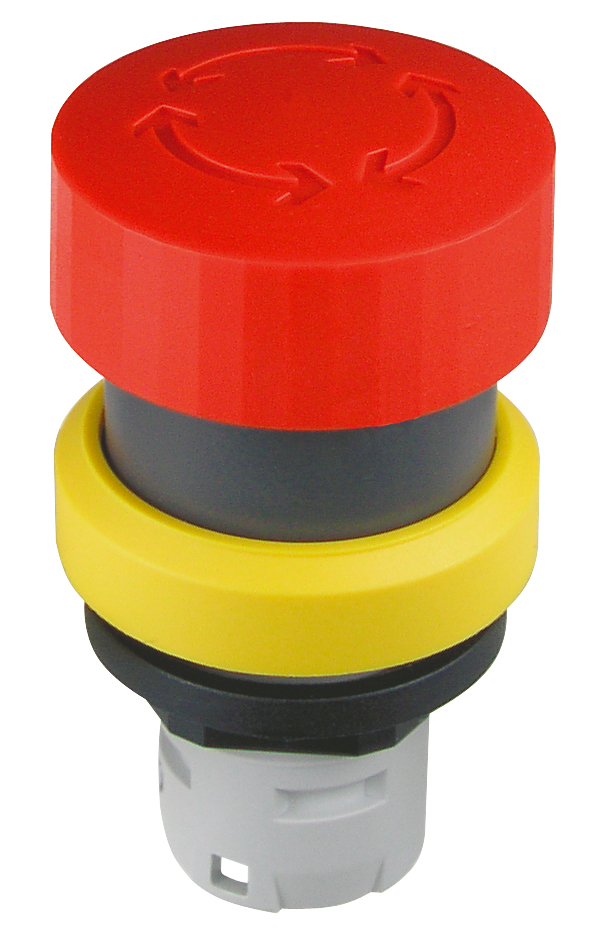

RKUVGBEmergency stop- Panel cutout
- 16.2 mm
- Protection (front)
- IP65/IP67
- Release
- twist release, left or right
- Travel
- 3 mm
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CCC, cCSAus, cURus, TÜV_SÜD, CE, UKCA
Values as stated in Schlegel’s datasheet (02.06.2021)
-

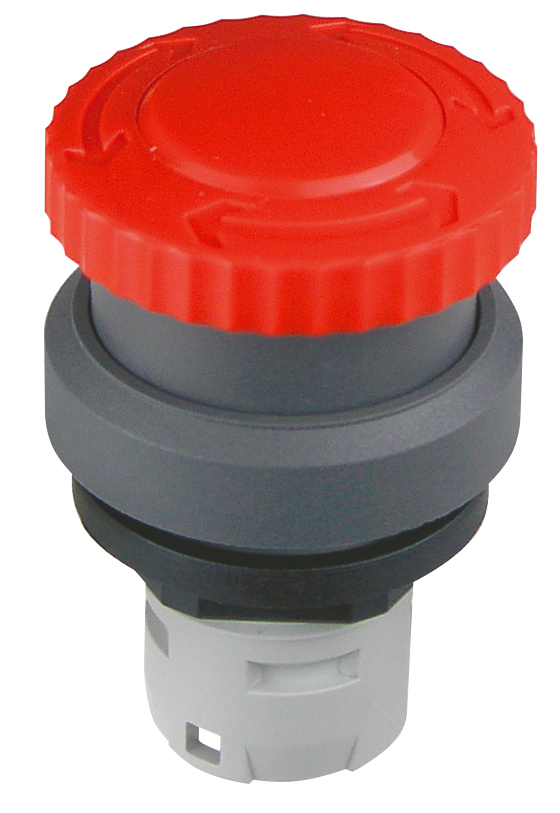

RKVEmergency stop -

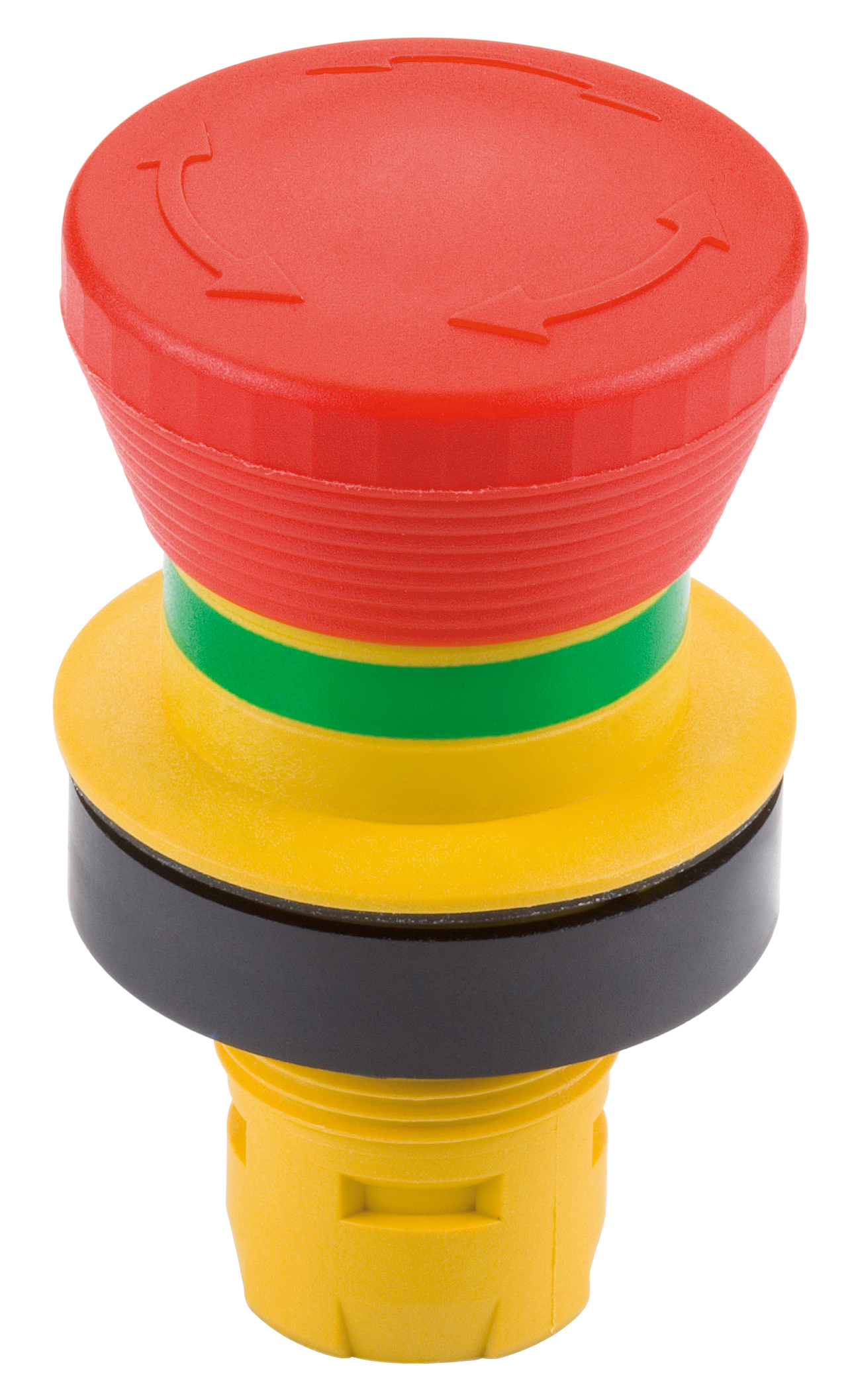

RRJUVEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP67
- Release
- Twist L/R
- Operating temperature
- -25°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (01.06.2021)
-

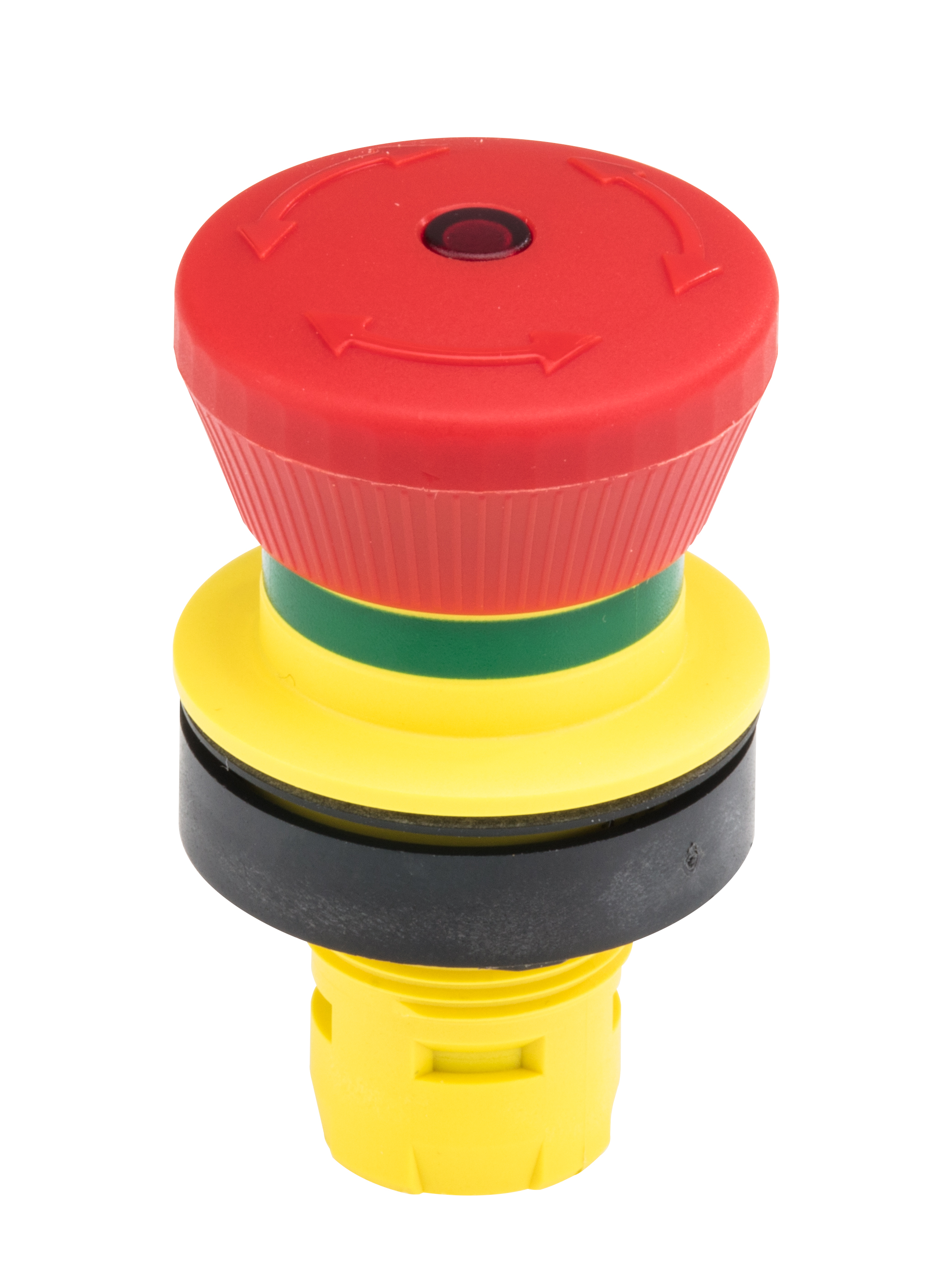

RRJVLEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Travel
- 3 mm
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (01.06.2021)
-

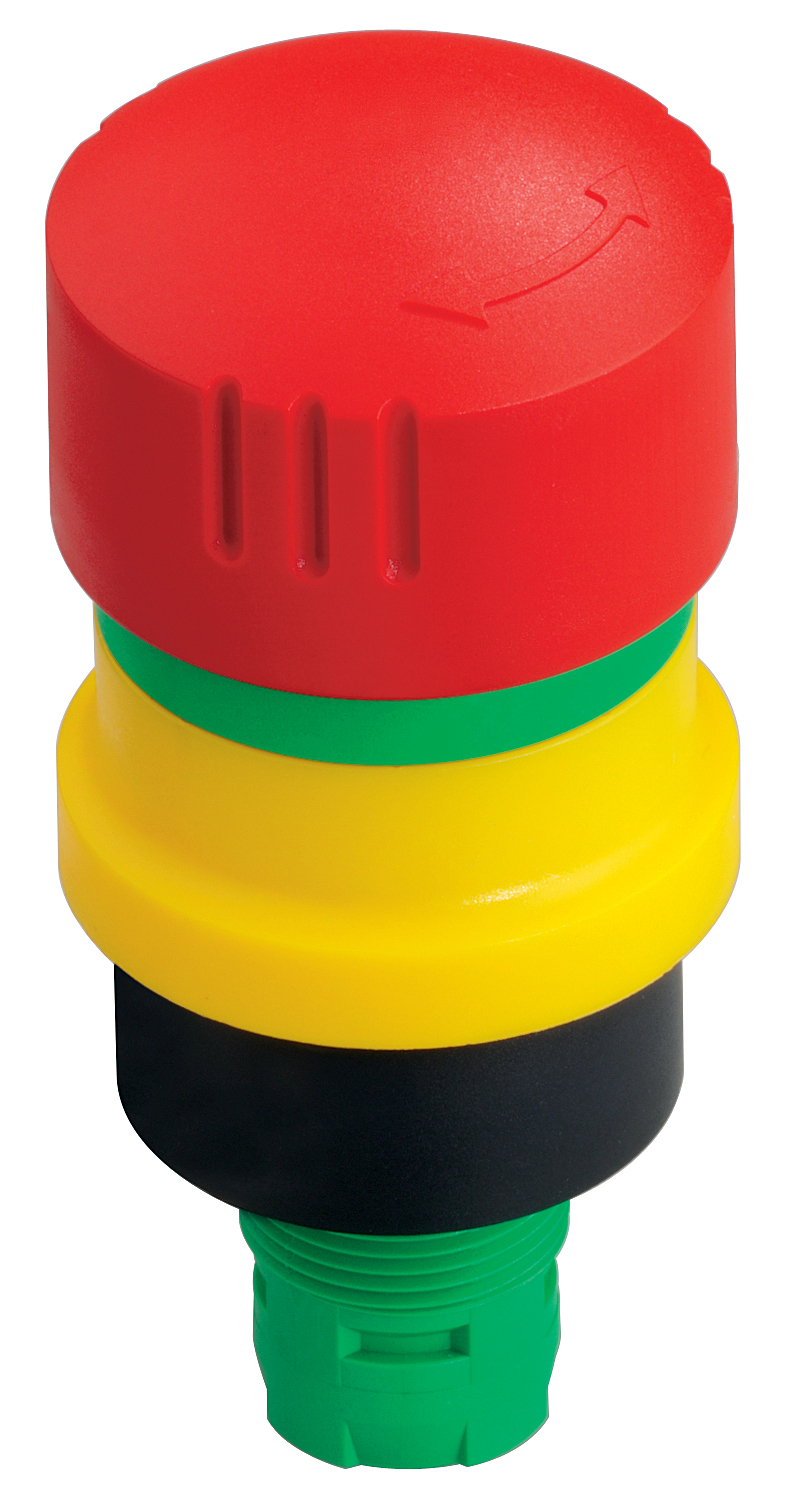

RXJUVEmergency stop- Panel cutout
- Ø22.3mm
- Protection (front)
- IP65
- Release
- Twist L/R
- Operating temperature
- -30°C to +70°C
- Standards
- EN 60947-5-1, EN 60947-5-5, EN ISO 13850
- Approvals
- UKCA
Values as stated in Schlegel’s datasheet (02.06.2021)
-
XFV32Emergency stop -
YVOOEmergency stop- Connection
- Faston Terminals 2.8 mm x 0.5 mm
- Contact material
- AgNi
Values as stated in Schlegel’s product data
-
YVOOIEmergency stop- Series
- MYnitron®
- Panel cutout
- Ø 16.2 mm
- Protection (front)
- IP65 / IP67 / IP69K
- Shape
- Round
- Actuator color
- red
- Housing color
- Yellow
More specifications (18)
- Release
- twist release, left or right
- Contacts
- 2NC + 1NO
- Connection
- Faston Terminals 2.8 mm x 0.5 mm
- Contact material
- AgNi
- Mounting depth
- 18 mm
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 250 V AC
- Voltage
- 35V DC
- Current
- 5A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- IEC/EN 60947-5-1 / IEC/EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, cURus, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (08.06.2026)
Specifications: only values that Schlegel’s own datasheet for the part states (or Schlegel’s product data where we hold no datasheet), with English field names. The datasheet PDF, from Schlegel, has the complete data. Photos may show a variant.
Custom & OEM
Need custom? Gross Automation is your OEM channel
Schlegel USA sells the standard catalog at list price. Gross Automation works with OEMs and volume buyers to get the best price and to build custom products: color changes, custom text, and other unique challenges. Have a special need? We're your official OEM channel.
Need a quote, a cross-reference, or a complete panel?
Tell us what you’re building. A Gross Automation engineer will help you spec the right Schlegel parts.
