Schlegel enclosures and control stations
Browse Schlegel enclosures and equipped control stations from Gross Automation, including the design-focused proboxx® line, or have us build a complete UL 508A control station. 25 part numbers below, each with a quote button.
Pre-equipped enclosures hold one, two, or several operators in a finished housing ready to mount. The proboxx line adds a modern look for machines where the operator station is visible.
Need more than a housing? Gross Automation’s UL 508A panel shop builds complete, tested control stations and panels, populated with the exact Schlegel operators your application calls for.
How to choose
- Number of operators / cutouts
- Material and finish (proboxx design line available)
- Protection rating for the install environment
- Pre-equipped vs. custom-built by our panel shop
No listed part matches. Send us the part number or what you need, and we will find it.
Request a quoteEnclosure 12
-
IRBQRUVGBEnclosure- Color
- Red
Values as stated in Schlegel’s product data
-
PXI3M2094-0001Enclosure -
PXI4M0009-0007Enclosure -
PXI4M1008-0006Enclosure -
PXI4M2096-0001Enclosure -
PXM2V2117-0001Enclosure -

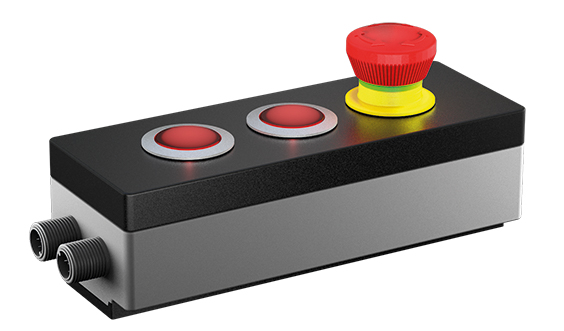

PXM3M1002Enclosure -

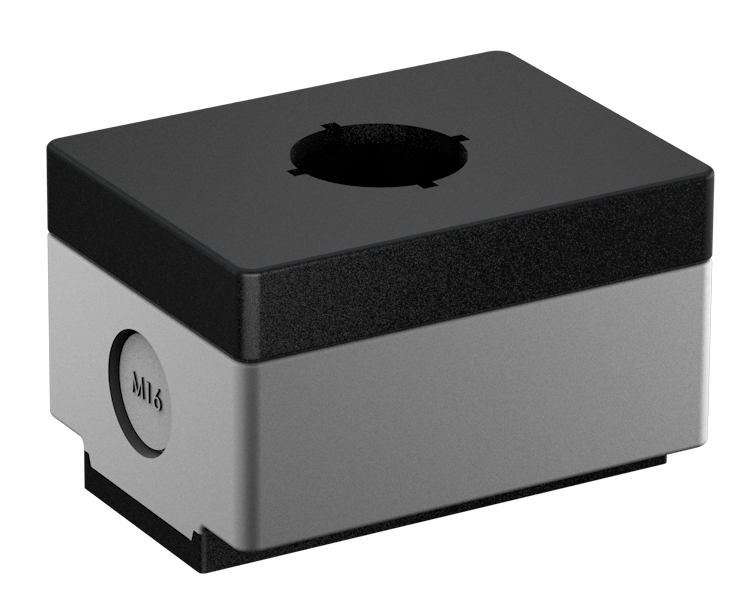

PXM3M2093_0002Enclosure -
PXM3V2006-0002Enclosure -
PXSBM3M1002Enclosure -
SIL16/1Enclosure- Panel cutout
- Ø16.2mm
- Color
- Black/Yellow
Values as stated in Schlegel’s product data
-

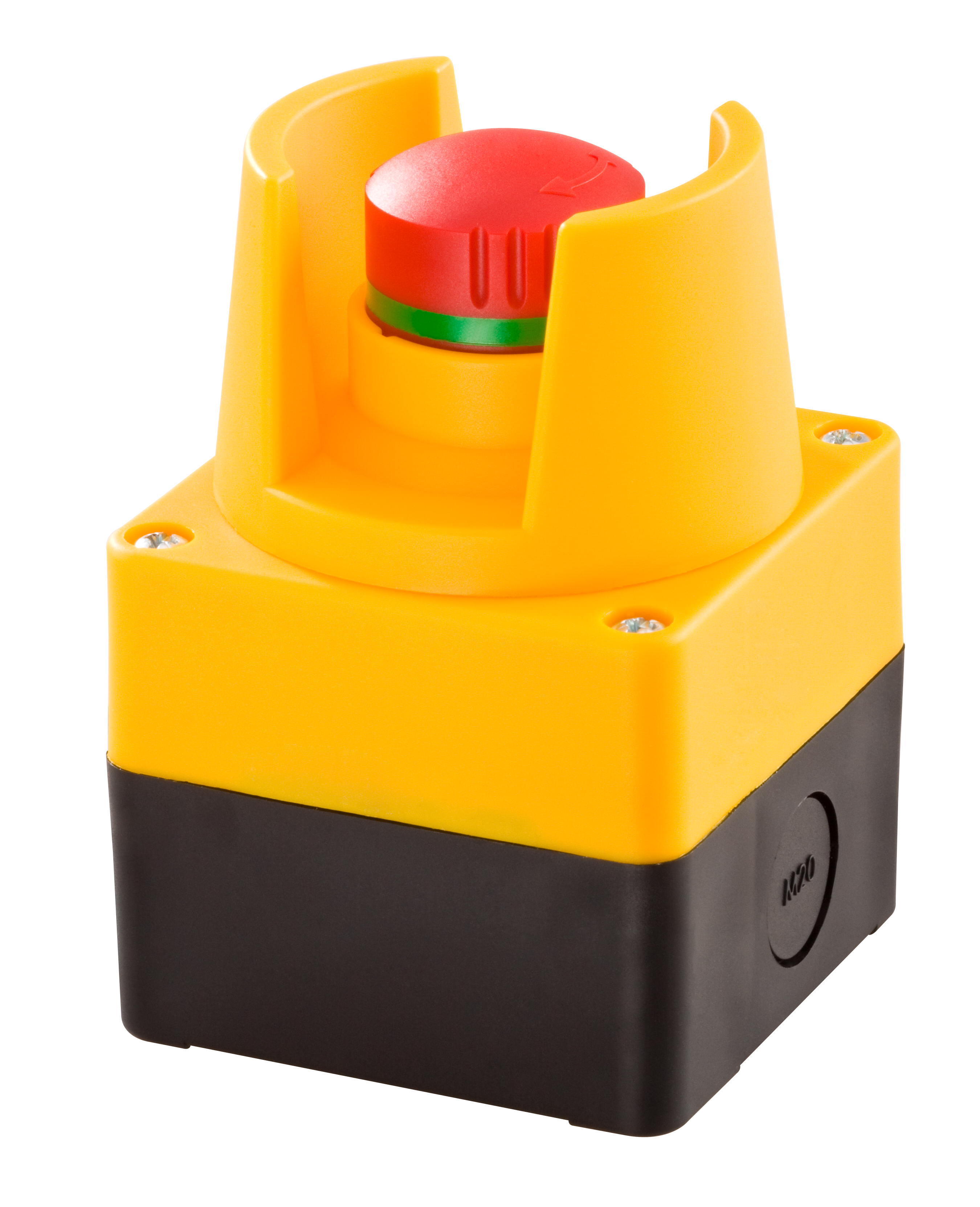

SIL22/1Enclosure
Insulated enclosure, equipped 8
-
IRBFVGBInsulated enclosure, equipped- Protection (front)
- IP65
- Actuator color
- red
- Housing color
- Yellow
- Release
- Twist L/R
- Contacts
- 1NC + 1NO
- Position indicator
- Yes
Values as stated in Schlegel’s datasheet (12.01.2026)
-

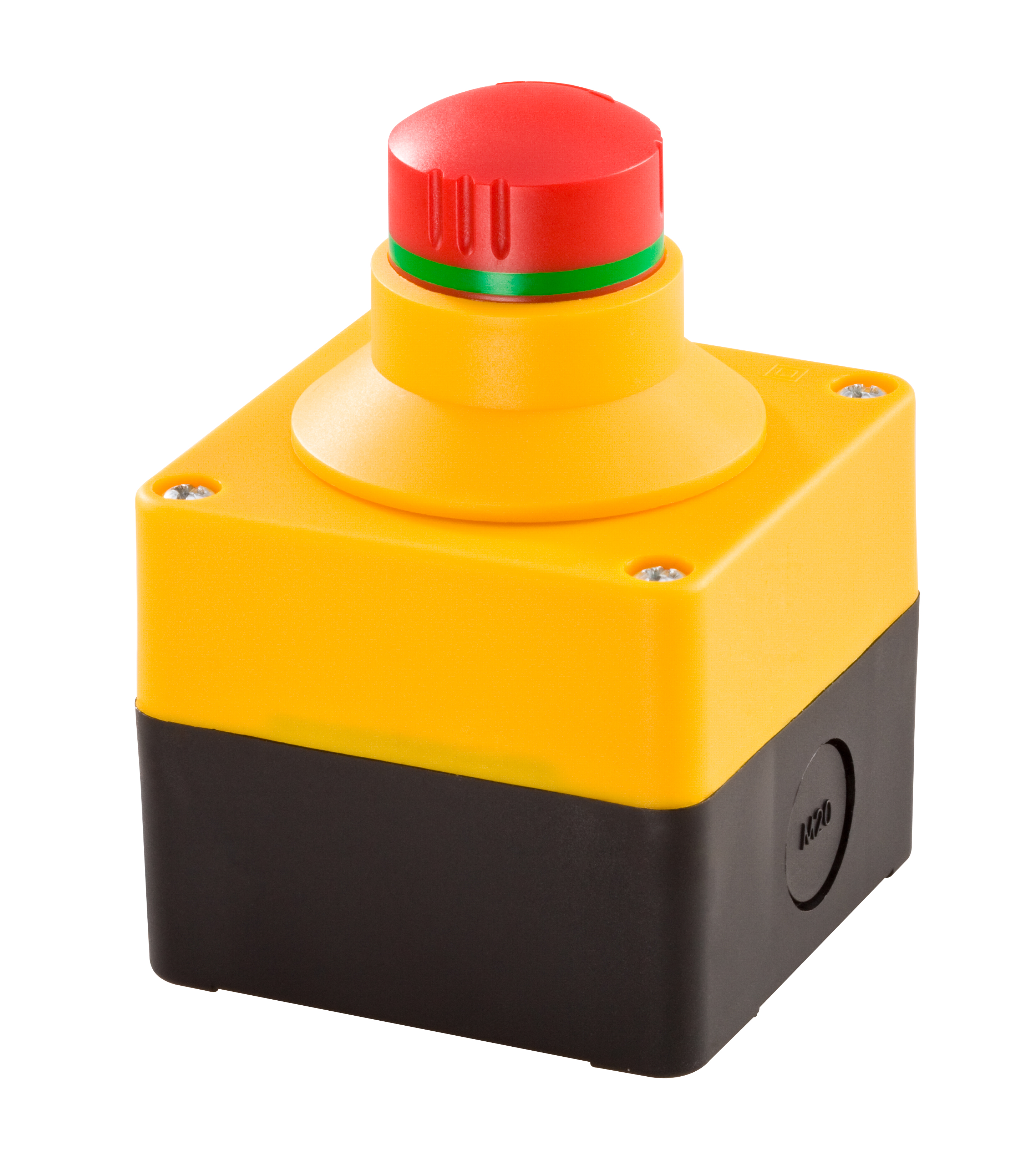

SIL_QRBUVOOInsulated enclosure, equipped- Protection (front)
- IP65
- Actuator color
- red
- Release
- twist release, left or right
- Contacts
- 2NC
- Connection
- screw connection 2 x 2.5 mm²
- Contact material
- AgNi
More specifications (13)
- Operating temperature
- -25 °C to 60 °C
- Storage temperature
- -25 °C to 85 °C
- Mechanical life
- 50,000 operations 20°C
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15 A600
- Insulation voltage
- 600 V AC
- Voltage
- 440 V AC
- Current
- 1.6 A AC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- IEC/EN 60947-5-1 / IEC/EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, UKCA, cURus
- Dimensions
- 72 x 72 x 103 mm
Values as stated in Schlegel’s datasheet (08.06.2026)
-

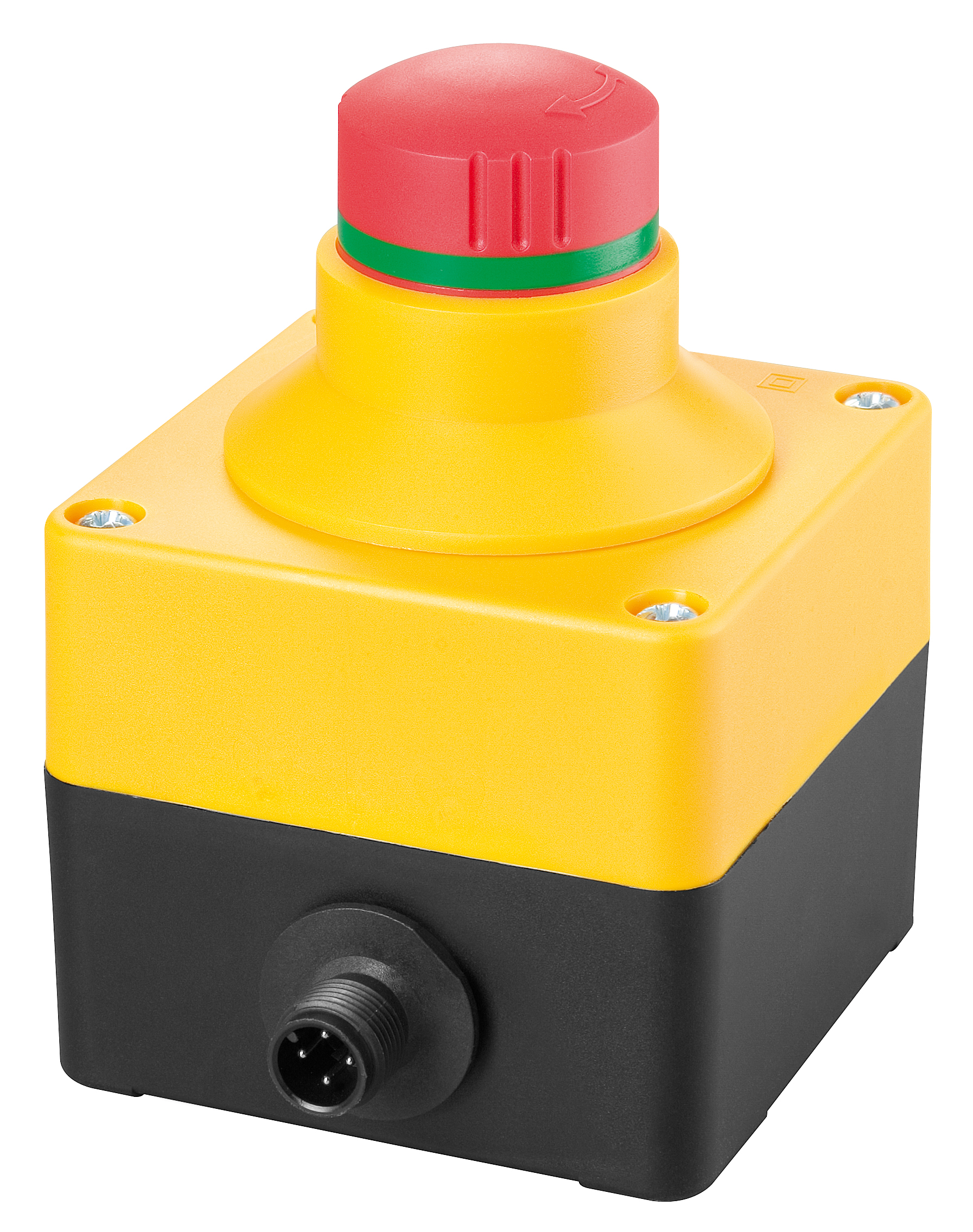

SIL_QRBUVOO_M12Insulated enclosure, equipped- Protection (front)
- IP65 with M12 cable connected
- Actuator color
- red
- Release
- twist release, left or right
- Contacts
- 2NC
- Contact material
- AgNi
- Storage temperature
- -25 °C to 85 °C
More specifications (11)
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 250 V AC
- Voltage
- 60V DC
- Current
- 0.4A DC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN 60068 / EN ISO 13850
- Approvals
- CE, UKCA, cURus
- Dimensions
- 72 x 72 x 103 mm
Values as stated in Schlegel’s datasheet (08.06.2026)
-
SIL_QRSKUVOO_M12Insulated enclosure, equipped- Protection (front)
- IP65 with M12 cable connected
- Actuator color
- red
- Release
- twist release, left or right
- Contacts
- 2NC
- Contact material
- AgNi
- Storage temperature
- -25 °C to 85 °C
More specifications (11)
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- AC-15
- Insulation voltage
- 250 V AC
- Voltage
- 125V DC
- Current
- 1A DC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN 60068 / EN ISO 13850
- Approvals
- CE, UKCA, cURus
- Dimensions
- 72 x 72 x 104.1 mm
Values as stated in Schlegel’s datasheet (08.06.2026)
-
SIL_QRSKUVOOIM12Insulated enclosure, equipped- Protection (front)
- IP65
- Actuator color
- red
- Release
- twist release, left or right
- Contacts
- 2NC + 1NO
- Connection
- M12 Connector
- Contact material
- AgNi
More specifications (12)
- Storage temperature
- -25 °C to 85 °C
- Mechanical life
- 50,000 operations
- Electrical life
- 50,000 operations at rated load
- Utilization category
- DC-13
- Insulation voltage
- 30 V DC
- Voltage
- 24 V DC
- Current
- 2 A DC
- Positive opening
- per EN 60947-5-1 Annex K
- Position indicator
- Yes
- Standards
- EN 60947-5-1 / EN 60947-5-5 / EN 60068 / EN ISO 13850
- Approvals
- CE, UKCA, cURus
- Dimensions
- 72 x 72 x 104.1 mm
Values as stated in Schlegel’s datasheet (08.06.2026)
-

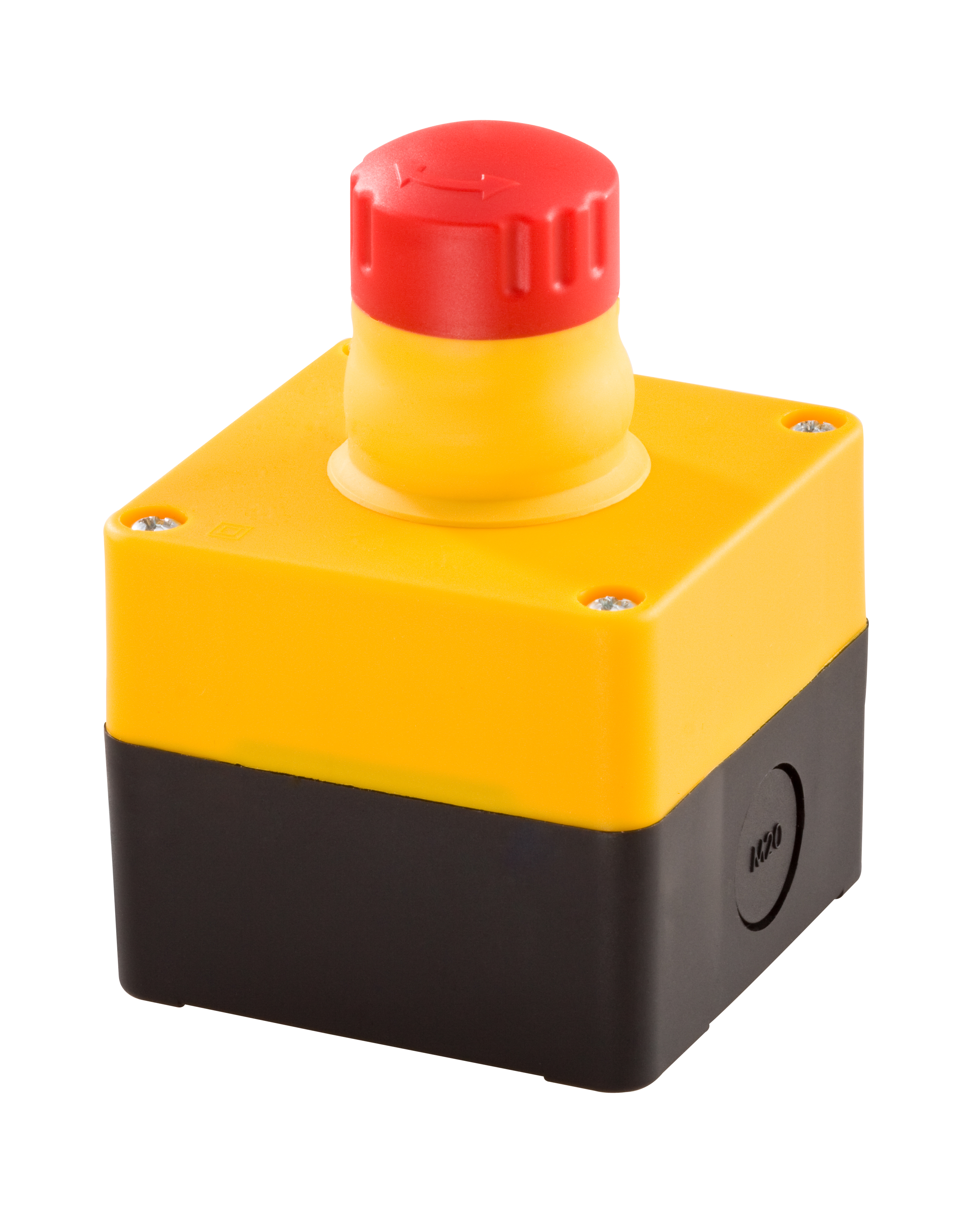

SIL_QRUVPOOInsulated enclosure, equipped- Protection (front)
- IP66
- Color
- Black/Yellow
- Actuator color
- red
- Release
- Twist L/R
- Contacts
- 2NC
- Connection
- screw connection 2 x 2.5 mm²
More specifications (13)
- Contact material
- AgNi
- Operating temperature
- -25 °C to 60 °C
- Storage temperature
- -25 °C to 85 °C
- Mechanical life
- > 6,050 operations
- Electrical life
- > 6,050 operations
- Utilization category
- AC-15 A600
- Insulation voltage
- 600 V AC
- Voltage
- 60V DC
- Current
- 0.12A DC
- Positive opening
- per EN 60947-5-1 Annex K
- Standards
- IEC/EN 60947-5-1 / IEC/EN 60947-5-5 / EN ISO 13850
- Approvals
- CE, UKCA, cURus
- Dimensions
- 72 x 72 x 103 mm
Values as stated in Schlegel’s datasheet (08.06.2026)
-

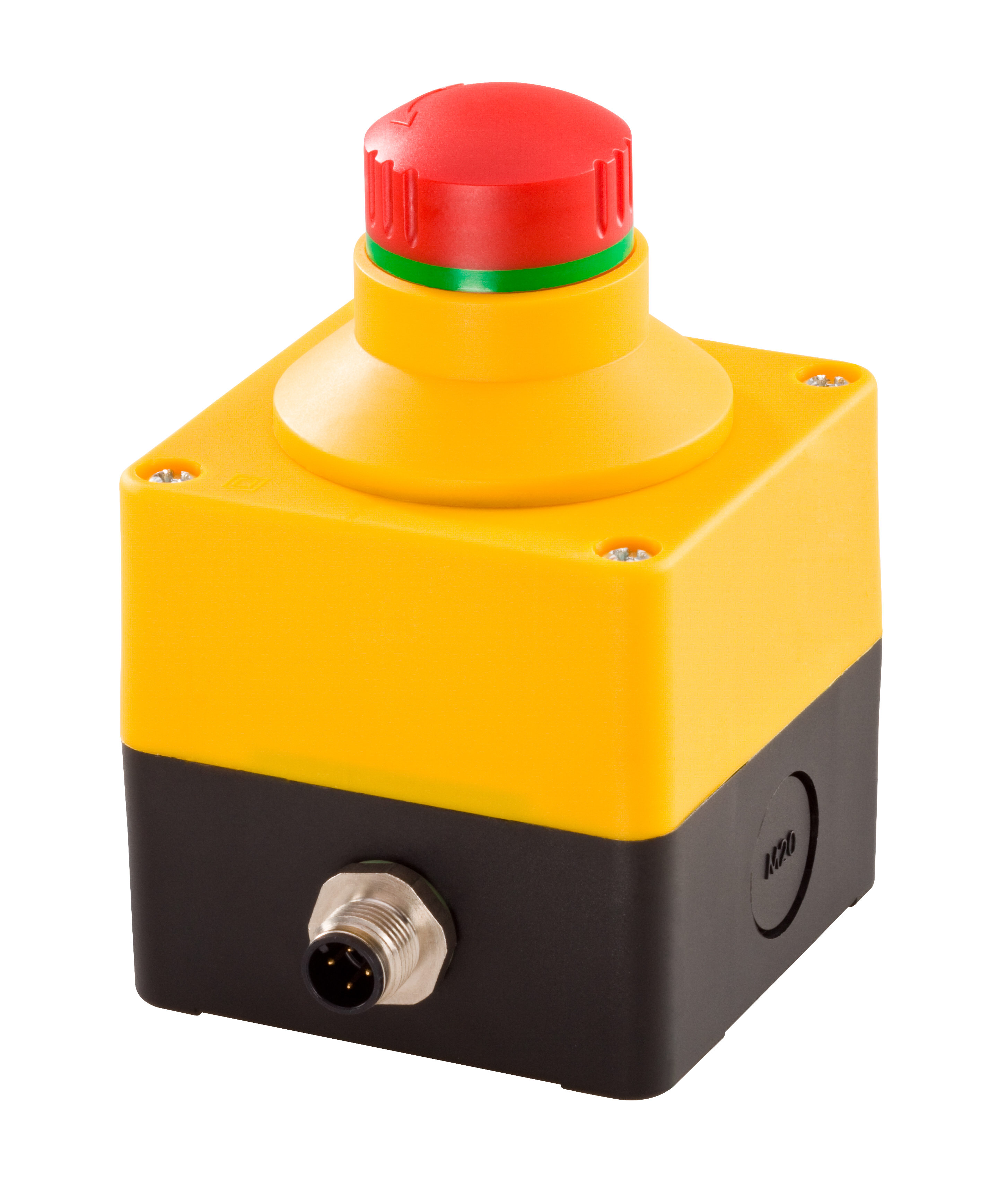

SILH_ASI_QRBLUVInsulated enclosure, equipped- Protection (front)
- IP65
- Operating temperature
- -25°C to +60°C
- Approvals
- ASI
Values as stated in Schlegel’s datasheet (27.06.2022)
-

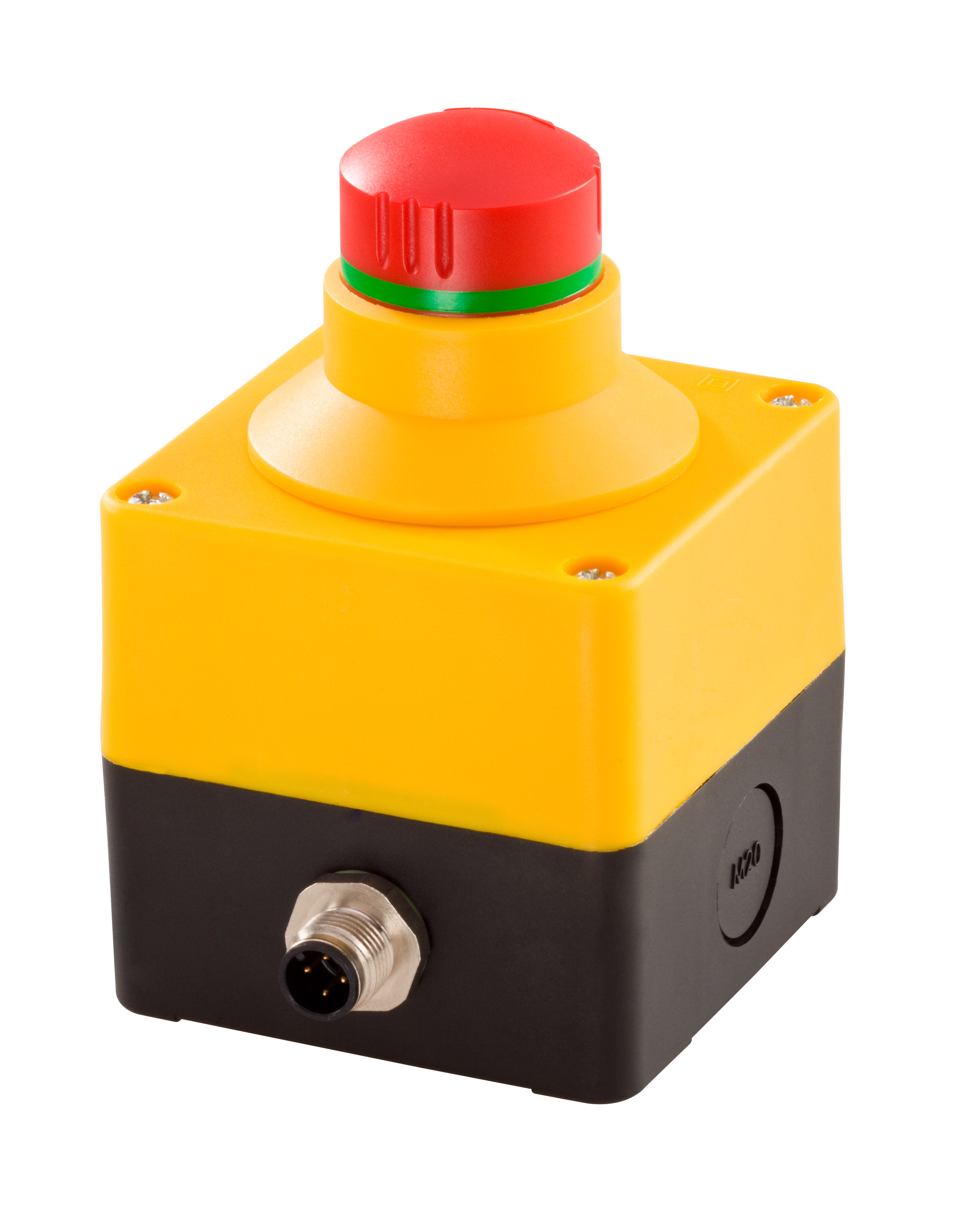

SILH_ASIE_QRBUVInsulated enclosure, equipped- Protection (front)
- IP65
- Illuminated
- No
- Mounting depth
- 38.5 mm
Values as stated in Schlegel’s datasheet (30.10.2024)
Insulated enclosure (empty) 4
-

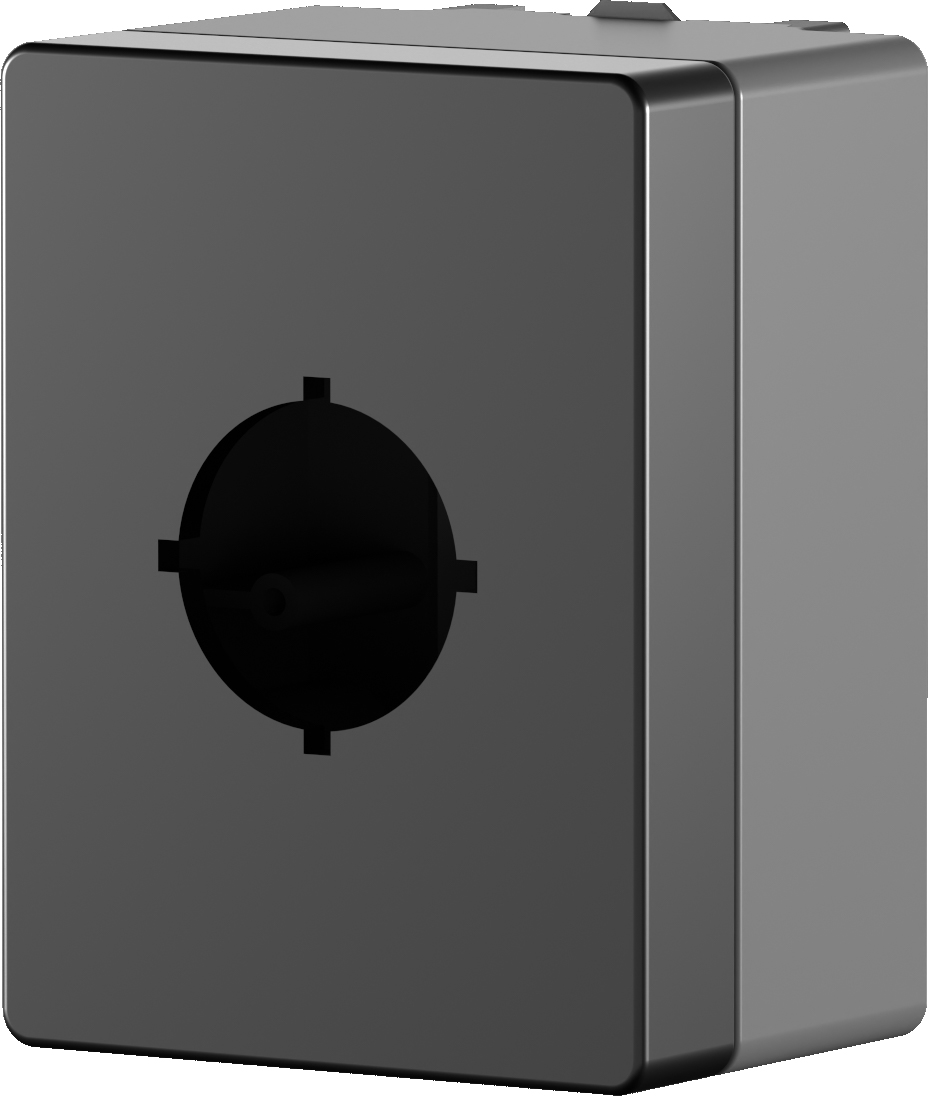

PXD1Insulated enclosure (empty)- Series
- proboxx®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
More specifications (2)
- Approvals
- CE, UL
- Weight
- 67.2 g
Values as stated in Schlegel’s datasheet (01.07.2026)
-

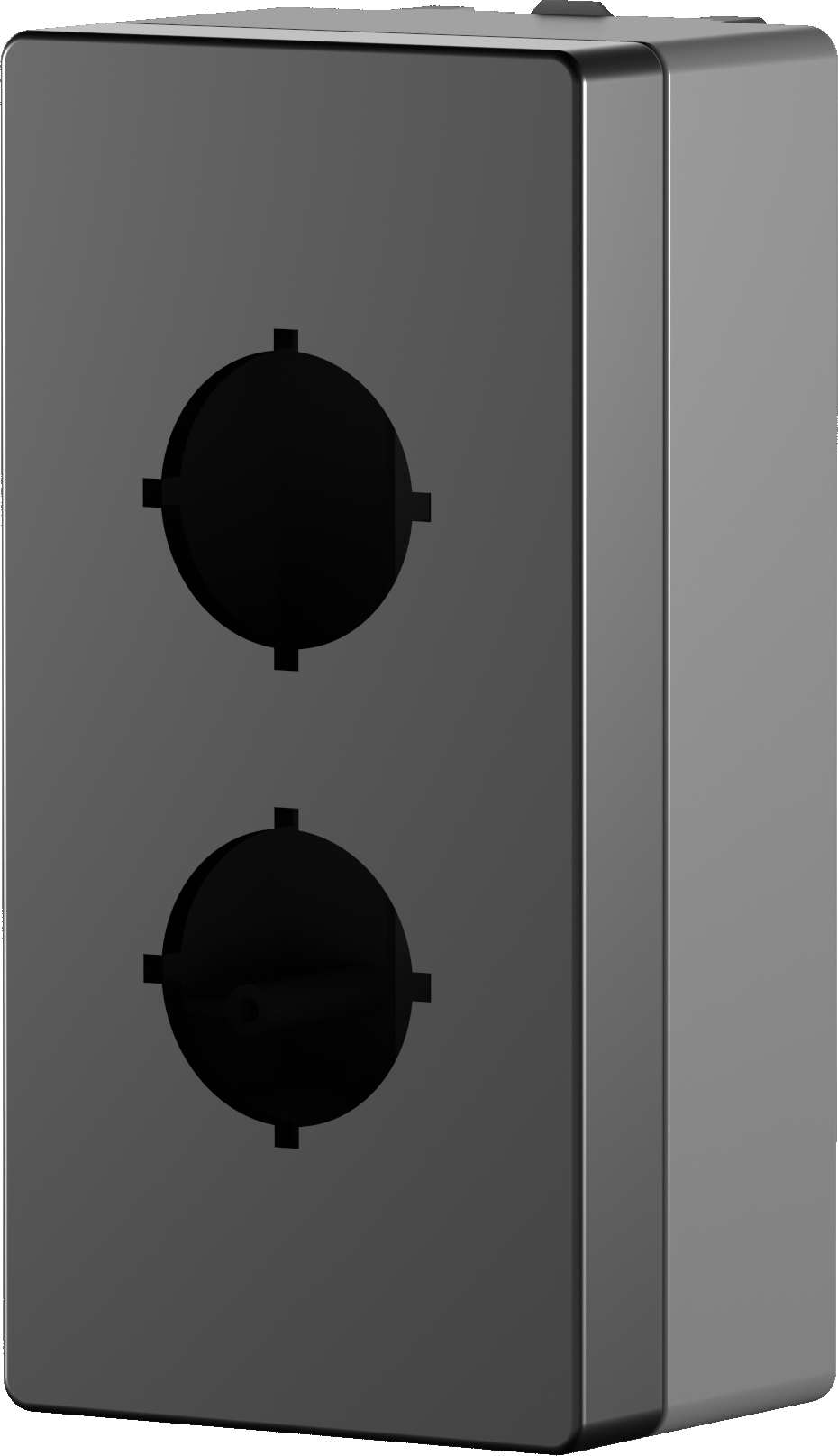

PXD2Insulated enclosure (empty)- Series
- proboxx®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
More specifications (2)
- Approvals
- CE, UL
- Weight
- 92.4 g
Values as stated in Schlegel’s datasheet (02.10.2025)
-

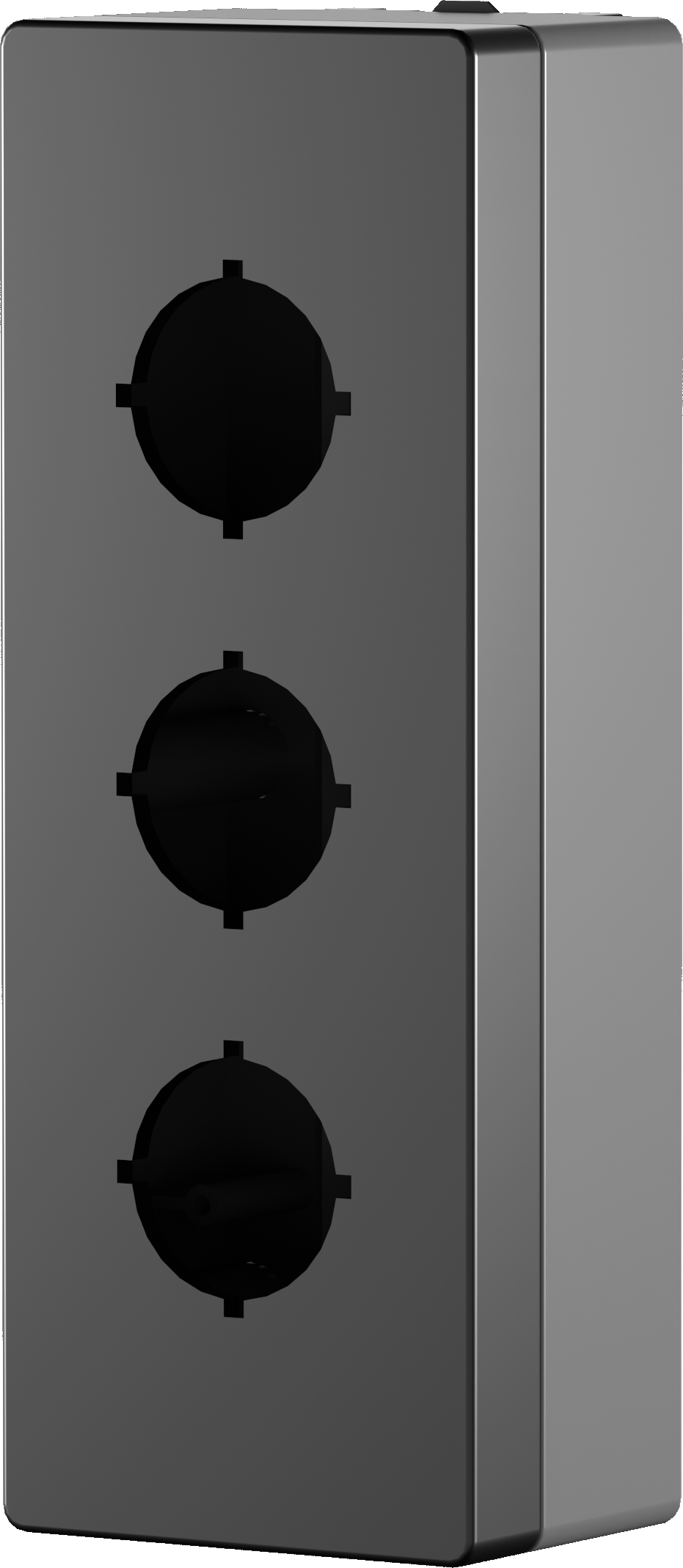

PXD3Insulated enclosure (empty)- Series
- proboxx®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
More specifications (2)
- Approvals
- CE, UL
- Weight
- 121 g
Values as stated in Schlegel’s datasheet (02.10.2025)
-
PXD4Insulated enclosure (empty)- Series
- proboxx®
- Panel cutout
- Ø 22.3 mm
- Protection (front)
- IP65
- Mounting position
- any
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -40 °C to 80 °C
More specifications (2)
- Approvals
- CE, UL
- Weight
- 145 g
Values as stated in Schlegel’s datasheet (02.10.2025)
Stainless steel enclosure, equipped 1
-

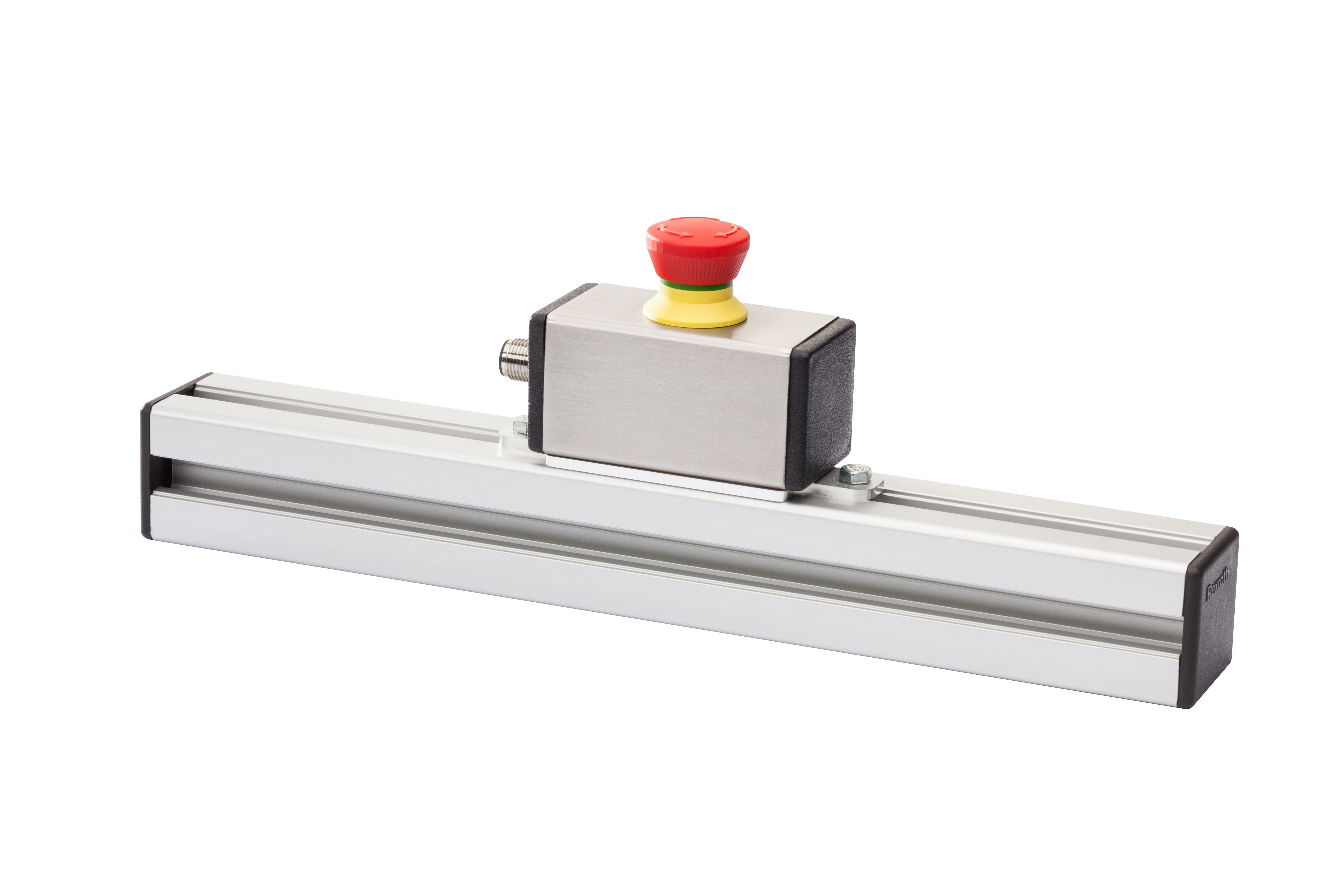

S41_01Stainless steel enclosure, equipped- Protection (front)
- IP54
- Release
- twist release, left or right
- Contact material
- Gold-plated
- Operating temperature
- -25 °C to 70 °C
- Storage temperature
- -25 °C to 80 °C
- Approvals
- CE, TÜV_Süd, UKCA
Values as stated in Schlegel’s datasheet (10.12.2025)
Specifications: only values that Schlegel’s own datasheet for the part states (or Schlegel’s product data where we hold no datasheet), with English field names. The datasheet PDF, from Schlegel, has the complete data. Photos may show a variant.
